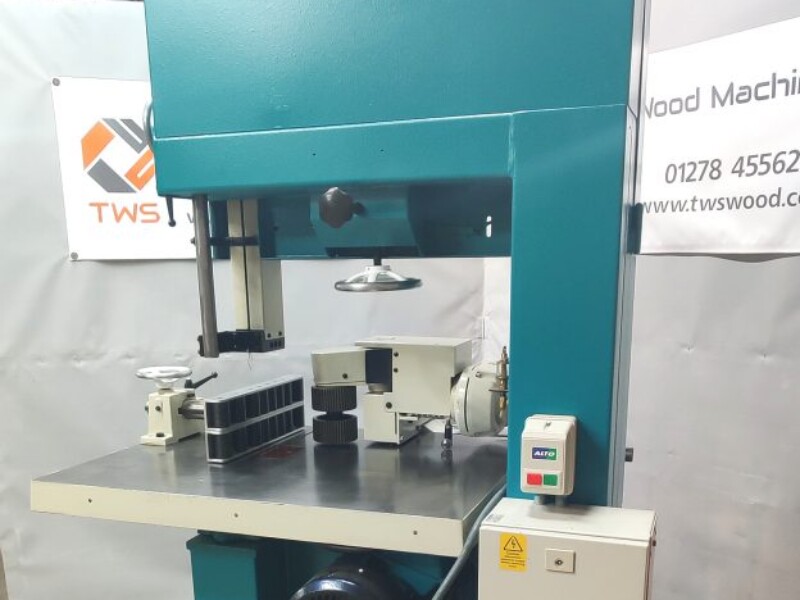

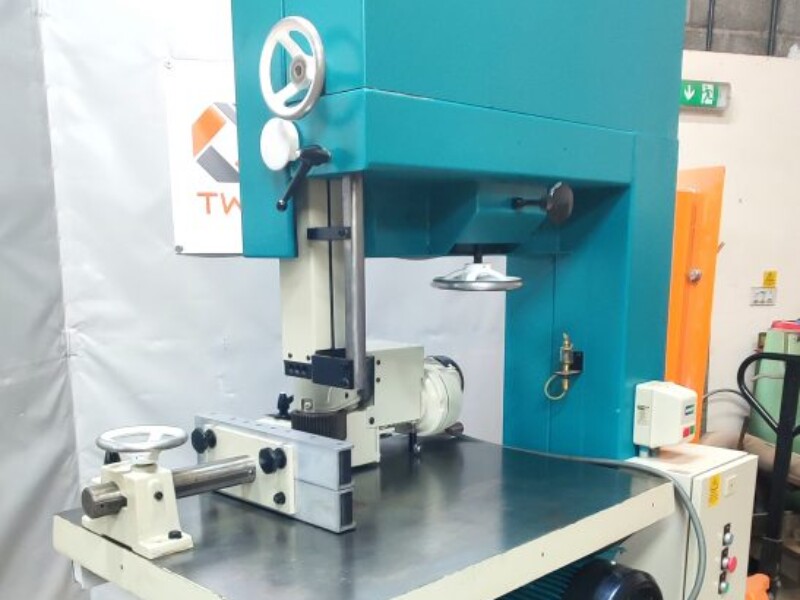

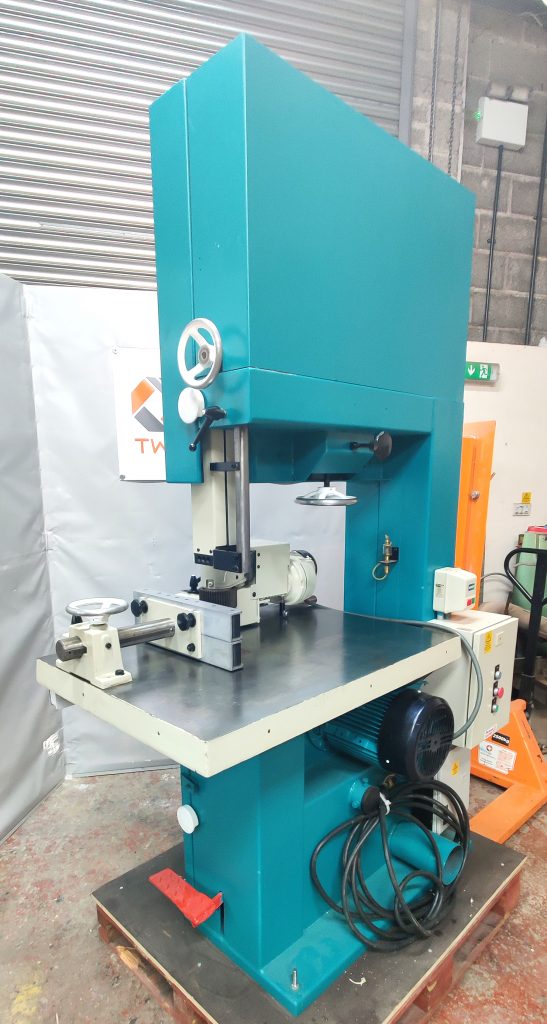

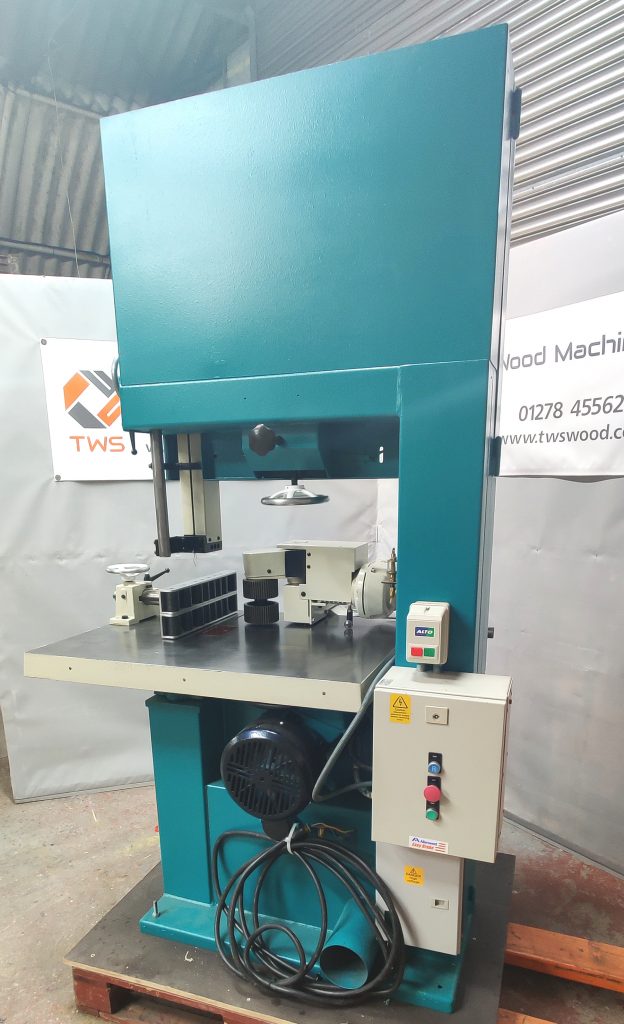

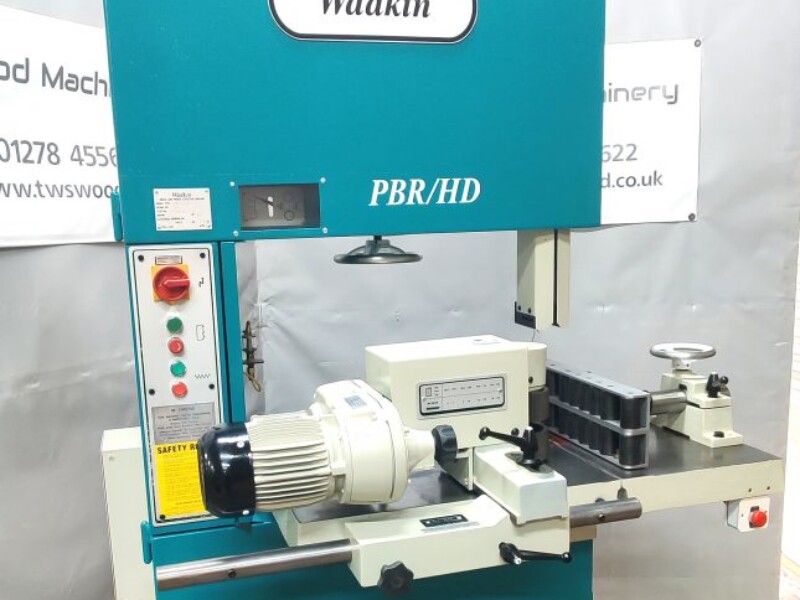

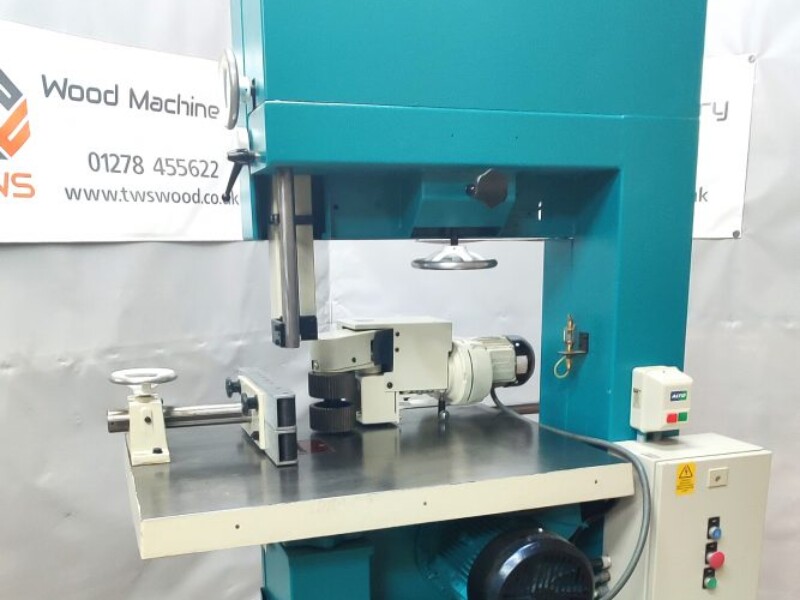

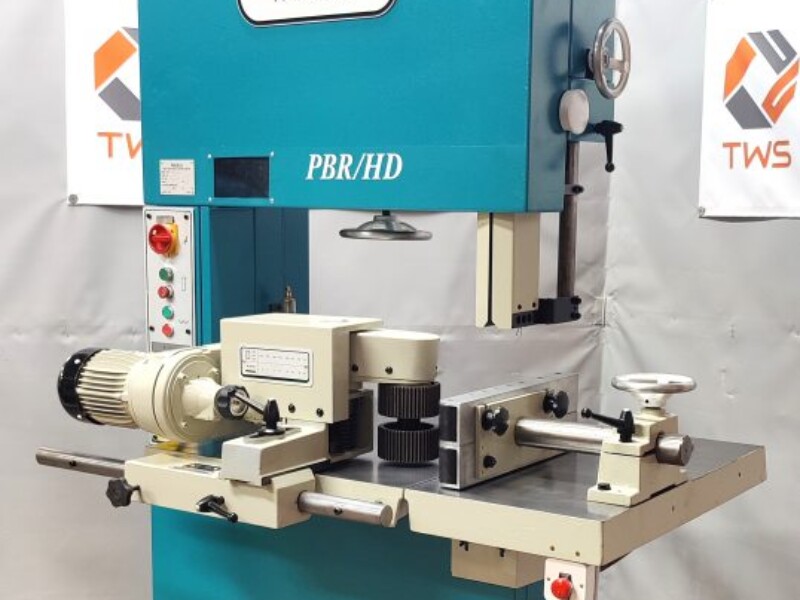

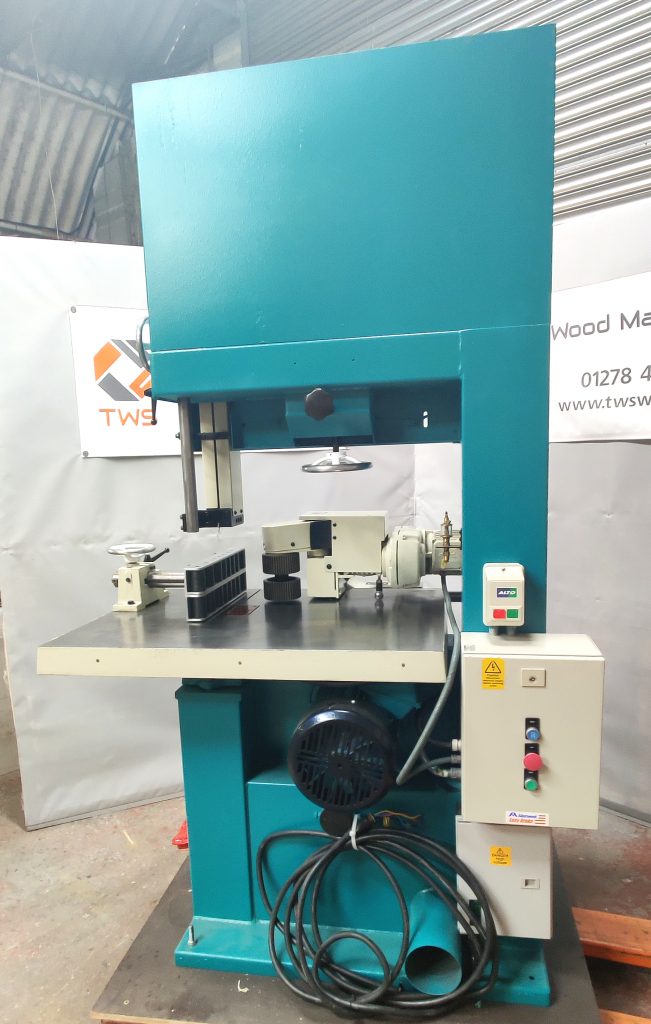

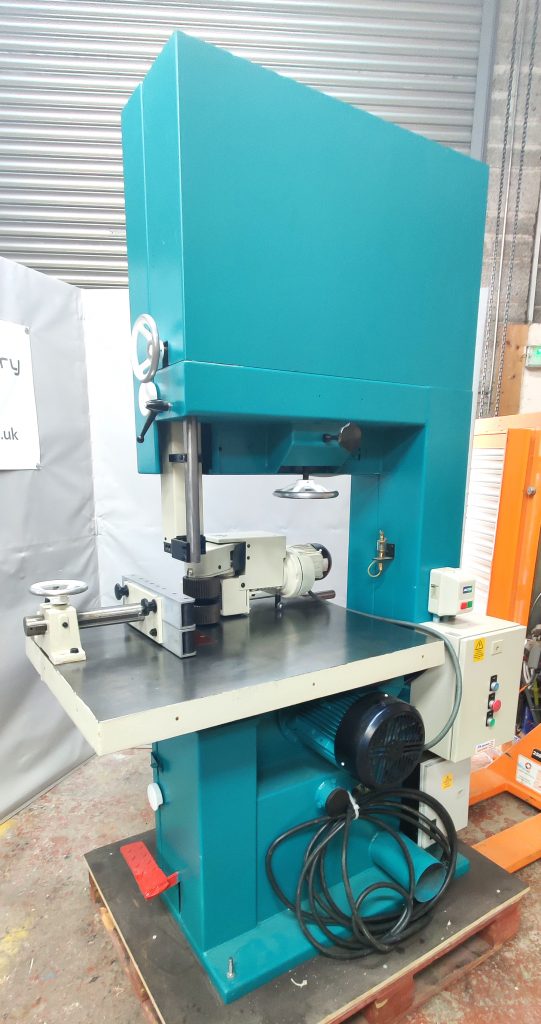

Wadkin PBR-HD Band Resaw

£8,500.00 +VAT
used
Add to Quote
Category:

introduces low cost resawing with good productivity and low timber wastage.

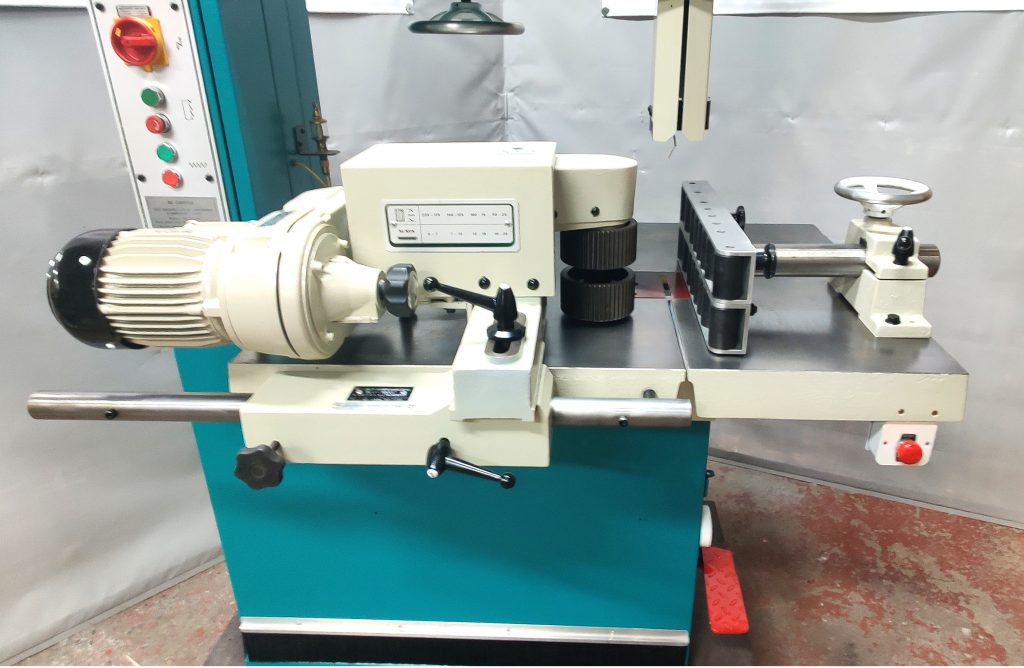

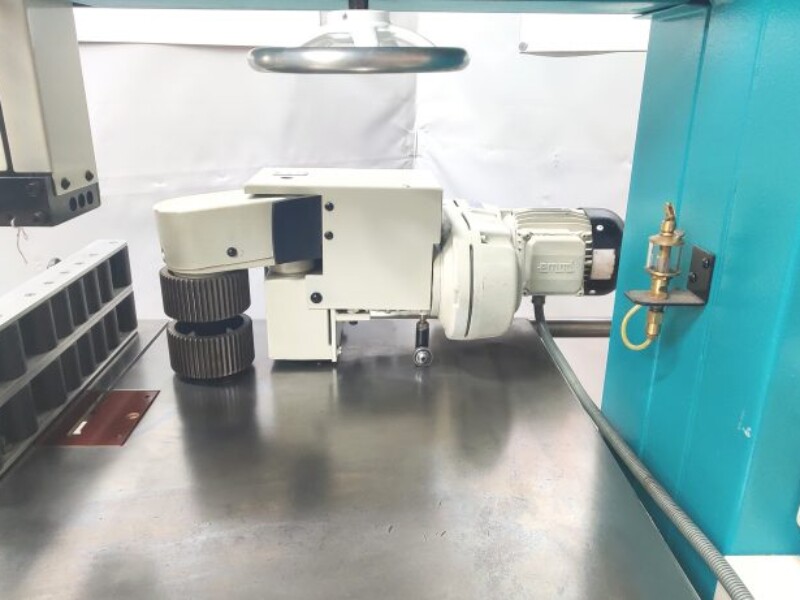

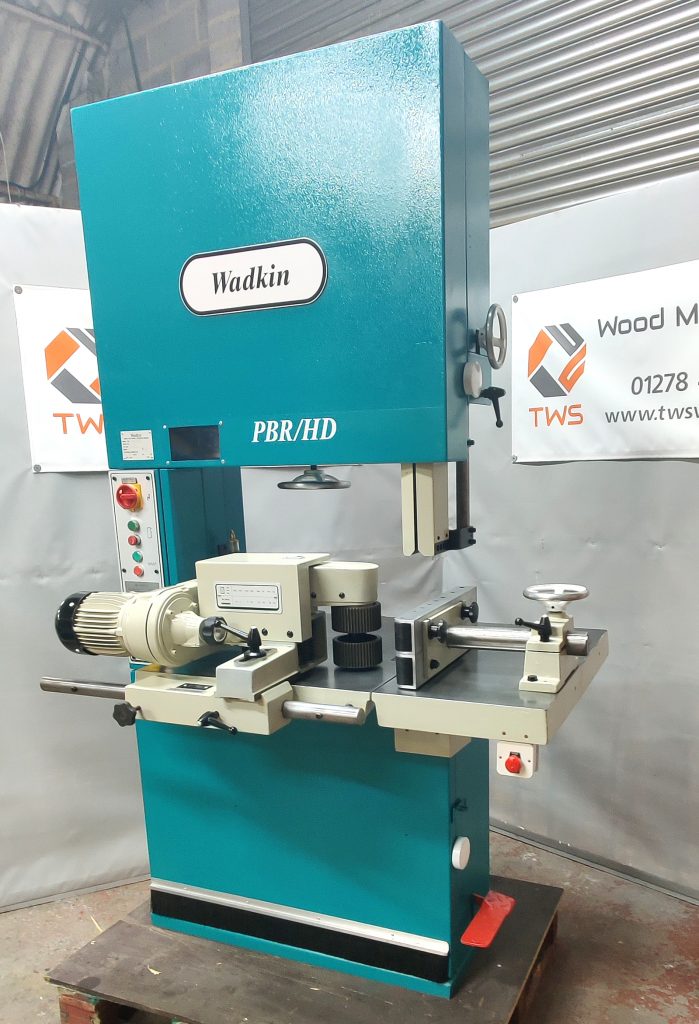

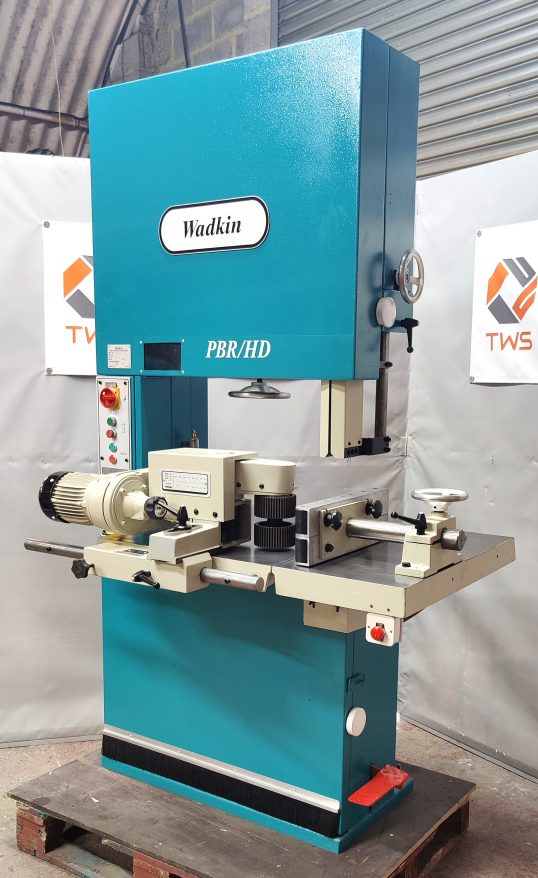

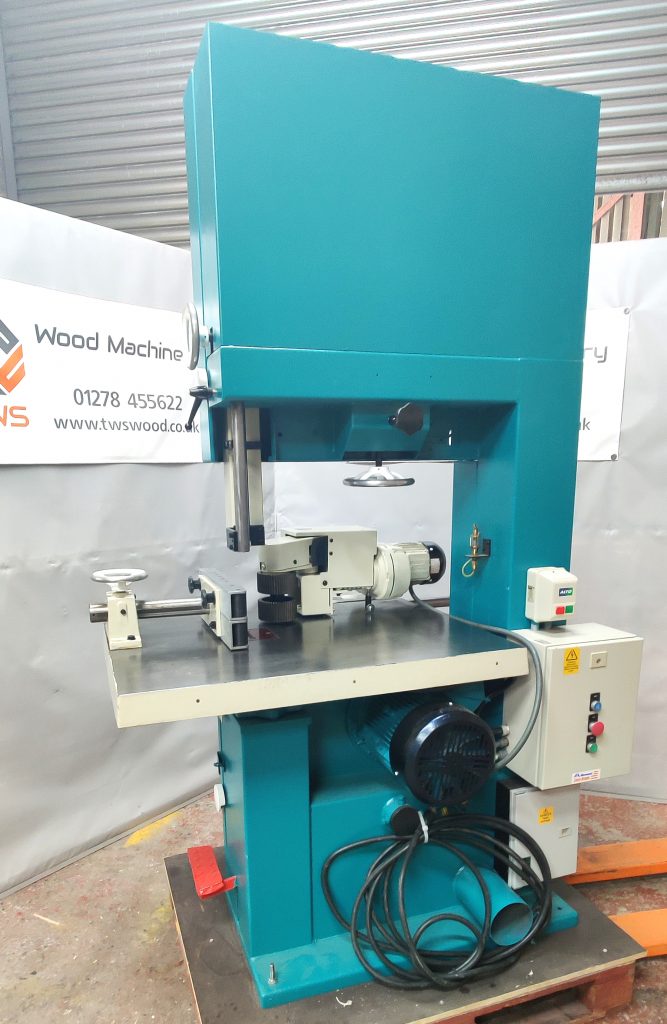

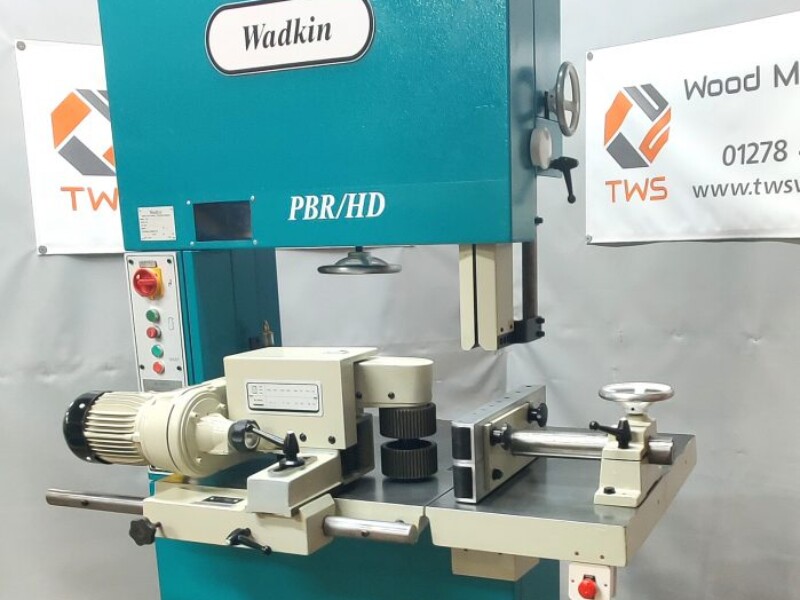

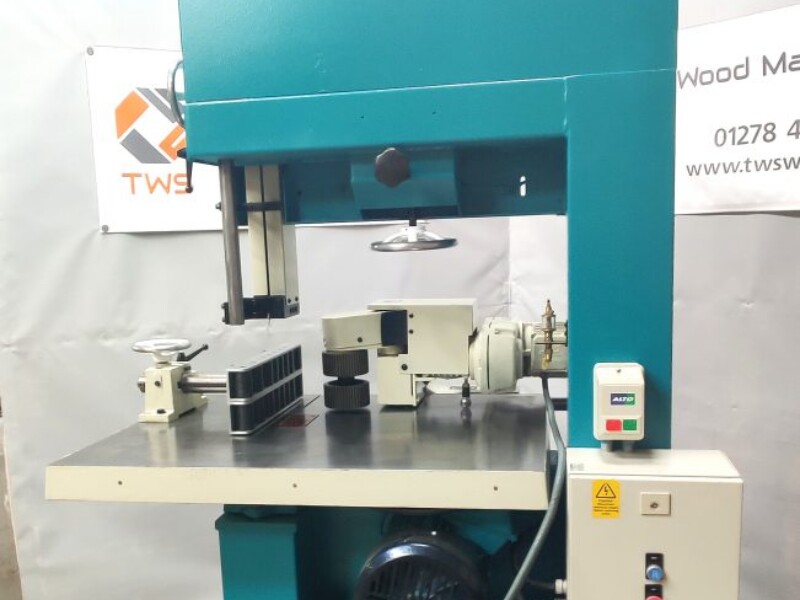

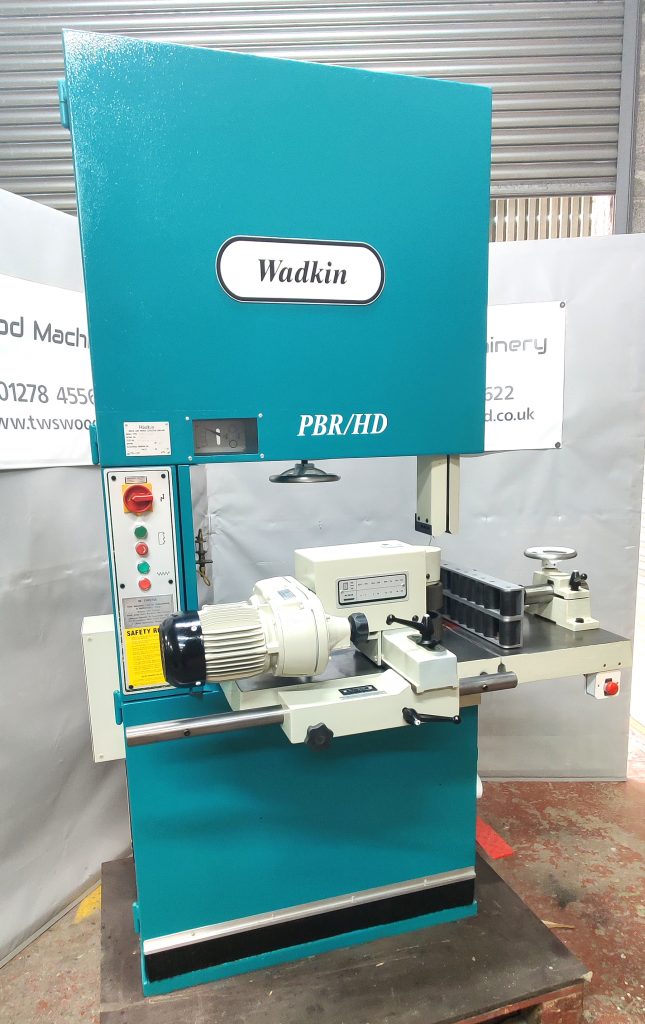

The Wadkin PBR-HD Band Resaw  is a power feed bandsaw designed to bring high production at a cost effective price. Using a 65mm blade with a 1.6mm kerf gives a waste saving of up to 60%. The variable feed speed lets you control the feed with the large heavy duty 15 hp motor giving you the optimum cut.

  • Counter balanced top saw guard
  • Top and Bottom guides for accurate blade control
  • Tension indicator for accurate blade tensioning
  • Strong, Rigid construction
  • Table cants up to 35° for narrow blades and 20° for wide blades

Maximum Blade width 65mm

Maximum Blade length 5080mm

Minimum Blade length 4940mm

Height of Table 900mm

complete with a foot brake and DC brake



To see our range of Wadkin Machines please click Here

Additional information

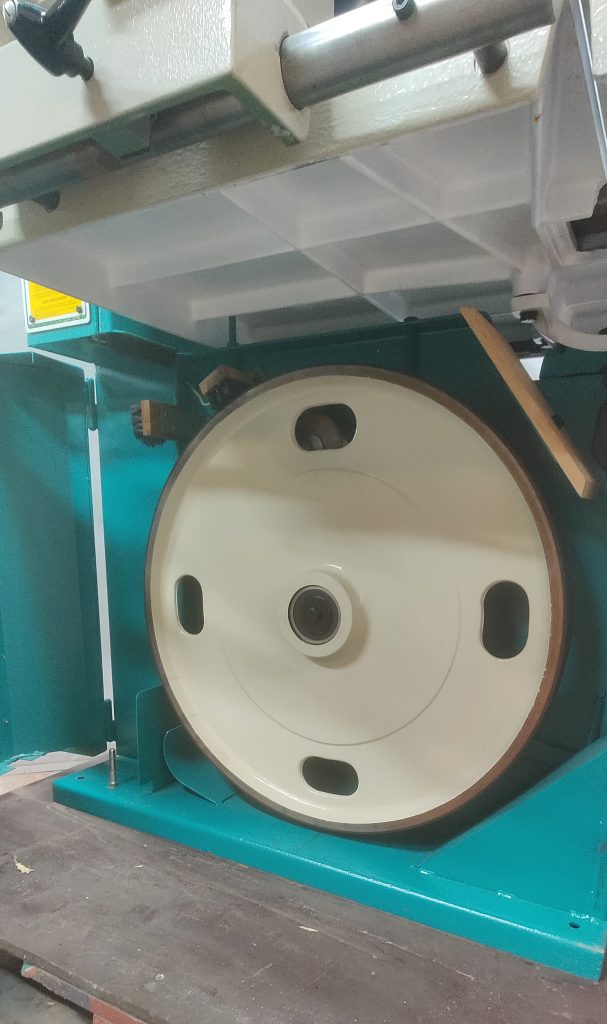

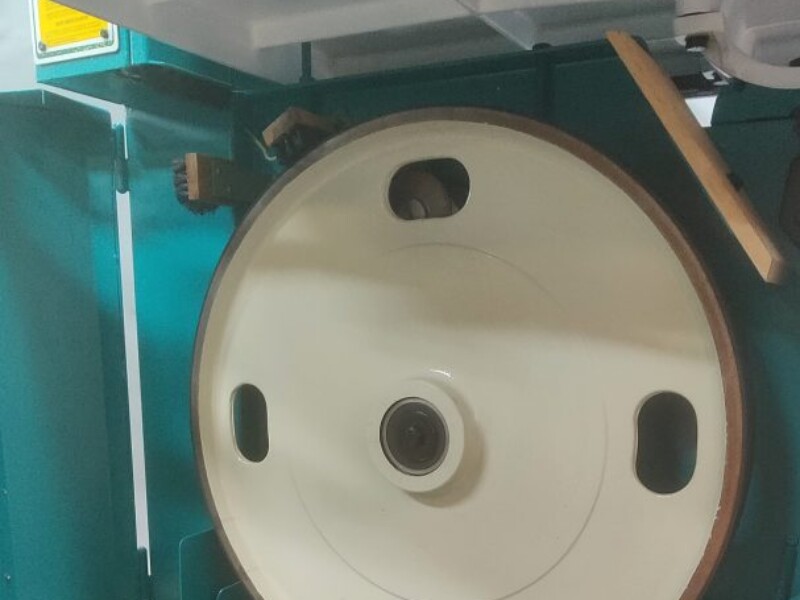

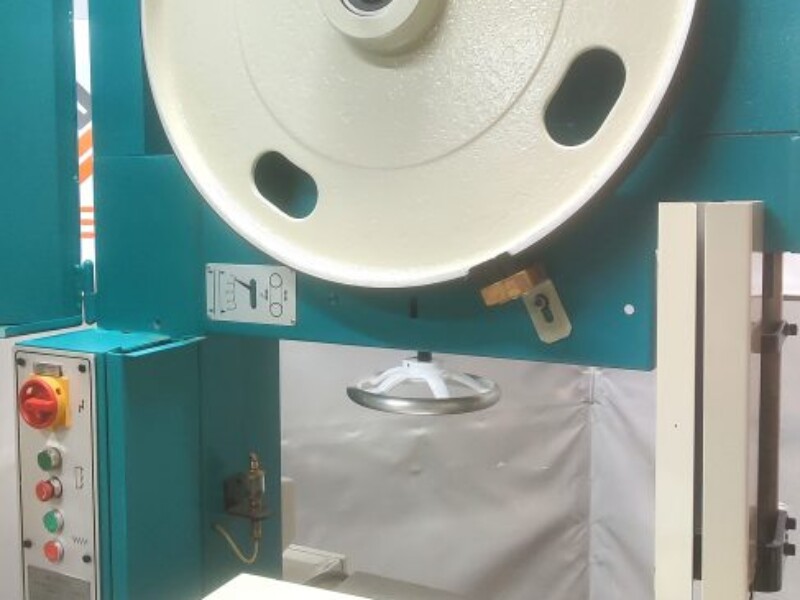

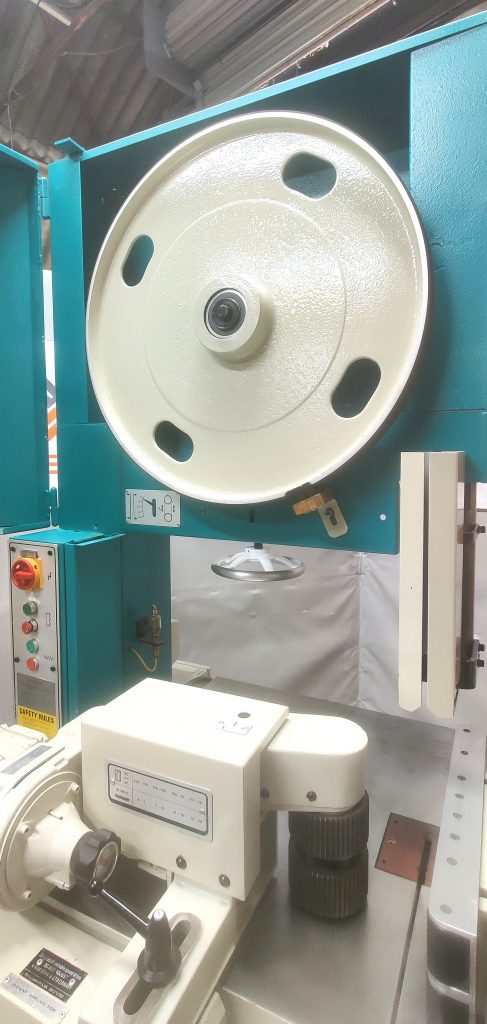

Wheel Size

27.5" (700mm)

Maximum Blade Width

78mm 3"

Maximum Depth of Cut

13" 325mm

Blade Guides

Top & Bottom

Table Size

765mm X 1000mm

Tilting Table

35 Degrees

Maximum Cutting Width Blade to Fence

230mm

Maximum Width Blade to Feeder

385mm

Feed Speeds

Variable 5 – 25 Meters Per Min.

Condition

Used
