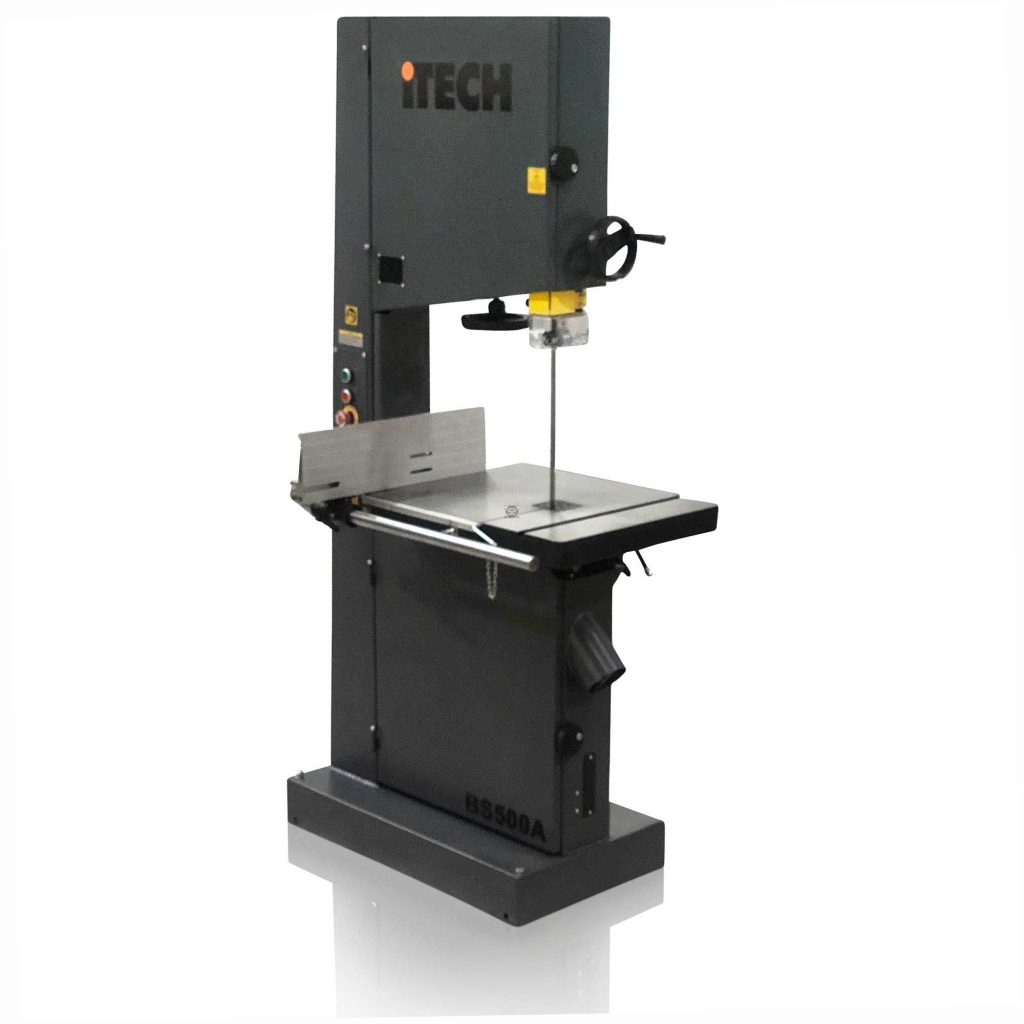

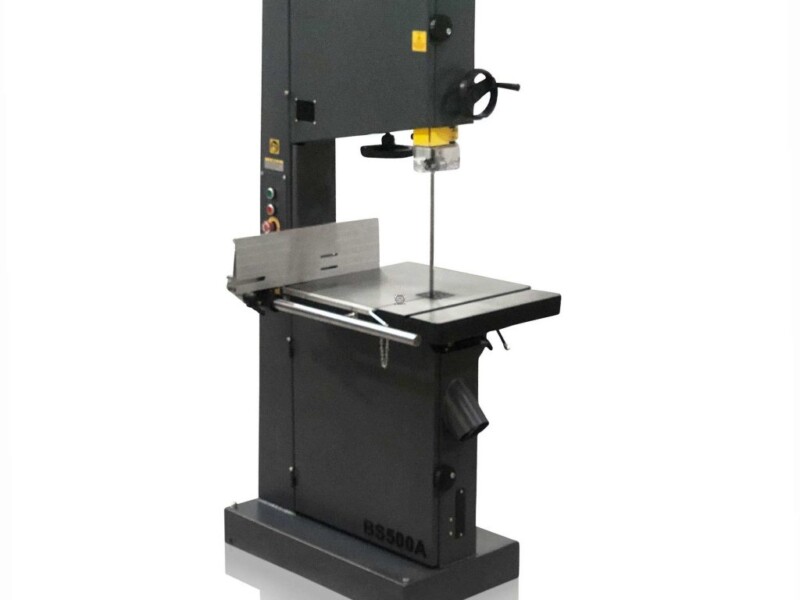

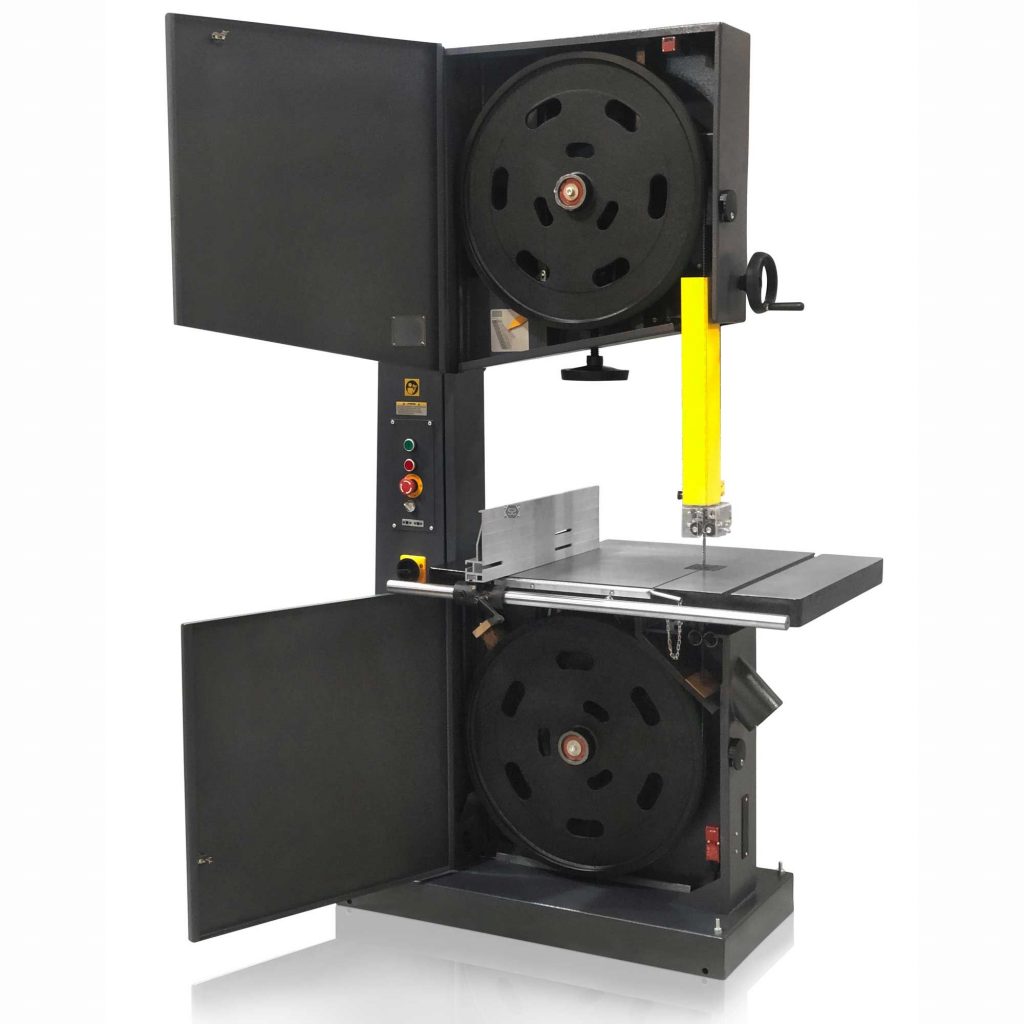

New Itech BS 600 Bandsaw 415V

£2,850.00 +VAT
new
Add to Quote
Category:

ITECH have long been associated with high quality bandsaws .

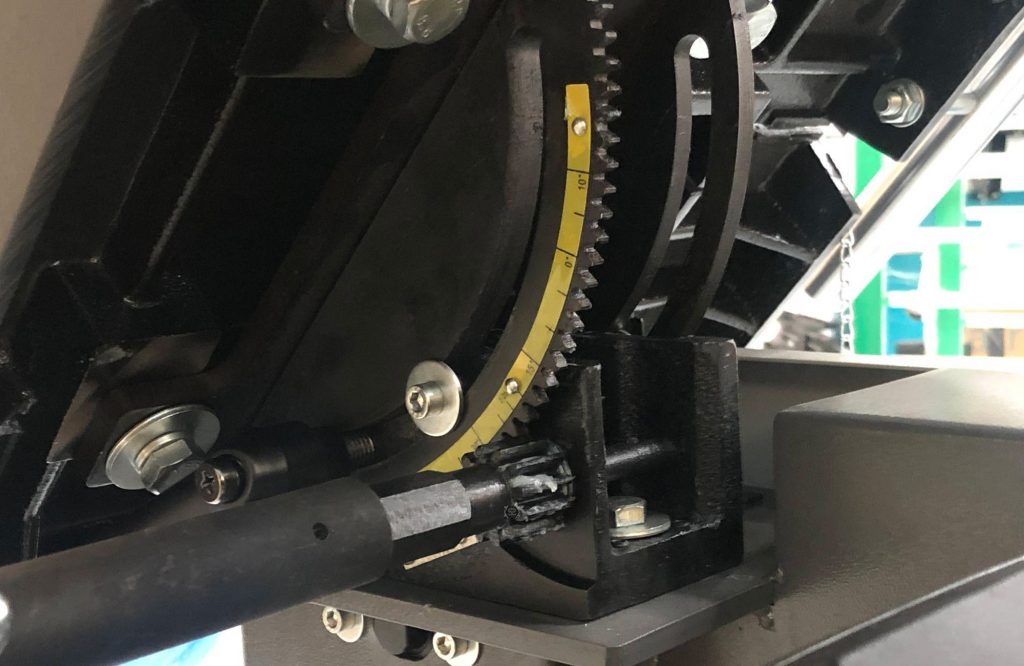

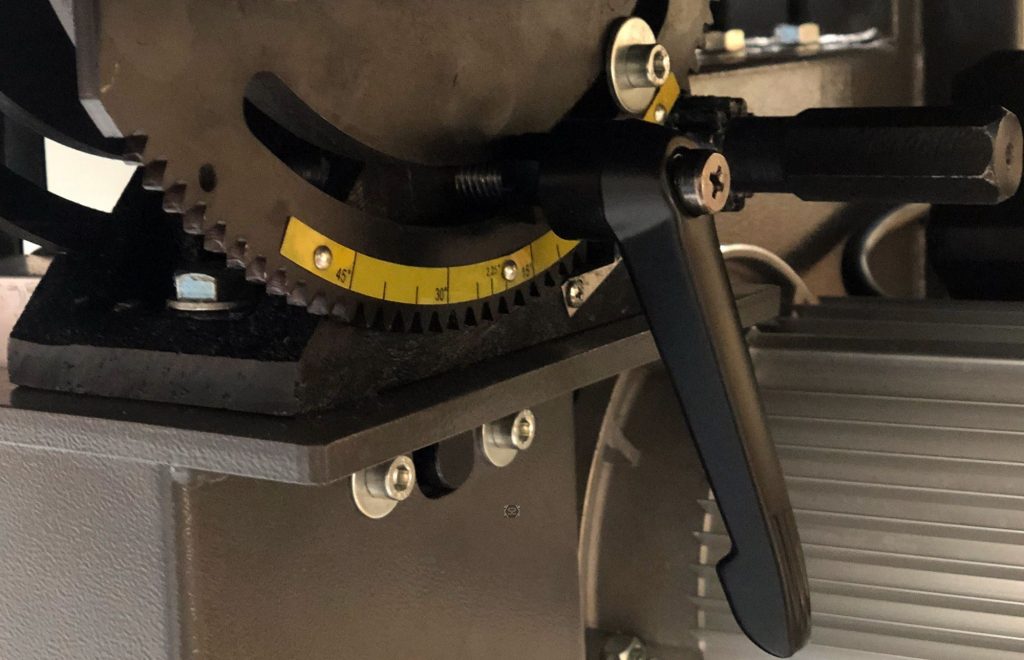

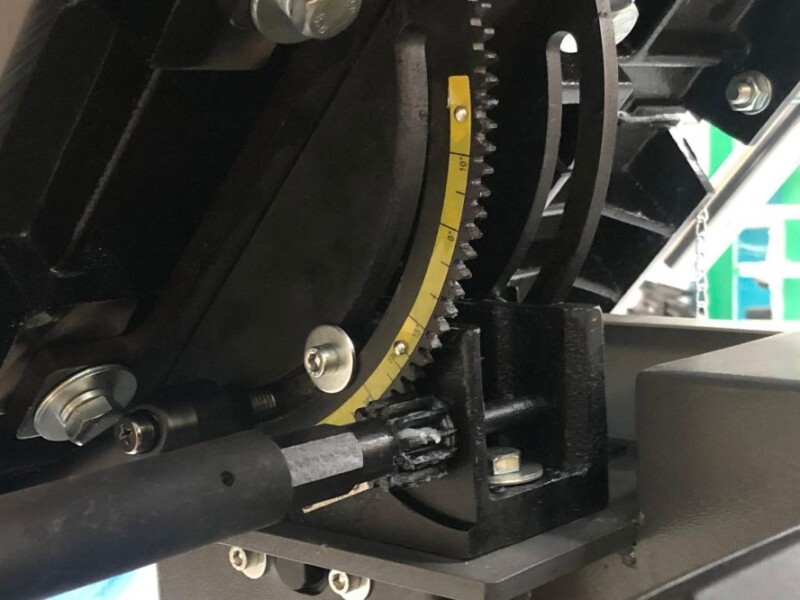

The whole range features large cast iron tables to provide substantial workpiece support. They are seated on heavy cast double trunnions, machined to ensure smooth and accurate movement and also provide rock solid table support over the full range of table positions. The tables themselves are large, heavily ribbed and surface ground for flatness.

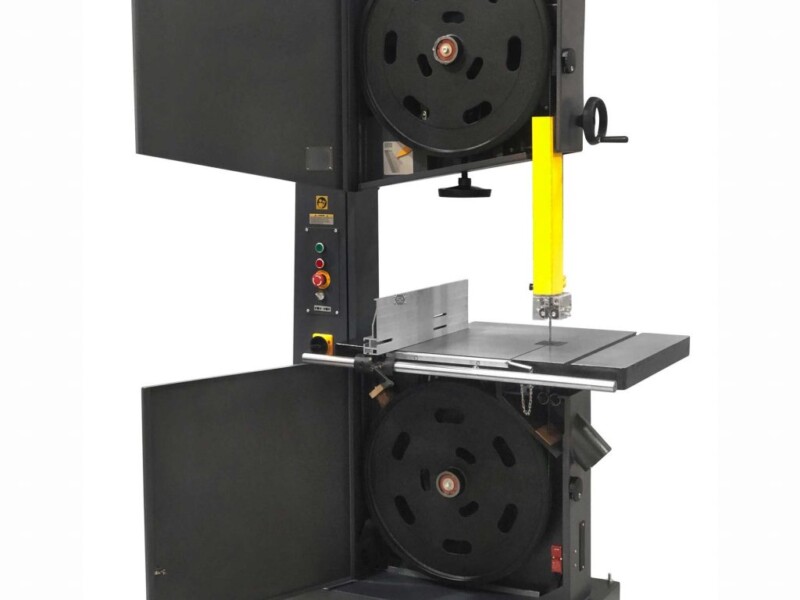

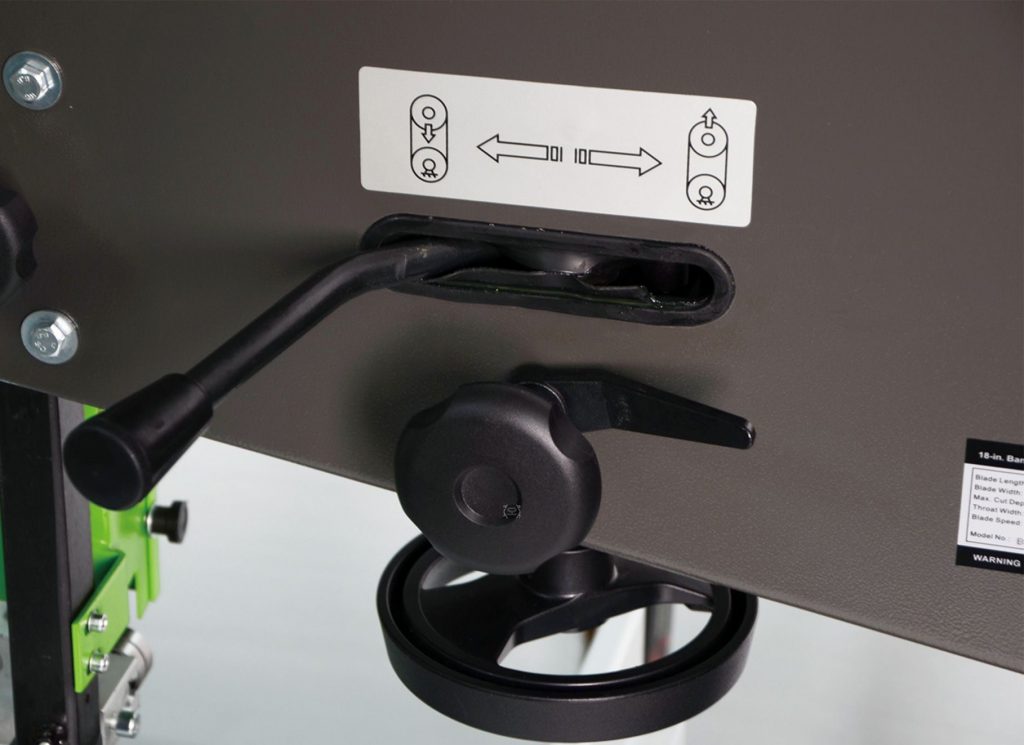

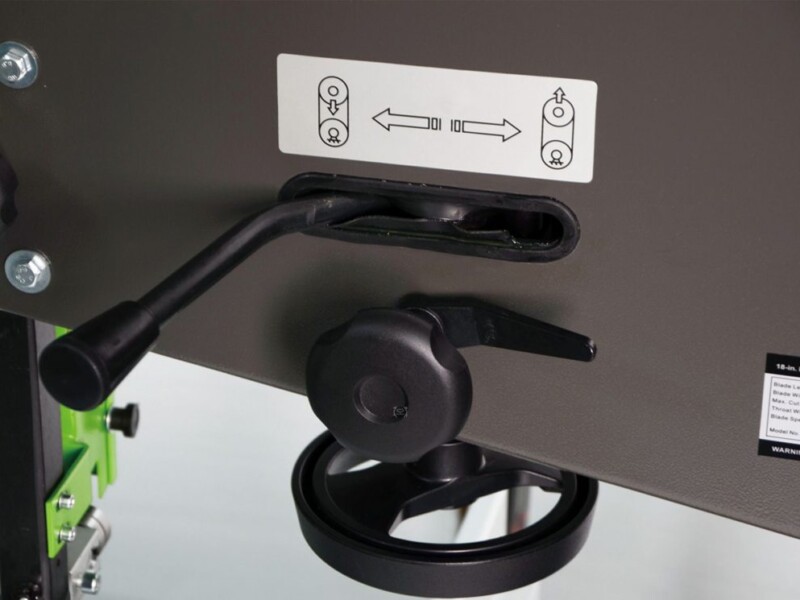

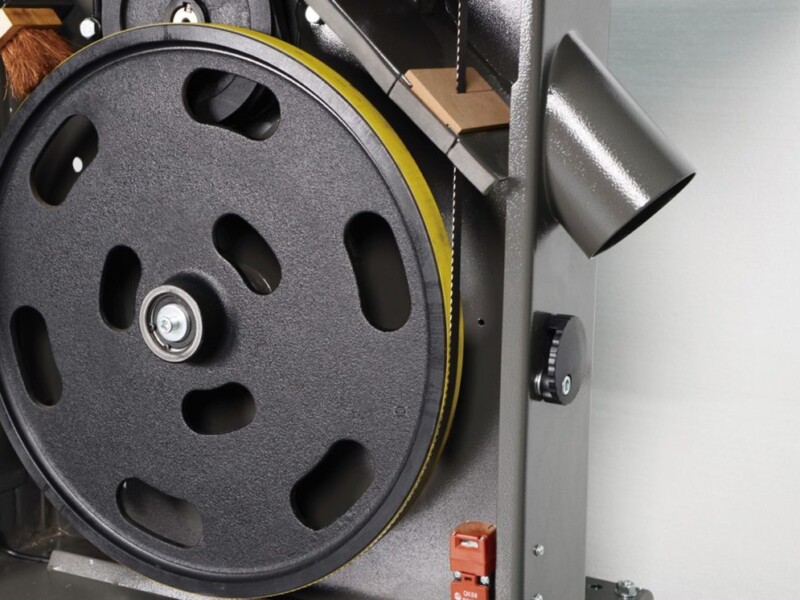

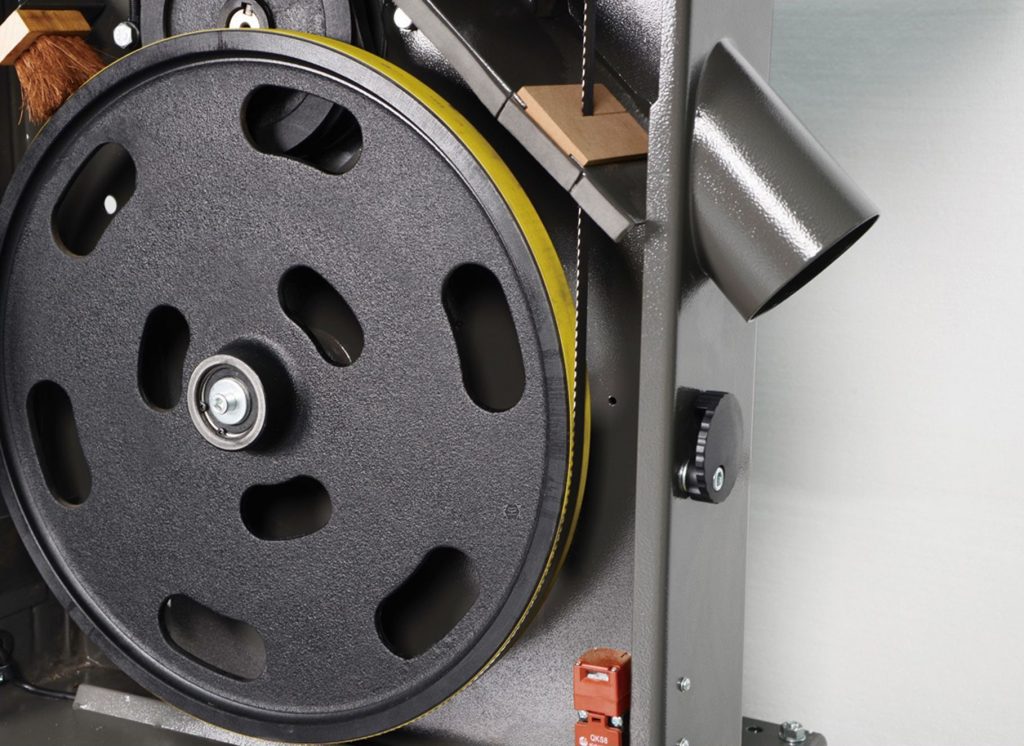

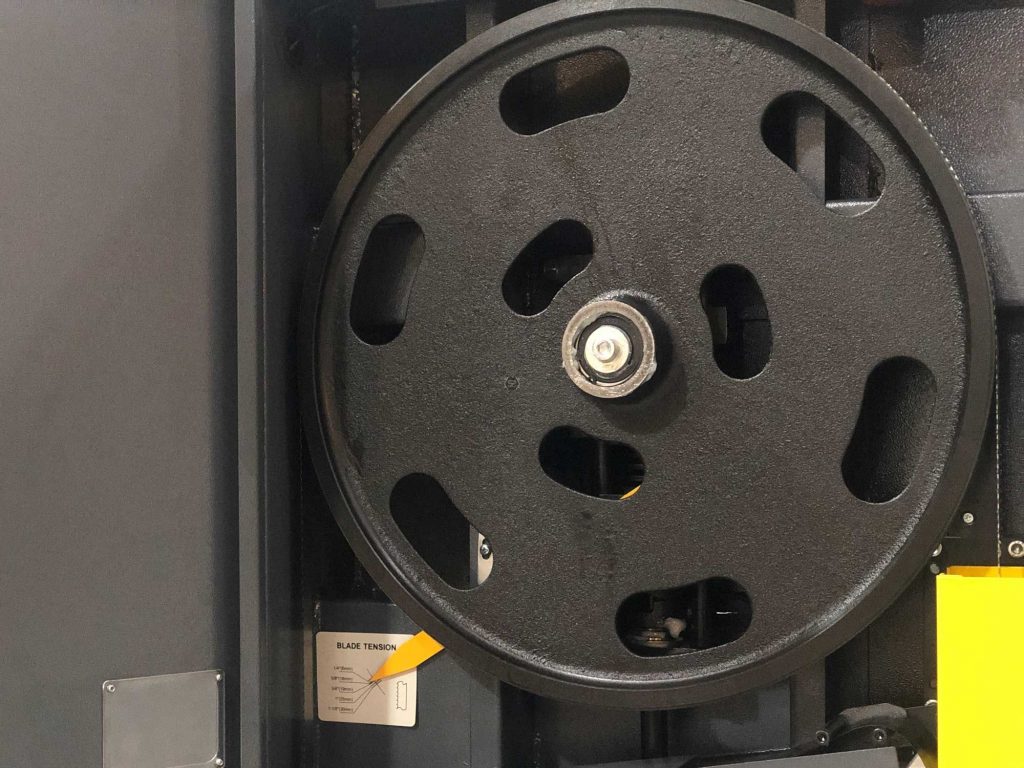

The heavy duty band wheels are cast iron – Balanced and fitted with high quality rubber tyres to aid tracking, giving the essential torque needed when performing heavy duty cutting. The top wheels are mounted to heavy duty industrial tensioning systems. Adequate tensioning is critical for accurate, straight cutting and the mechanism fitted to this range is probably the heaviest on the market at this level. For fast and easy blade changing, all models feature a quick-release blade tension system.

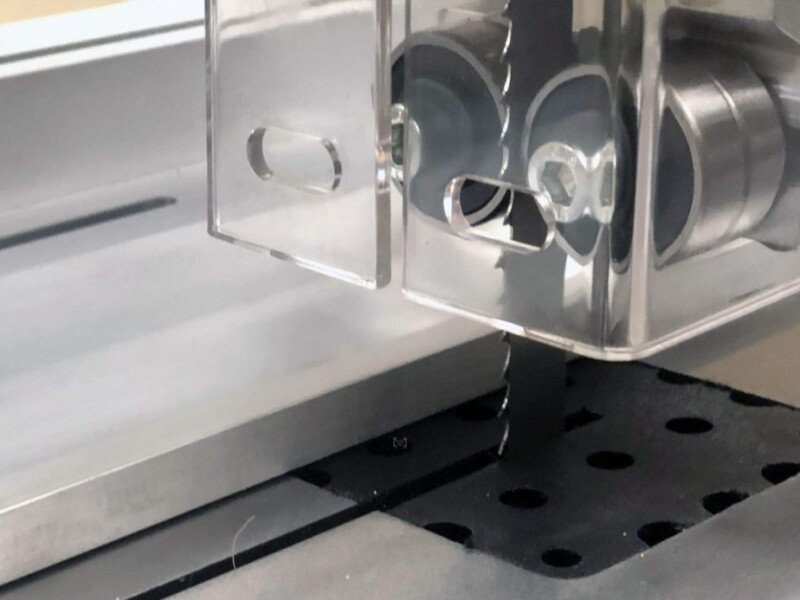

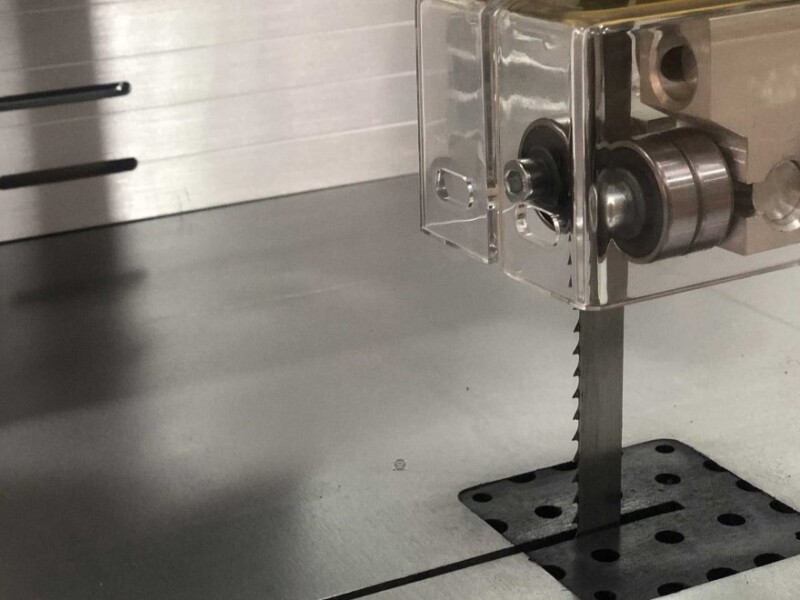

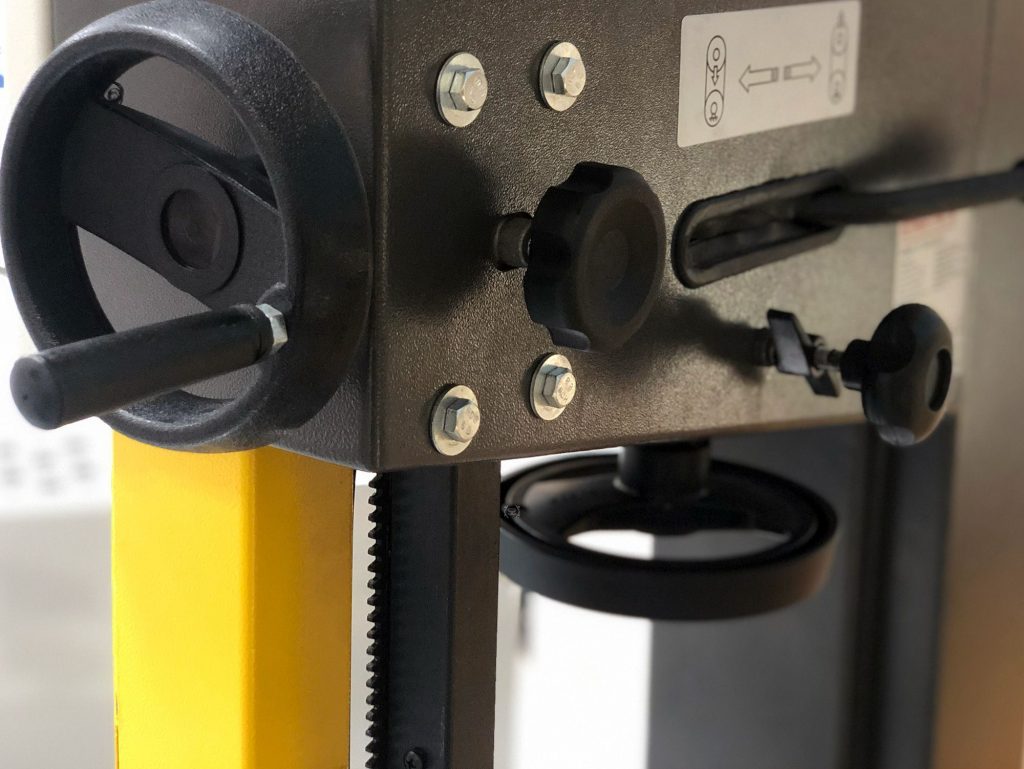

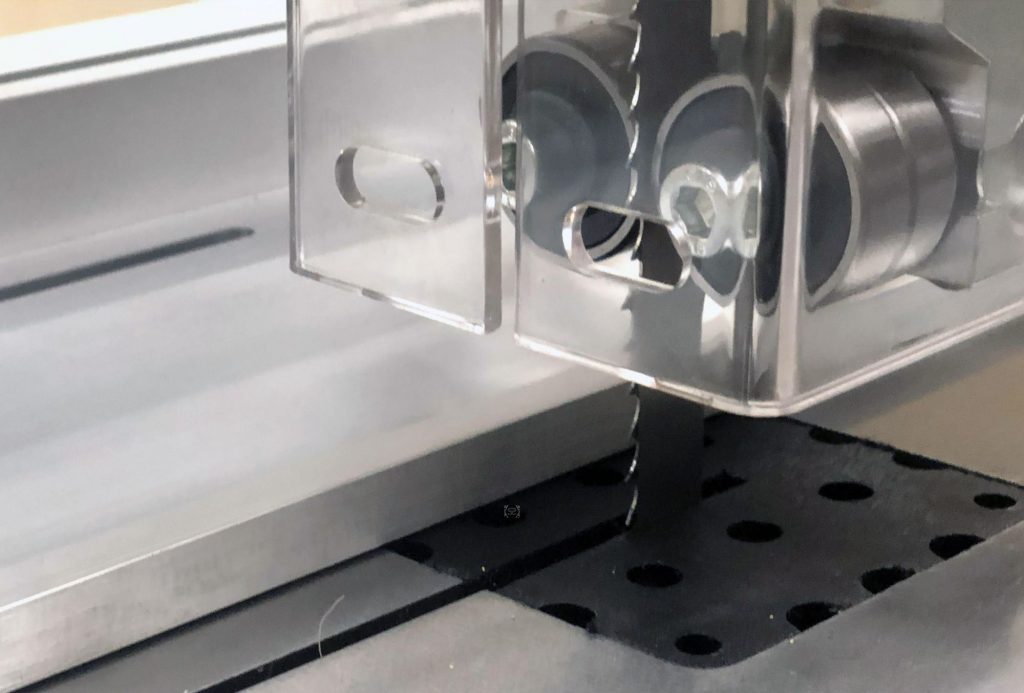

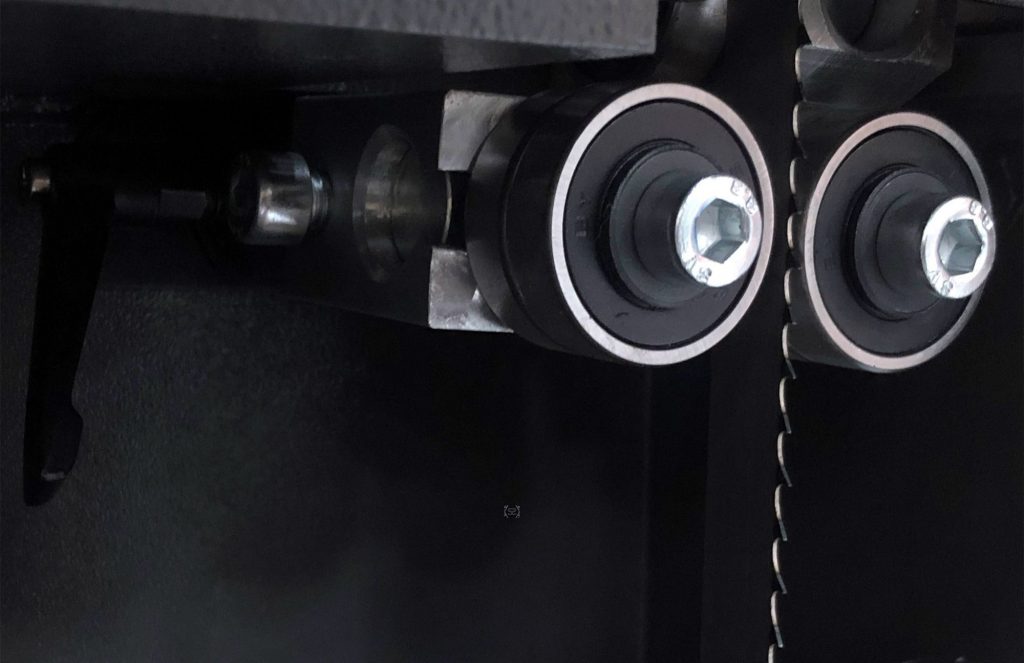

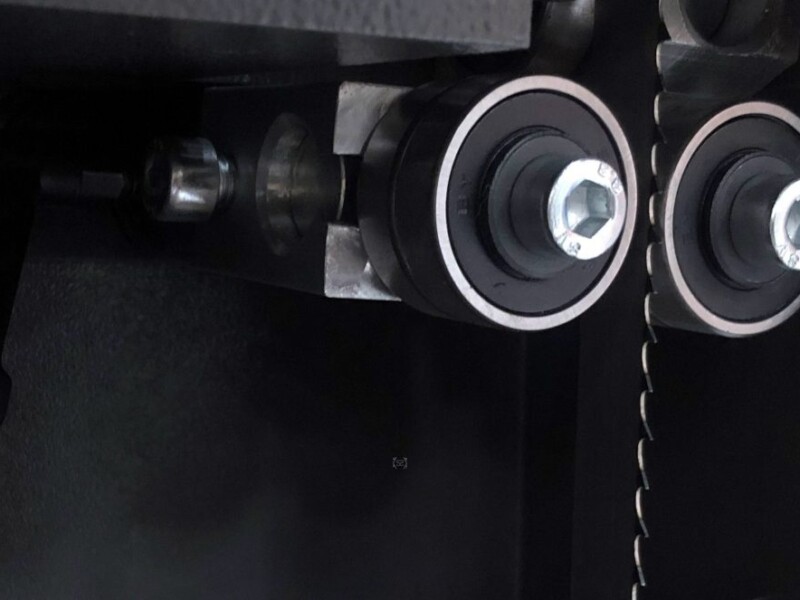

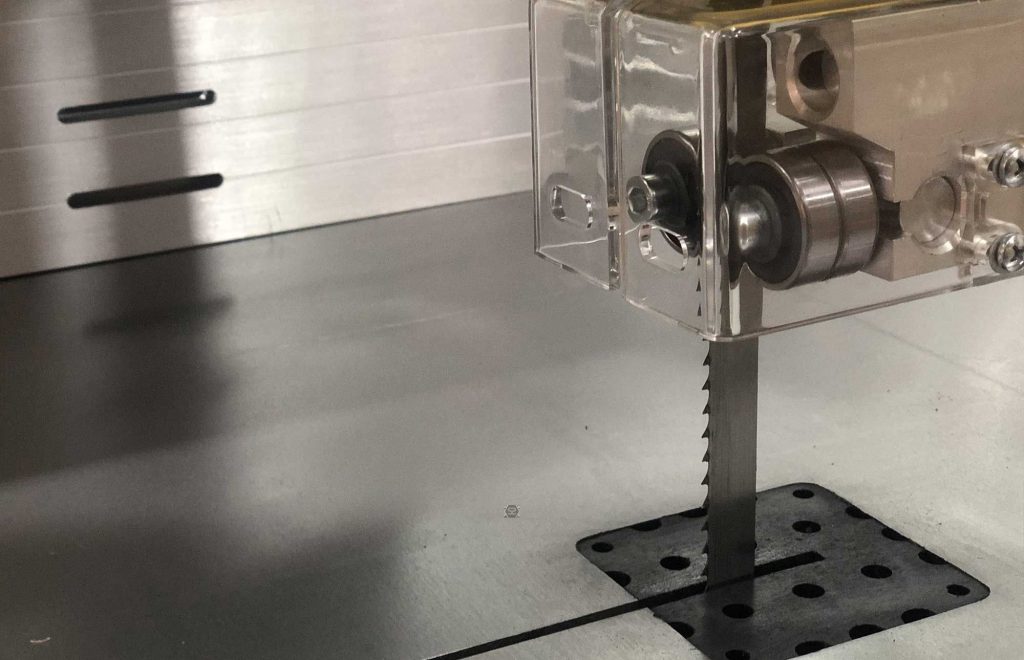

The guide posts are made from steel bars mounted in heavy castings and machined with a rack to enable safe and easy rack and pinion adjustment of the upper blade guides and guard. The side guides are industrial ball race bearing guides which offer a good surface area to resist blade twist, having easy and precise adjustment for simple setting. In addition, they are protected by a strong blade guard.

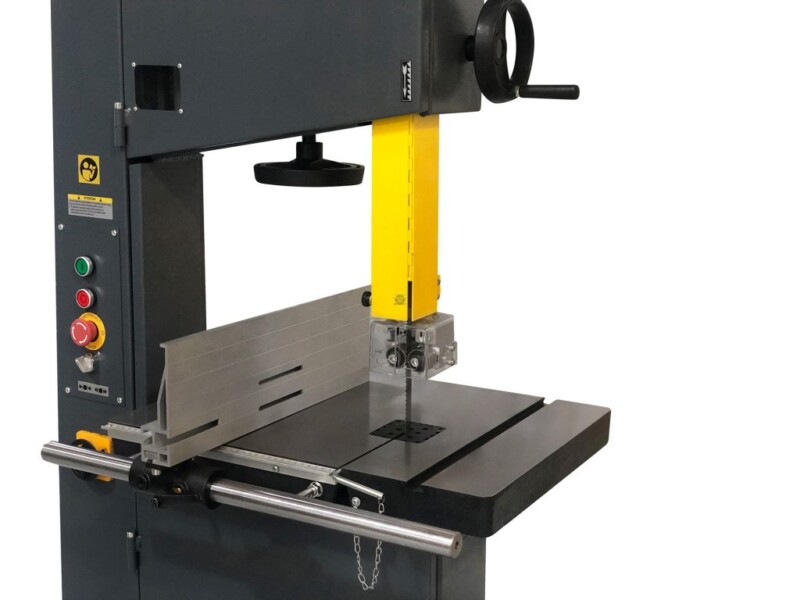

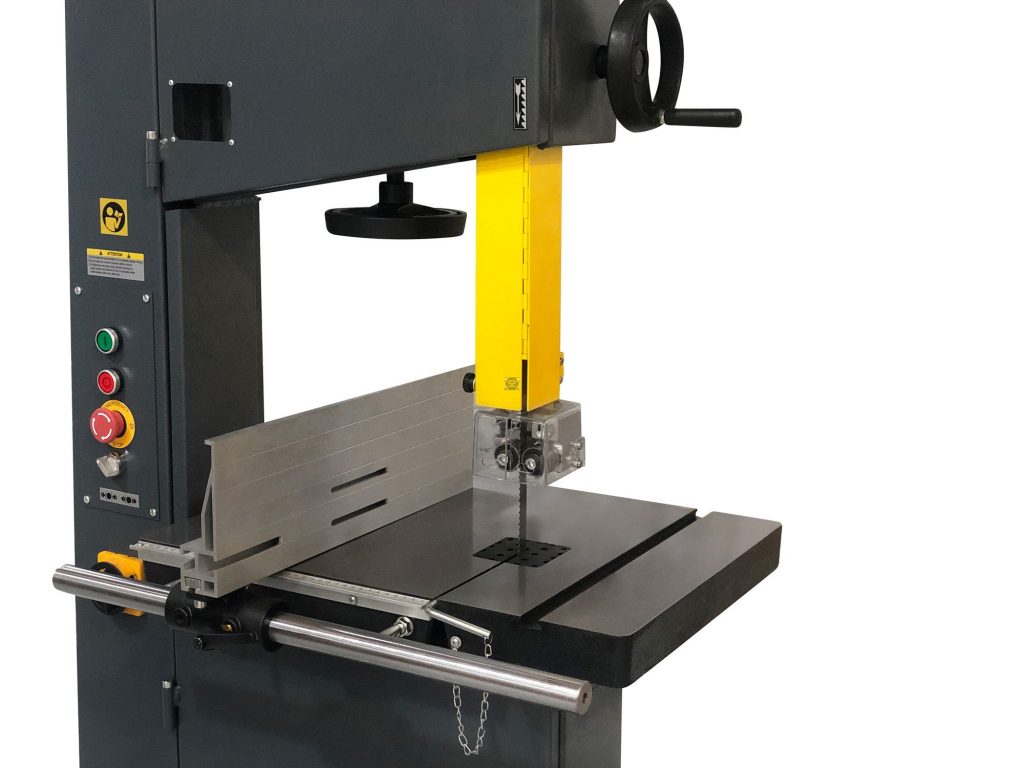

The rip fences are deep and made from heavy extrusions. These are fixed to cast iron mounts which in turn are mounted on steel ground bars that run the full width of the tables to enable easy use of the fences on both sides of the blade.
The machine has safety interlocks on both the doors.

New Itech BS 600 Bandsaw Features

  • Wheel diameter 600 mm
  • Max Cutting width on the Rip fence 580 mm
  • Max Cutting Depth 370 mm
  • Motor power 4 kW 5.5hp 3 phase 400 volts
  • Blade length 4470 mm
  • Max blade width 35 mm
  • Min blade width 10 mm

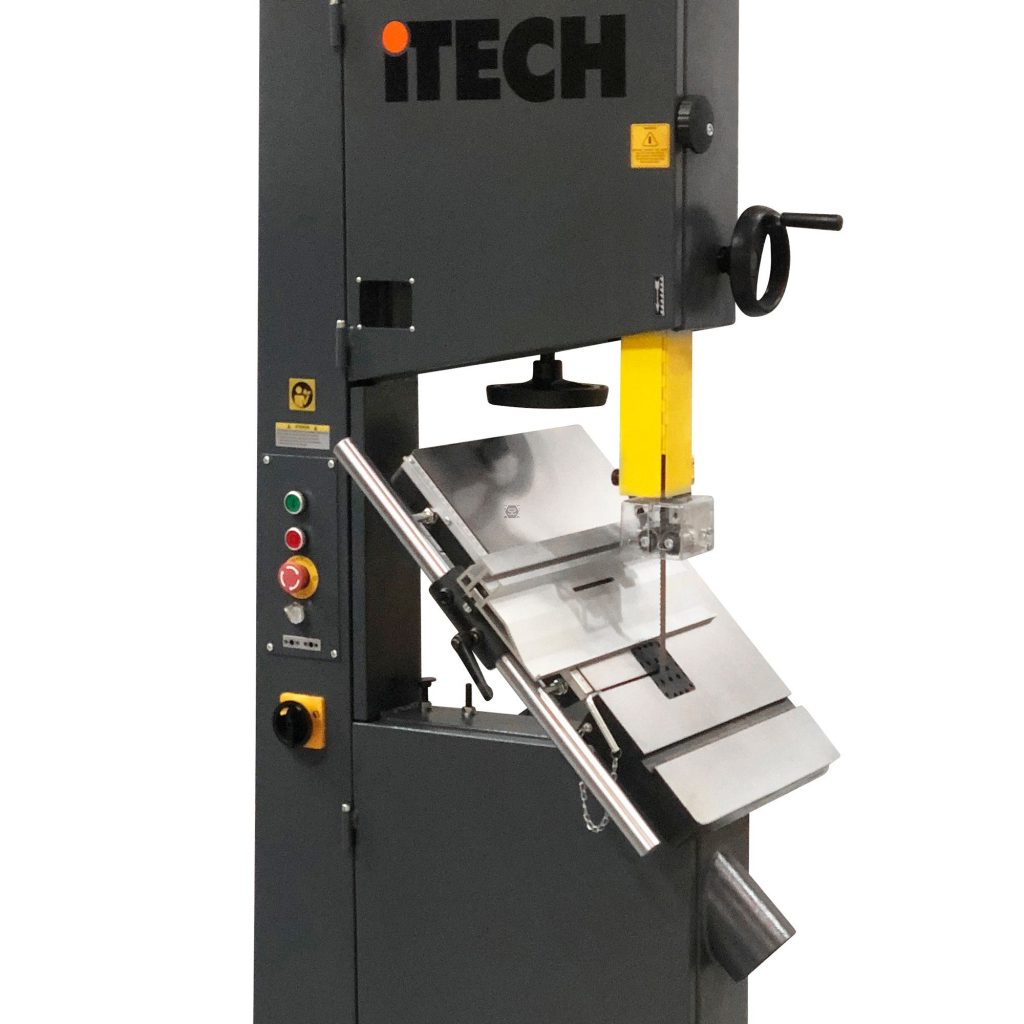

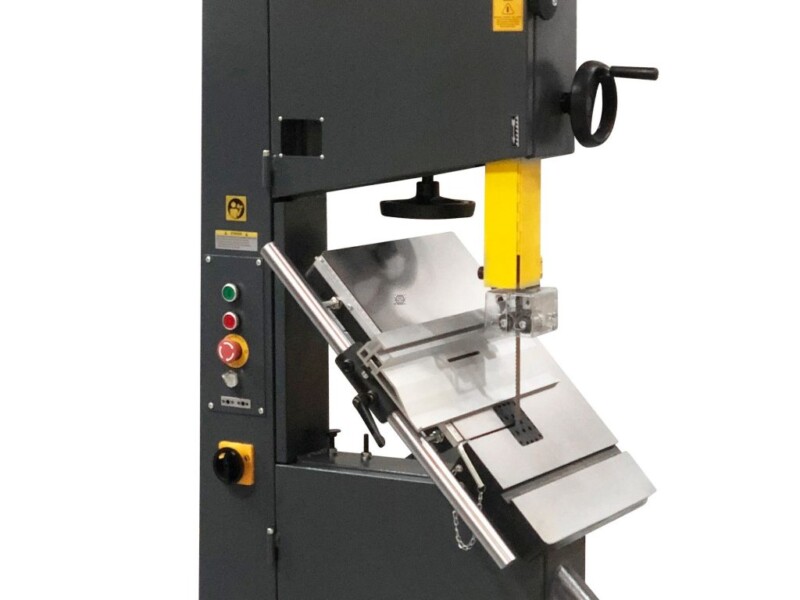

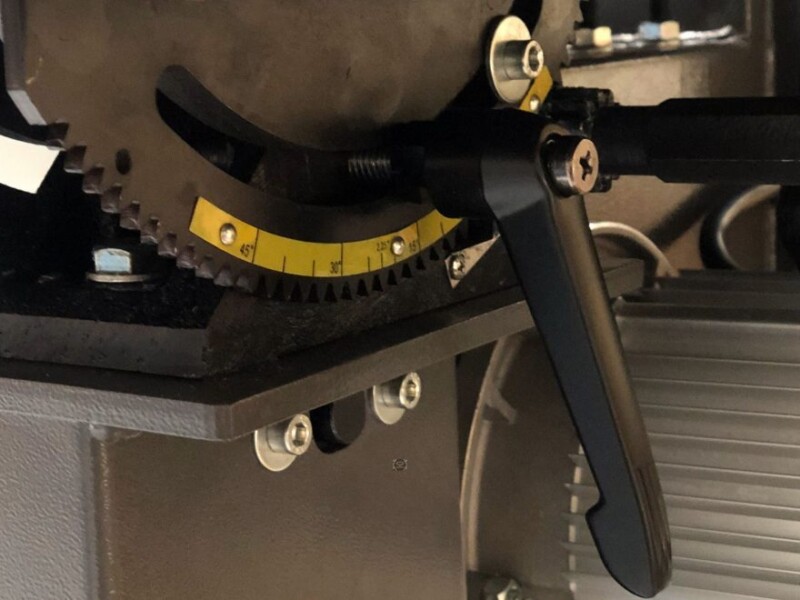

  • Table tilts -10° to 45°

To view our range of bandsaws please click here

For more information on this bandsaw please click here

Additional information

Wheel Size

600mm

Maximum Blade Width

35mm

Maximum Depth of Cut

370mm

Blade Guides

Roller Bearing

Table Size

700mm X 608mm

Tilting Table

-10° To 45°

Condition

New
