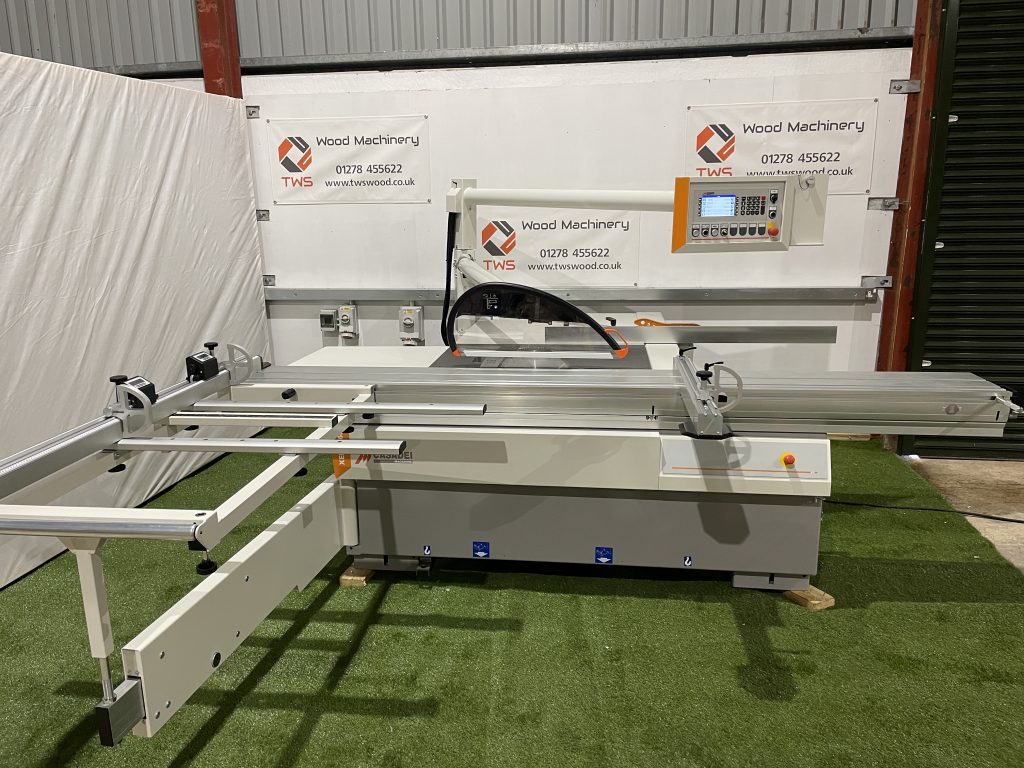

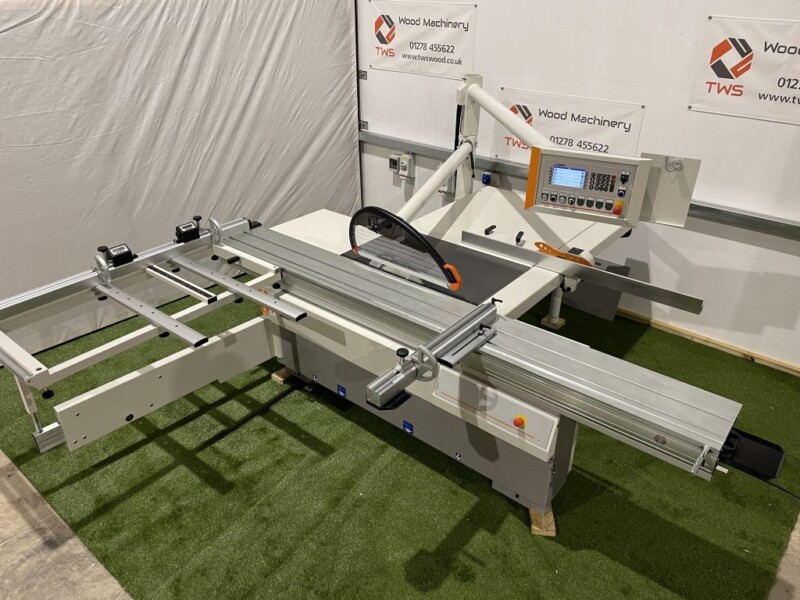

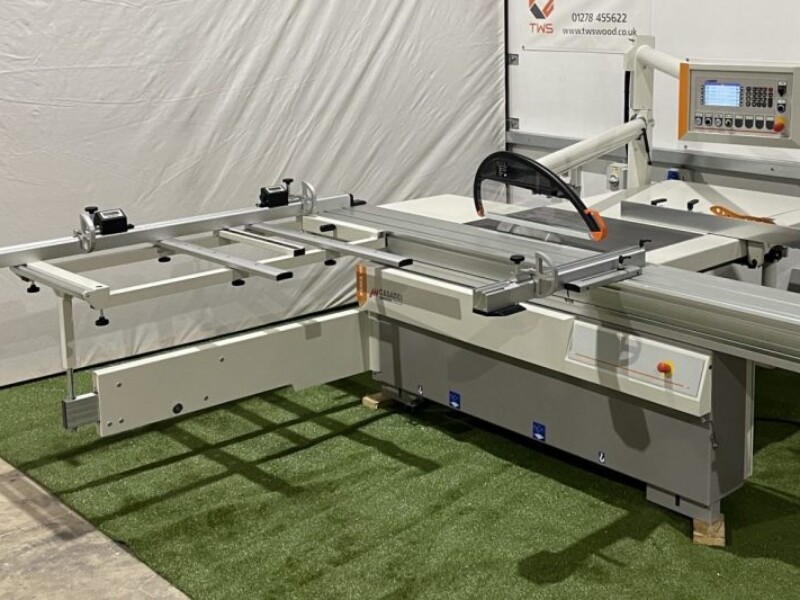

New Casadei Xenia 60 CNC Panelsaw

£23,250.00 +VAT
Add to Quote
Category:

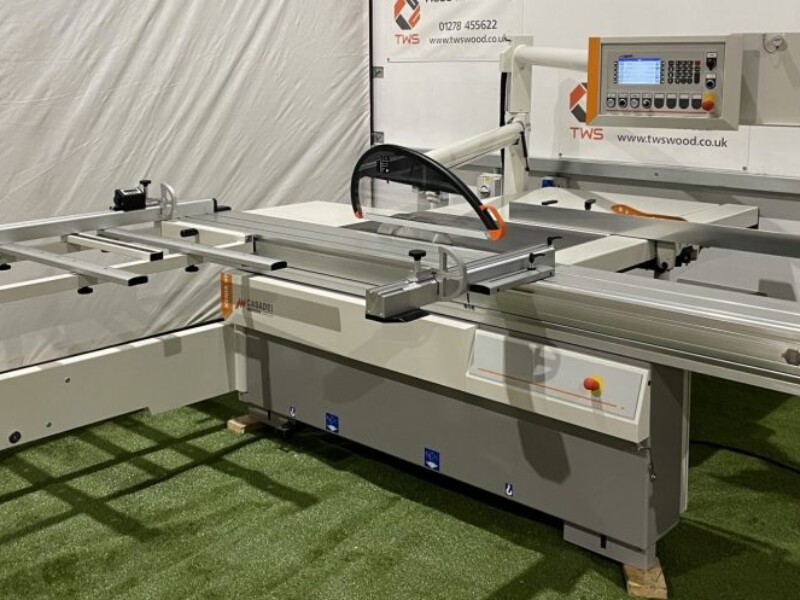

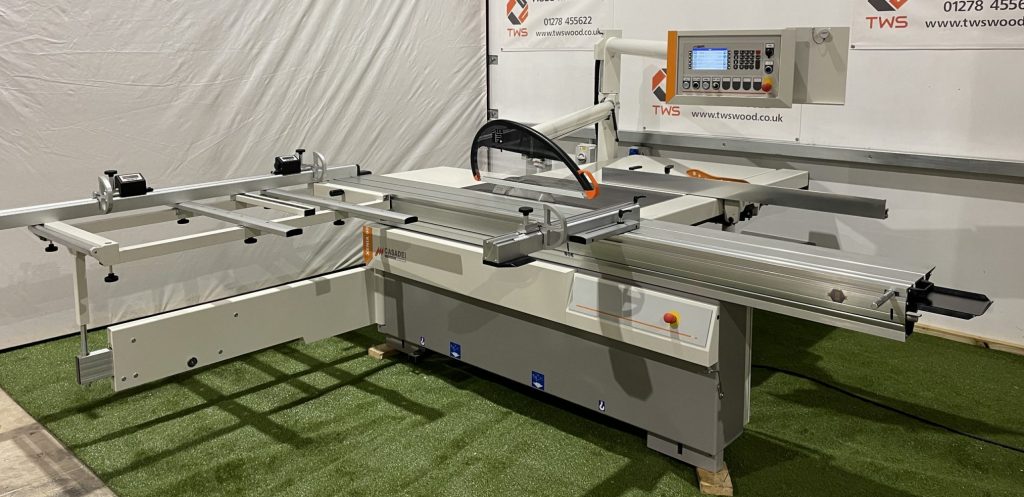

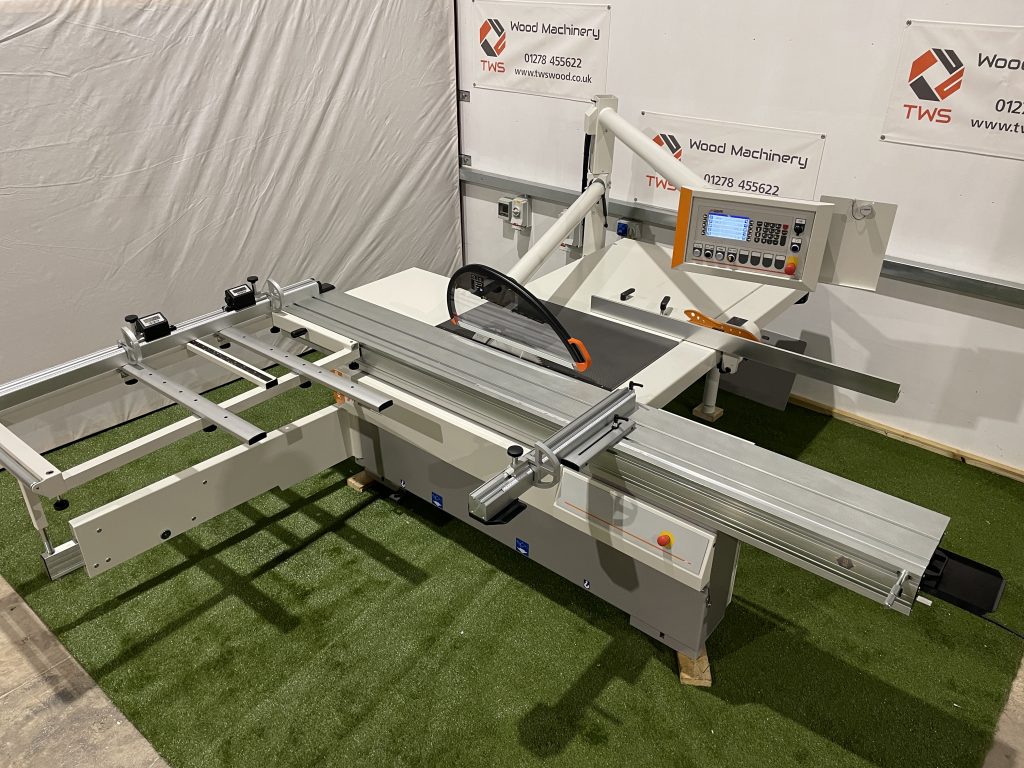

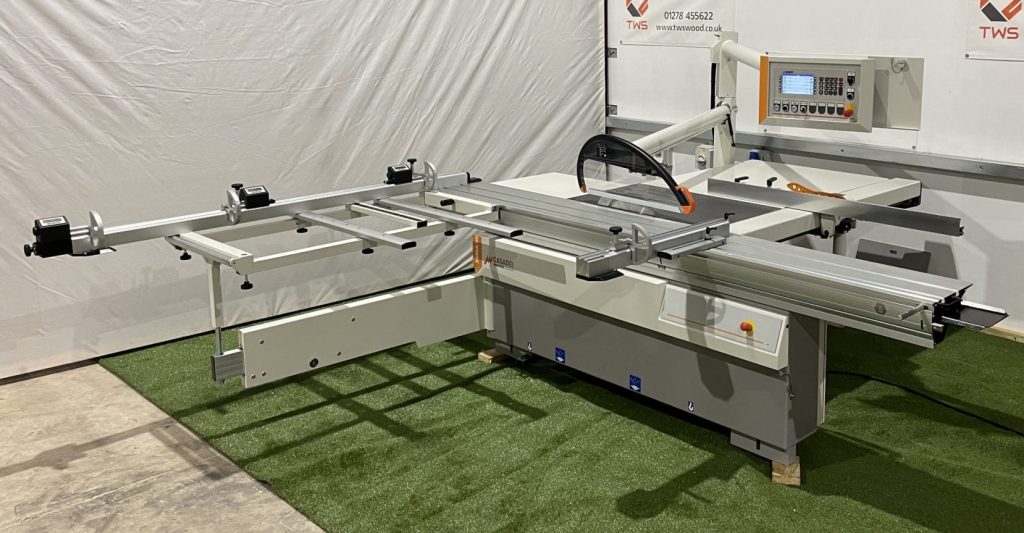

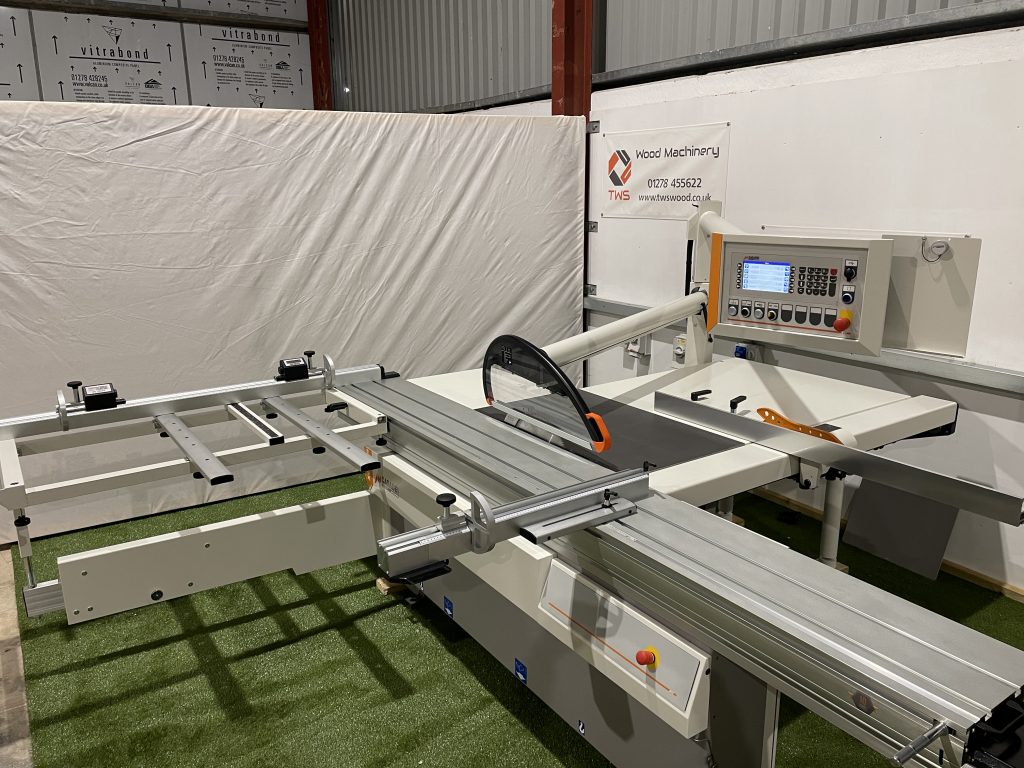

The new Casadei XENIA 60 CNC automatic sliding table panelsaw has been designed to fulfil the requests of a more demanding workshop.

ADVANTAGES
Reliability: Sliding system with prismatic guideways and preloaded ball bearings, for smooth and precise sliding table travel. All machine frame contact surfaces are machined to guarantee perfect planarity, impeccable precision and durability.
Ergonomics: All machine controls are on an overhead control panel within easy reach of the operator. The numerical control allows all machine axes to be controlled.
Sturdiness: Machine frame of notable thickness and solid construction.

TECHNICAL DATA

Large 3200mm x 360mm heavy duty Anodized Sliding carriage complete with built in start stop buttons

1500mm Rip capacity

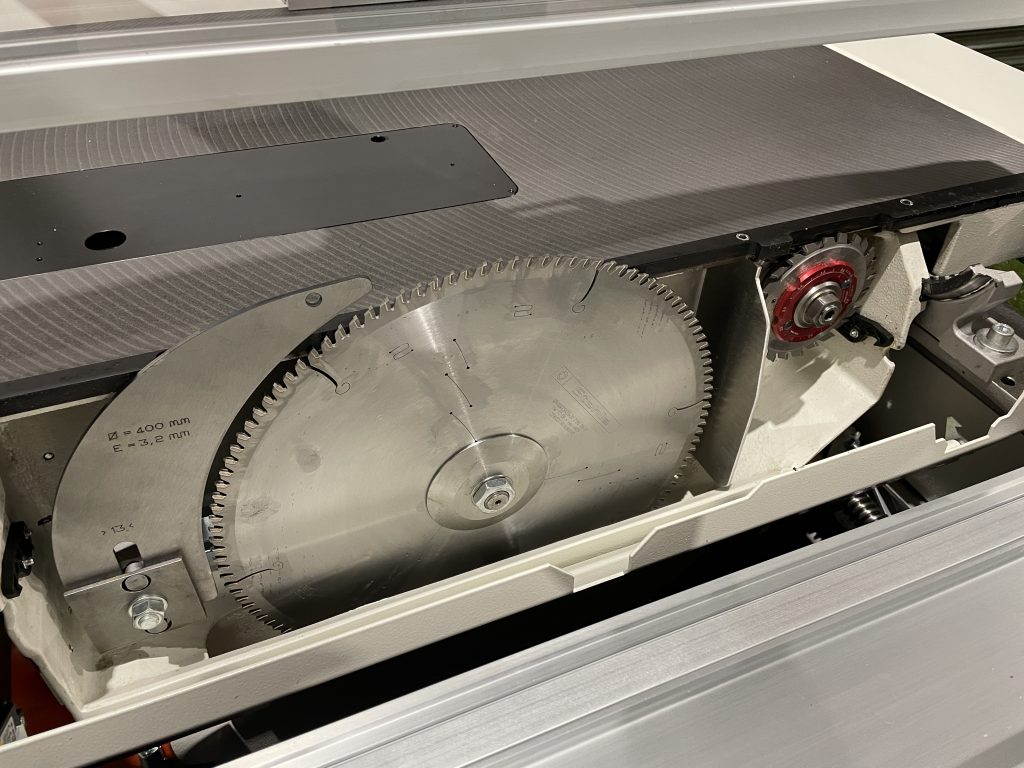

Large 400mm Max diameter Saw blade

140mm max depth of cut at °90 and 99 mm at 45°

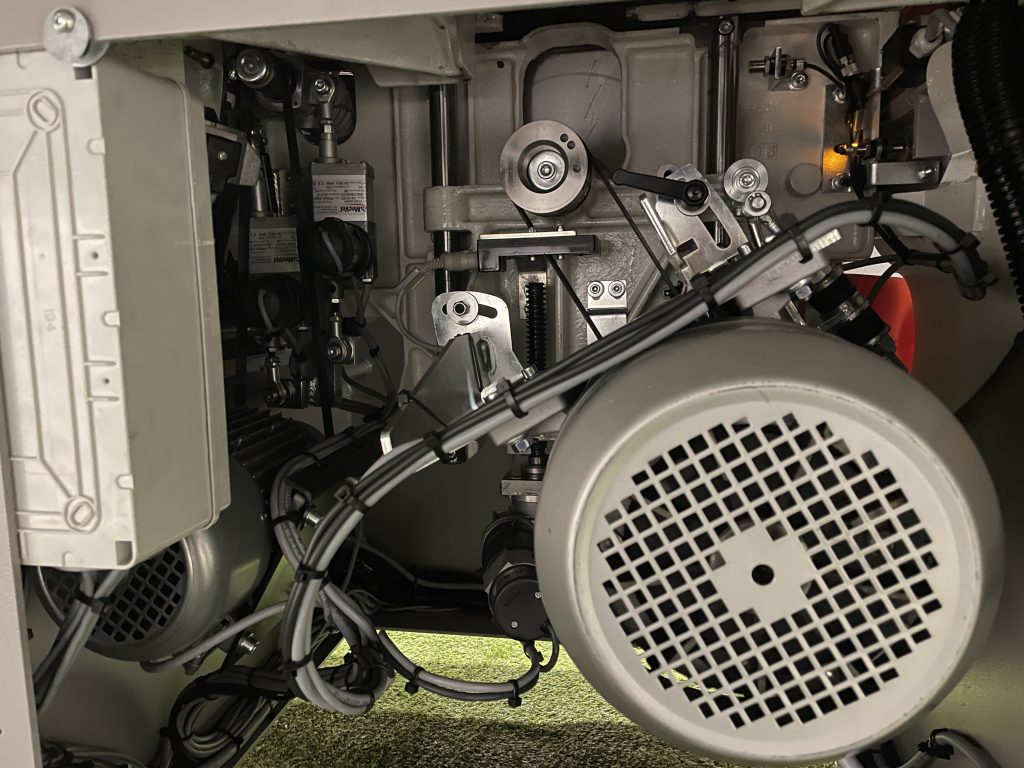

Powered by a heavy duty 7kw (9.5 hp) 3 Phase 400 volt  self braking Motor

Independent Scoring blade

Power Rise and fall

Power tilting of saw carriage 90° to 45°

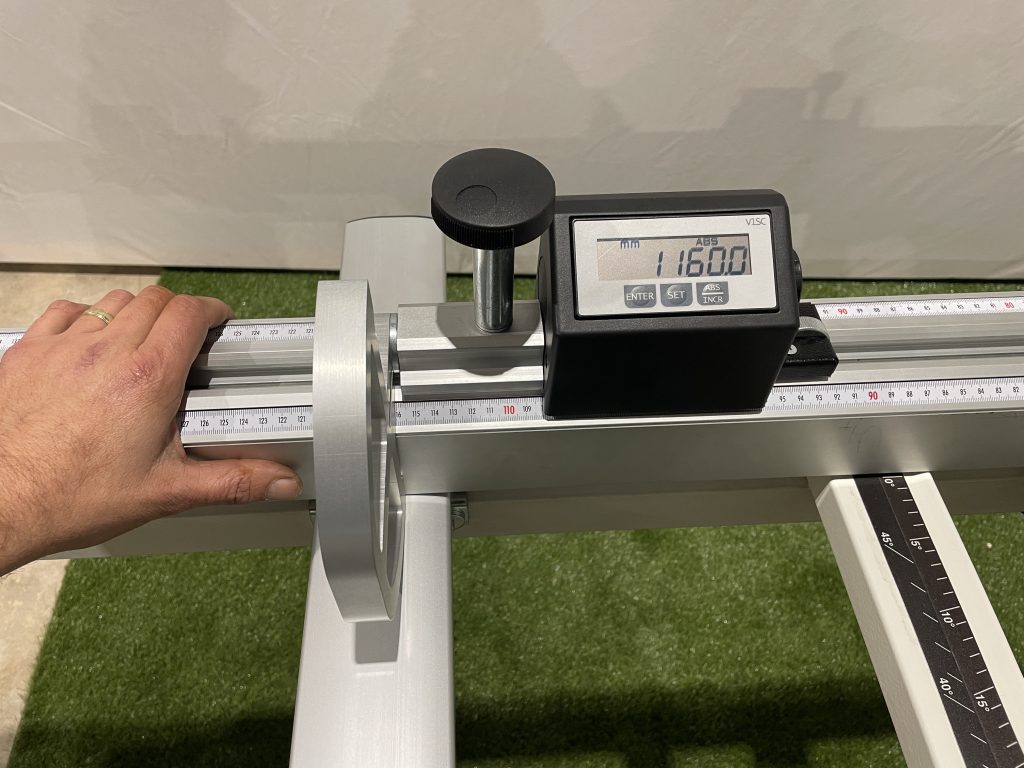

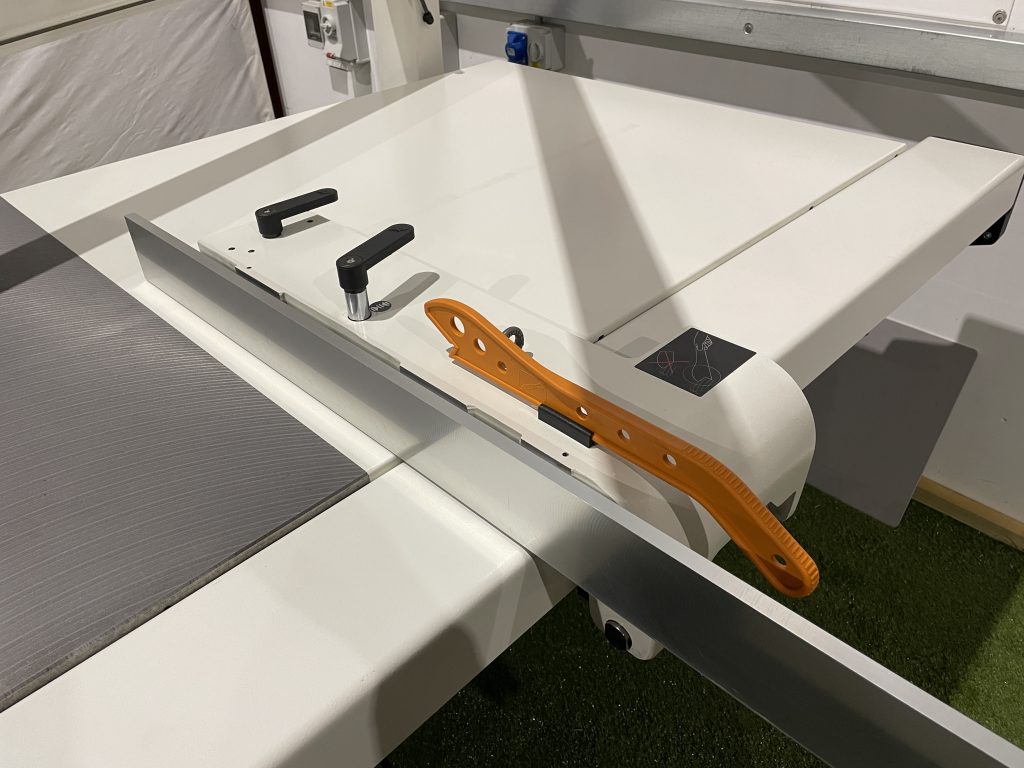

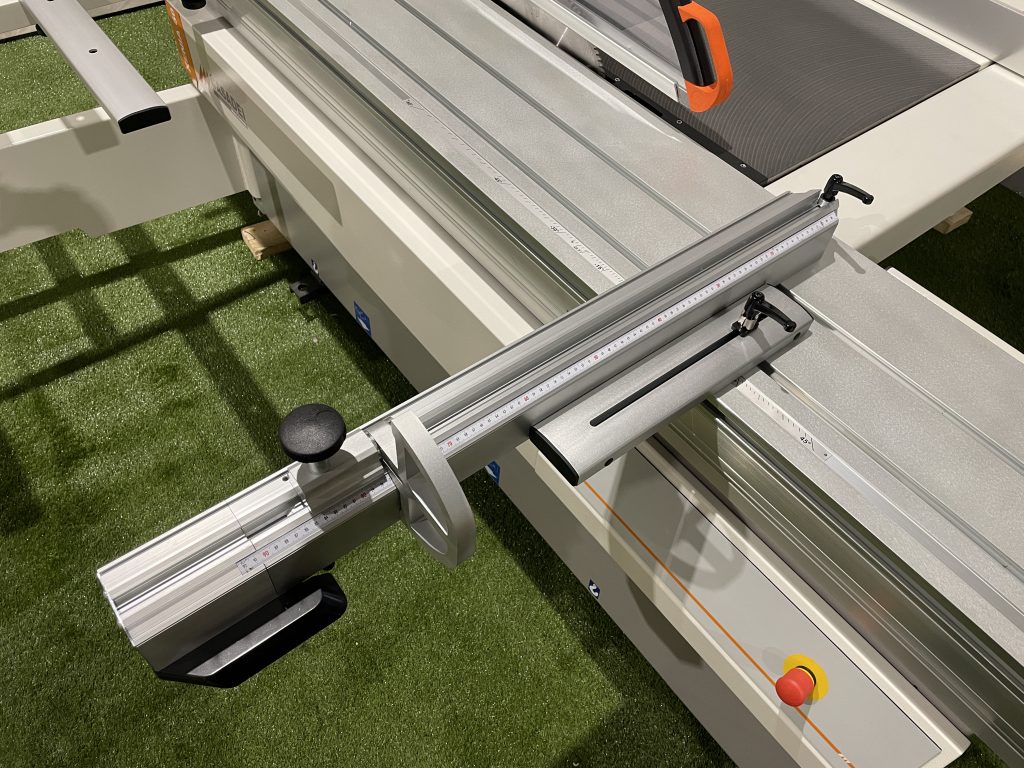

Mitre Cross cut table and heavy duty fence with 2 flip over stops

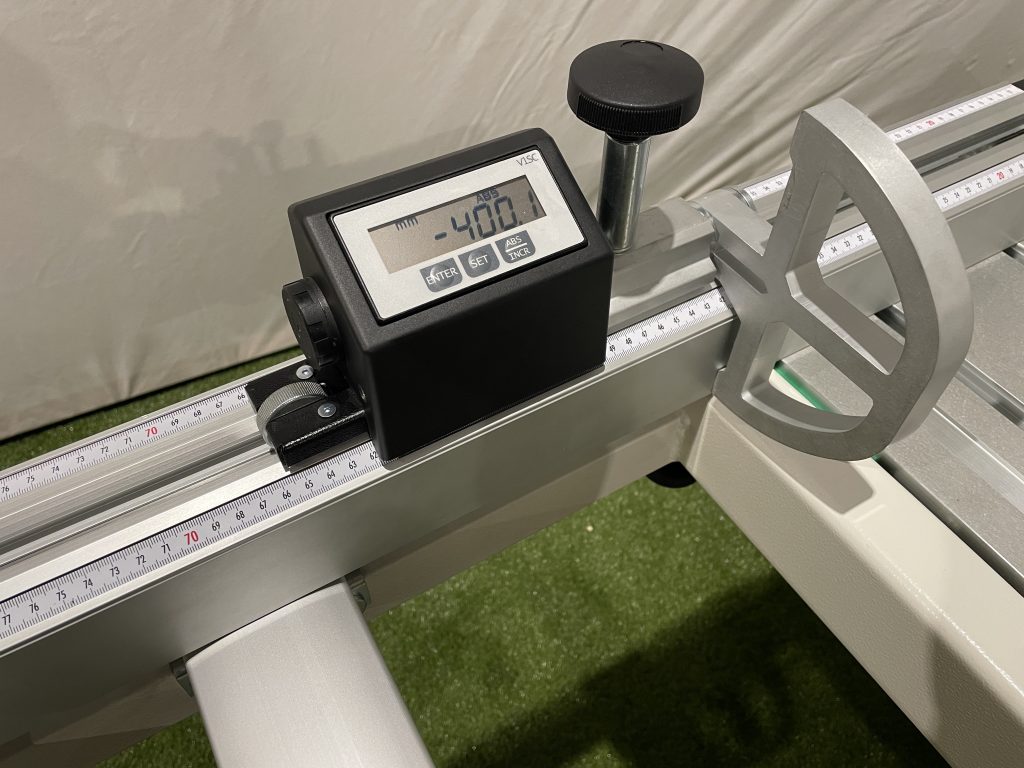

Extra Mitre table and fence  complete with 2 flip over stops

Over head saw guard with 100 mm suction port

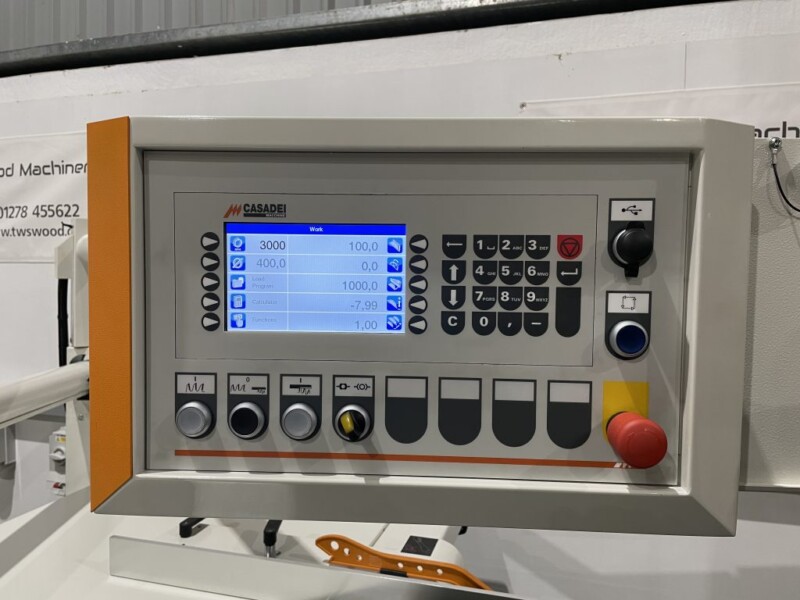

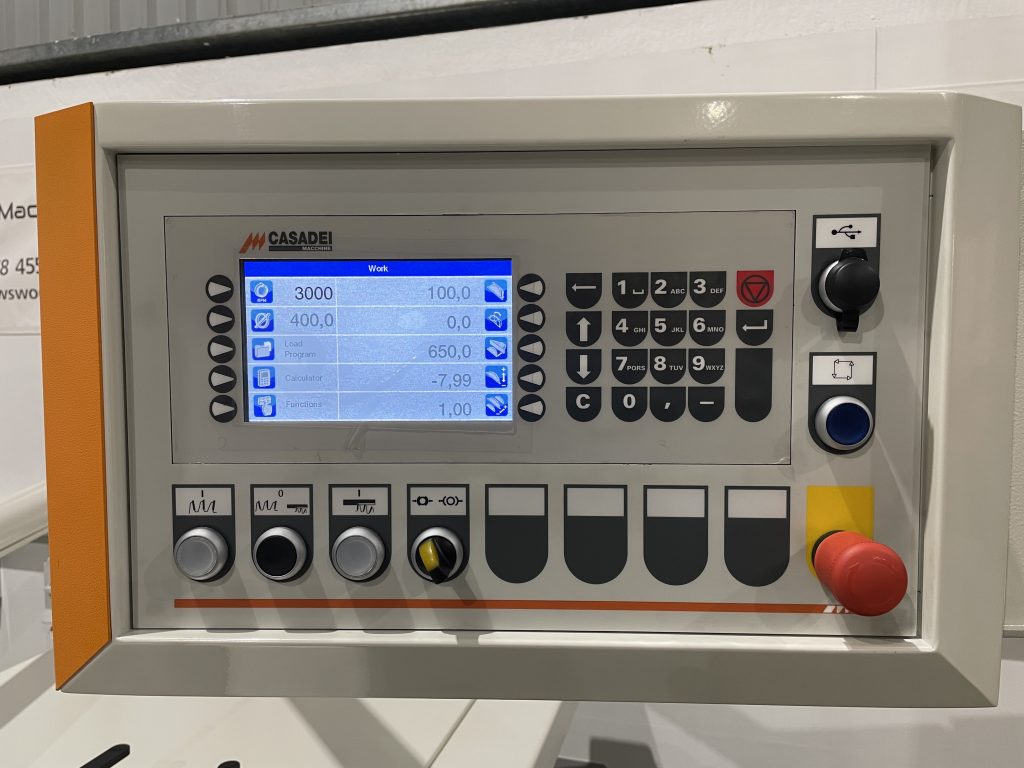

4-axis electronic positioner for saw blade lifting and tilting,
scoring lifting and adjustment selectable by means of numerical
keyboard and displayed on LCD displays
Memory capacity up to 300 working programs

To view our range of Panelsaws please click here

For more information on this machine click Here

Additional information

Maximum Depth of Cut

140mm

Blade Size

400mm

Rip Capacity

1500mm

Scoring blade drive

Independent

Blade tilt

90° To 45°

Sliding table length

3200mm

Condition

New
