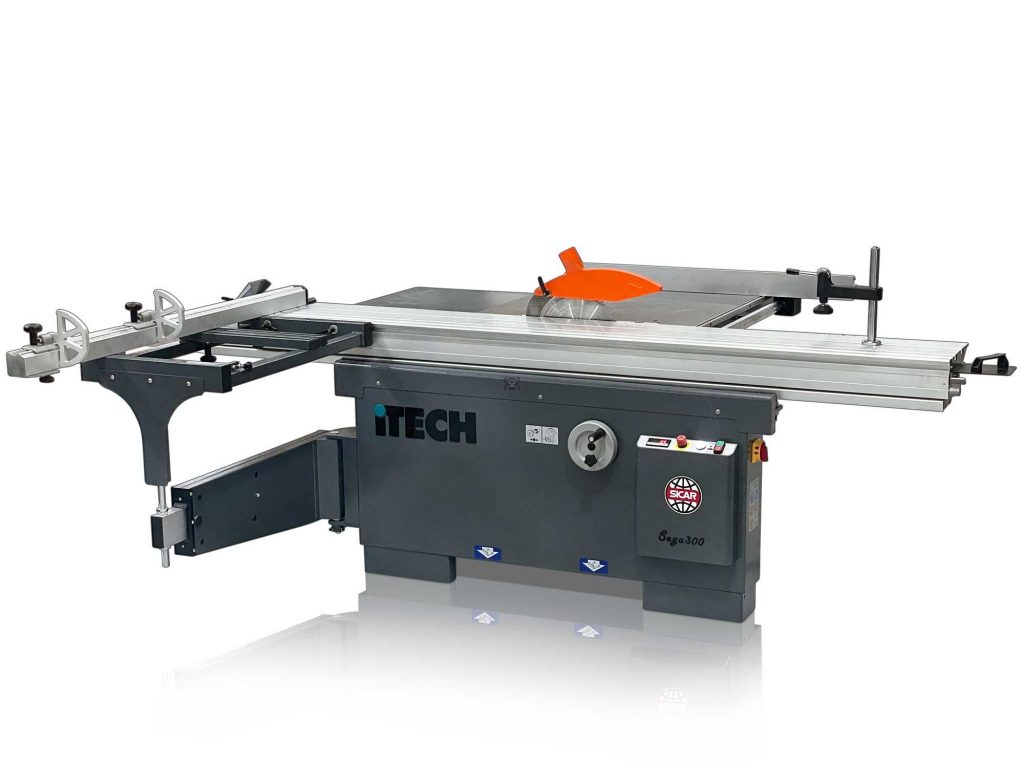

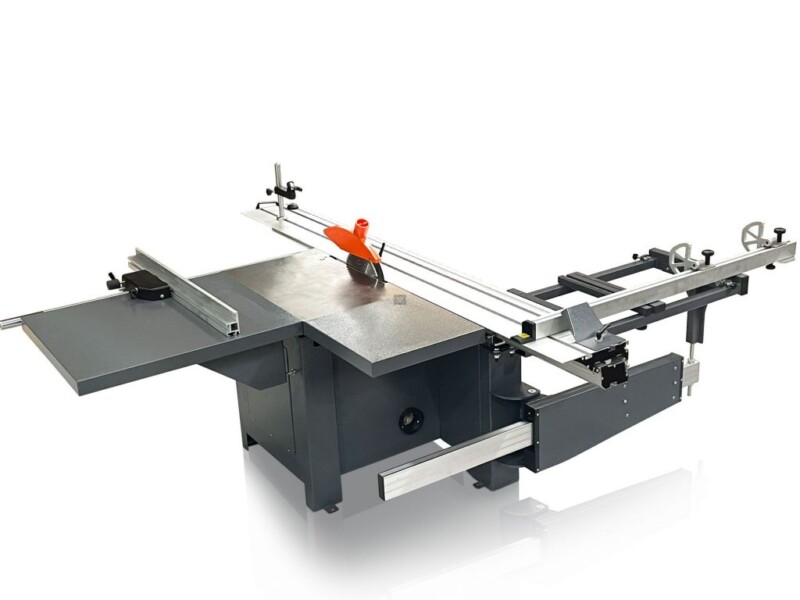

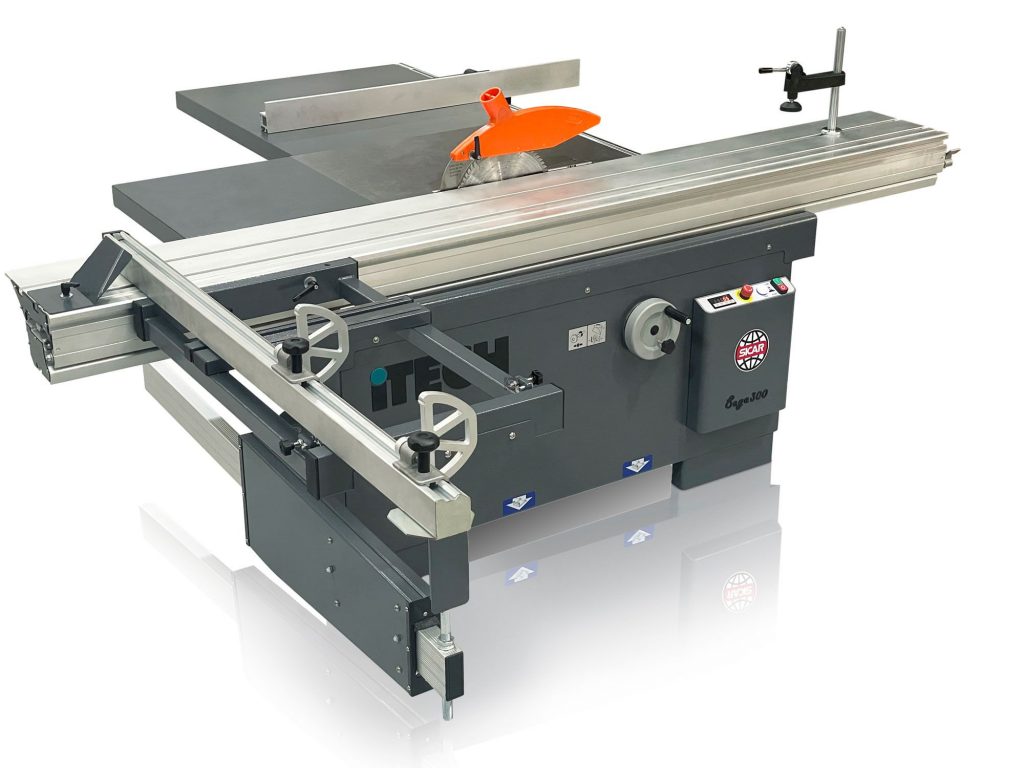

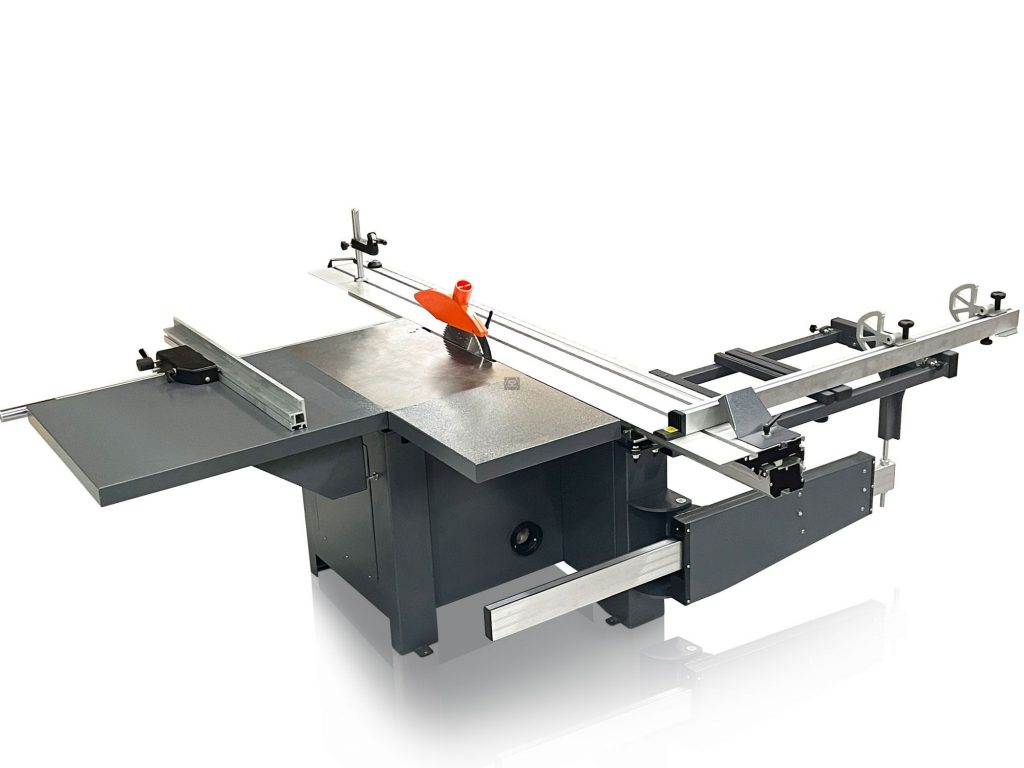

New iTECH Sega 300 2.6m Panelsaw

£4,650.00 +VAT
Add to Quote
Category:

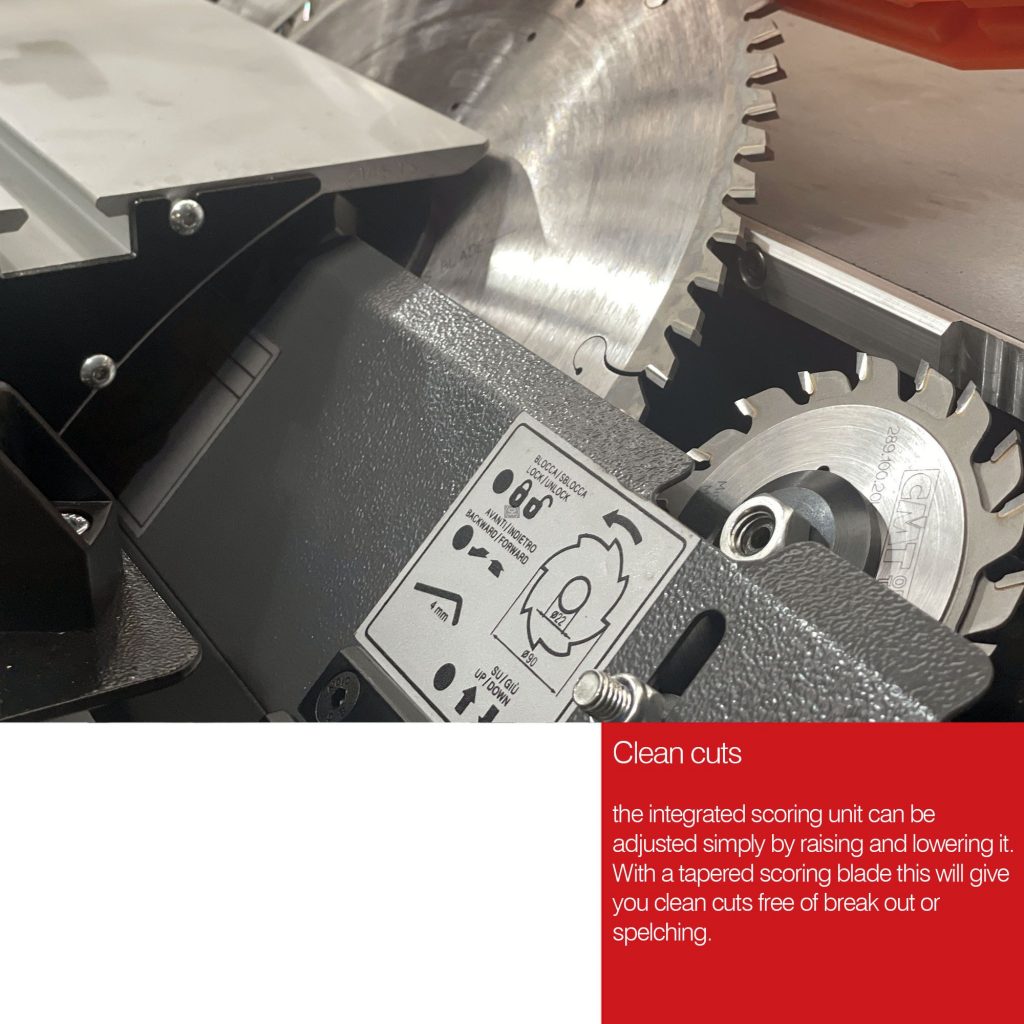

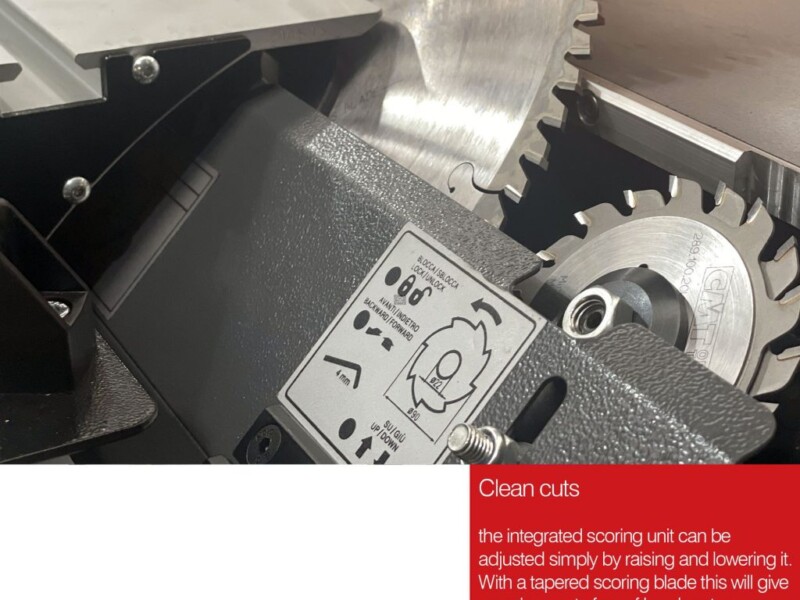

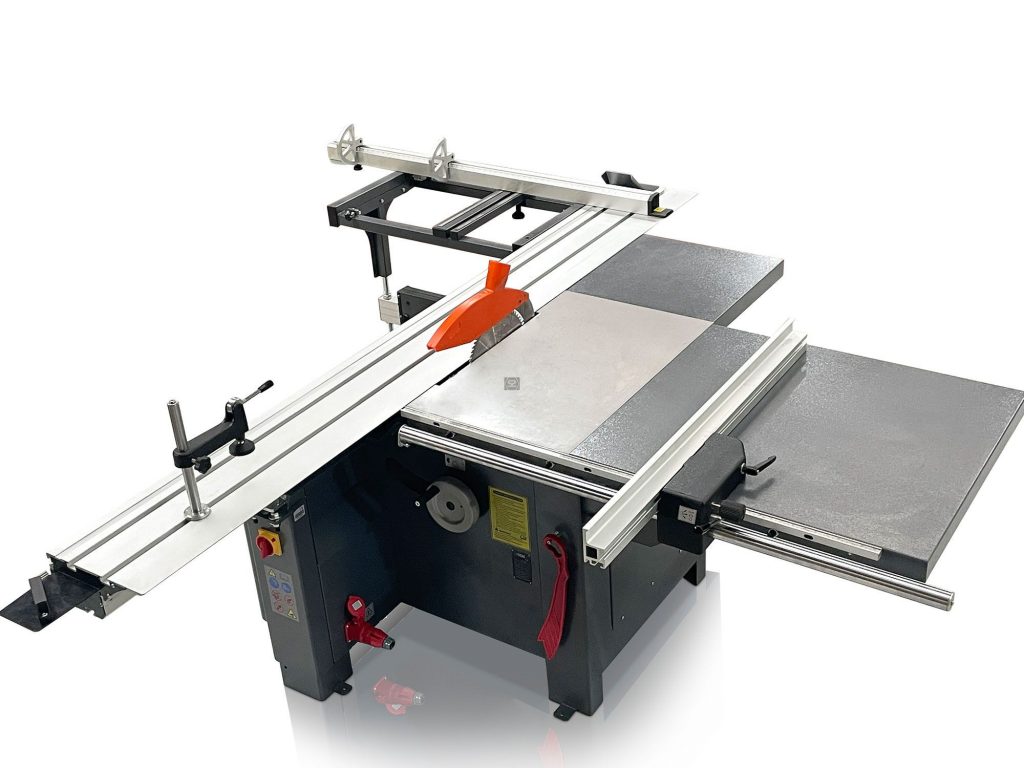

The iTECH Sega 300 2.6m is a new sliding table panelsaw based on the proven design with a class leading 100mm depth of cut.. The saw has a scoring unit to help you get a perfect cut on laminated and veneered panels. Coupled with the smooth sliding table, it makes for a superb value machine for smaller workshops. The machine is supplied complete with mitre cutting facility on the crosscut table, a clamp for working with short pieces, and straight line edging attachment for trimming waney edge boards.

Internally the saw is supported on cast iron body which is guided on double round bars for improved accuracy and longevity.

The new iTECH Sega 300 2.6m panelsaw has a 300mm Main saw blade with a belt driven scoring blade.

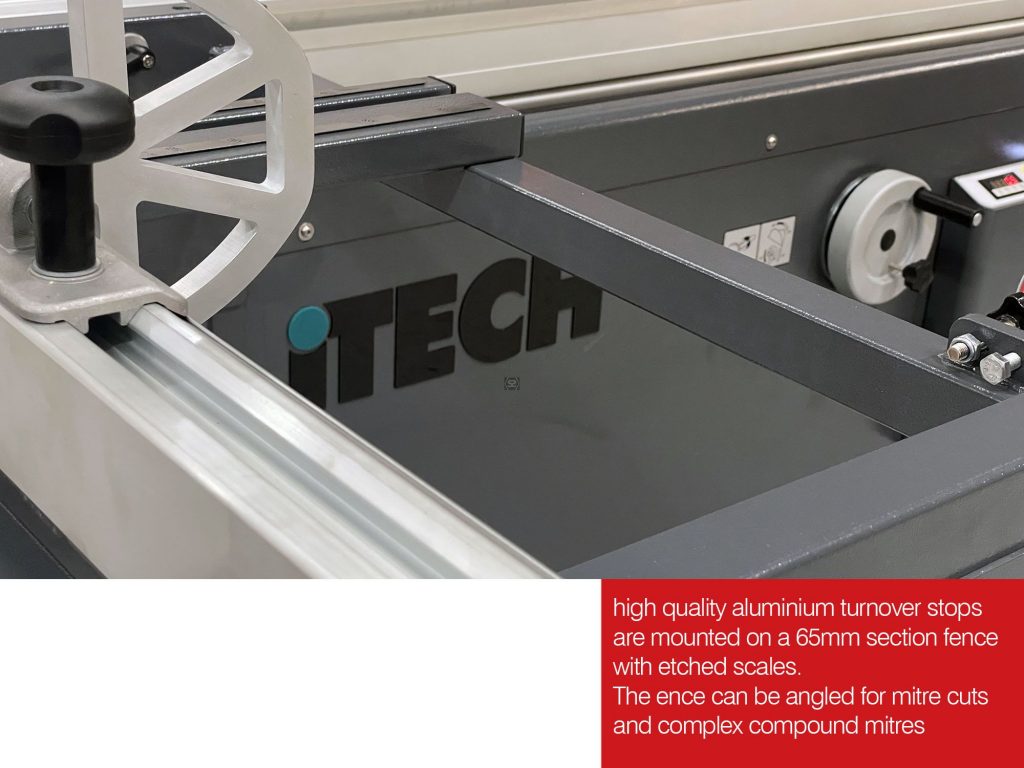

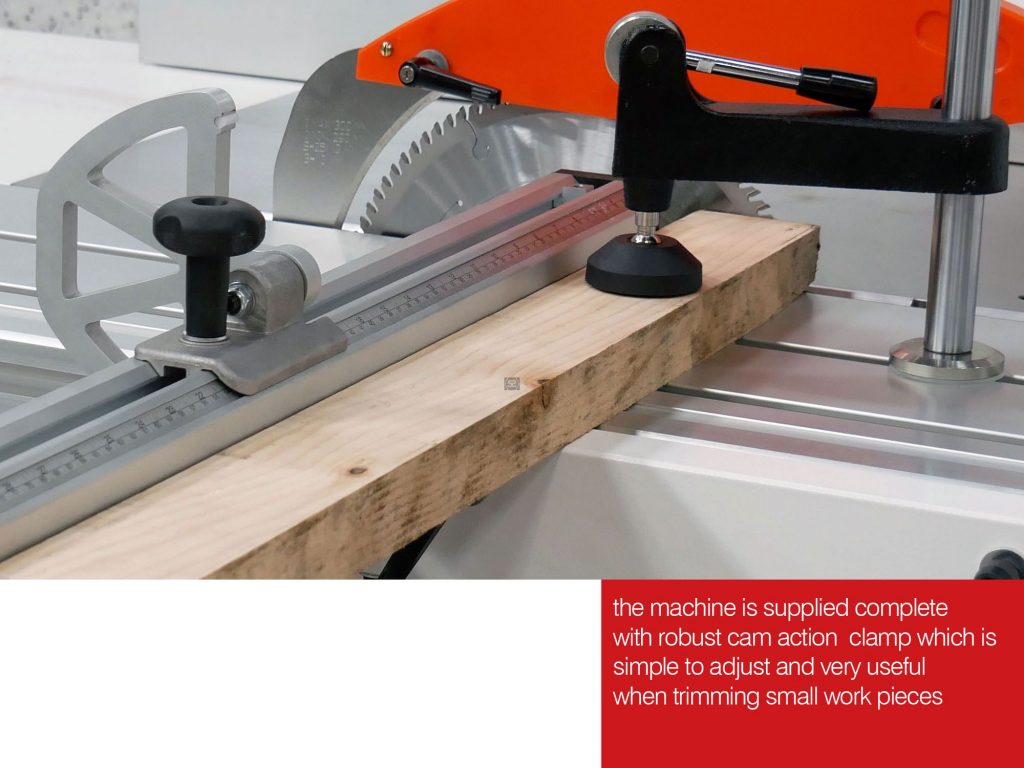

Smooth 315mm wide 2.6m sliding table carriage with cross cut table and adjustable fence for angle cutting with Large  flip over stops, complete with a cramp and straight line edging attachment.

The 300mm saw blade manually tilts from 90° to 45° giving a maximum cutting height of 100mm at 90° and 75mm at 45°

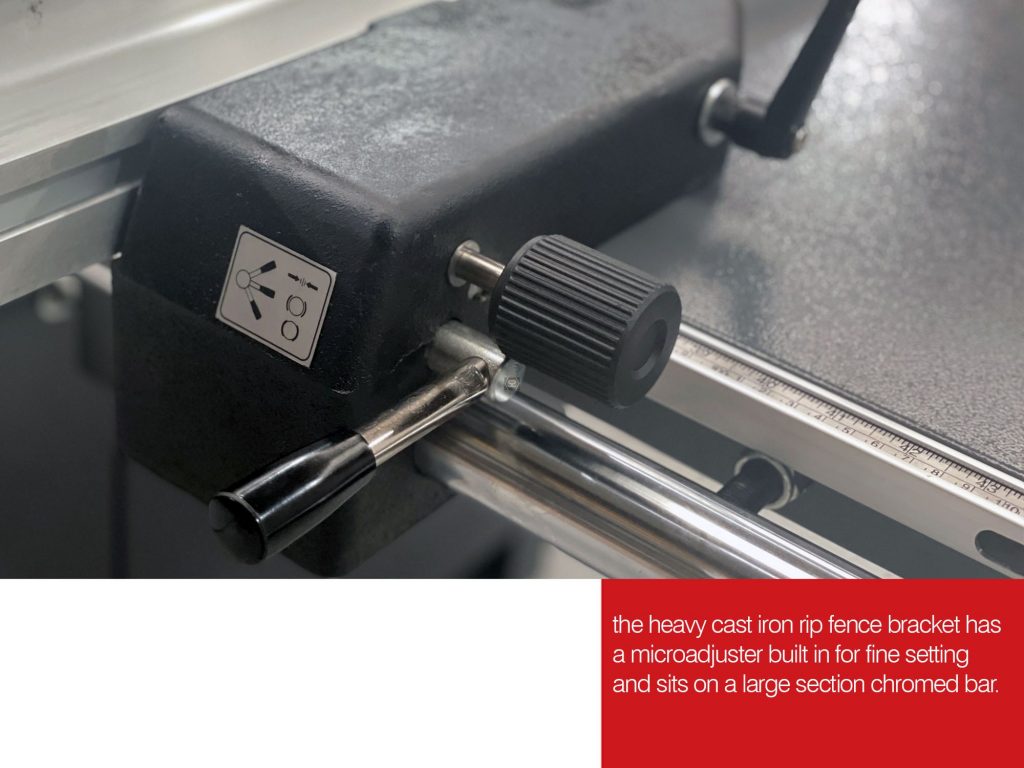

The cast iron rip carriage has a strong aluminium Fence whilst mounted on a 40mm Steel bar. The rip fence has a micro adjustment for accurate sizing.

The blades are driven by a 3 Phase 400 volt 4hp 3kw motor.

Supplied with Operators Manual and tool kit

For more information for the machine please click here



To View more Panel Saw please click here

Additional information

Maximum Depth of Cut

100mm At 90°

Blade Size

300mm

Rip Capacity

1250mm

Scoring blade drive

Independent

Blade tilt

90° To 45°

Sliding table length

2600mm

Condition

New
