New iTECH Sega 350 3.2m Panelsaw with Digital Rip Fence

£6,500.00 +VAT
Print Listing
|
Email Listing
Enquire about this Product

    Enquire Now






    Category:

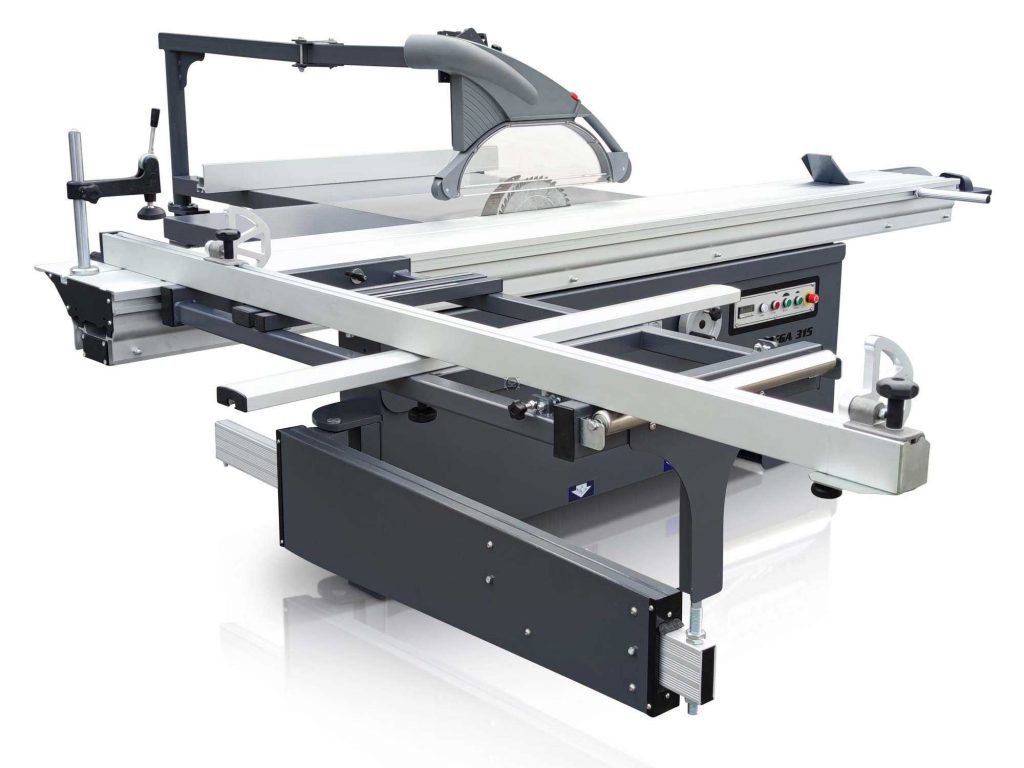

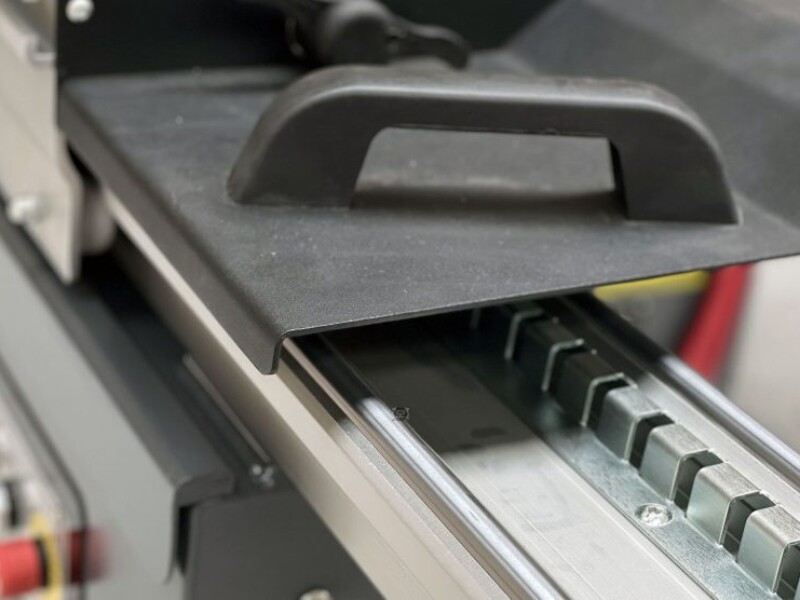

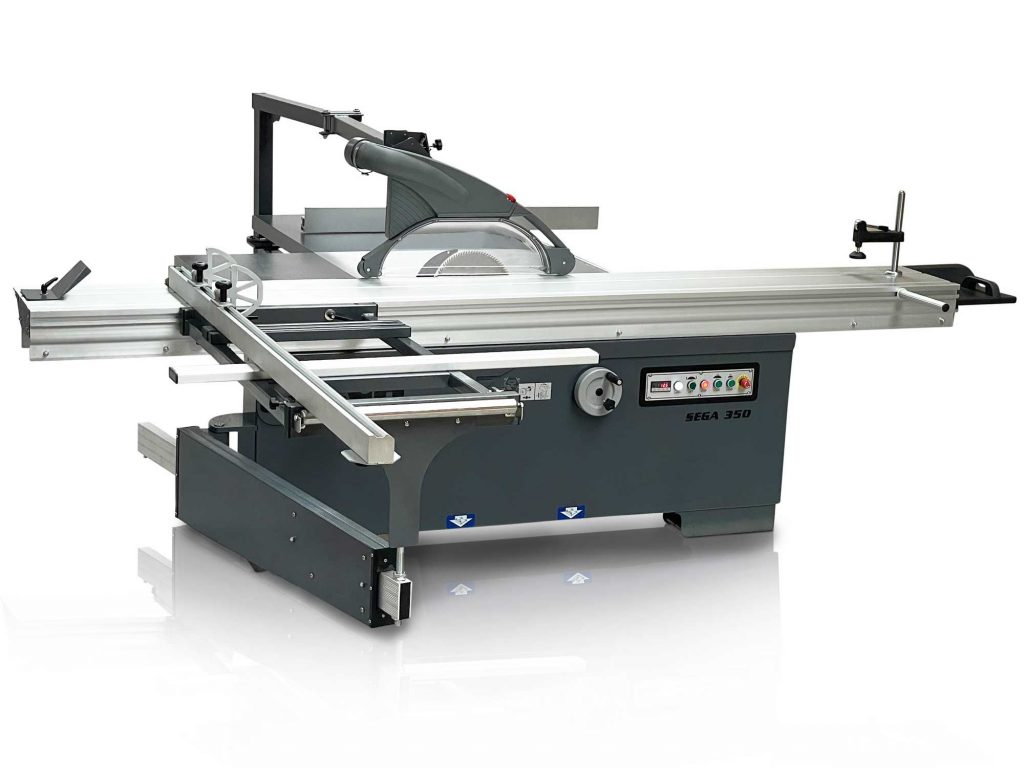

    The iTECH Sega 350 3.2m is the high capacity version of the 315 sliding table panel saw, it is the perfect answer for easy and accurate cutting of large panels up to 10′. It has a smooth running high spec 375 mm wide aluminium sliding table for optimum performance, which can also lock at any position. The substantial panel support frame allows you to accurately cut, support and mitre larger boards. The 70mm crosscut fence has 2 large industrial turn over stops and etched metal measuring tapes.

    The 350mm main blade diameter gives you a max cutting height of 120mm at 90° and 92mm at 45°, is powered by a heavy duty 5.5kw 7.5hp Three phase motor, 400 volts.

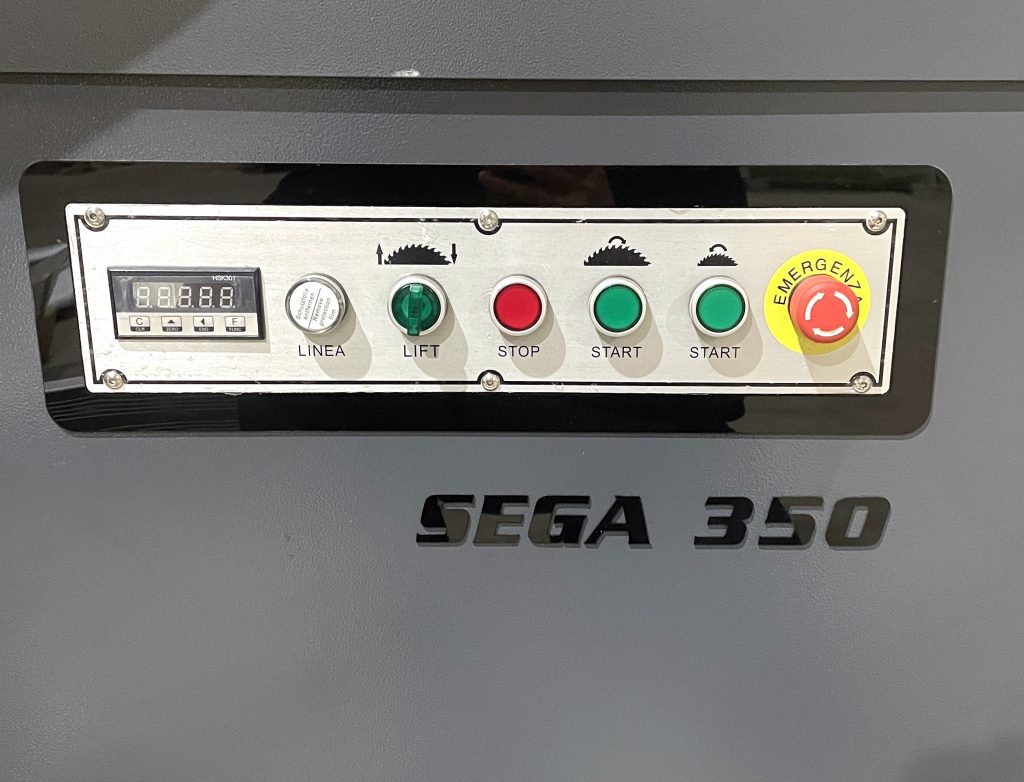

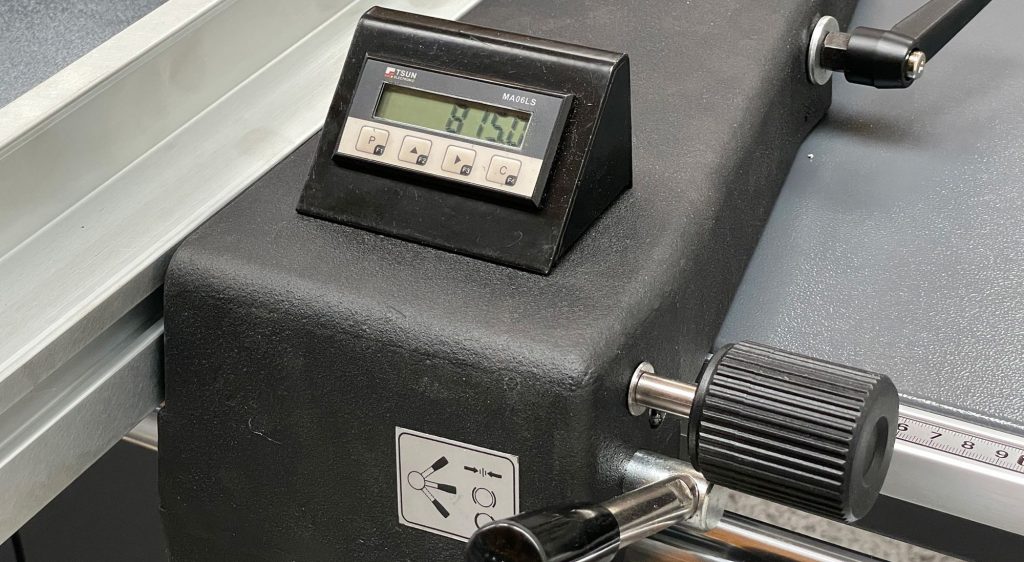

    The Rip fence includes electronic digital readout for accurate cutting and panel division.

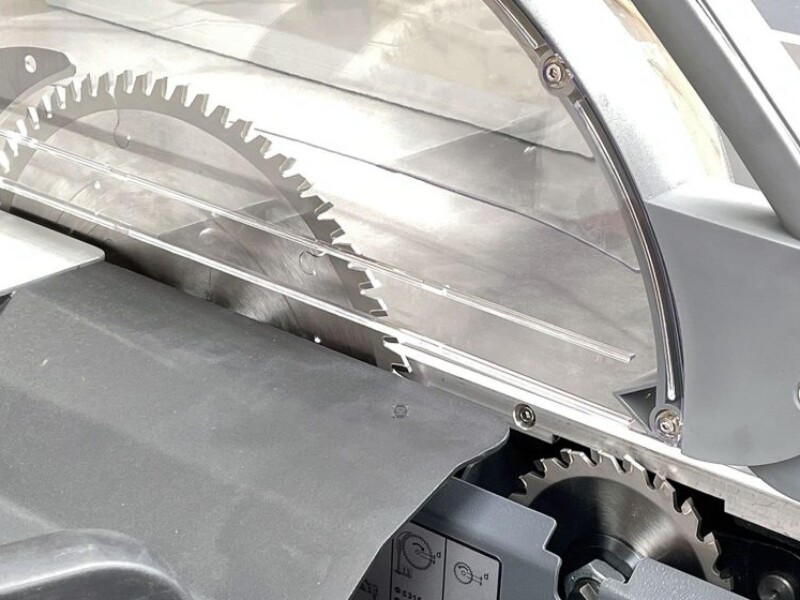

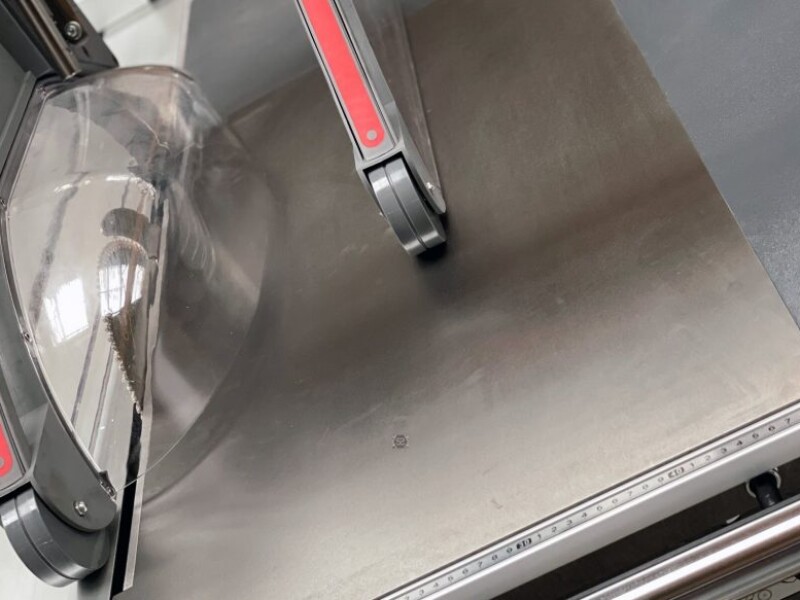

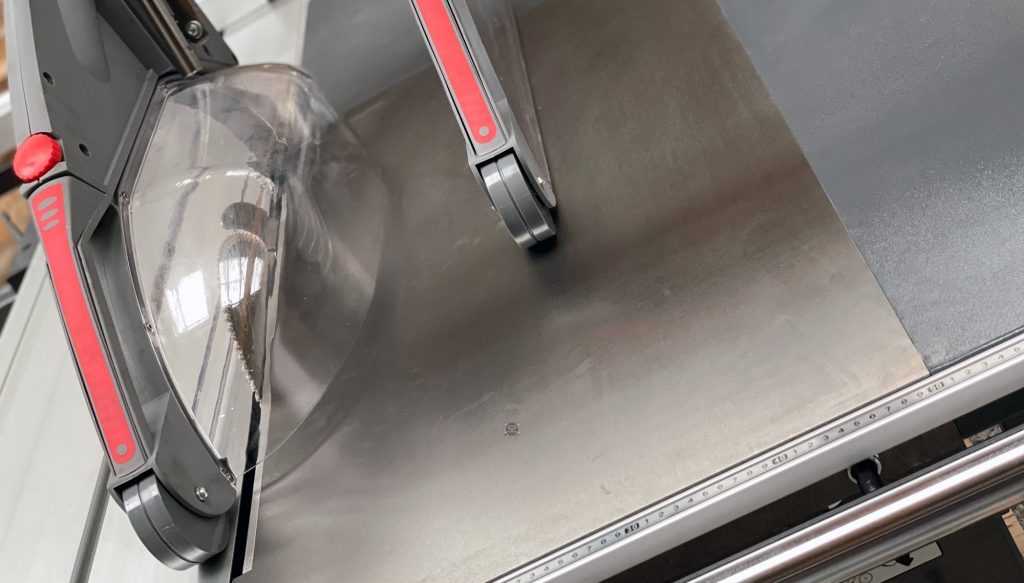

    For a machine in this price range everything about the machine shows its professional pedigree. The rigid rip fence is set on a large diameter rail which is micro adjustable and can give a 1250mm cut to the right of the blade as standard. It is supplied complete with a high quality, adjustable overhead blade guard.

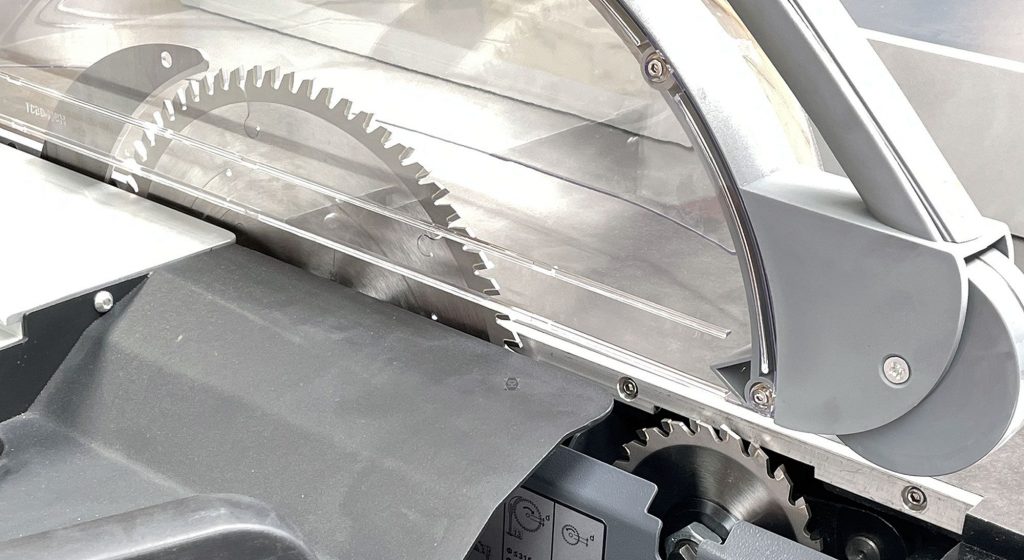

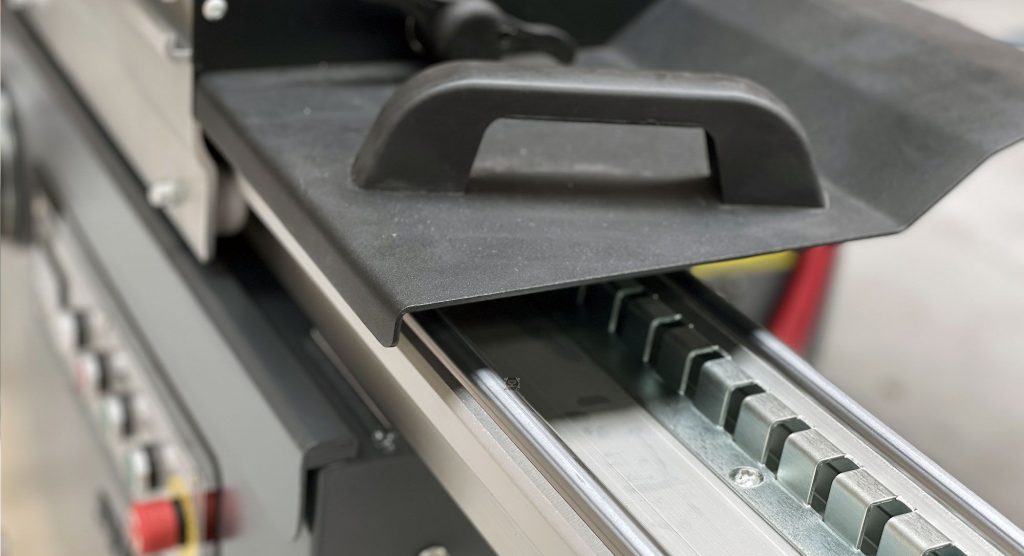

    The saw unit has a 120mm scoring blade powered by an independent motor, essential for the more demanding workshop. Supplied complete with a clamp for small pieces and edging waney edge boards.

    Length of Sliding Table – 3200 mm
    Blade to Rip Fence – 1250 mm
    Main Motor Power – 5.5 kW 7.5hp [S1]
    Scoring Motor Power – 0.75 kW 1.0 hp [S1]
    Max Depth of cut at 90° – 120 mm
    Max Depth of cut at 45° – 92 mm
    Sawblade diameter – 350 mm
    Sawblade arbor – 30 mm
    Blade Speed – 4000 rpm
    Scoring Blade diameter 120 x 20 mm
    Sliding Carriage dimensions –  3200 x 375 mm
    Main table size – 910 x 550 mm
    Main extended table – 910 x 760 mm
    Dust Extraction outlet – 120 + 80 mm
    Net/Gross weight 610/700 kg

    For more information on the iTECH Sega 350 3.2m panelsaw with Digital Rip Fence please click here

    To view our range of machines please click Here

    Additional information

    Maximum Depth of Cut

    120mm At 90° 92mm At 45°

    Blade Size

    350mm

    Rip Capacity

    1250mm

    Scoring blade drive

    Independent

    Blade tilt

    90° To 45°

    Sliding table length

    3200mm

    Condition

    New
