Sedgwick TA450 Ripsaw

£3,950.00 +VAT
used
  • Blade Diameter – 450mm
  • Blade Tilting – 90° to 45°
  • Max depth of  cut at 90° – 130mm
  • Max depth of cut at 45° – 70mm
  • Distance saw blade to fence – 600mm
  • Main table – 1100mm x 900mm
  • Rear take off table – 810mm long
  • 5.5Kw motor  – (7.5 hp)
  • Electronic Brake
  • Emergency Kick stop
  • C.E. regulated
Add to Quote
Category: Tags: , , ,

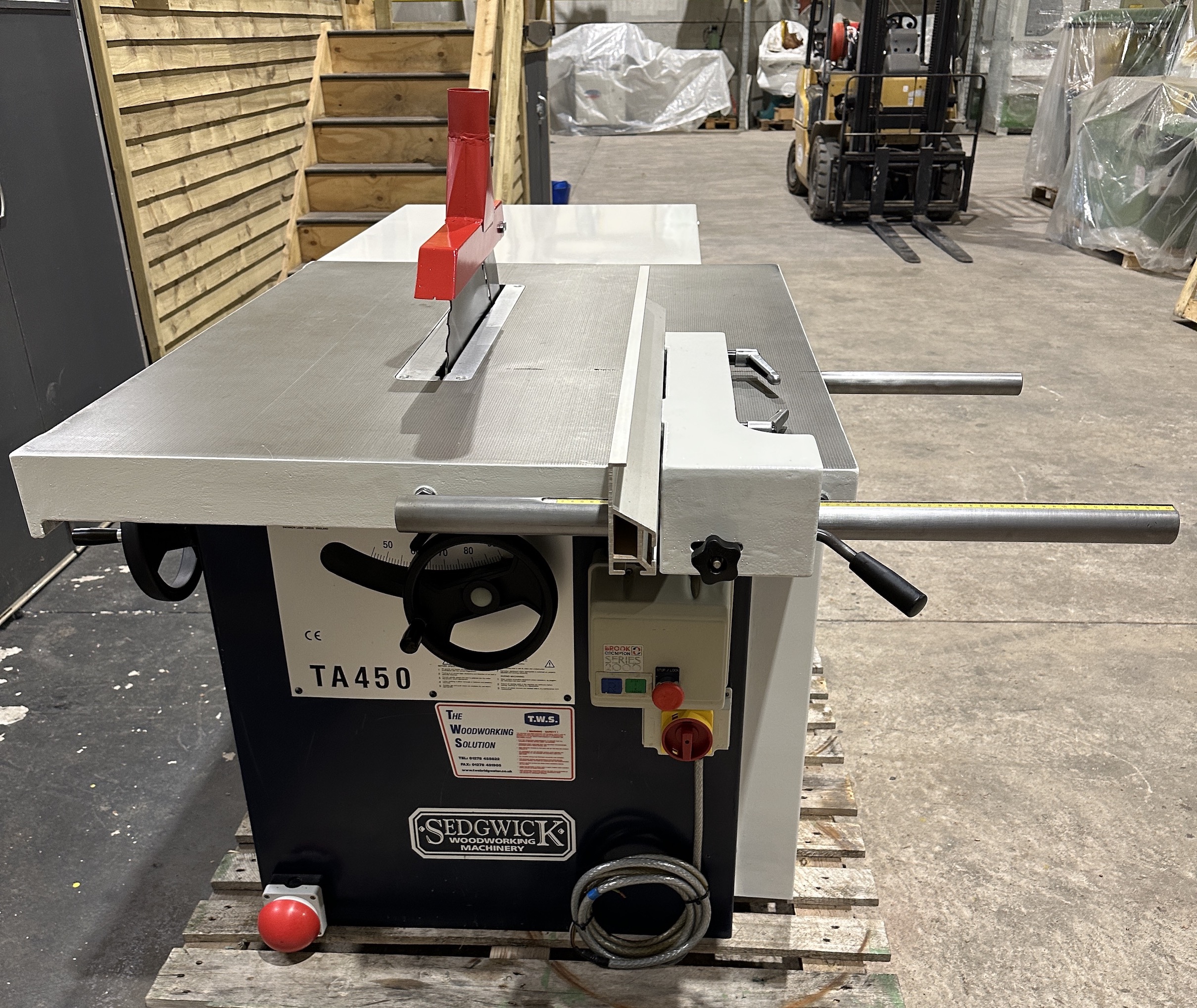

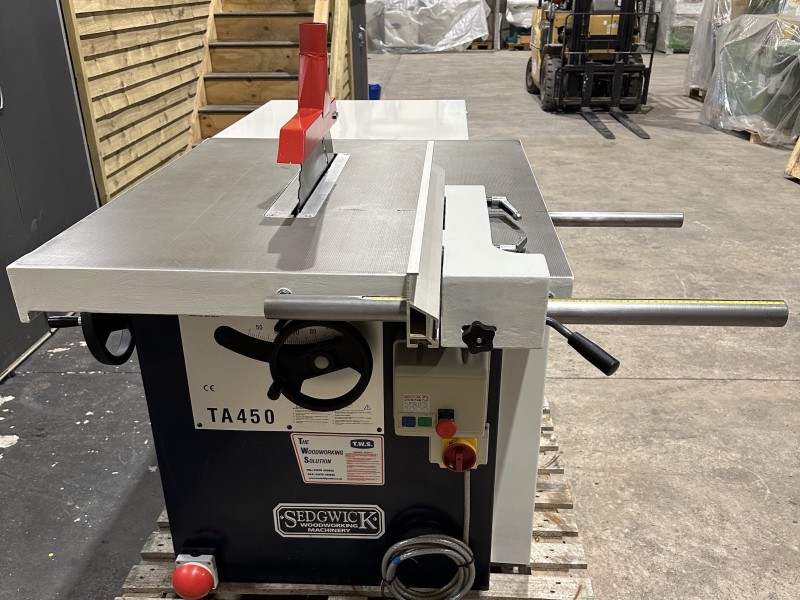

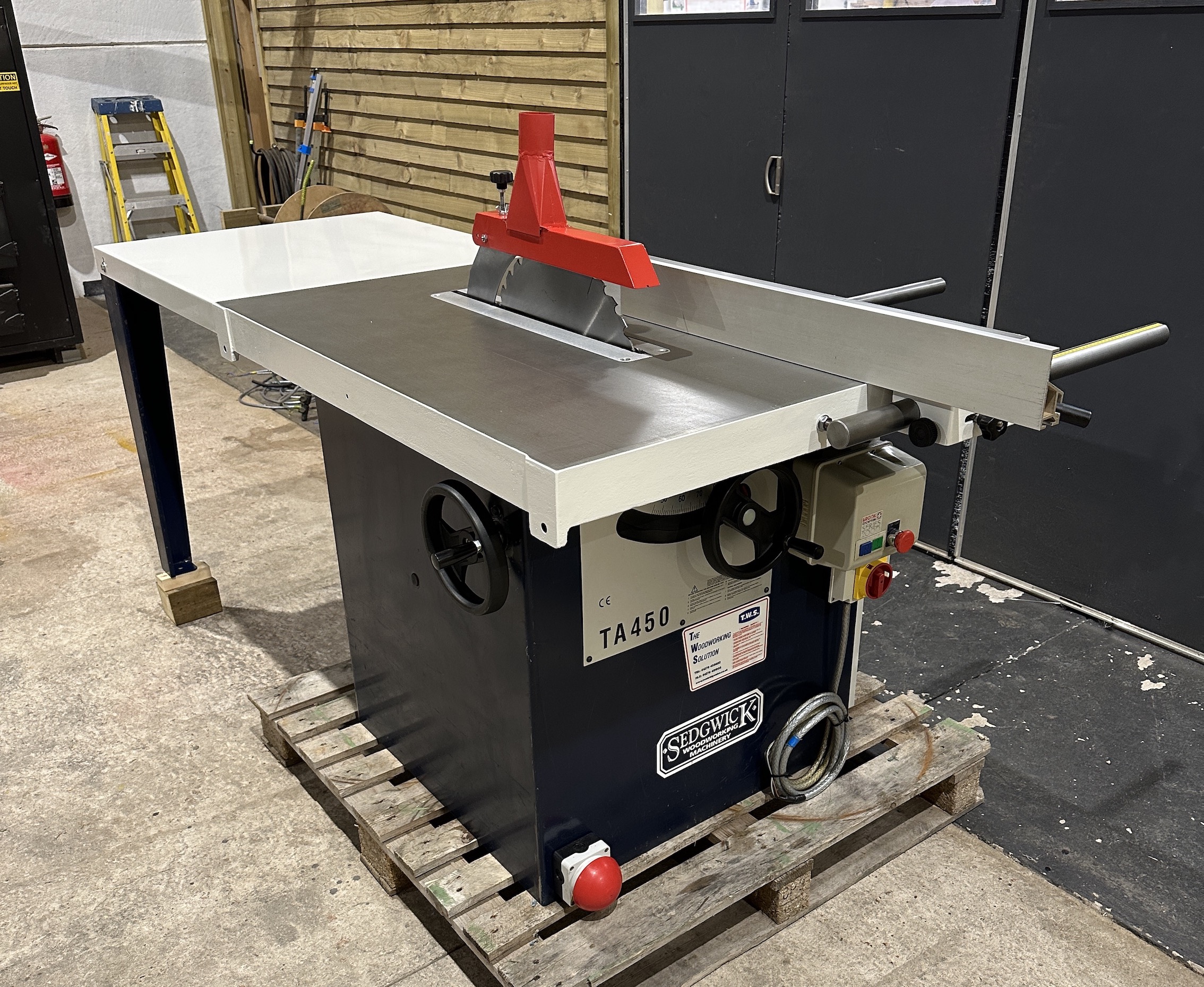

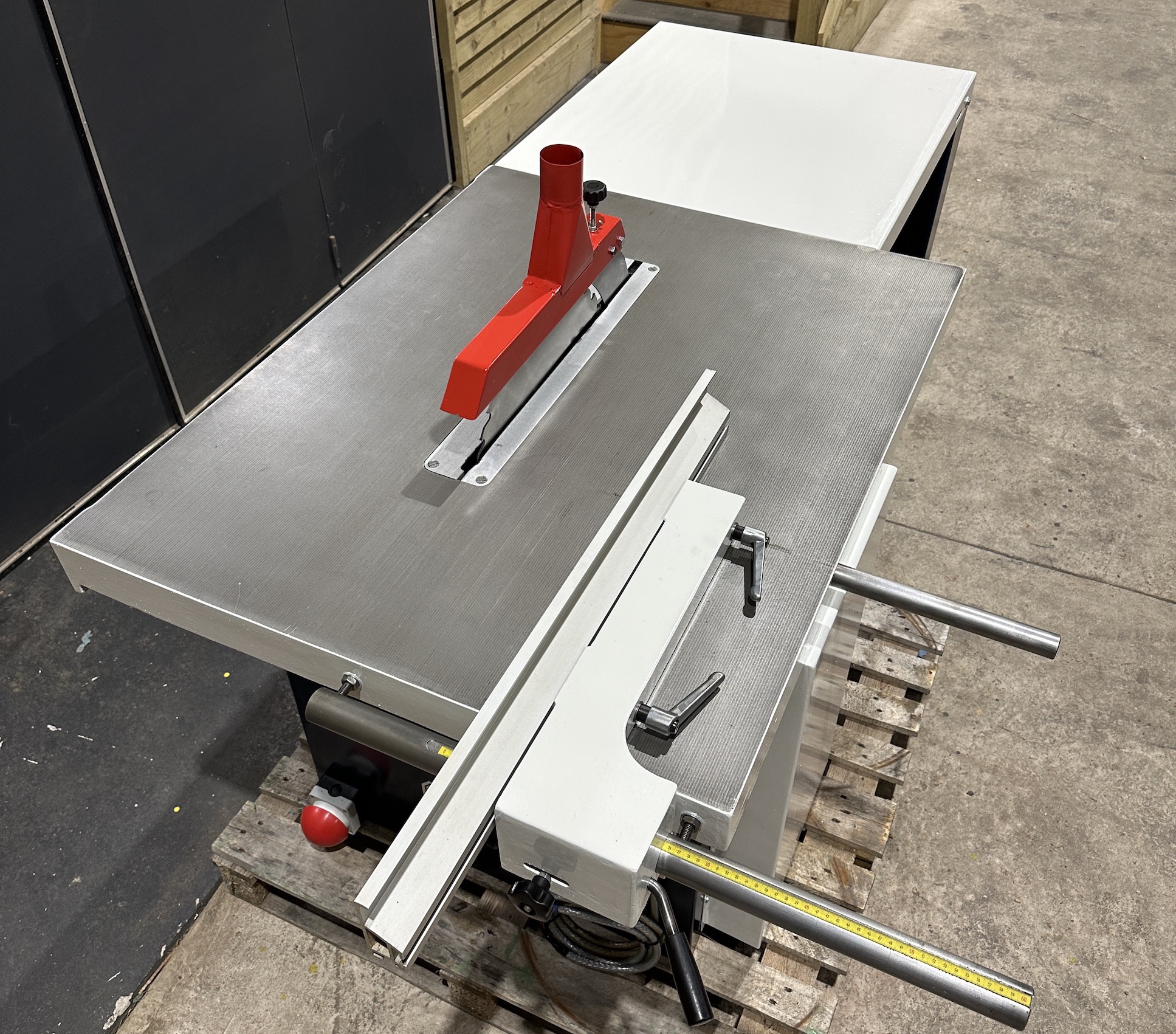

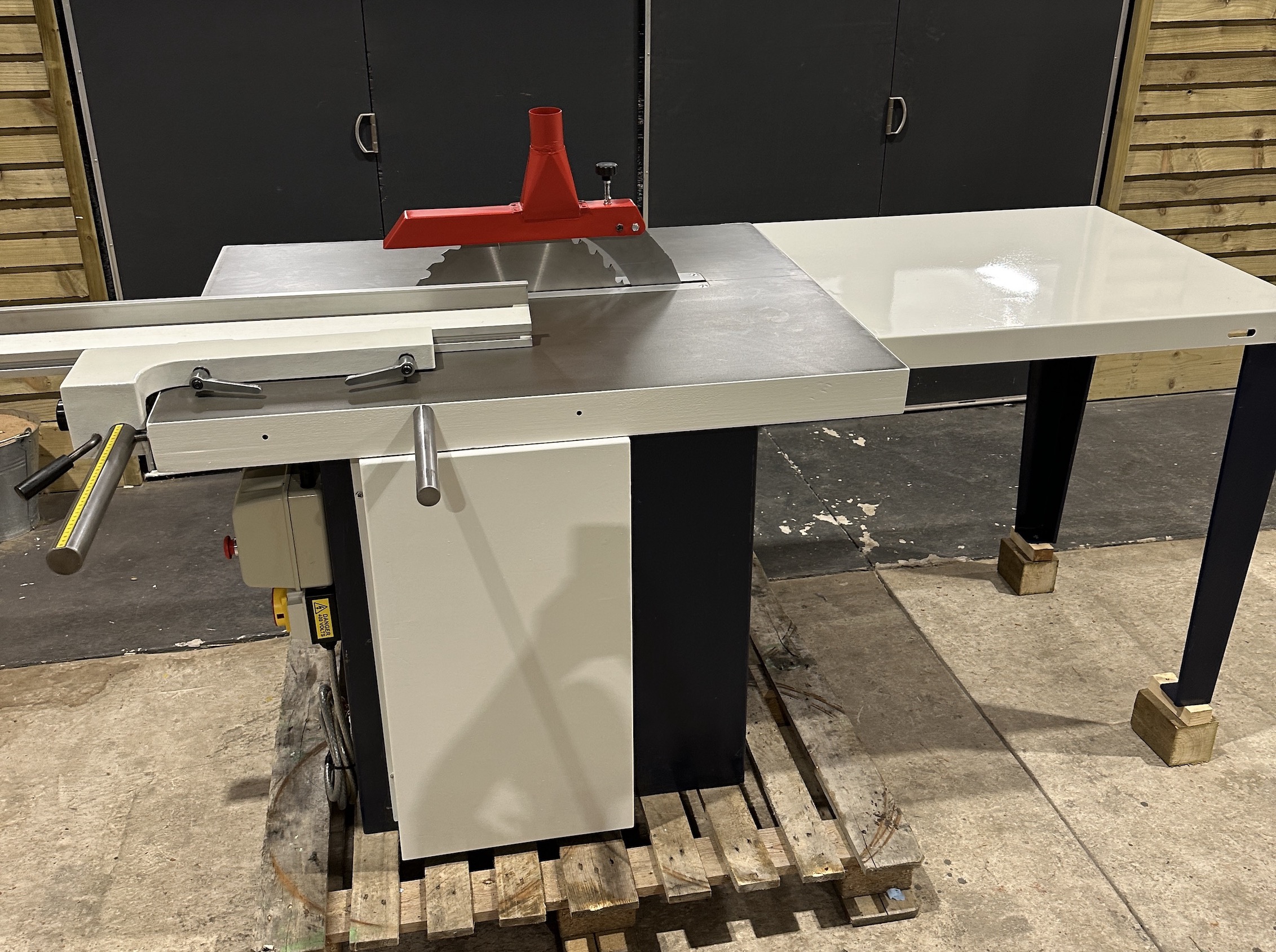

Sedgwick TA450 ripsaw complete with rear take off table.

The Sedgwick TA450 Ripsaw is a robustly built sawbench, which is what is required as the backbone of any joinery workshop. It is powerful, accurate, reliable and simple and safe to operate. The Sedgwick range of saws are designed with this in mind, offering outstanding value for money. The strength is in the construction, precision engineering, and use of only the best quality components.

Construction

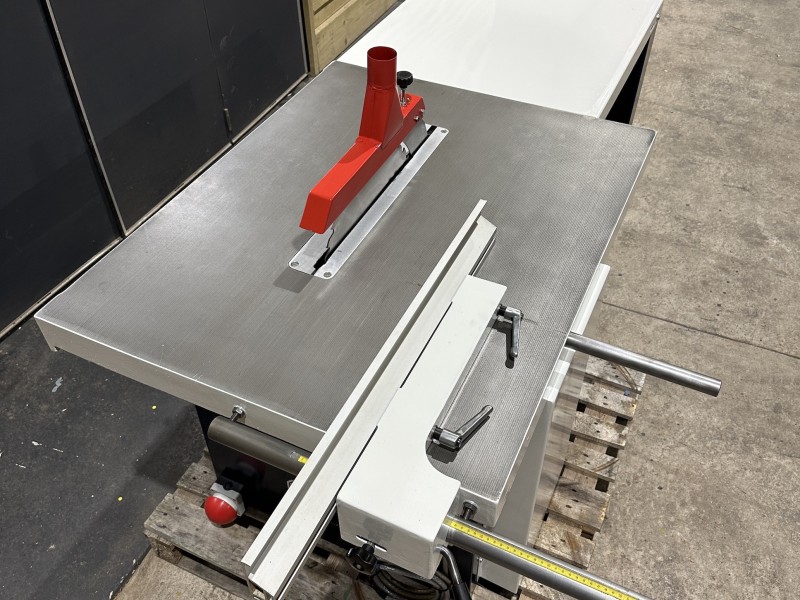

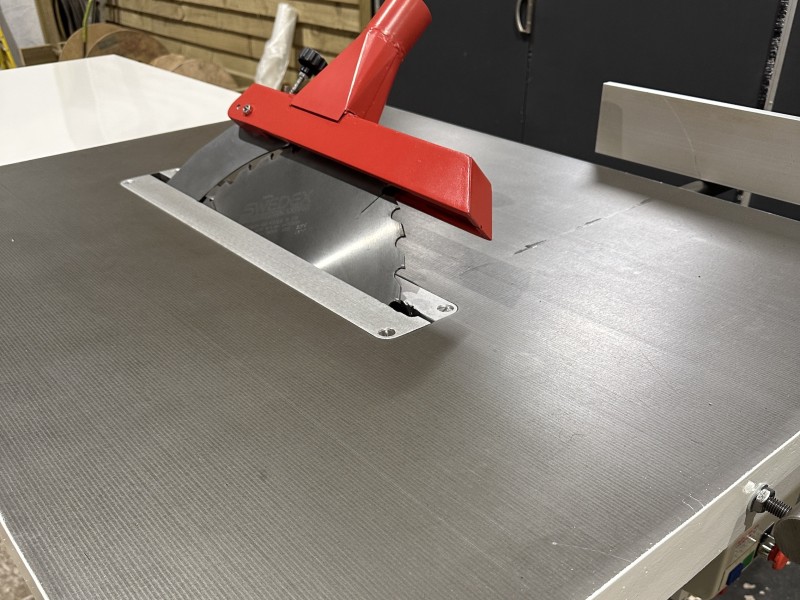

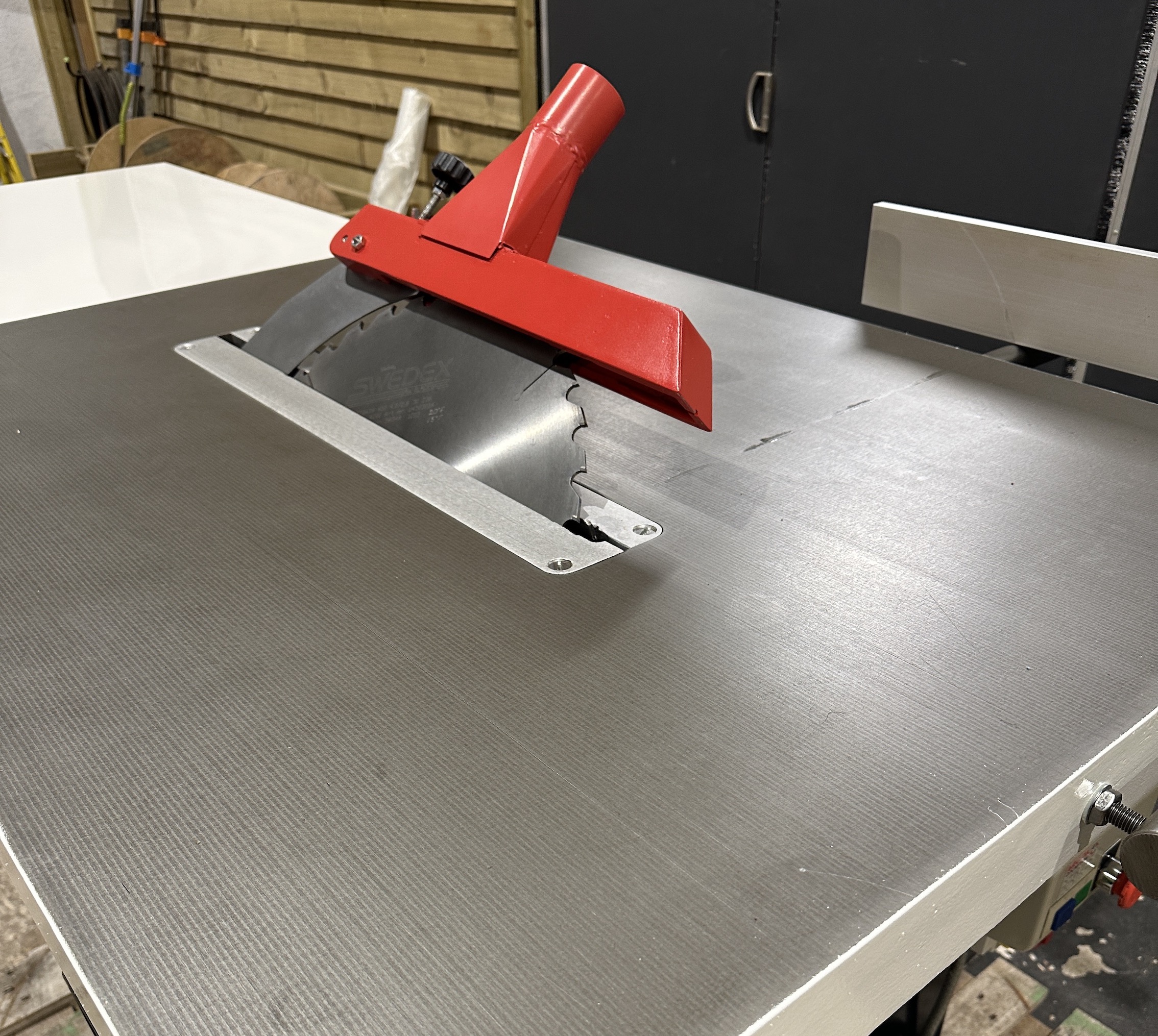

A large cast iron table mounted on a heavy duty steel cabinet provides maximum timber support. The stable and accurate base for anchoring the spindle, rise and fall, and tilt mechanisms. The spindle shaft is powered by a high efficiency IE2 industrial rated motor via a three belt drive pulley. Another key point is the large diameter saw flanges that ensure blade stability. Running ‘sealed for life’ bearings mounted in a cast iron housing, means only minimal maintenance is required.

Hand wheels at the front and side of the machine control the fall and tilt mechanisms using square thread screws. Both are easily accessible by the machine operator.

Versatility

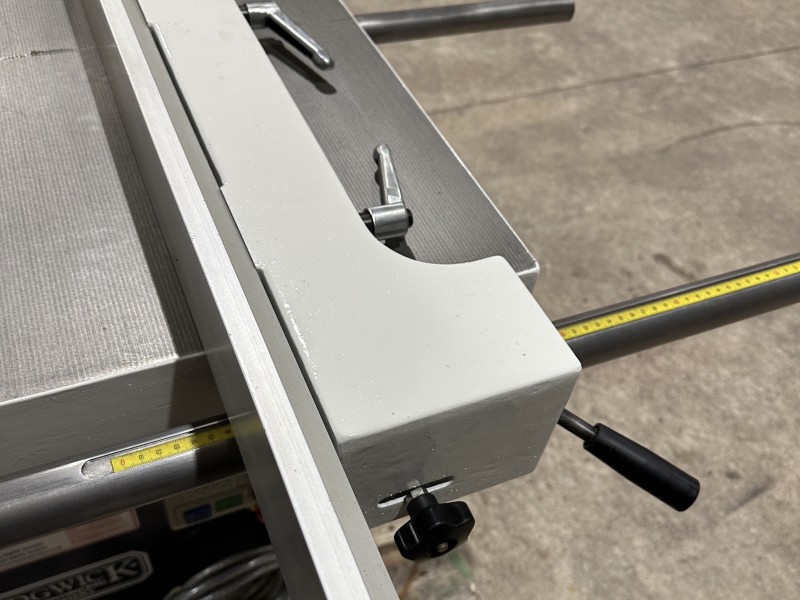

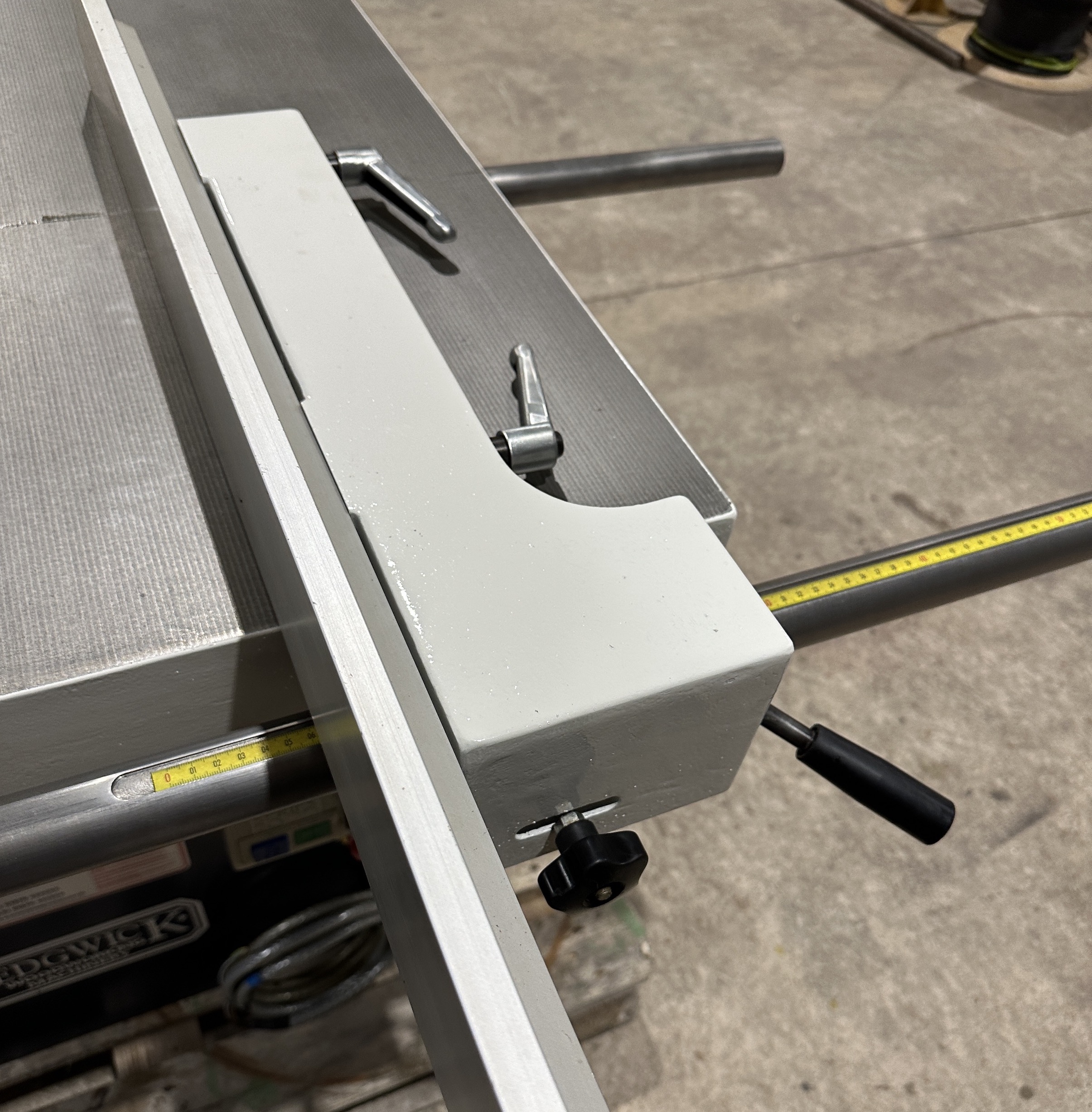

The rip fence is an aluminium section, allowing for two working positions (ripping and angled ripping) and for movement fore and aft in relation to the saw blade. It is fixed to a heavy duty cast iron mounting bracket for rigidity, and has integral micro adjustment. The assembly runs on a nylon roller, gliding easily across the beds, and is supported by a 40mm diameter solid steel bar for rigidity.

For alternative ripsaw options please Click Here

Check out our eBay listing

Furthermore information can be provided. Please give us a call or drop us an email

Additional information

Maximum Depth of Cut

125mm At 90° 85mm At 45°

Table Size

1125mm X 900mm Plus Extensions

Blade Size

400mm

Rip Capacity

1220mm

Blade tilt

90° To 45°

Condition

Used
