New Spindle Moulder – SCM Casadei F230

£8,150.00 +VAT
Print Listing
Email Listing

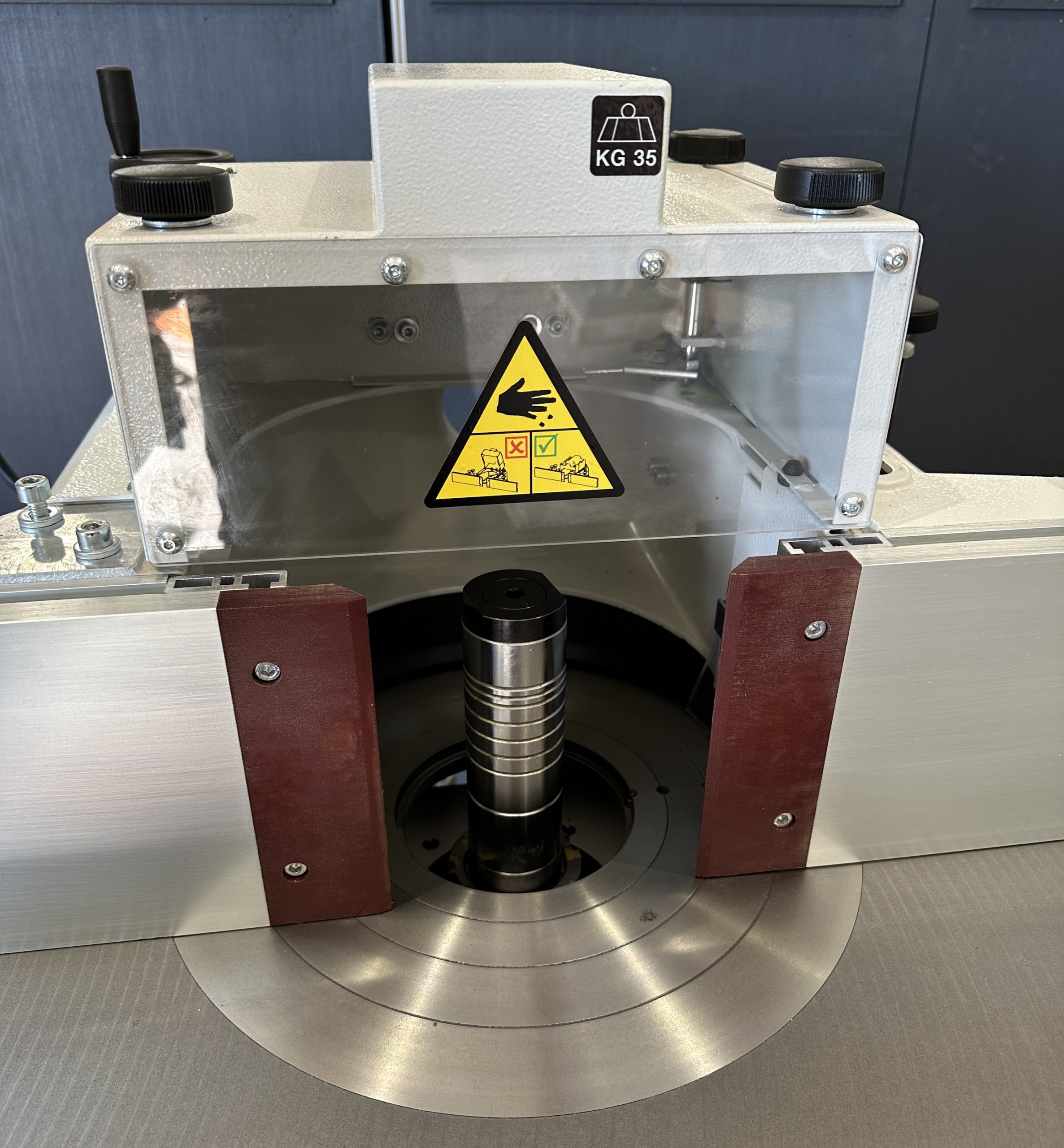

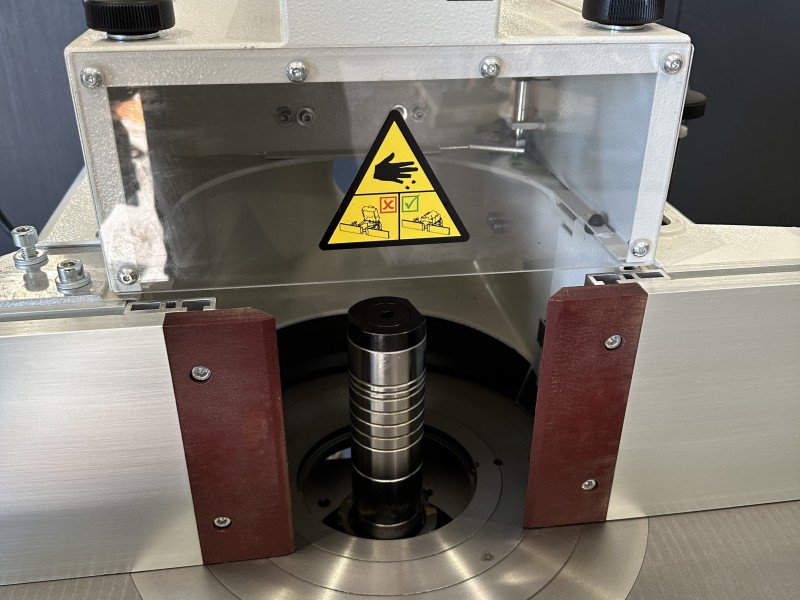

  • 30mm or 1 1/4″ Spindle shaft diameter – interchangeable
  • Aluminium Fence plates
  • 9.5hp (7kw) – Automatic star delta motor
  • Table size – 1200mm x 730mm
  • Table insert for quick setup – no table rings
  • Useful working Spindle height – 140 mm
  • Max tool diameter in hood – 250mm
  • Max tool diameter in table – 300mm

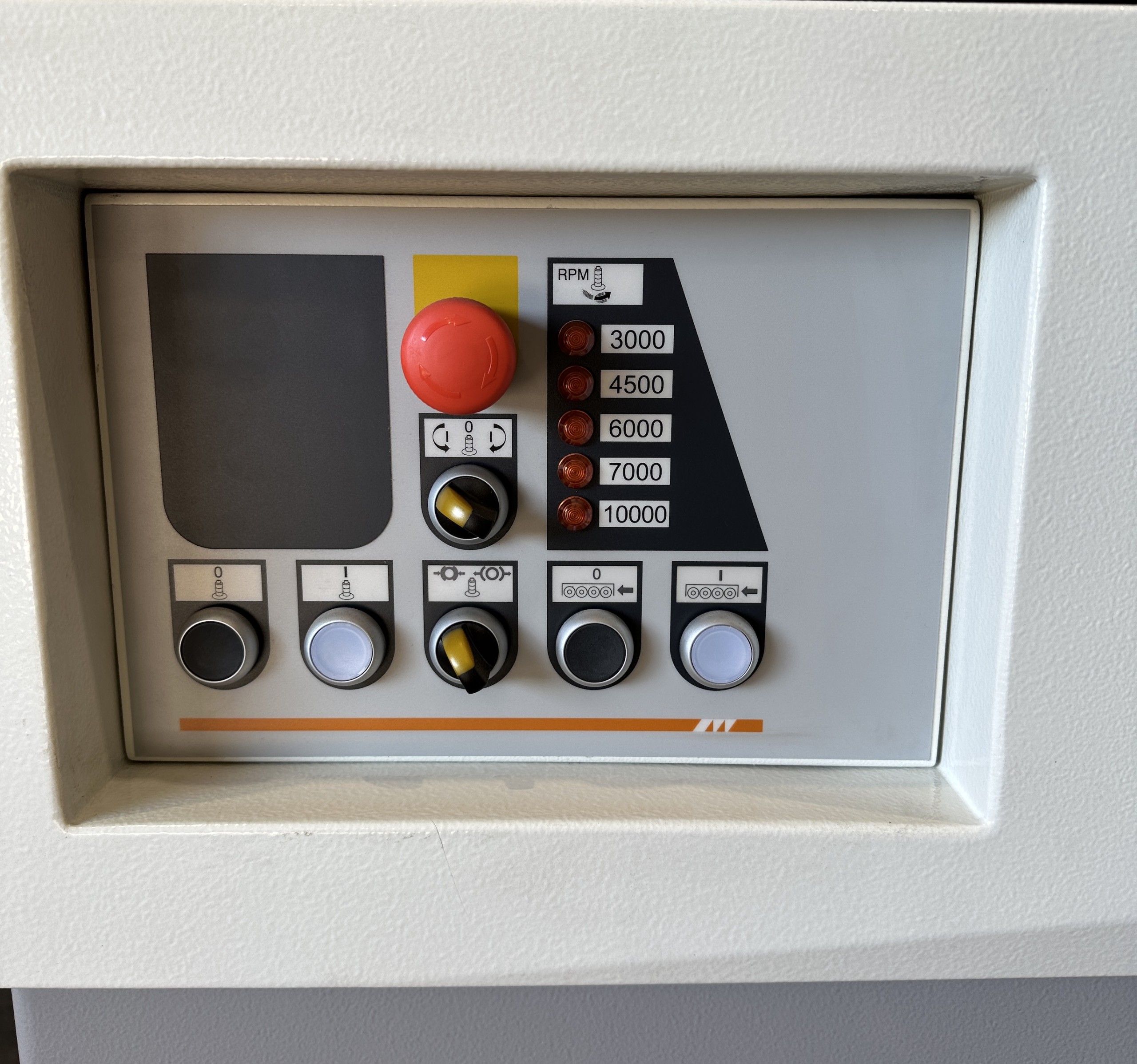

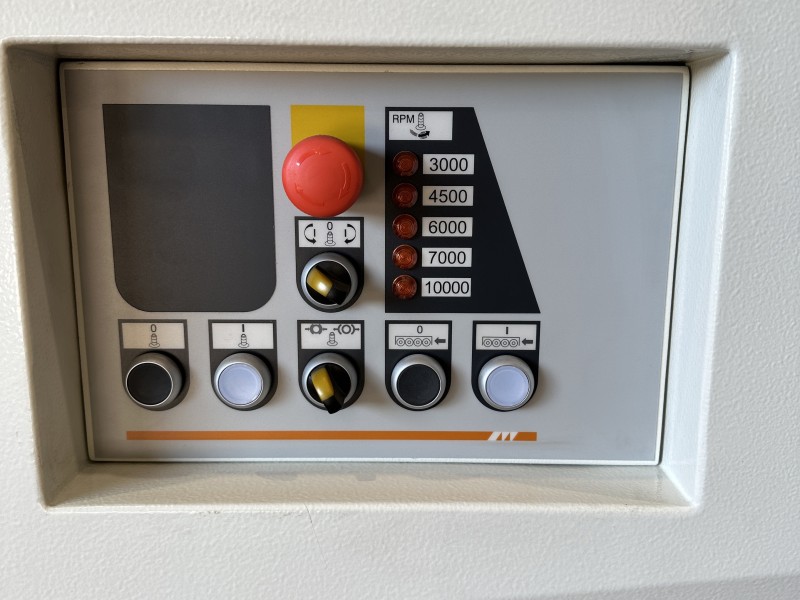

  • 5 Spindle speeds – 3000 / 4000 / 6000 / 8000 / 10000

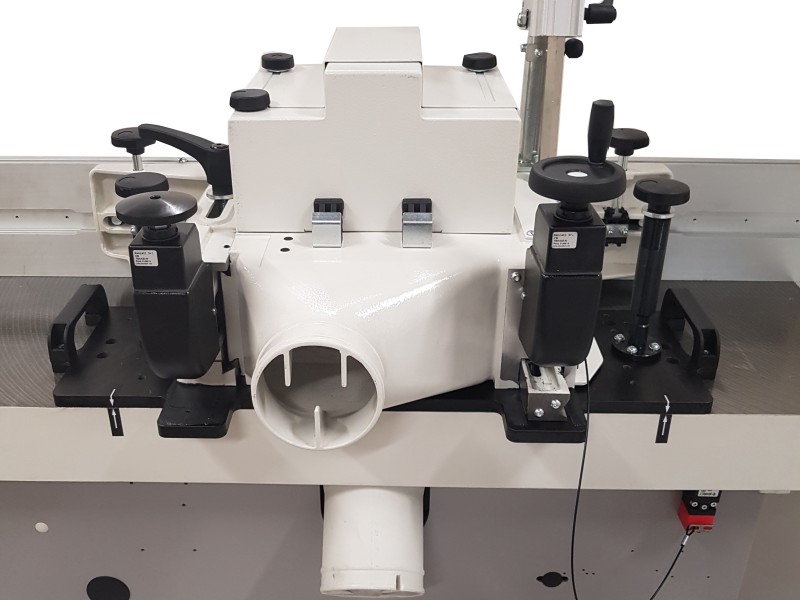

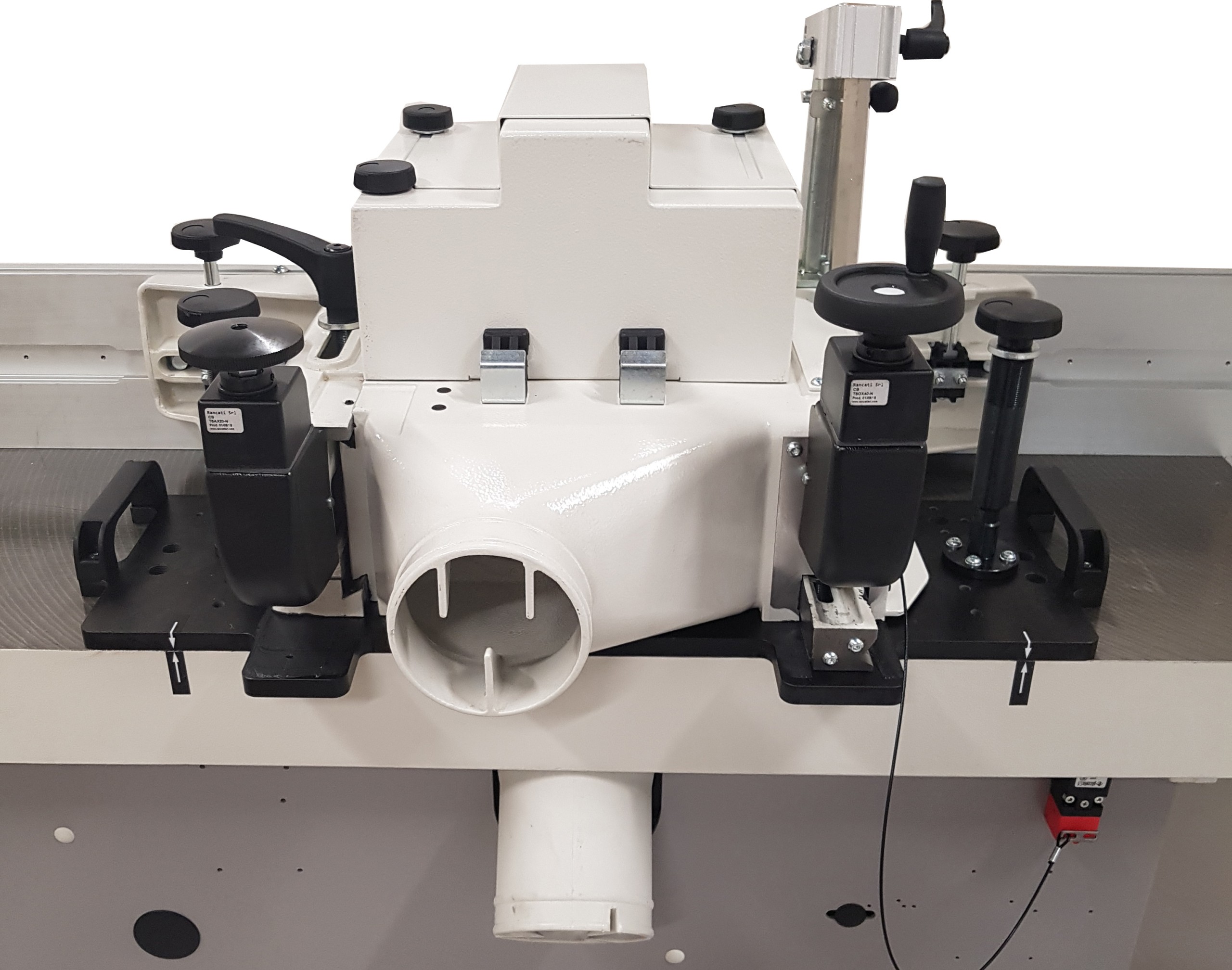

  • Adjustable fence by hand wheels with readouts
  • C.E. regulated
  • Ring fence for curved work
  • Operators manual and Toolkit
Add to Quote

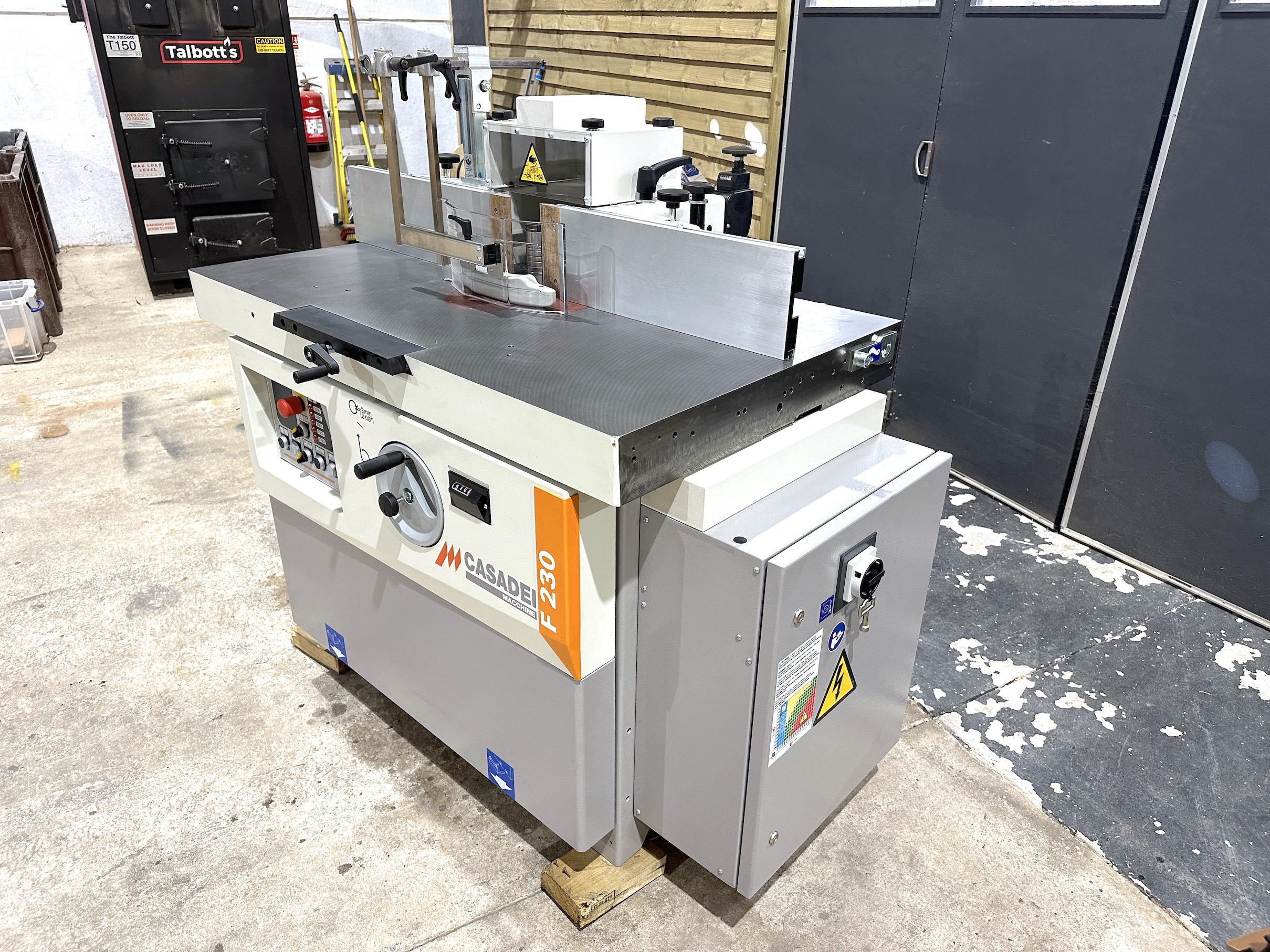

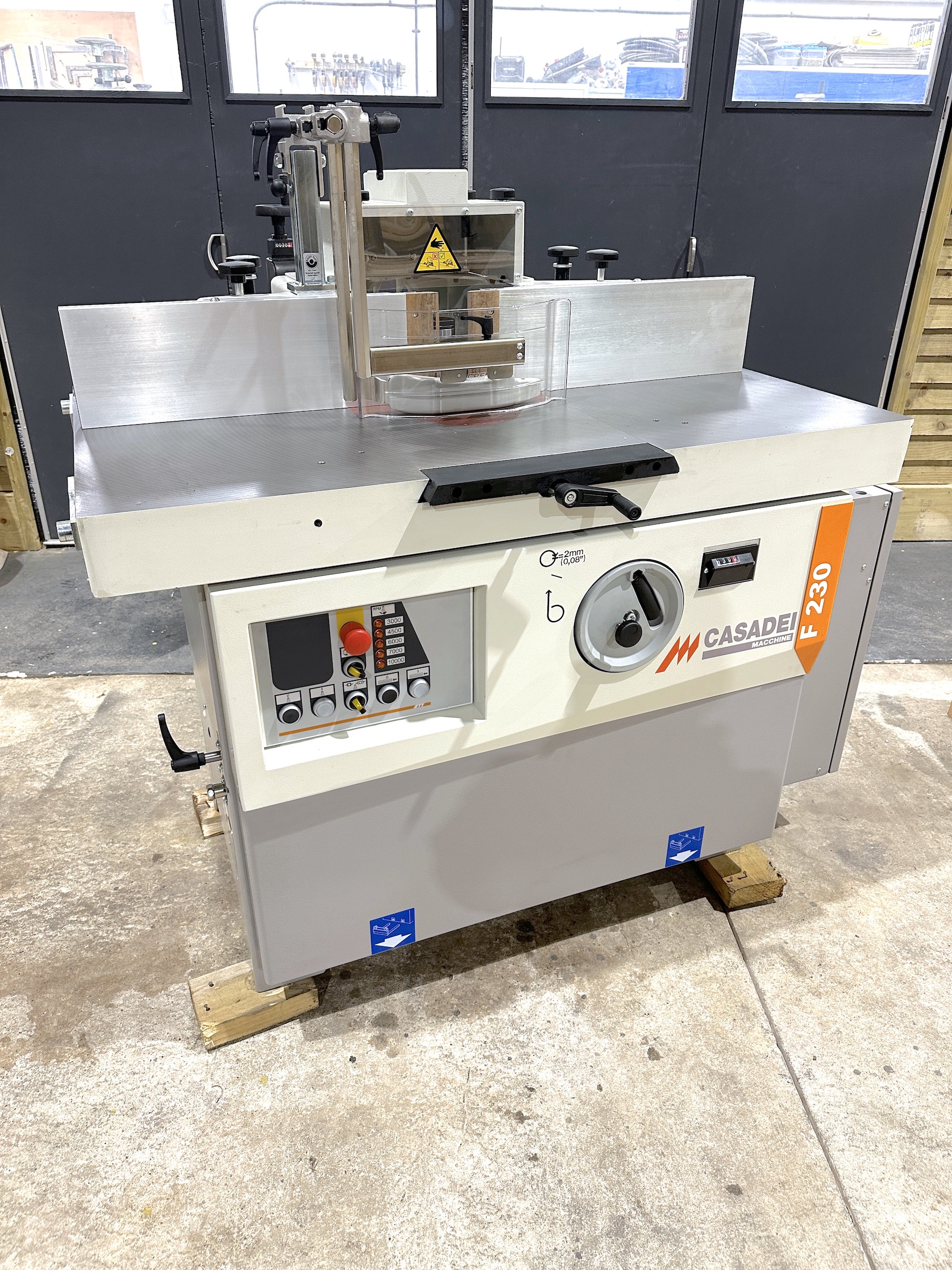

New Spindle Moulder – Built by SCM – Casadei model F230

This machine is a SCM TF130 Class spindle with Casadei branding.
Built in SCM’s factory in Italy. In stock here in Somerset.
Full 12 month parts and labour warranty.

Heavy duty operation, reliability, ergonomics and ease of use are the main features that make the F230 an advanced product, unbeatable in its category.

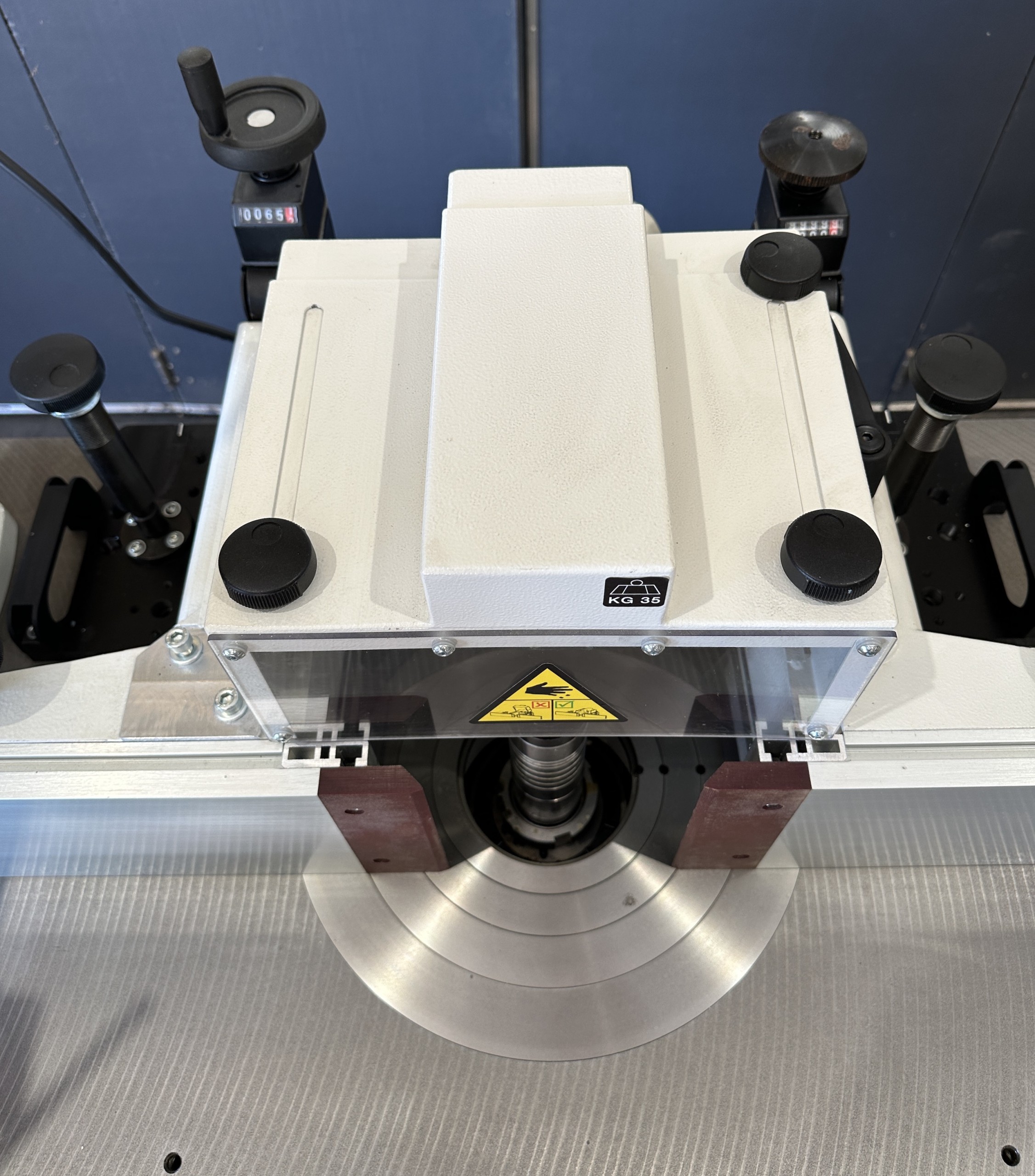

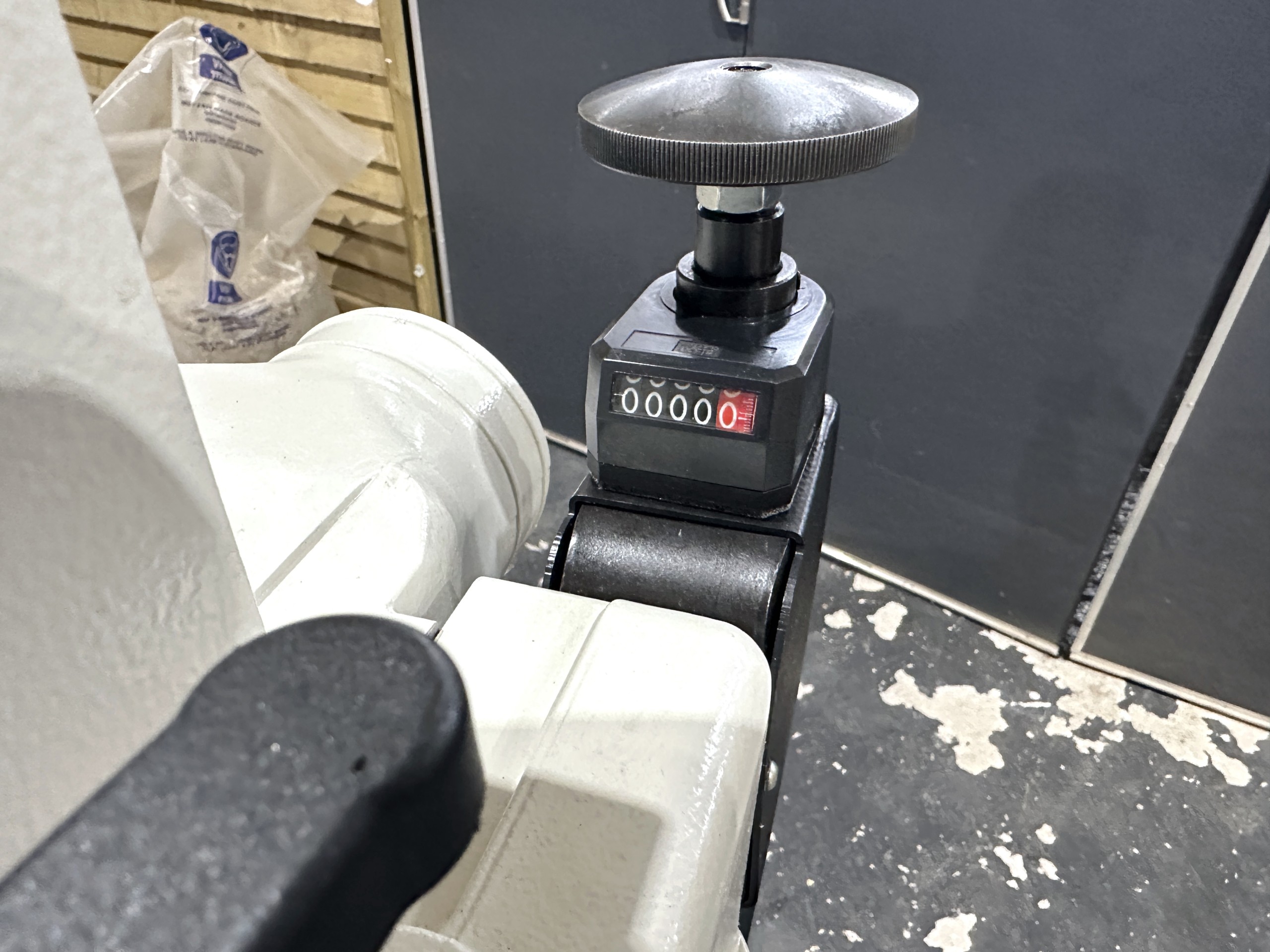

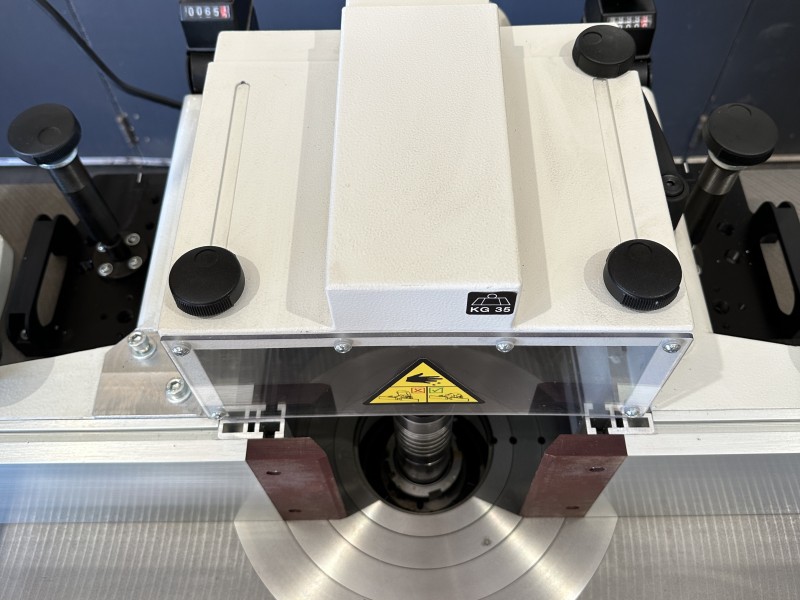

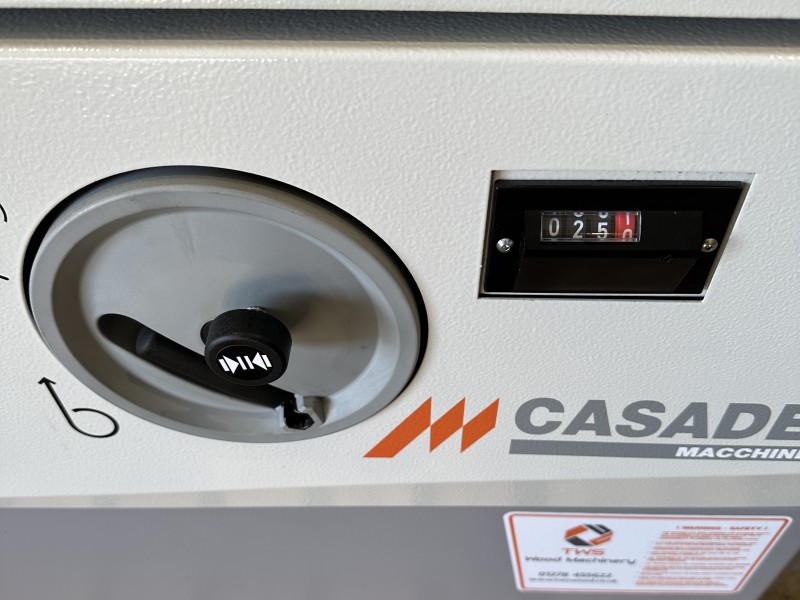

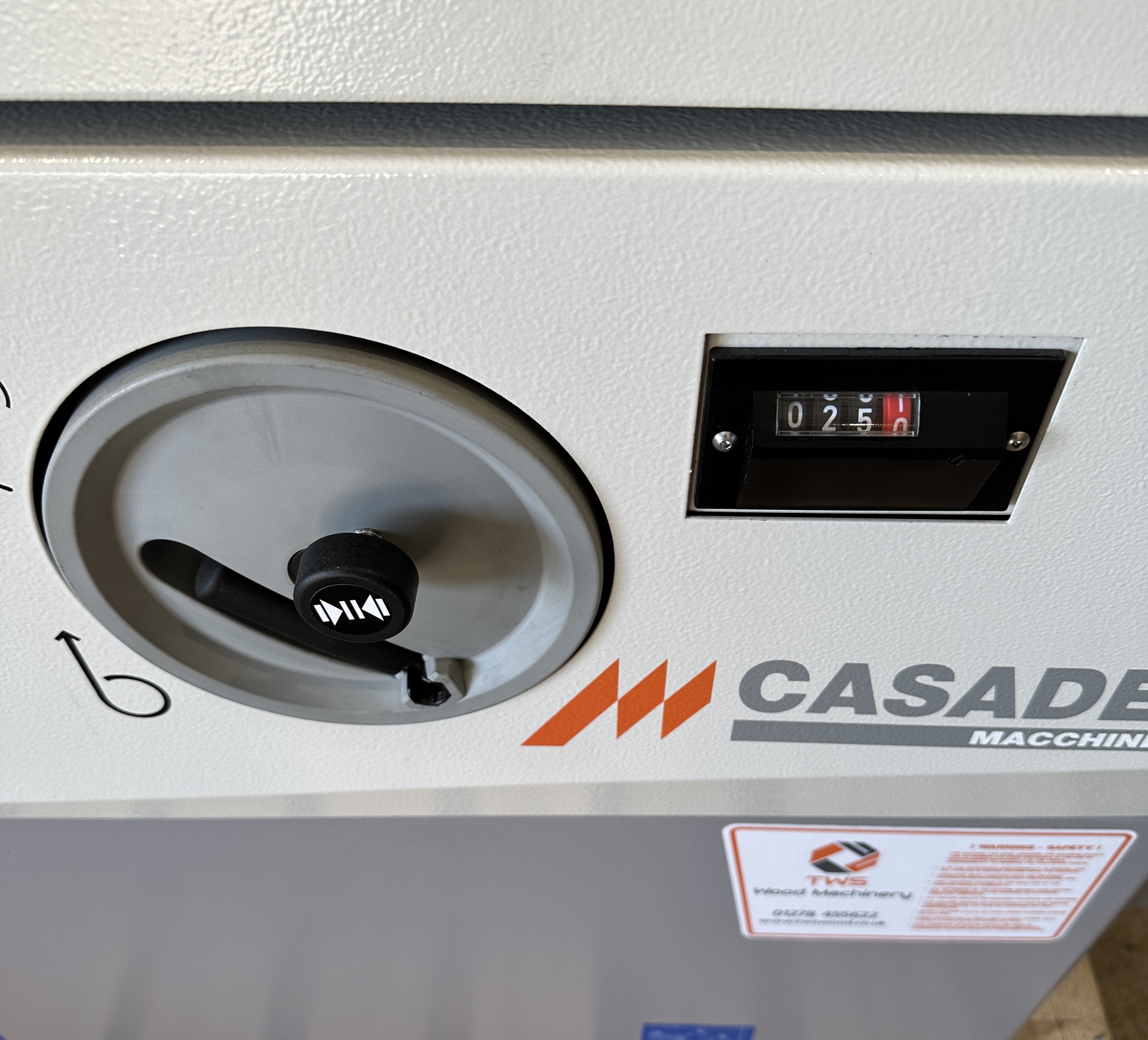

Flexibility: Linear adjustment of spindle moulder fence by means of hand wheels accessible from the front of the machine. Movements are displayed on mechanical readouts which allow rapid and precise adjustments.

Sturdiness: Sturdy steel machine structure. Ribbed cast iron worktable which guarantees no vibrations.

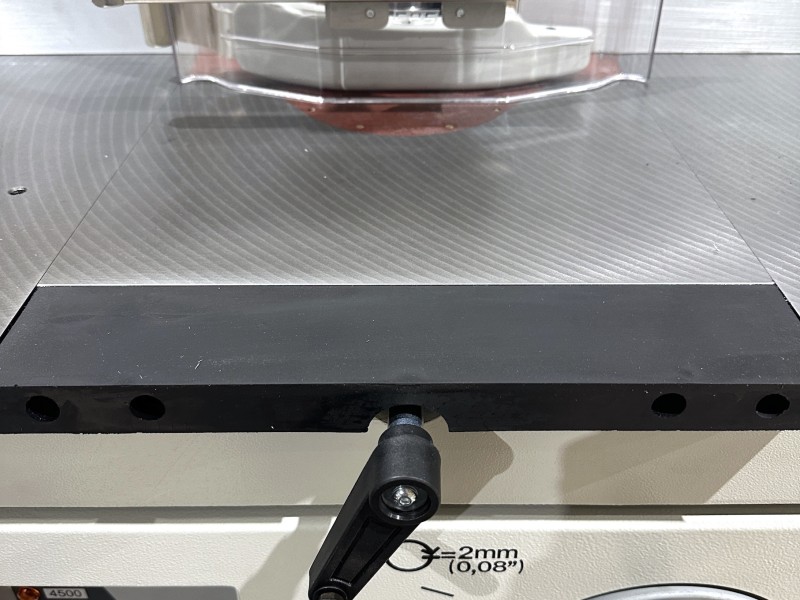

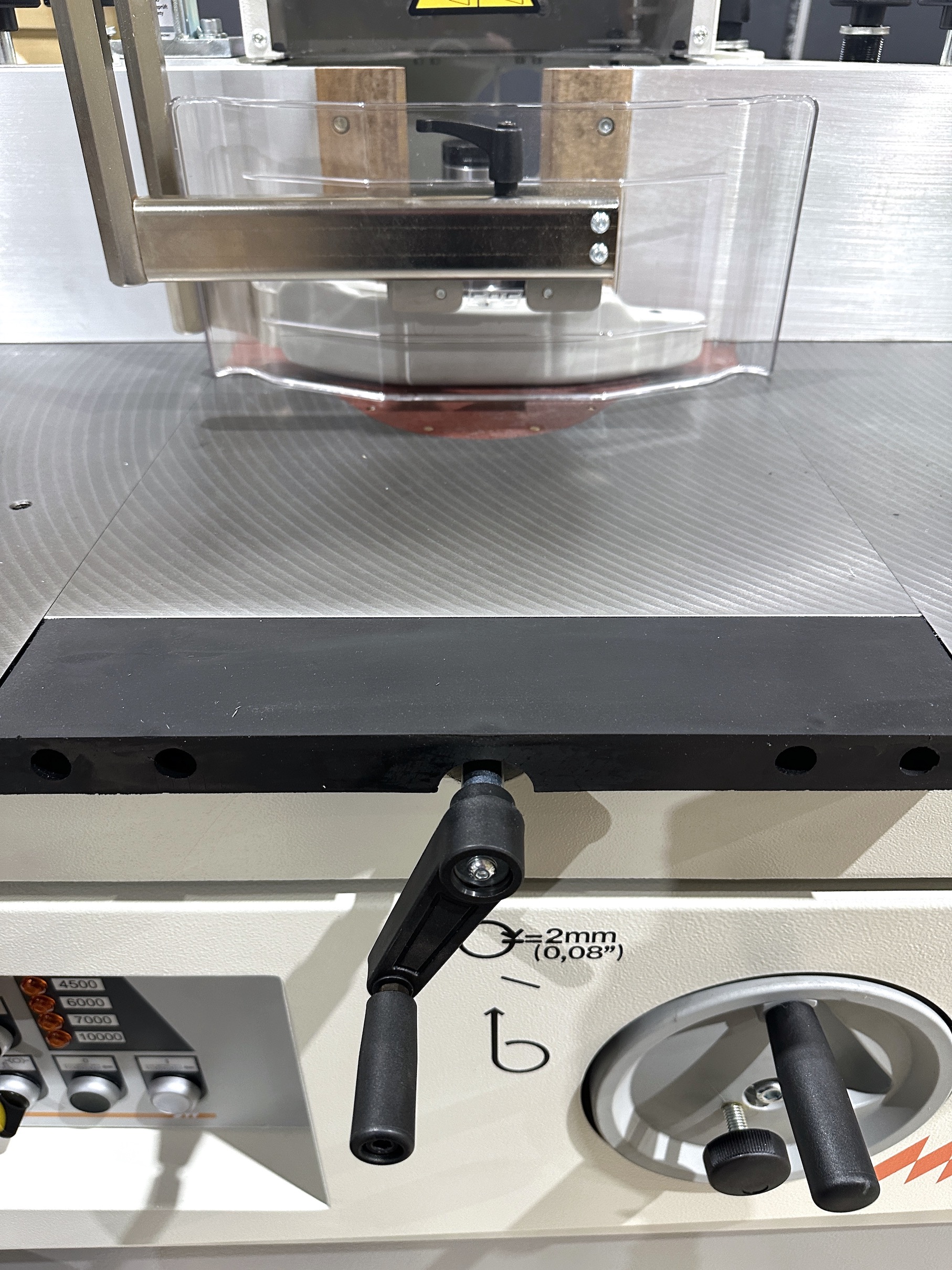

“FAST” sectional worktable: the best support for the workpiece. Provides support for the work piece being machined close to the tool, with adjustments made from the front of the machine with a winding handle. No more table rings required !!

At the heart of the machine a strong 9.5hp motor ensures maximum strength for any task. This is the type of machine you buy once and once only. Available with either a 30mm or 1 1/4″ shaft so will be suitable for both existing and new tooling. Supplied with a Ring fence for curved work, operators manual and toolkit.

A high specification model which is currently being offered at a special discounted price.

There is a huge saving of £1,500 off of list price.

Other spindle options available click here

More information can be found here at Casadei’s website

Call us on 01278 455622 or email for any further information.

Additional information

Table Size

1200mm X 730mm

Spindle Speeds

3000, 4500, 6000, 7000 And 10,000 RPM

Rise & Fall


Shaft Diameter



Adjustable Fences
