Sale!

SCM Casadei Tilting Spindle moulder F25

£9,850.00 +VAT
Print Listing
|
Email Listing
new

£2,000 off list price – Special offer

Table size – 1200mm x 810mm
Shaft – 30mm diameter
Shaft tilting +45° to -45°
Useful spindle height – 140mm
Max diameter of tooling in hood – 250mm
Max diameter of tooling in table – 300mm
Sturdy steel machine structure
Ribbed cast iron worktable which guarantees no vibrations

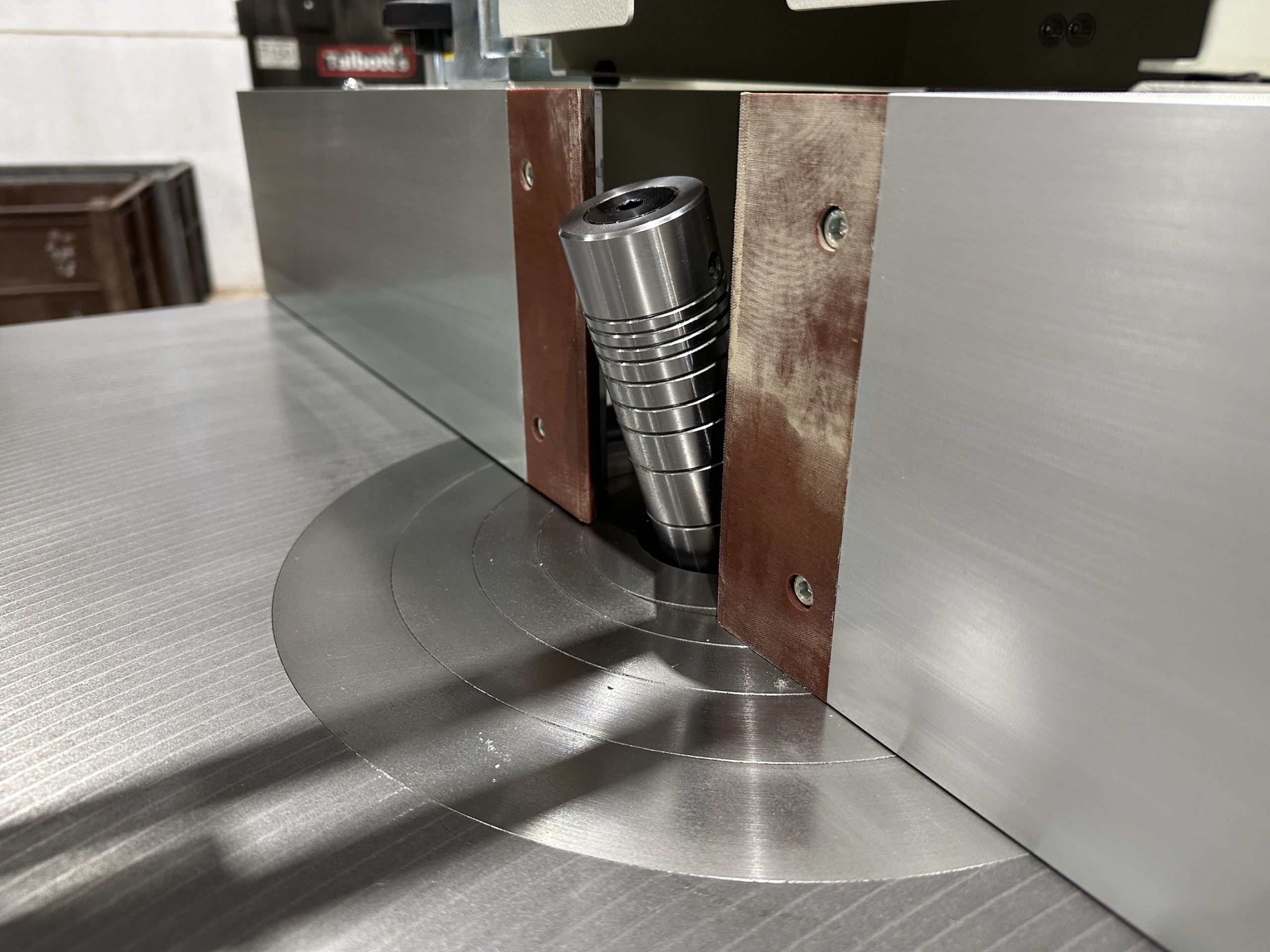

Metal fence plates

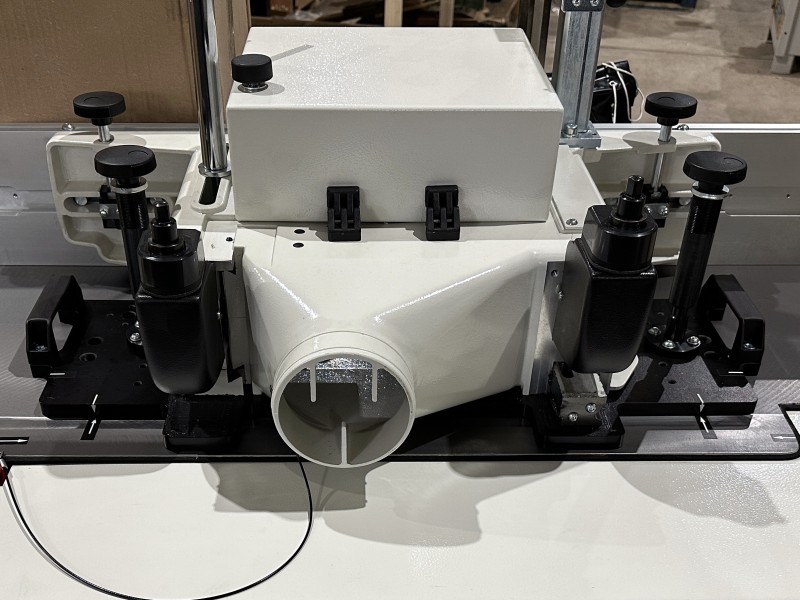

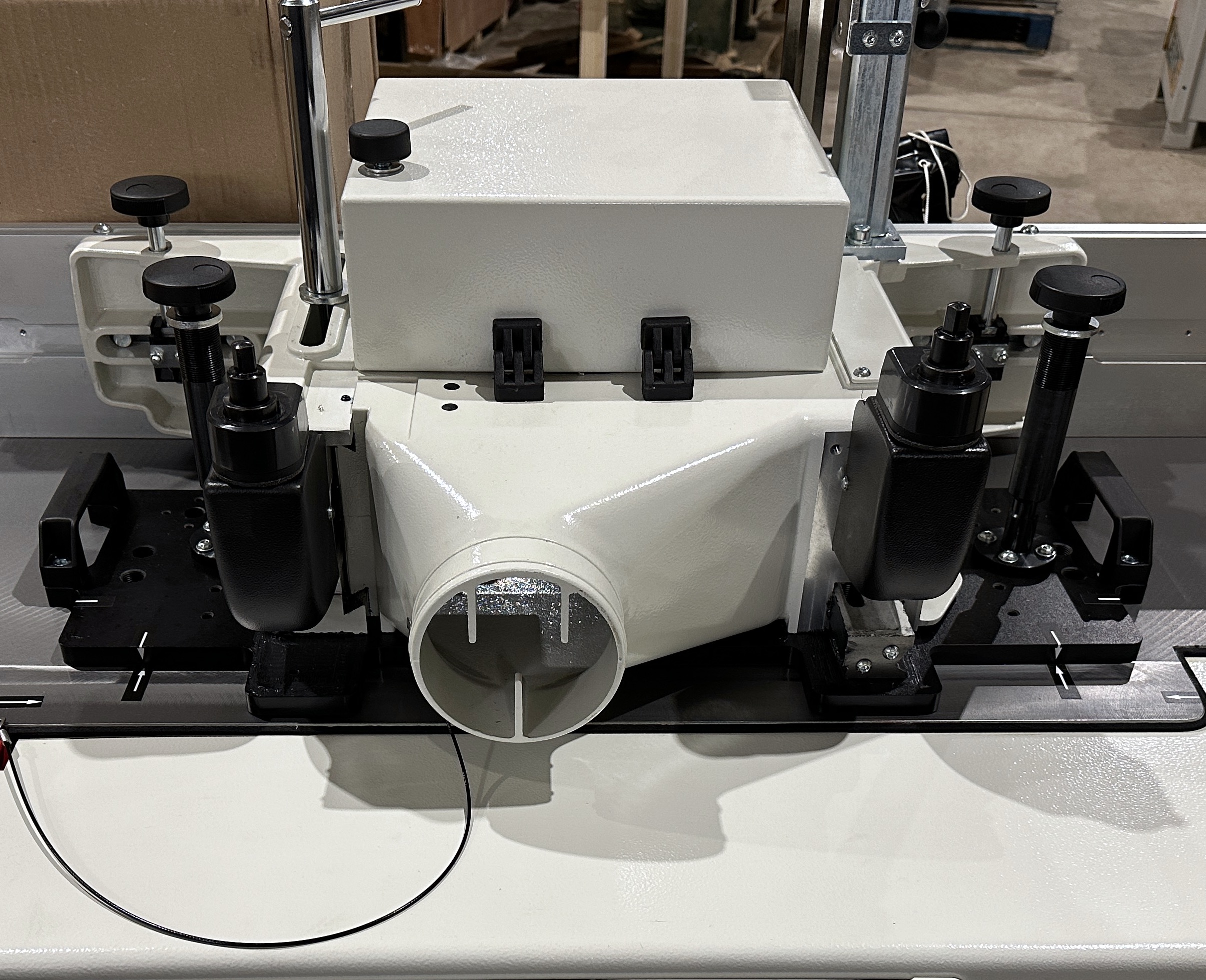

Micro adjustable fence hood assembly with readouts

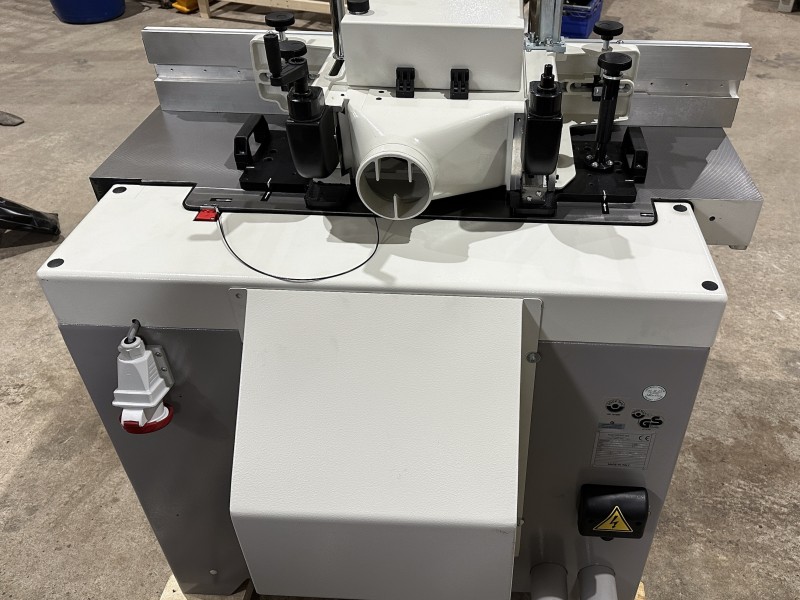

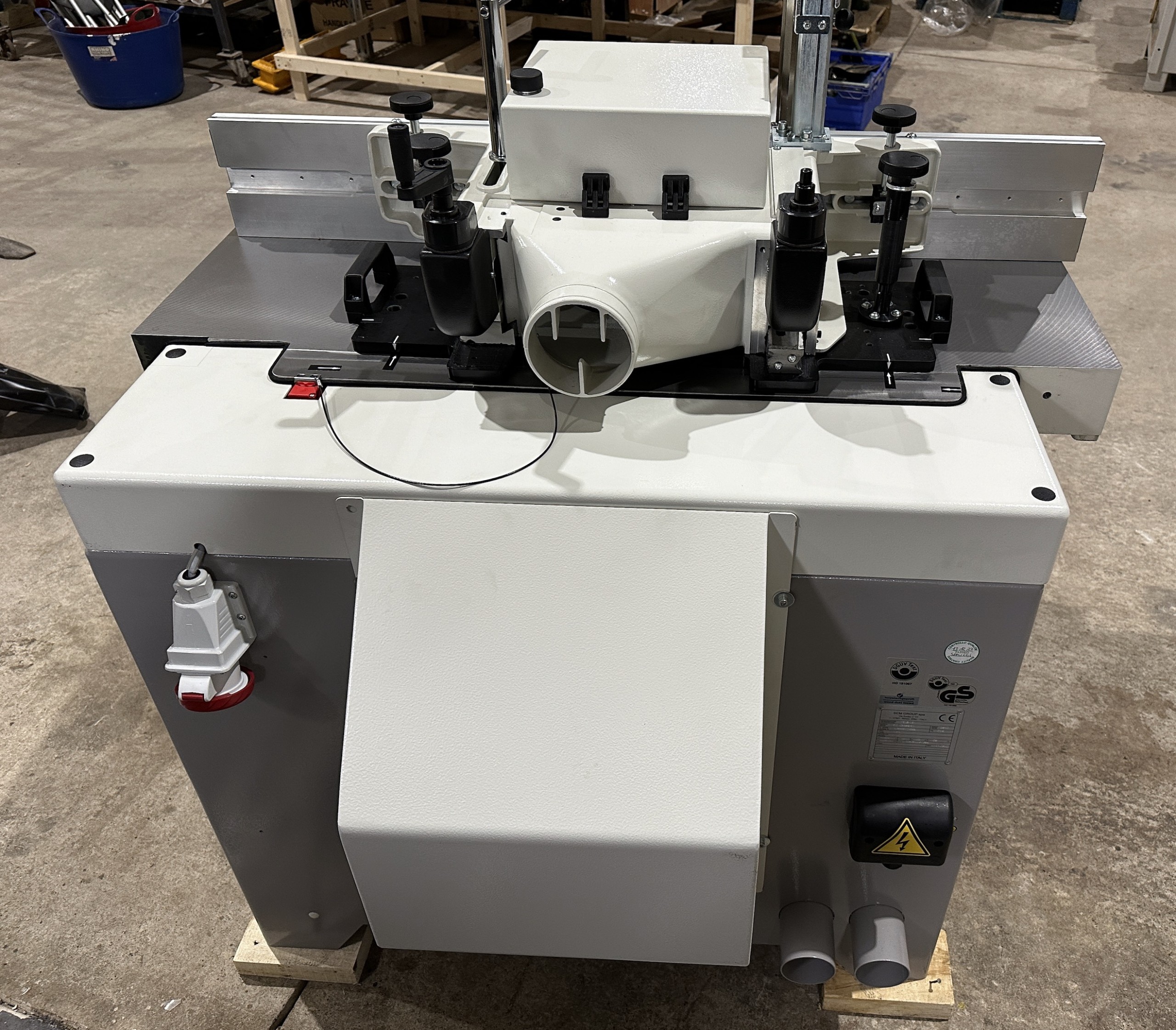

Exhaust hoods – 1 x 120mm & 2 x 80mm
Spindle speeds – 3000/4500/6000/8000/10,000 rpm
Braked motor – 5Kw 7.5Hp
C.E. Mark

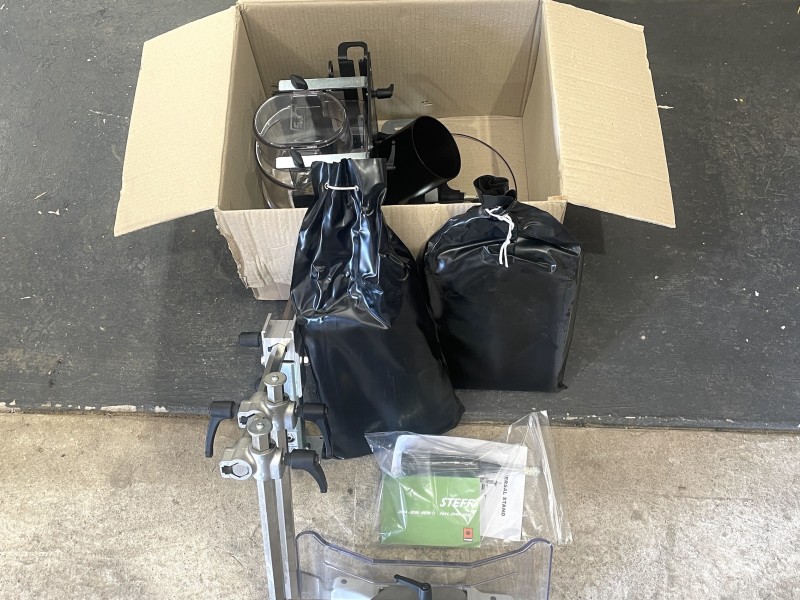

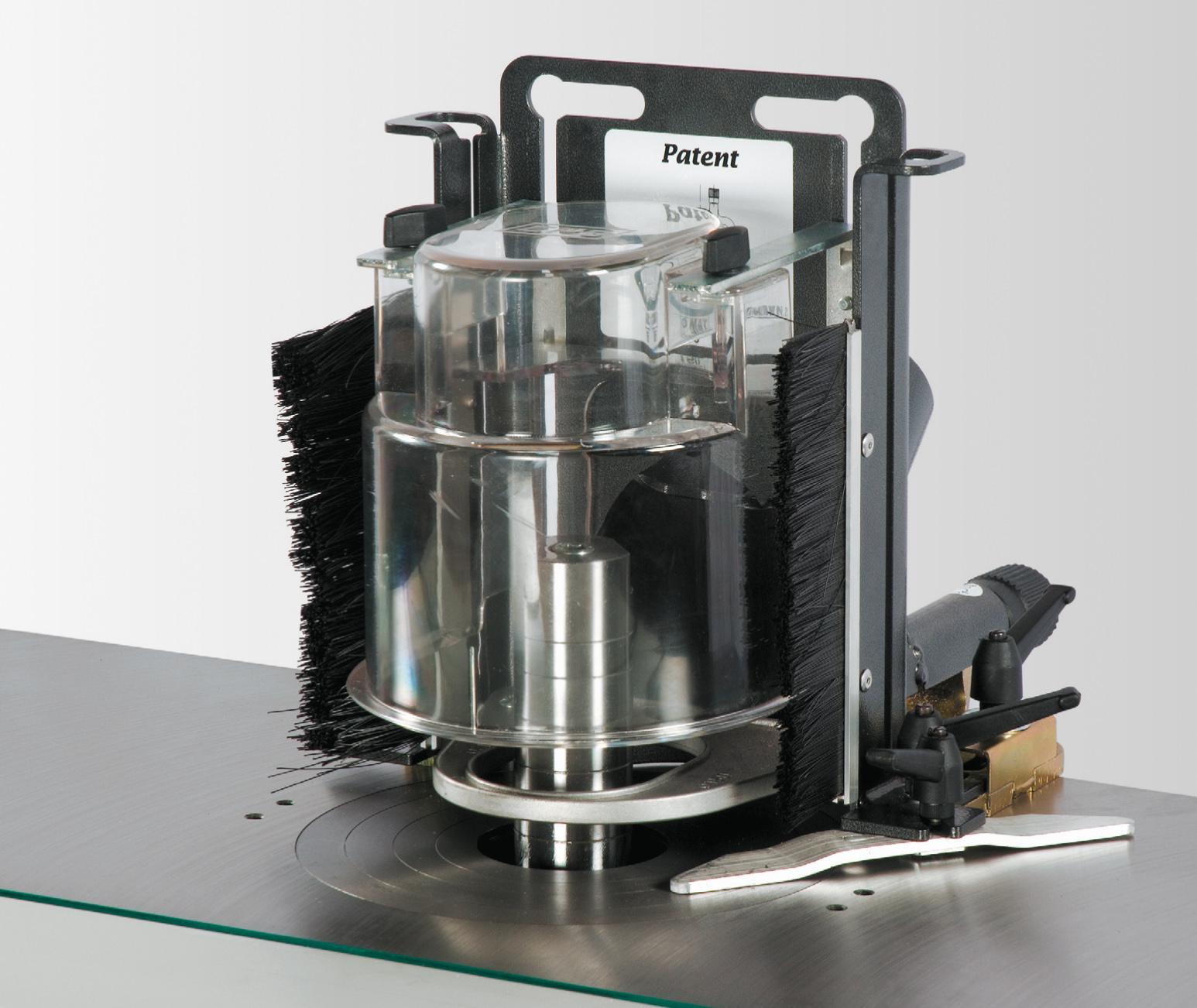

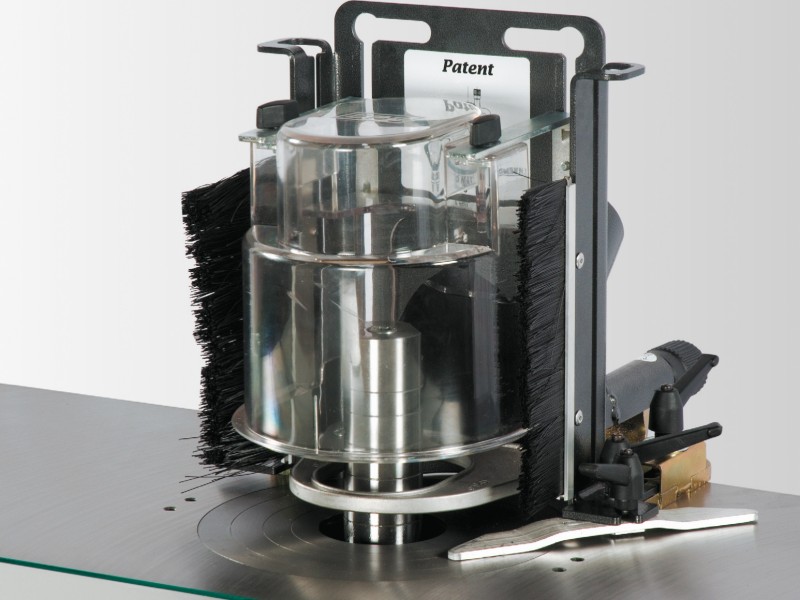

New CPS ring fence included

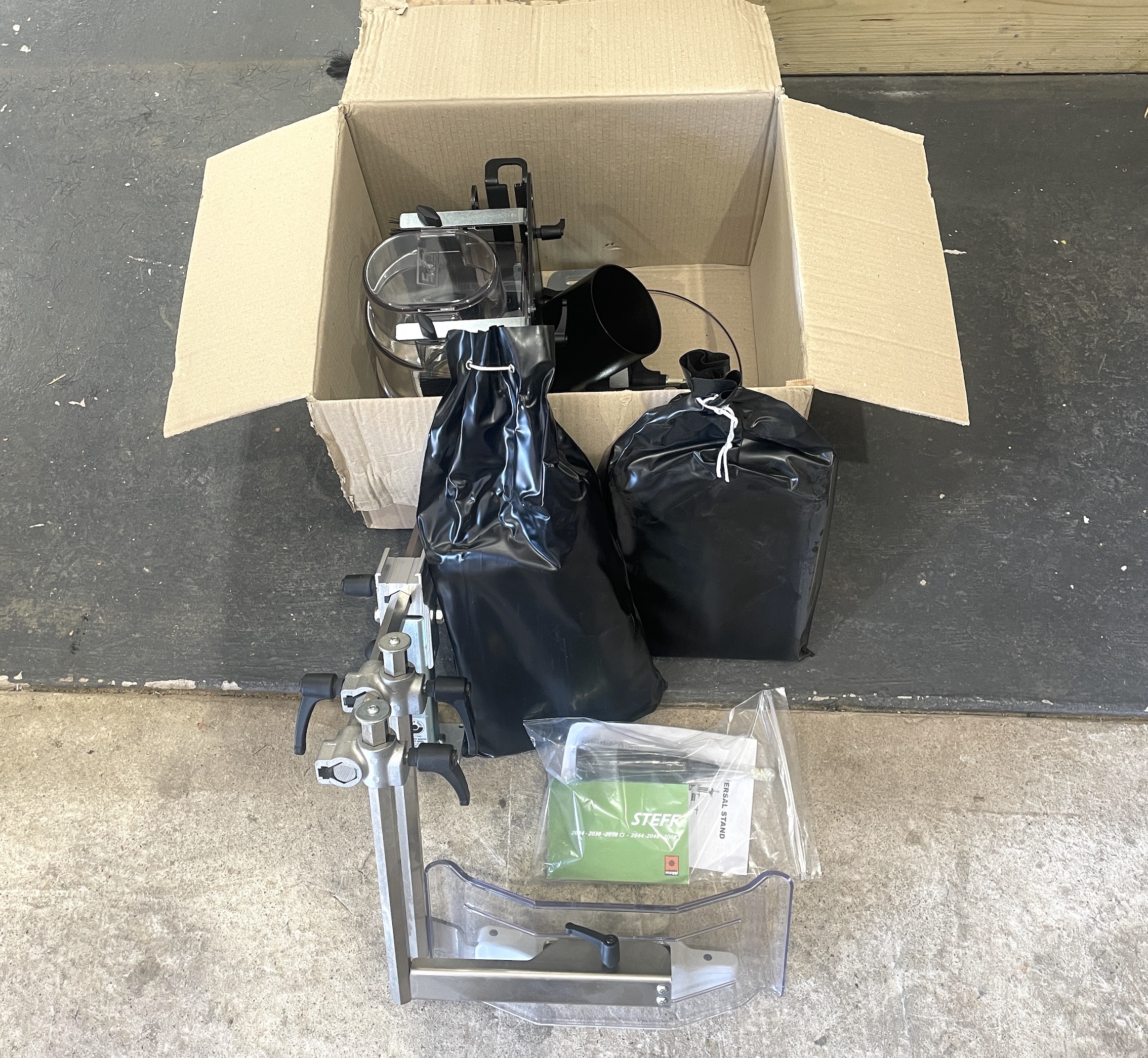

Operators Handbook & Toolkit

Enquire about this Product

    Enquire Now






    Category:

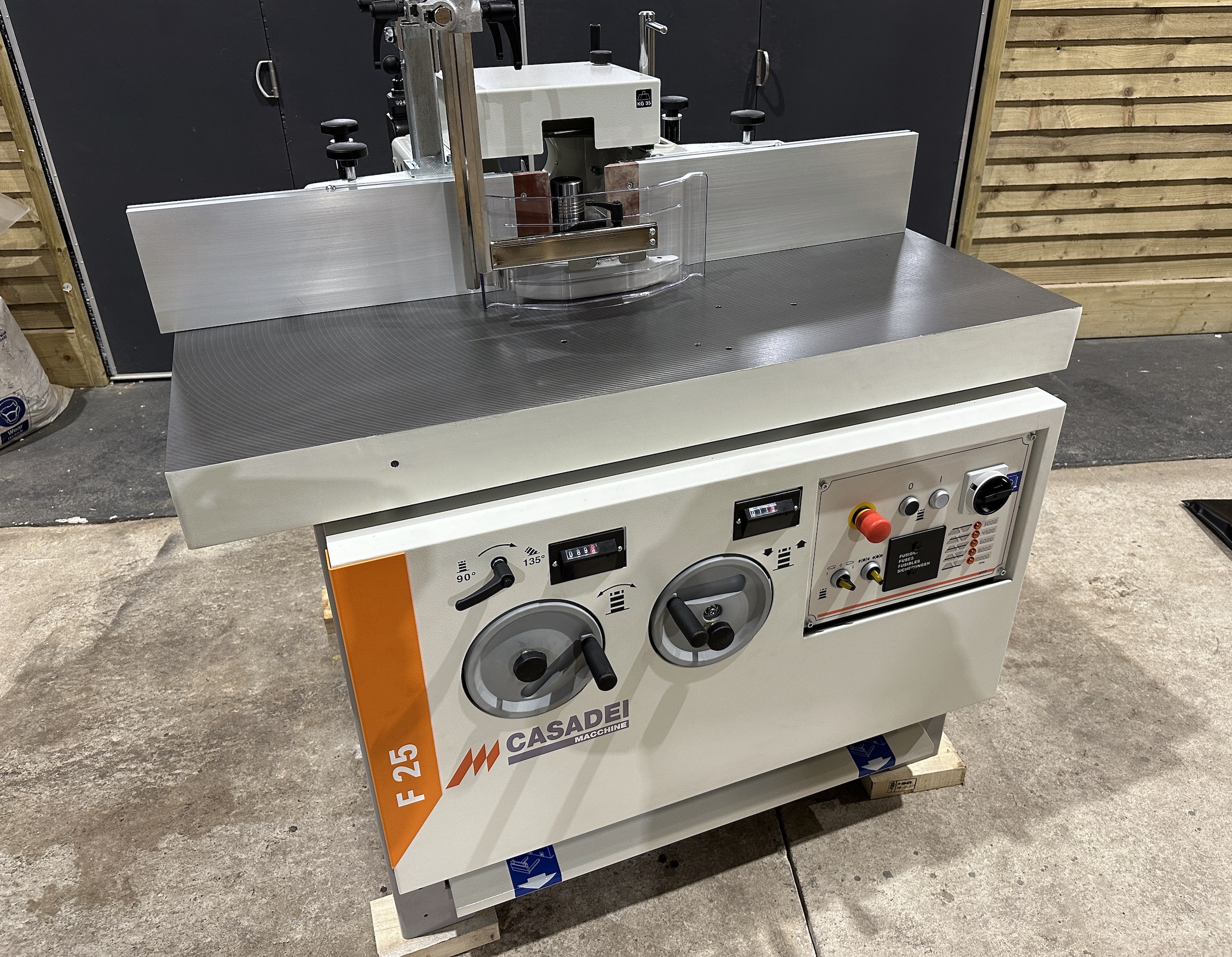

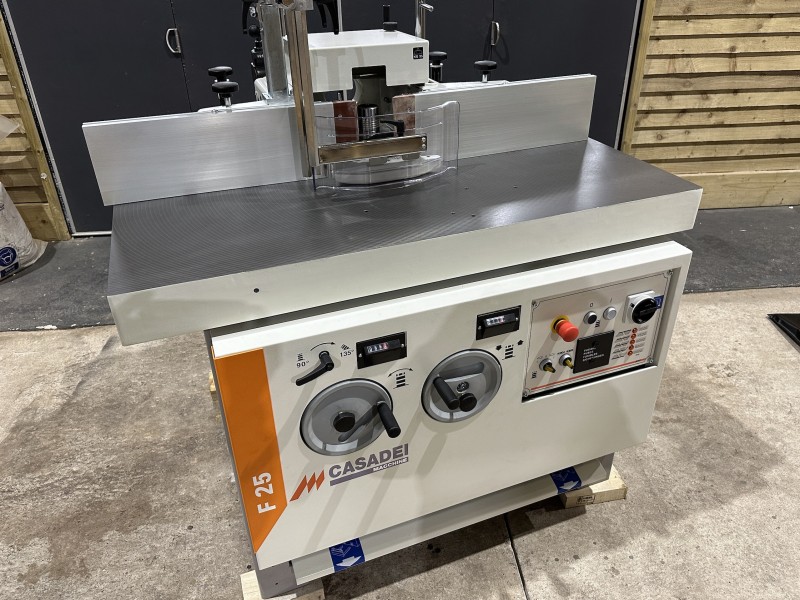

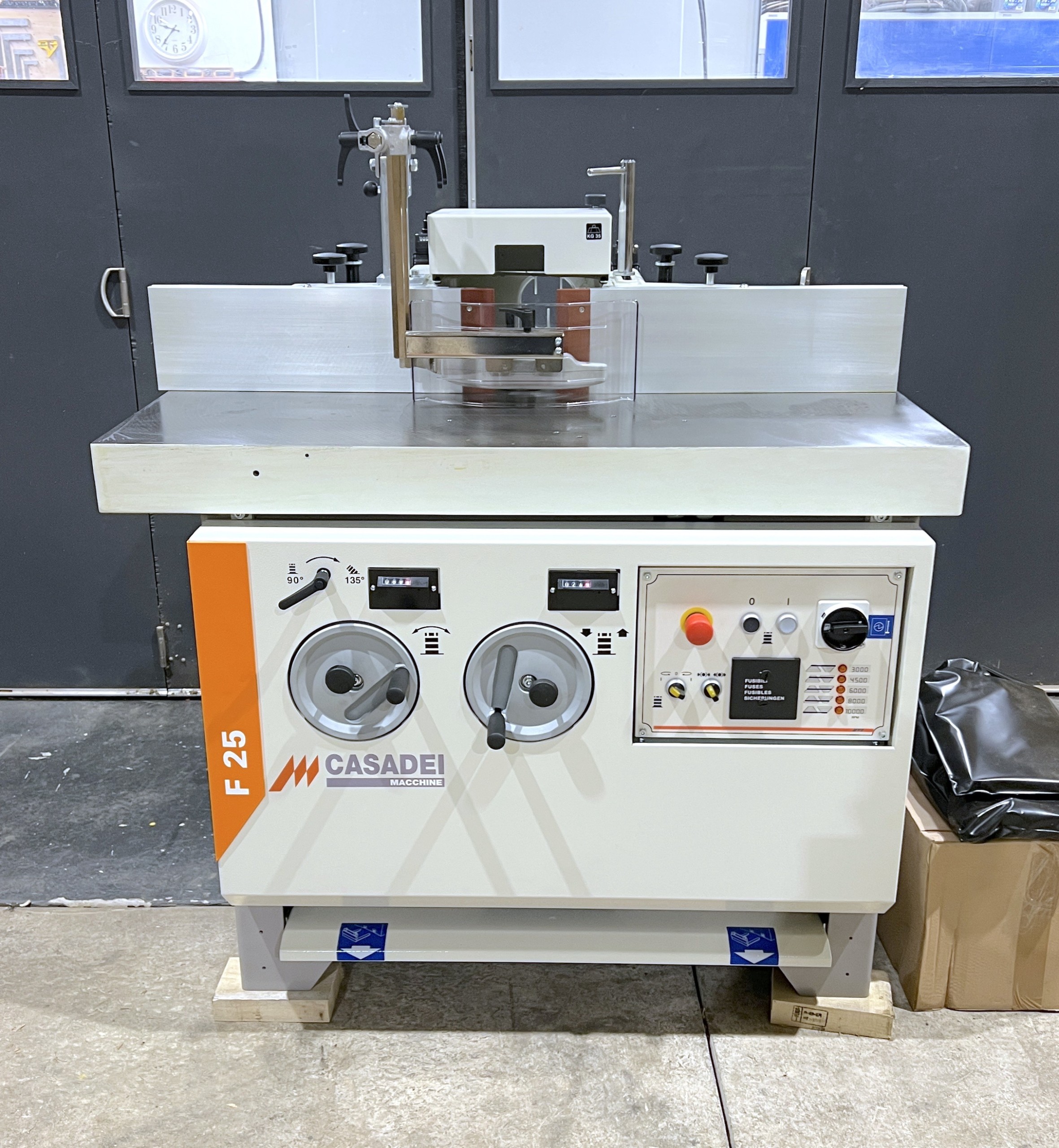

    New SCM Casadei Tilting Spindle moulder

    Model F25

    Special Offer – £2,000 off list price

    This machine is the SCM Ti120 spindle moulder with Casadei branding.

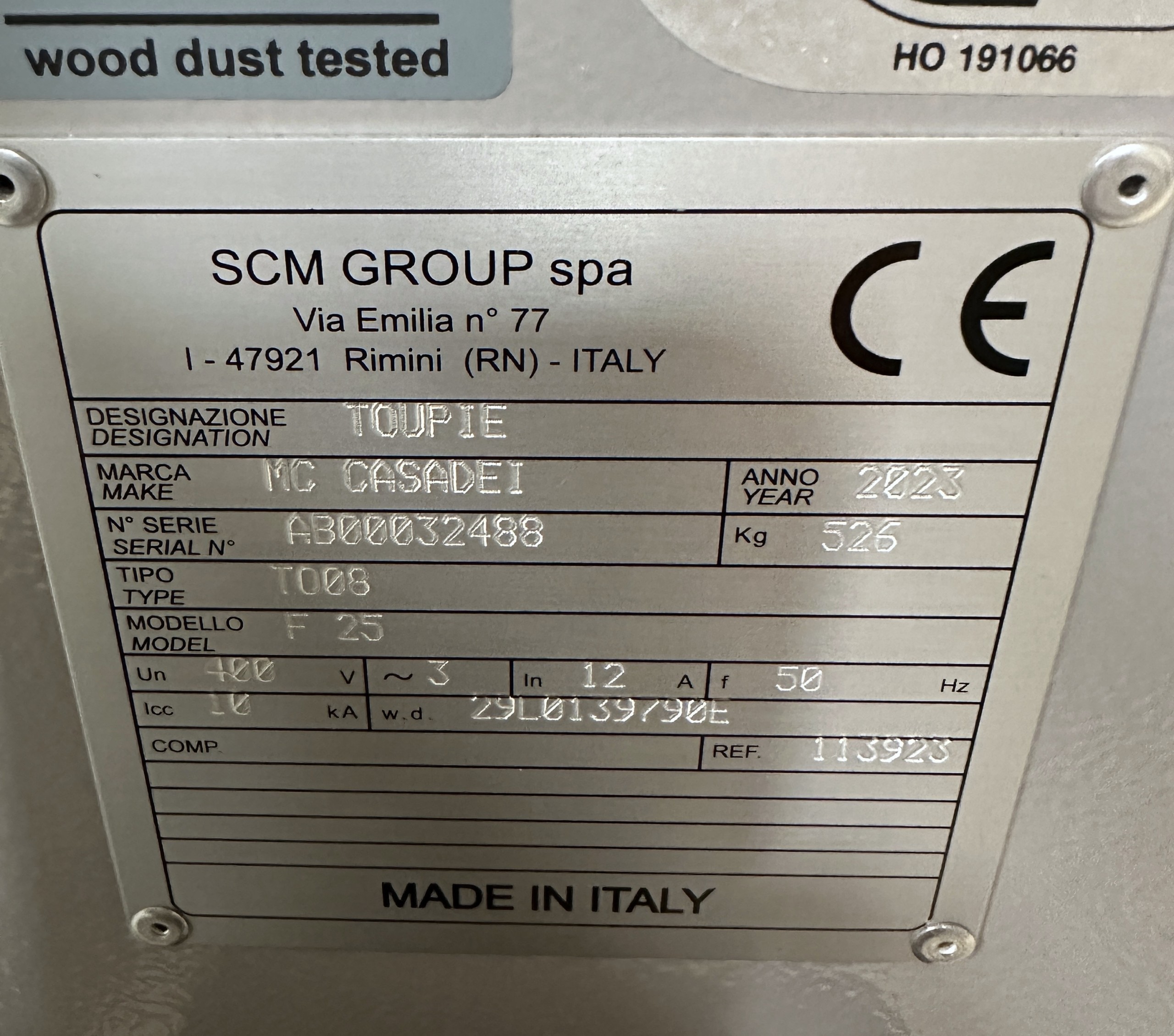

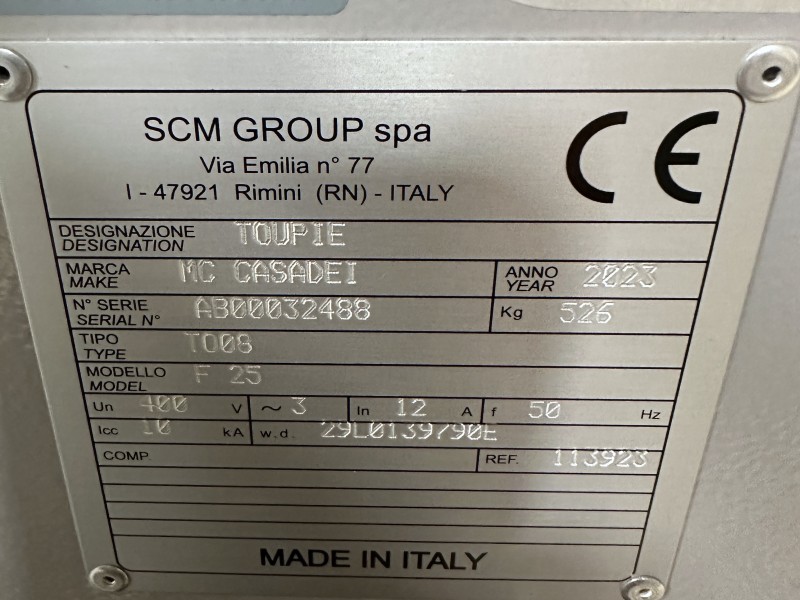

    Built by SCM in their Factory in Italy.
    In stock here in Somerset.

    Quality: Heavy duty operation, reliability, ergonomics and ease of use are the main features that make the F25 an advanced product, unbeatable in its category.

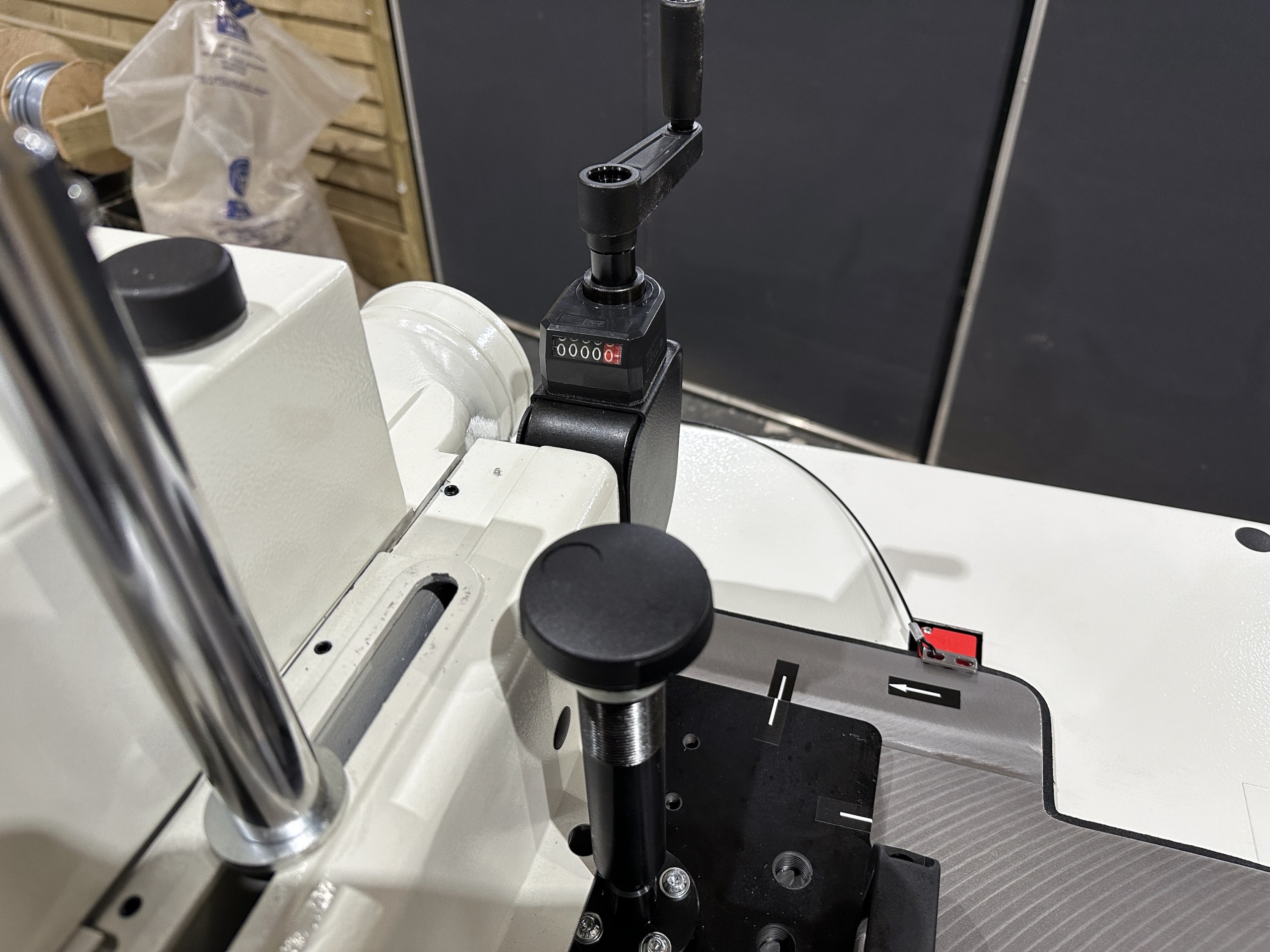

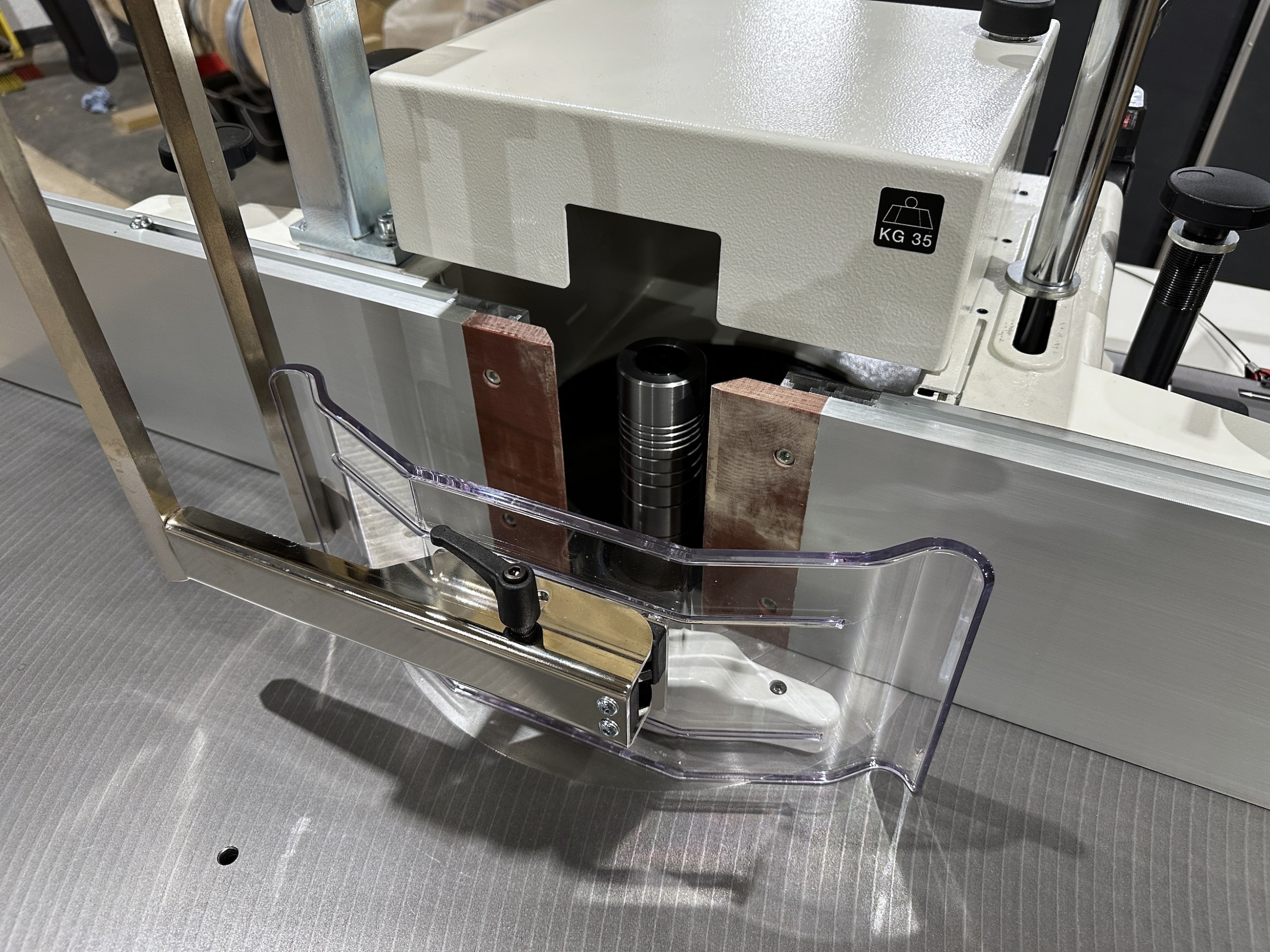

    Flexibility: Spindle moulder fence with movement by hand wheels with mechanical digital readouts,
    ensuring accurate setting of the metal fence plates.

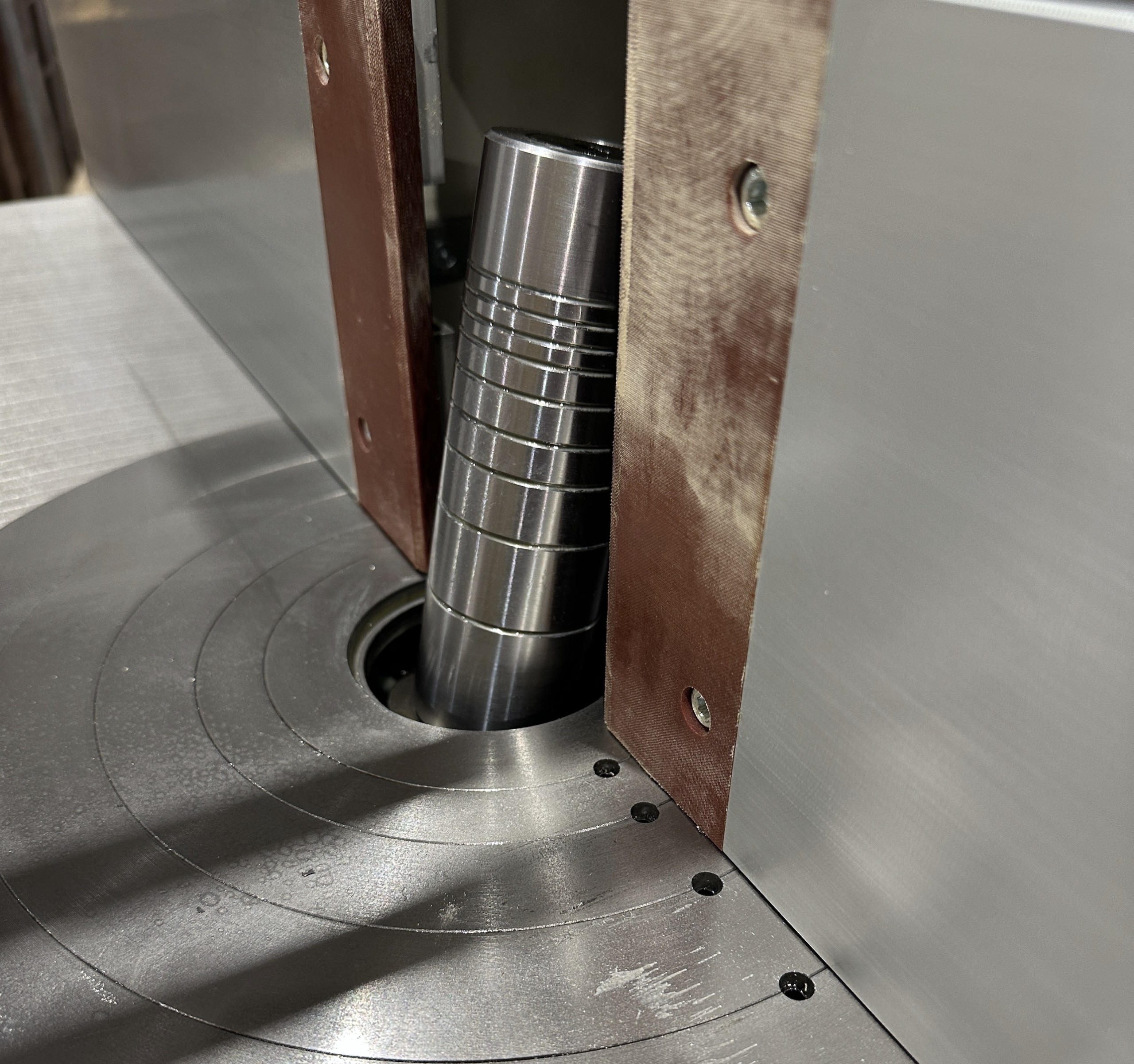

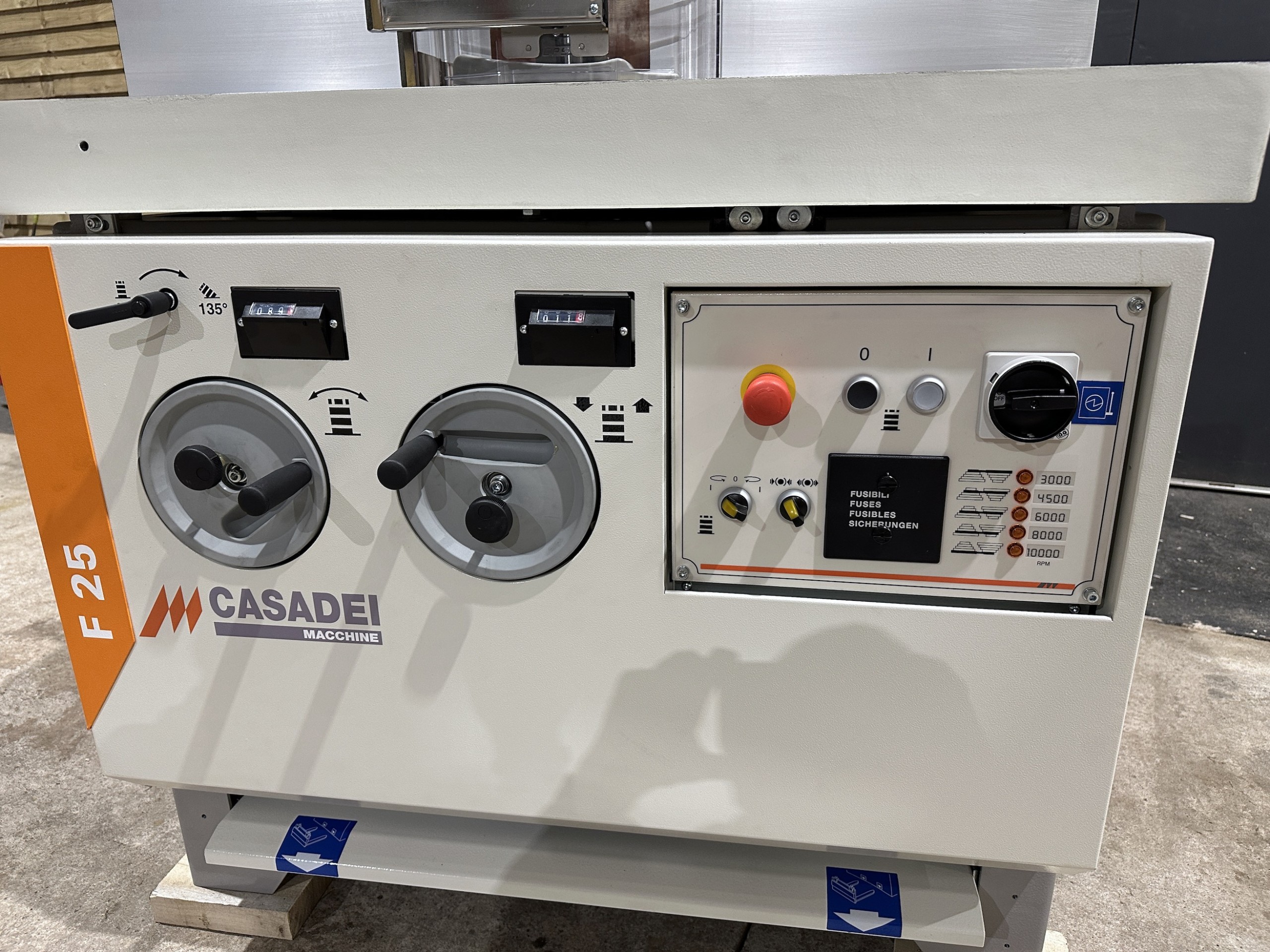

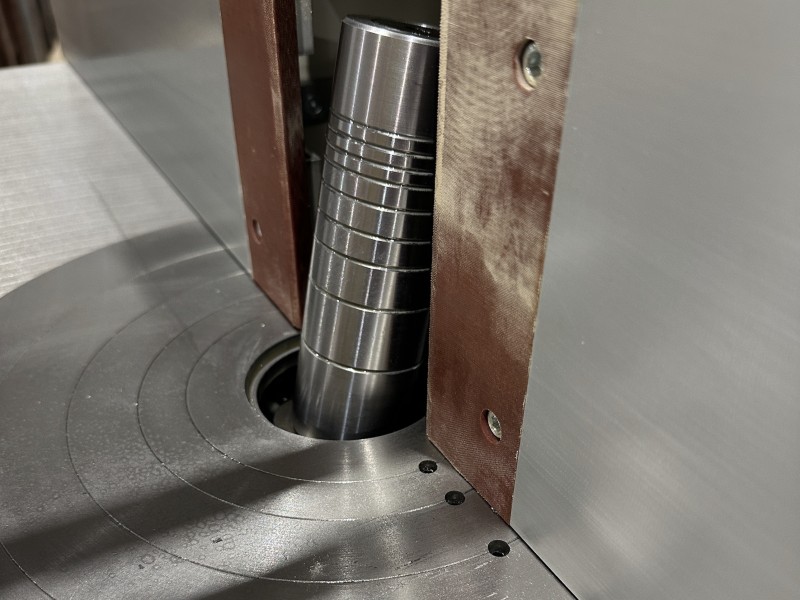

    Tilting: Spindle tilting in both directions, + 45° to – 45° by hand wheel located on the front of the machine,
    with a mechanical digital readout display.

    Rise and fall of the spindle shaft by hand wheel located on the front of the machine,
    with a mechanical digital readout display.

    Sturdiness: Sturdy steel machine structure. Ribbed cast iron worktable which guarantees no vibrations.

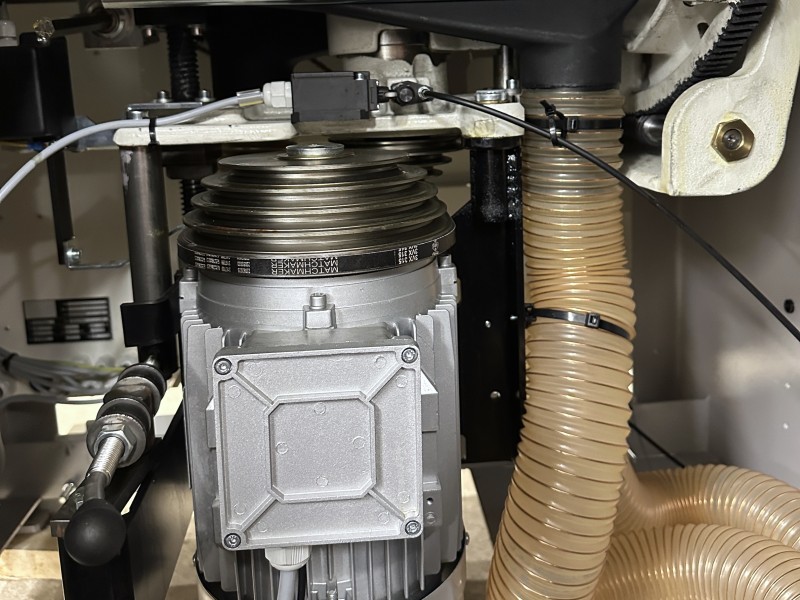

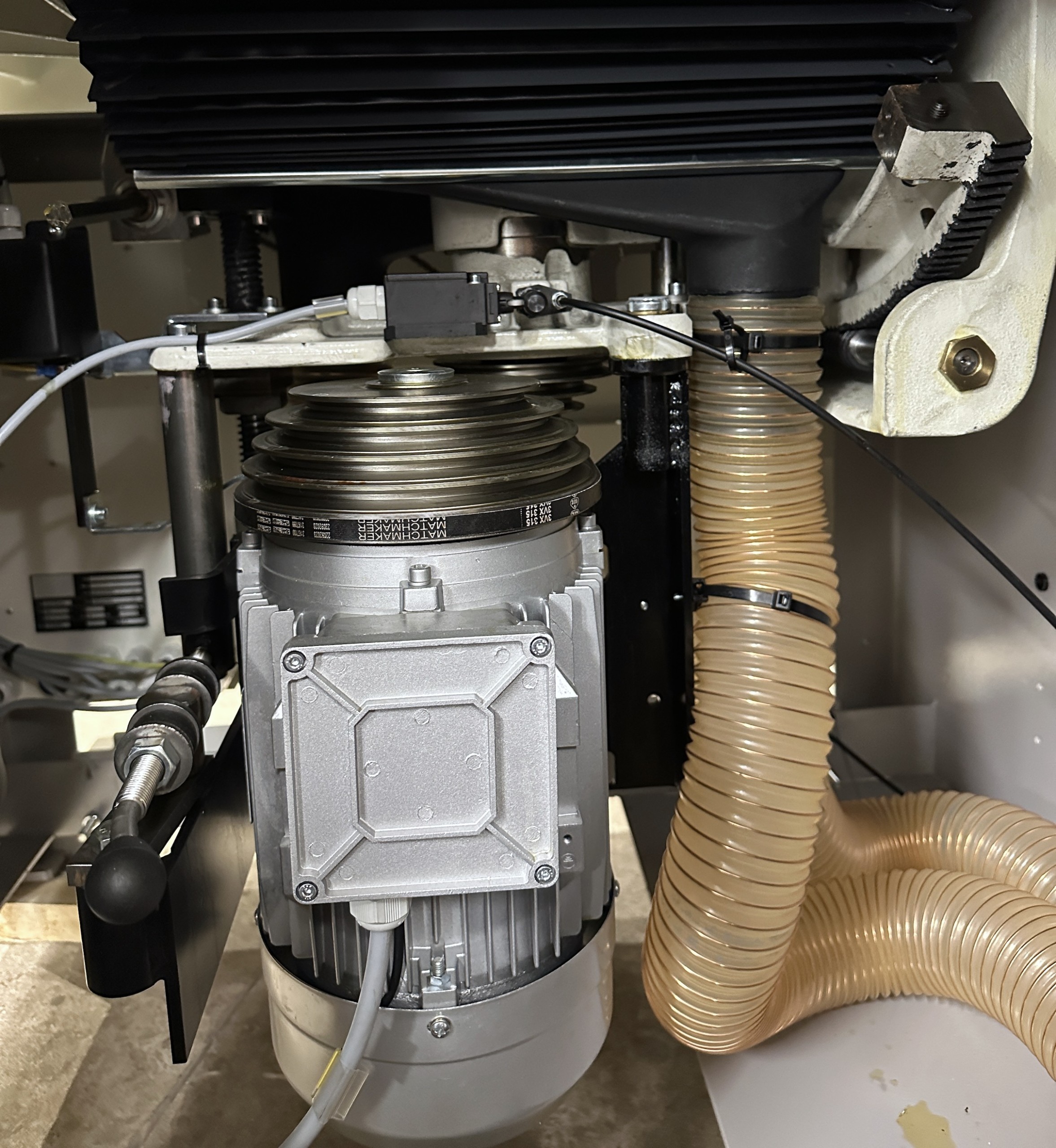

    Power : At the heart of the machine a strong 7.5hp motor ensures maximum strength for any task. This is the type of machine you buy once and once only.

    Optional extras : 3 wheel or 4 wheel power feed fitted and electrically interlocked.

    Call us on 01278 455622 for more details on this New SCM Casadei Tilting Spindle Moulder.

    To view our full range of spindle moulders please click here

    Further information on this machine can be found on the Casadei website

    Additional information

    Table Size

    1200mm X 810mm

    Spindle Speeds

    3000, 4500, 6000, 8000 And 10,000 RPM

    Rise & Fall

    Manual

    Shaft Diameter

    30mm

    Fence

    Micro Adjustable Fences

    Condition

    New
