SCM Tilting Spindle Moulder – T110i

£4,850.00 +VAT
Print Listing
|
Email Listing
used
  • Table size – 1000mm x 750mm

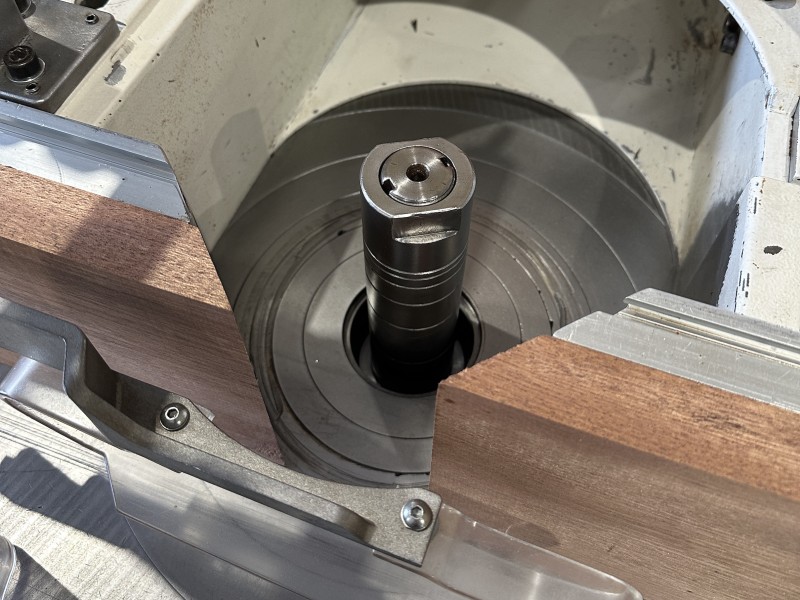

  • Shaft – 1 1/4″ diameter
  • Shaft tilting +5° to -45°
  • Useful spindle height – 140mm
  • Max diameter of tooling in hood – 250mm
  • Max diameter of tooling in table – 300mm
  • Sturdy steel machine structure
  • Ribbed cast iron worktable which guarantees no vibrations
  • Metal fence plates faced off with new timber
  • Micro adjustable fence hood assembly
  • Exhaust hoods – 2 x 120mm

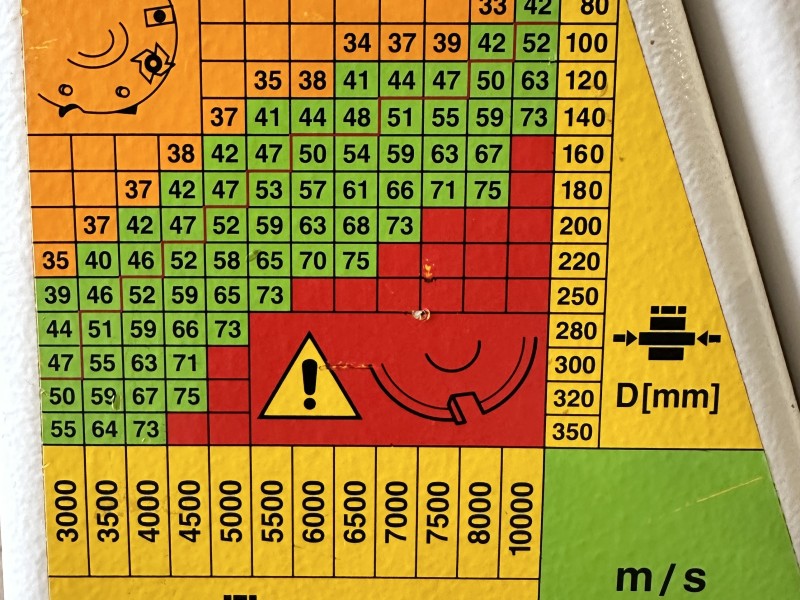

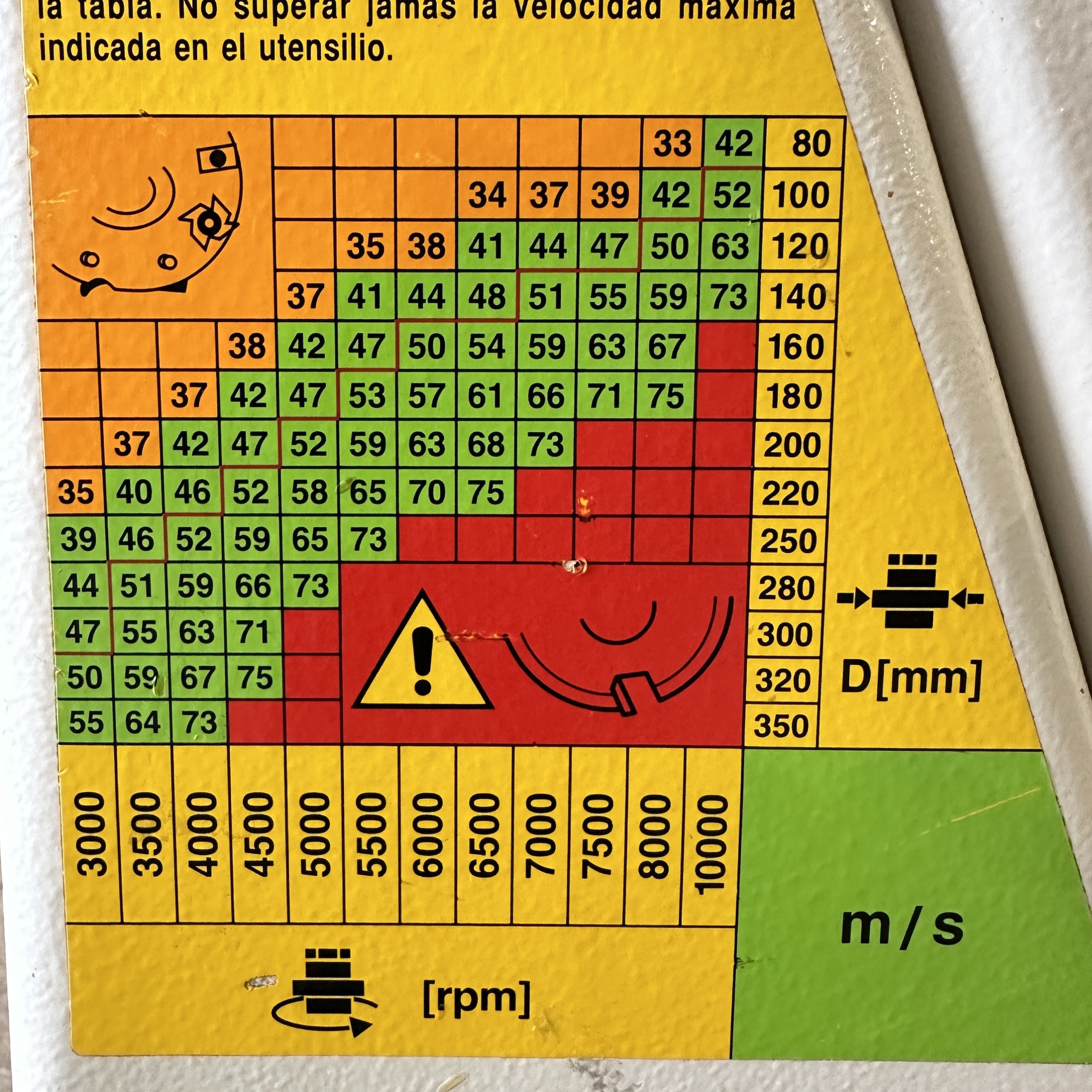

  • Spindle speeds – 3000/4500/6000/8000/10,000 rpm

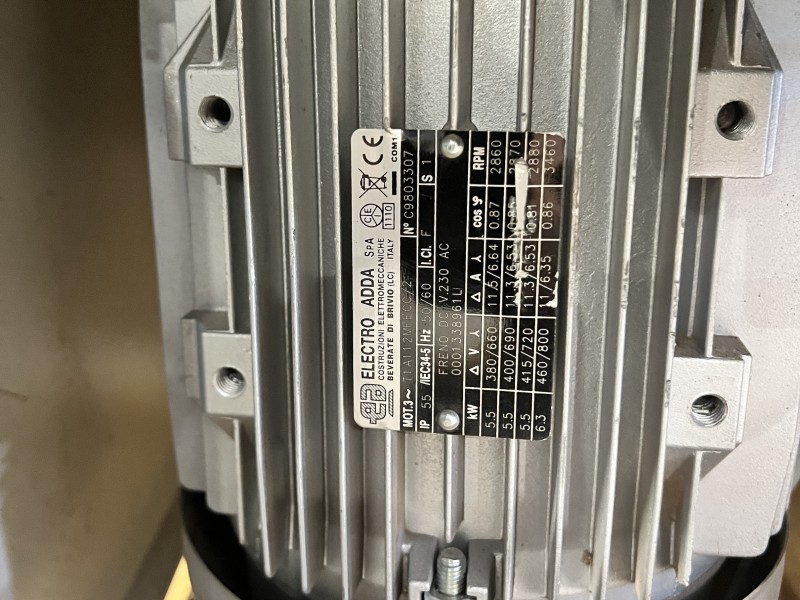

  • Braked motor – 5Kw 7.5Hp
  • Reverse spindle switch
  • Power feed socket
  • C.E. Mark
  • CPS ring fence included
  • Spare drive belt, collars and spanner.
Enquire about this Product

    Enquire Now






    Category:

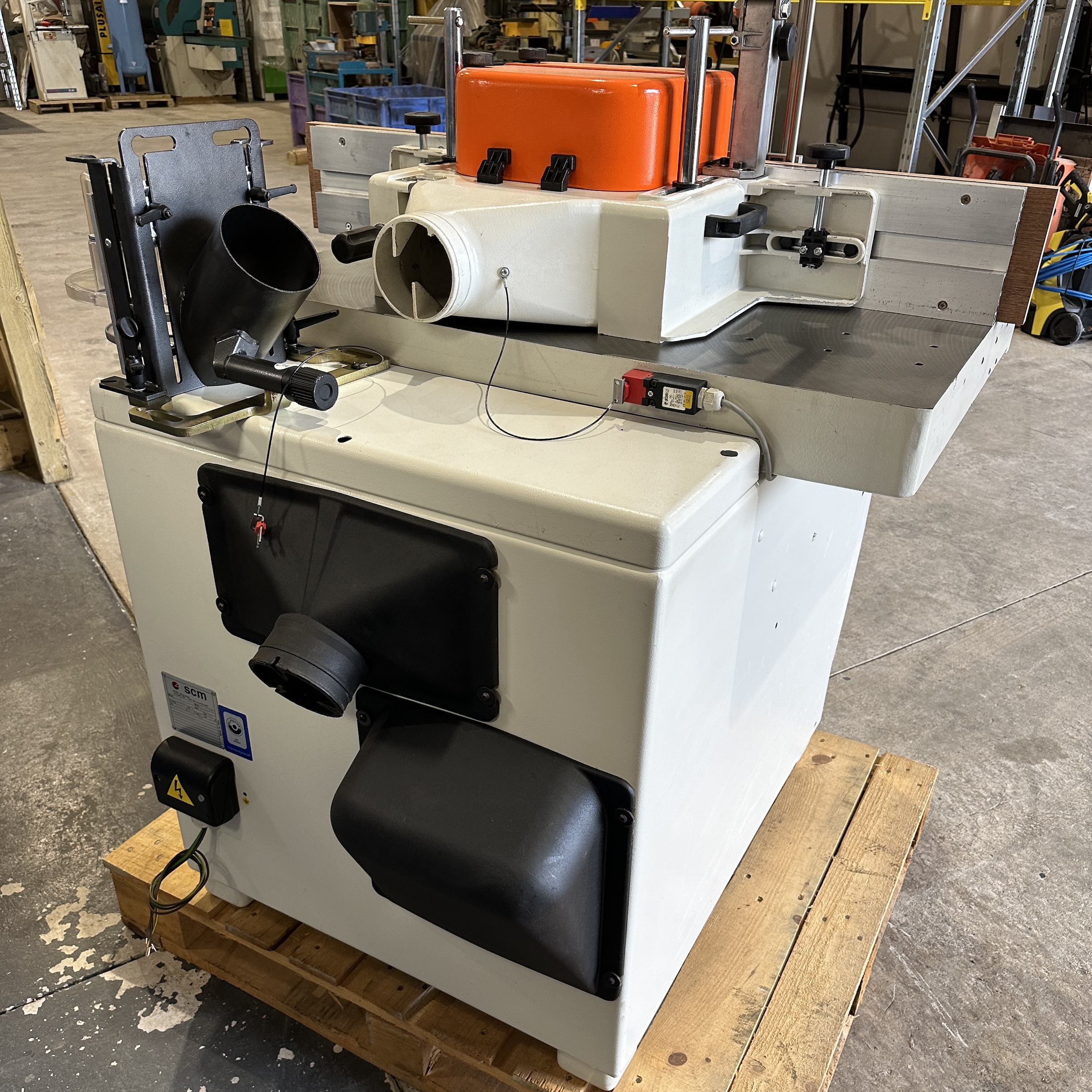

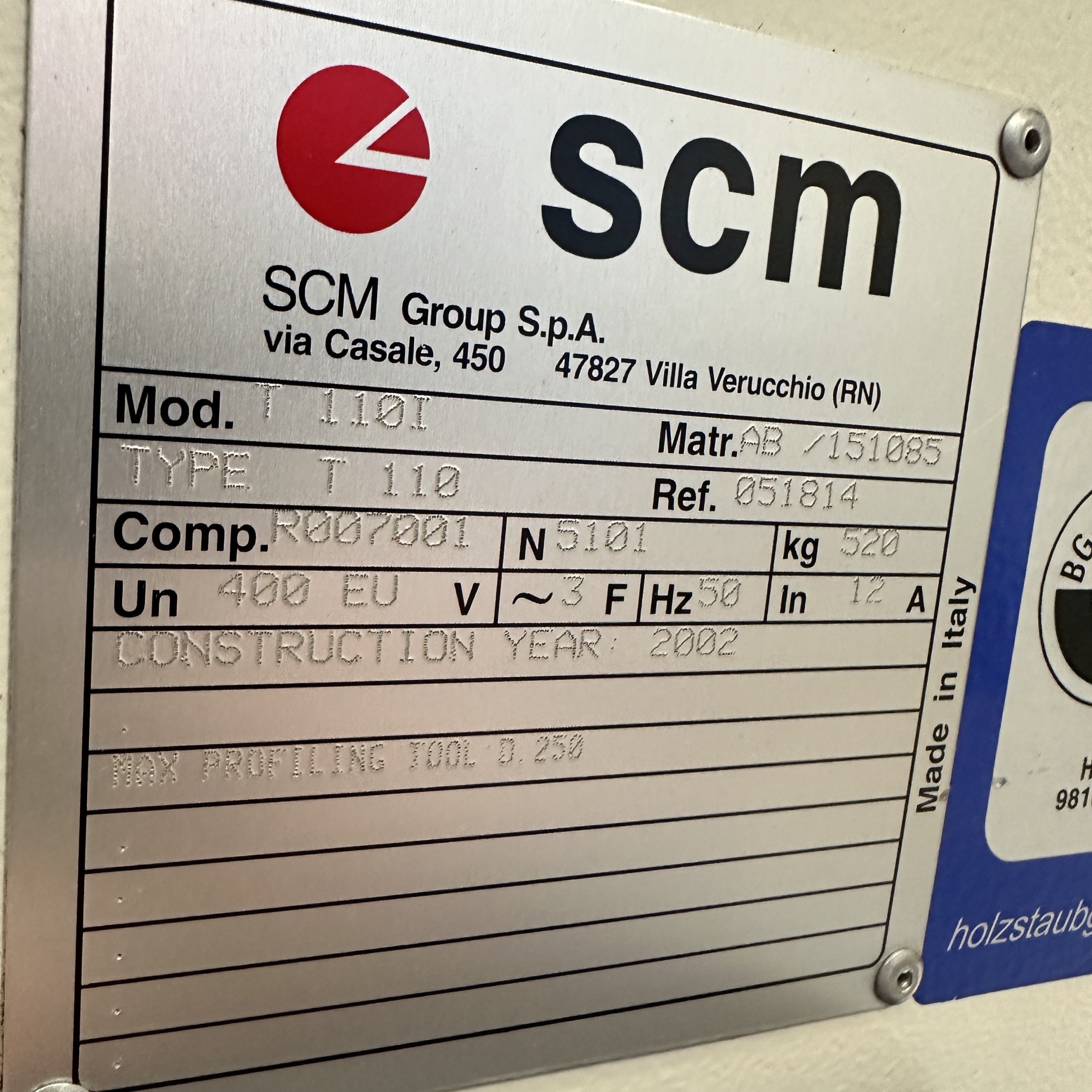

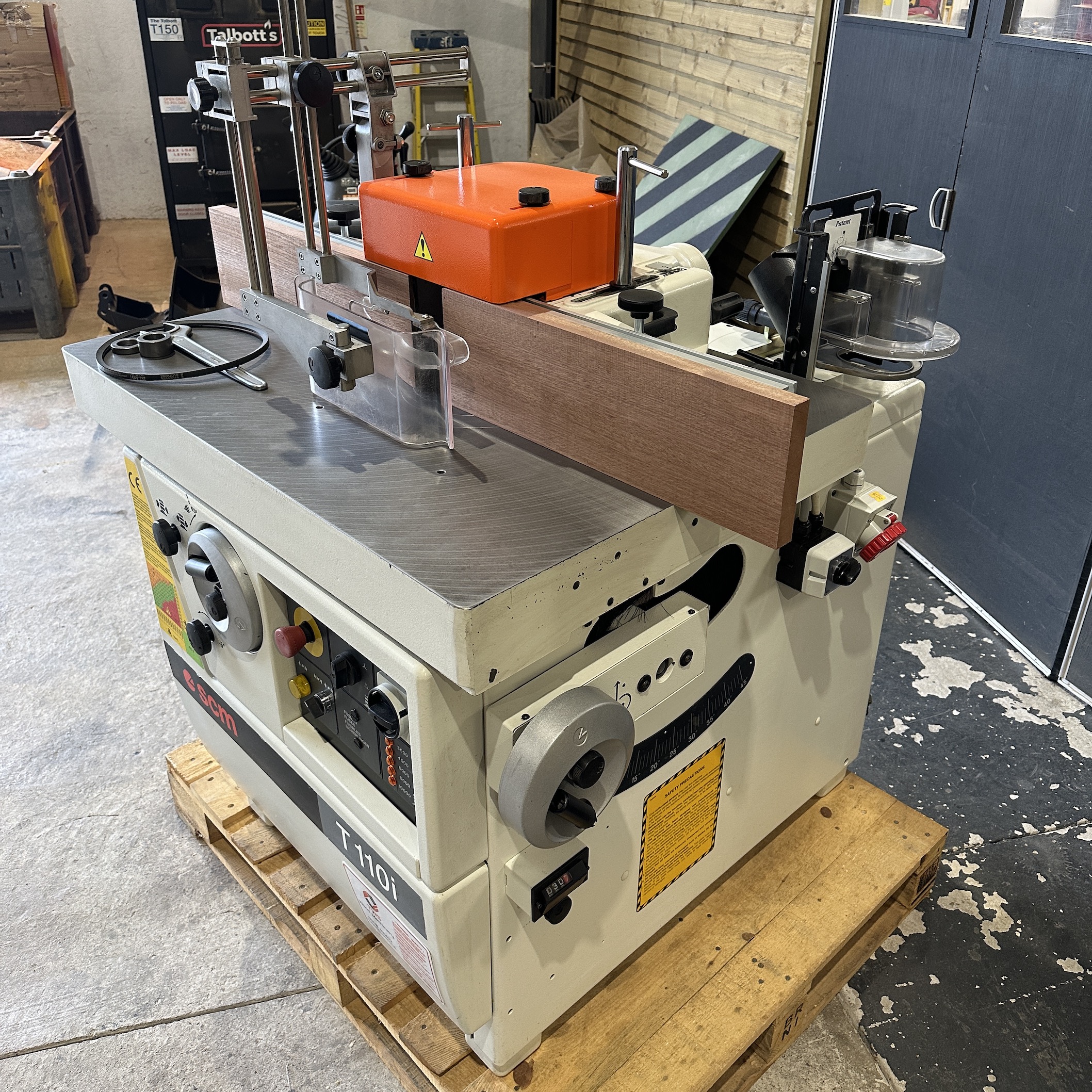

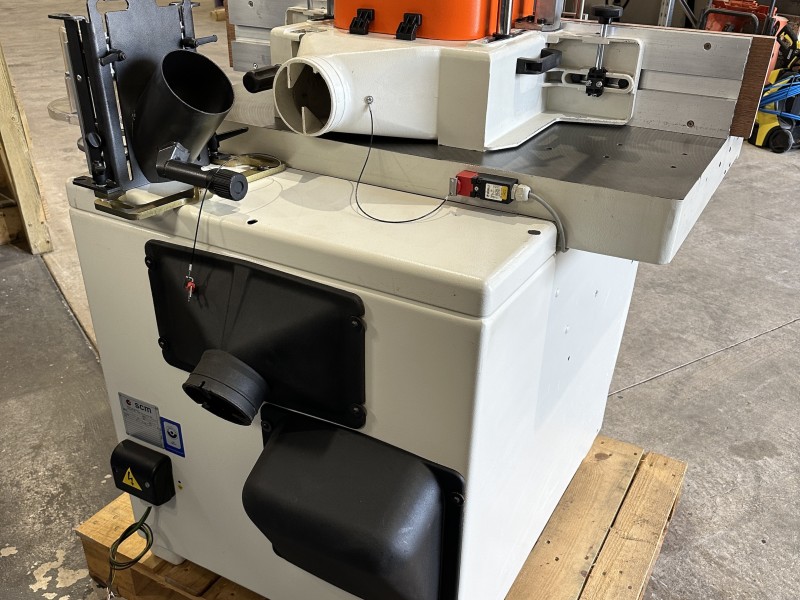

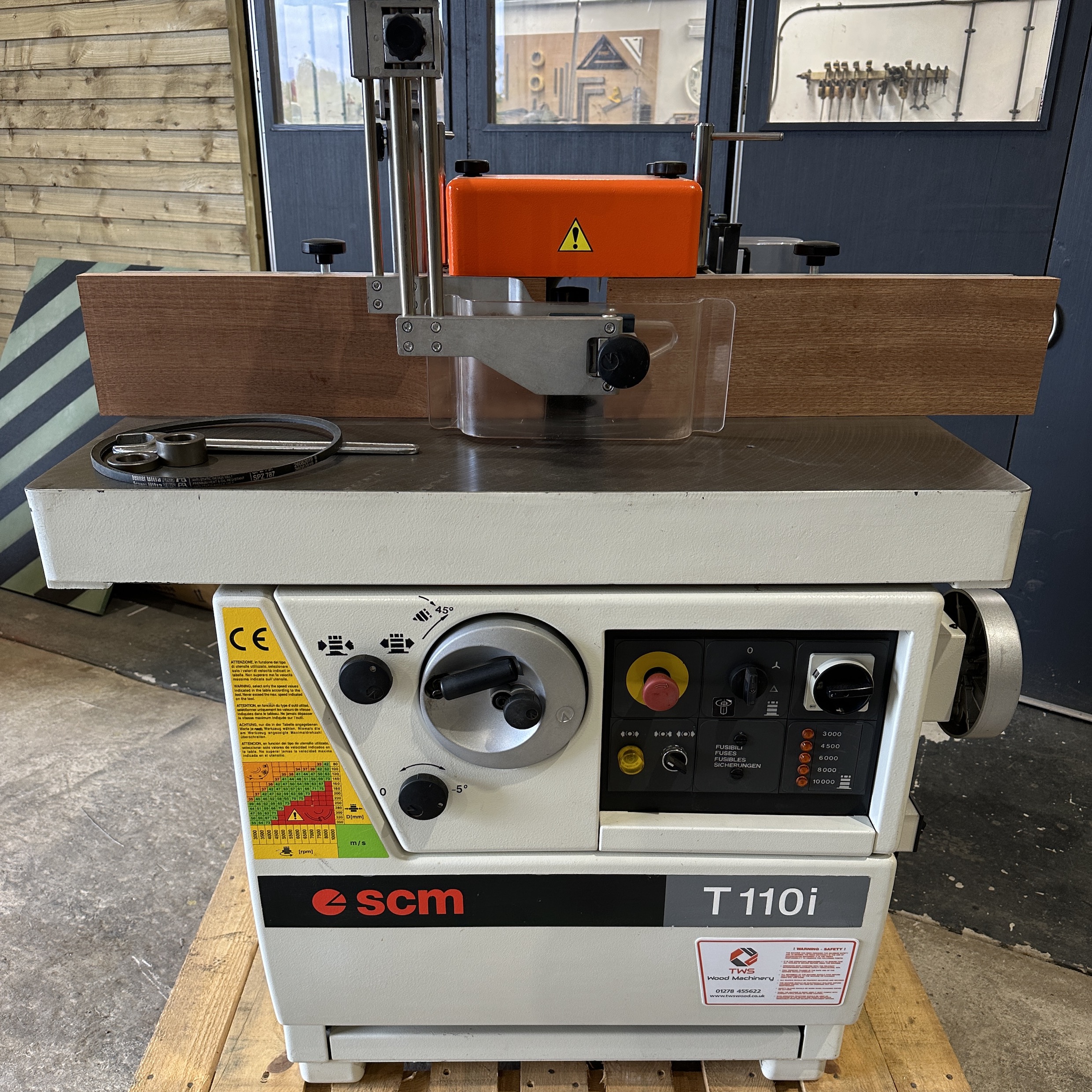

    Pre-owned SCM Tilting Spindle moulder, model T110i

    Specification
    Heavy duty operation, reliability, ergonomics and ease of use are the main features that make the T110i an advanced product, unbeatable in its category. Built in Italy by one of the worlds largest woodworking machinery manufacturers.

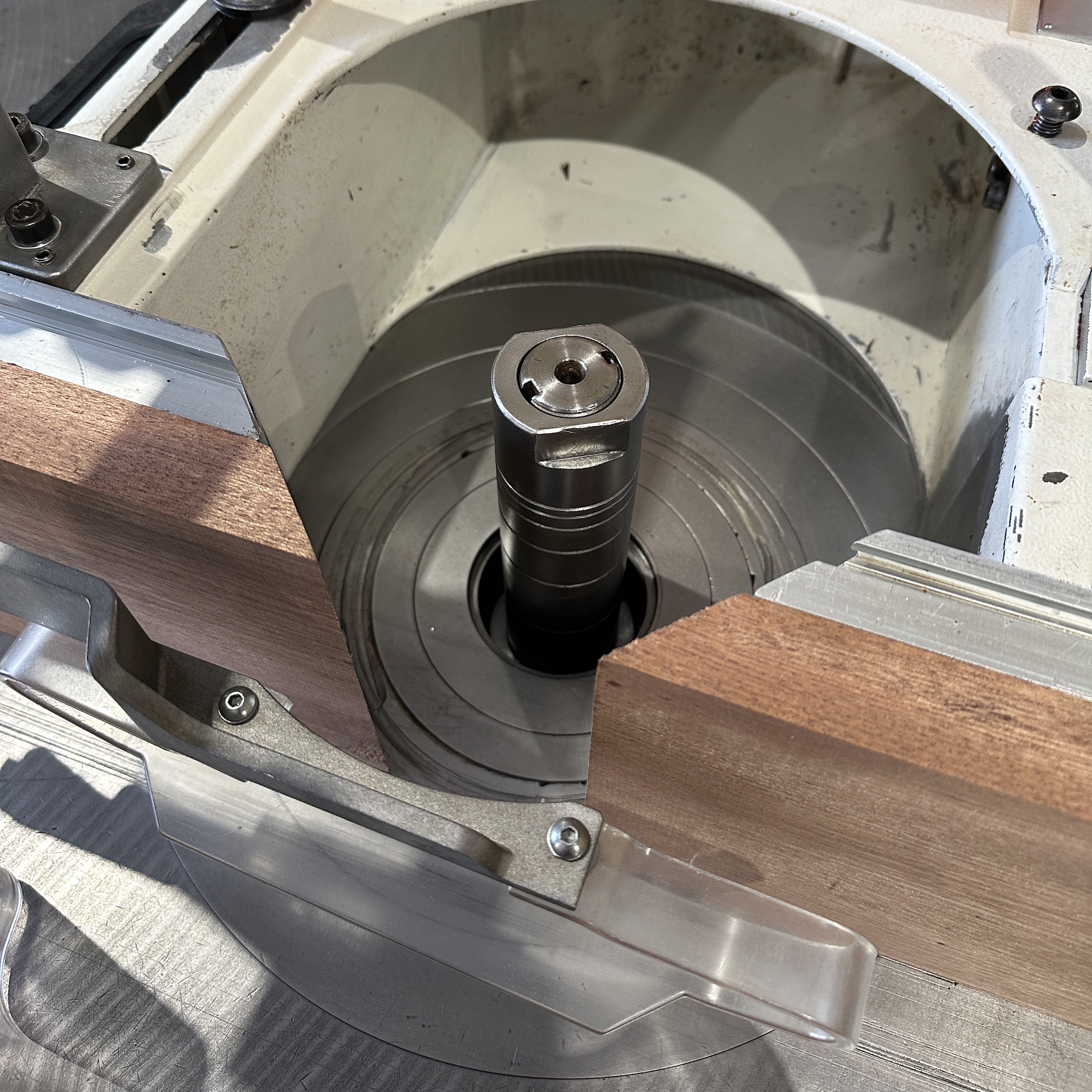

    One piece Spindle moulder fence with micro adjustable movement, ensuring accurate setting of the metal fence plates.

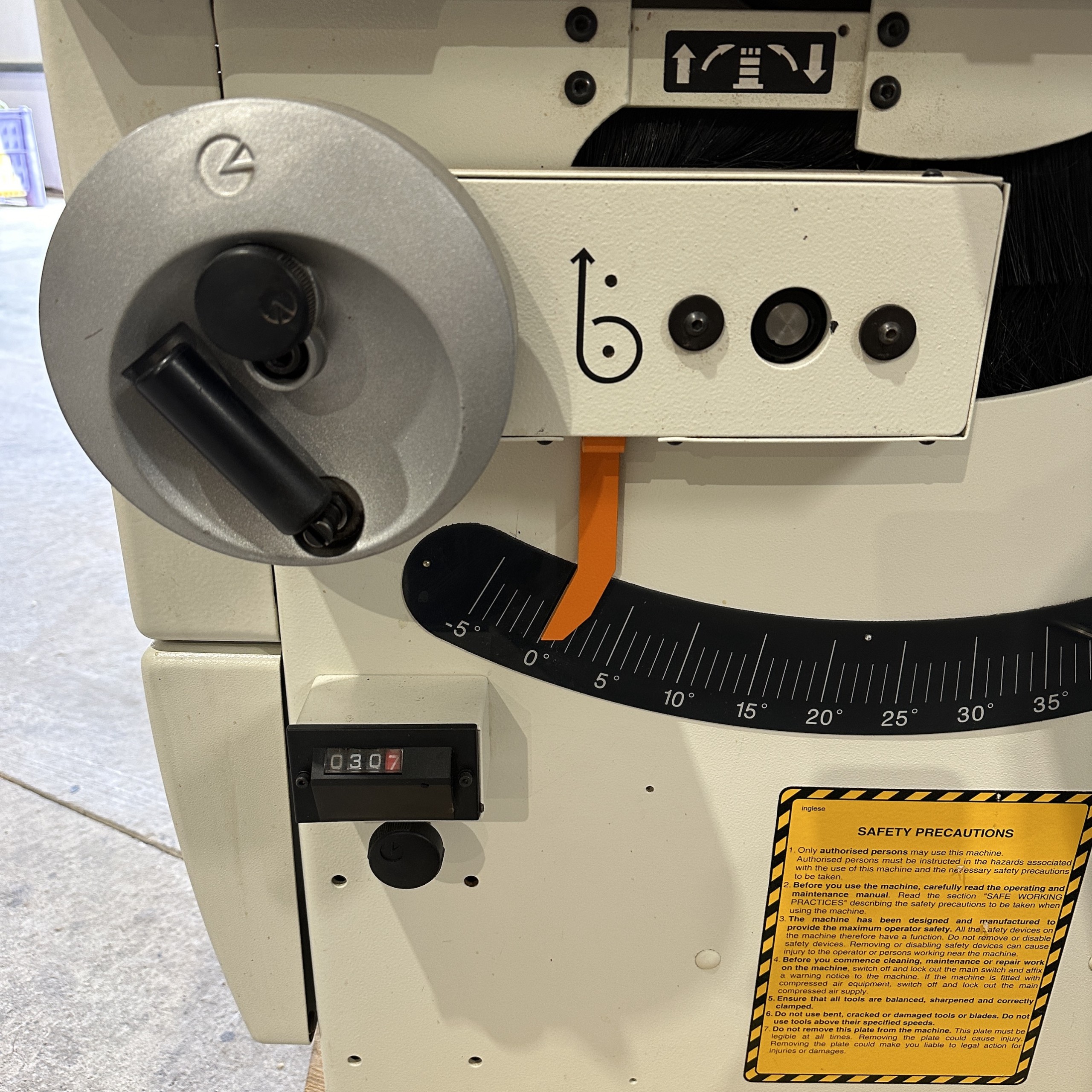

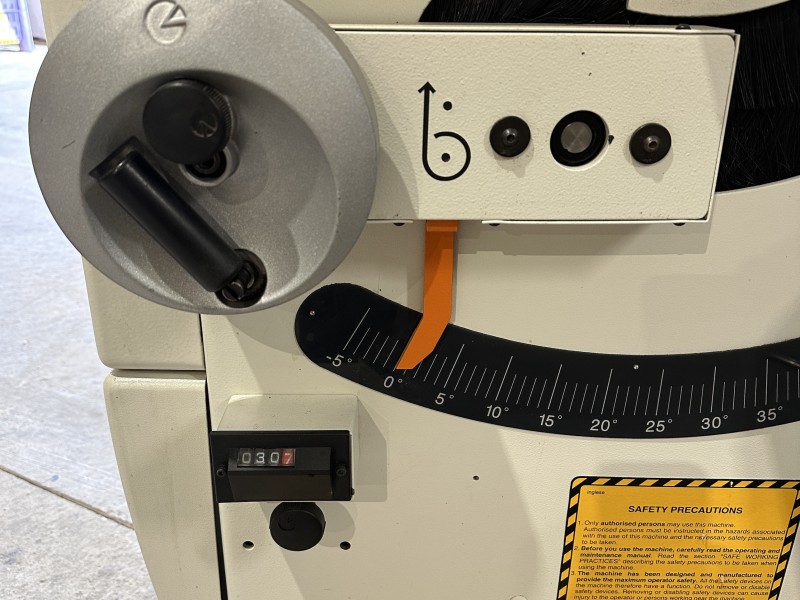

    Spindle shaft tilting in both directions, +5° forwards to -45° backwards by a hand wheel located on the front of the machine. This makes the machine very versatile and gives the operator a wide range of machining options all wrapped up in one machine.

    Rise and fall of the spindle shaft by hand wheel located on the side of the machine, with a mechanical digital readout display. This makes setting up the tool and making adjustments quick and easy.

    Sturdy steel machine structure. A ribbed cast iron worktable which guarantees no vibrations and ensures longevity.

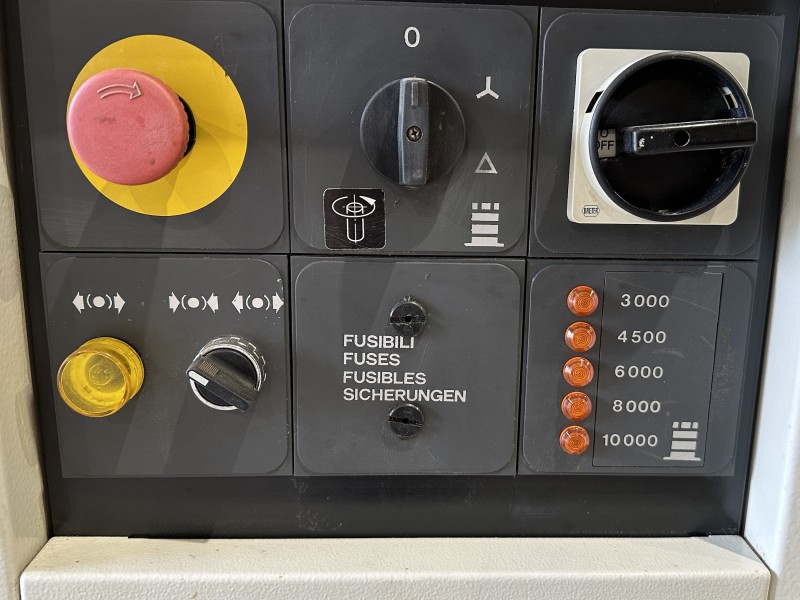

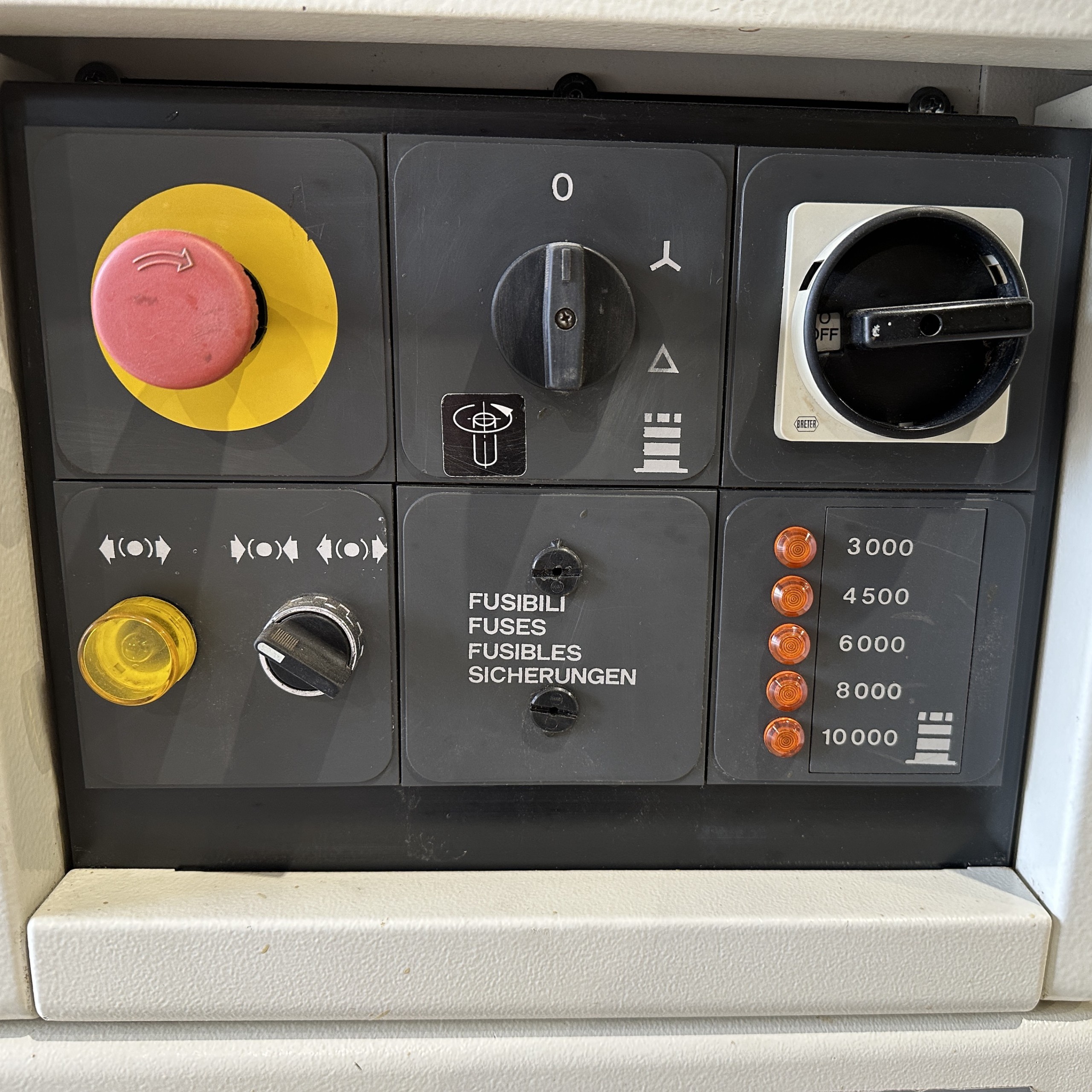

    At the heart of the machine a strong 7.5hp motor ensures maximum strength for any task. Soft start through a start delta rotary switch and electronic brake for safety,

    This T110i SCM tilting spindle spindle moulder has been through our workshop for cleaning and servicing.

    It is now ready for immediate dispatch, please give us a call or send us an email for more information.

    You are welcome to visit us here at Bridgwater to view the machine running.

    To view our other spindle moulder options please click here

    Check out our eBay listing

    Additional information

    Table Size

    1200mm X 730mm

    Spindle Speeds

    3000, 4500, 6000, 8000 And 10,000 RPM

    Rise & Fall

    Manual

    Shaft Diameter

    30mm

    Fence

    Adjustable Fences

    Condition

    New
