Four sided planer moulder – Leadermac 523

£22,500.00 +VAT
Print Listing
Email Listing
  • Timber capacity – 230mm x 125mm
  • Infeed Table Length – 2000mm
  • Moulding facility to 4 heads
  • Digital readouts to all heads
  • Variable feed speed – Inverter control
  • Motors – 3 x 10hp + 1 x 15hp
  • Powered lifting of the drive beam
  • Powered movement of the top head and side head
  • Pneumatic pressure drive rollers
  • Complete with a full set of planing heads

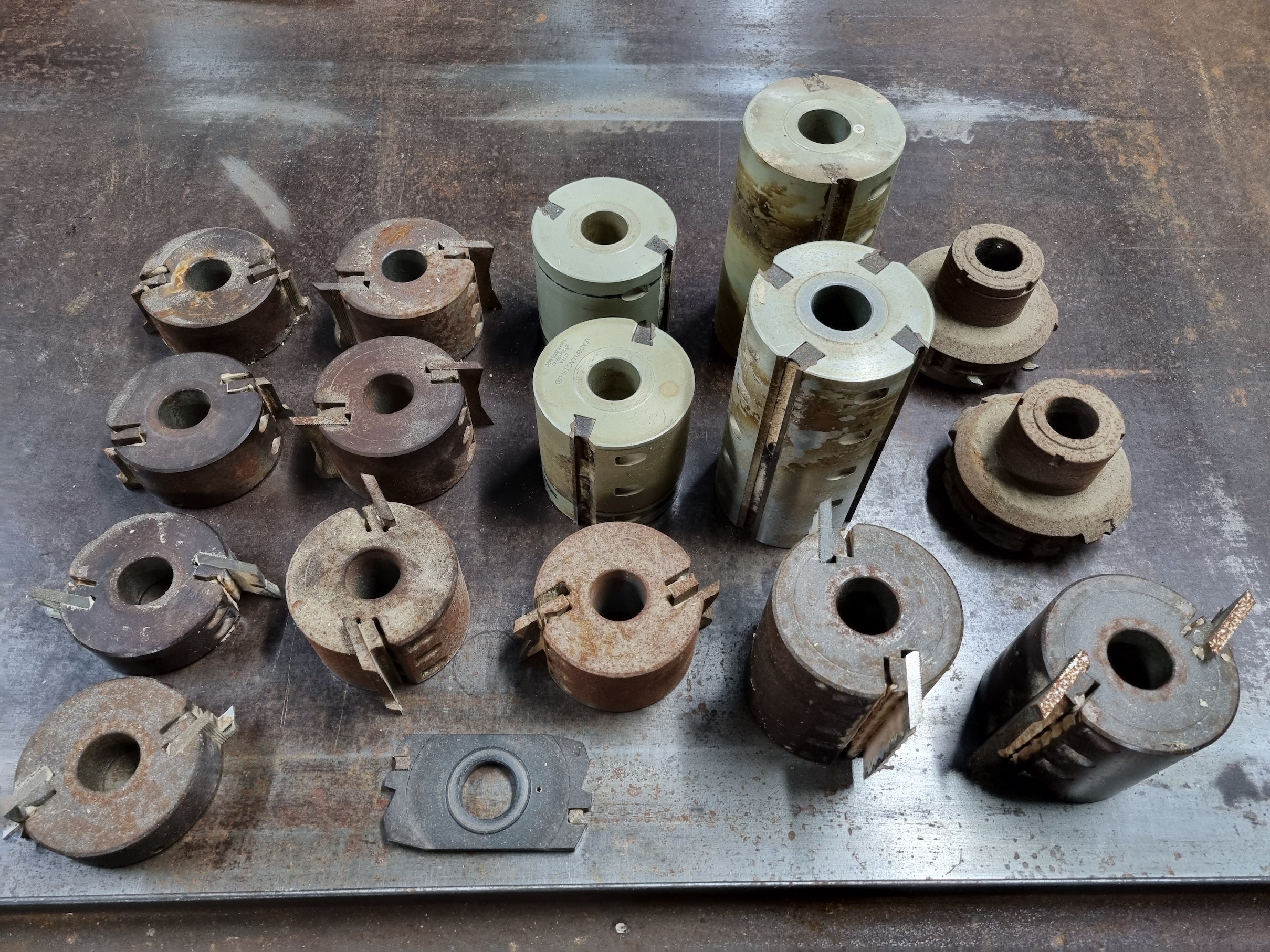

  • Large selection of moulding tooling
  • C.E. regulated
Add to Quote

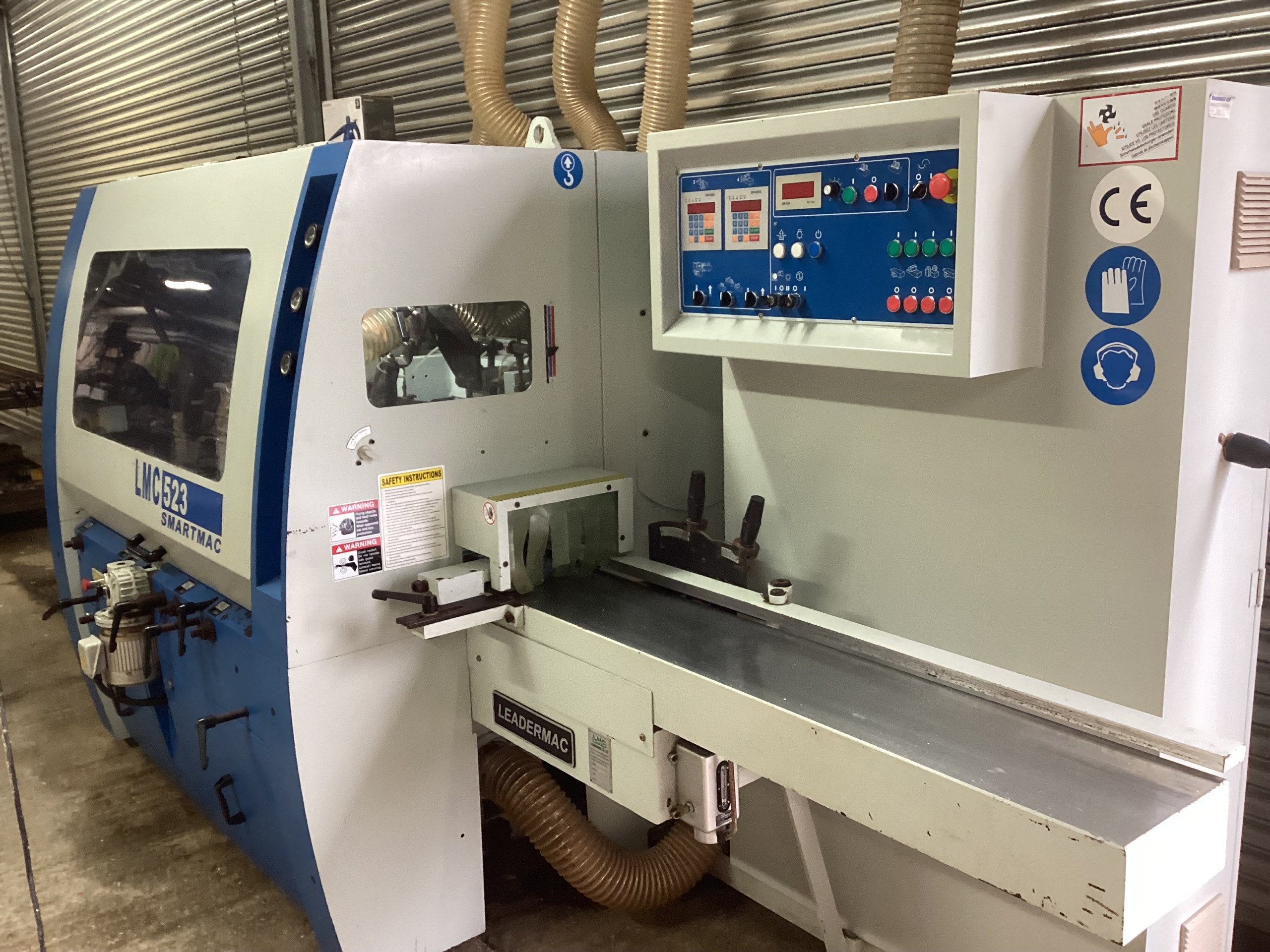

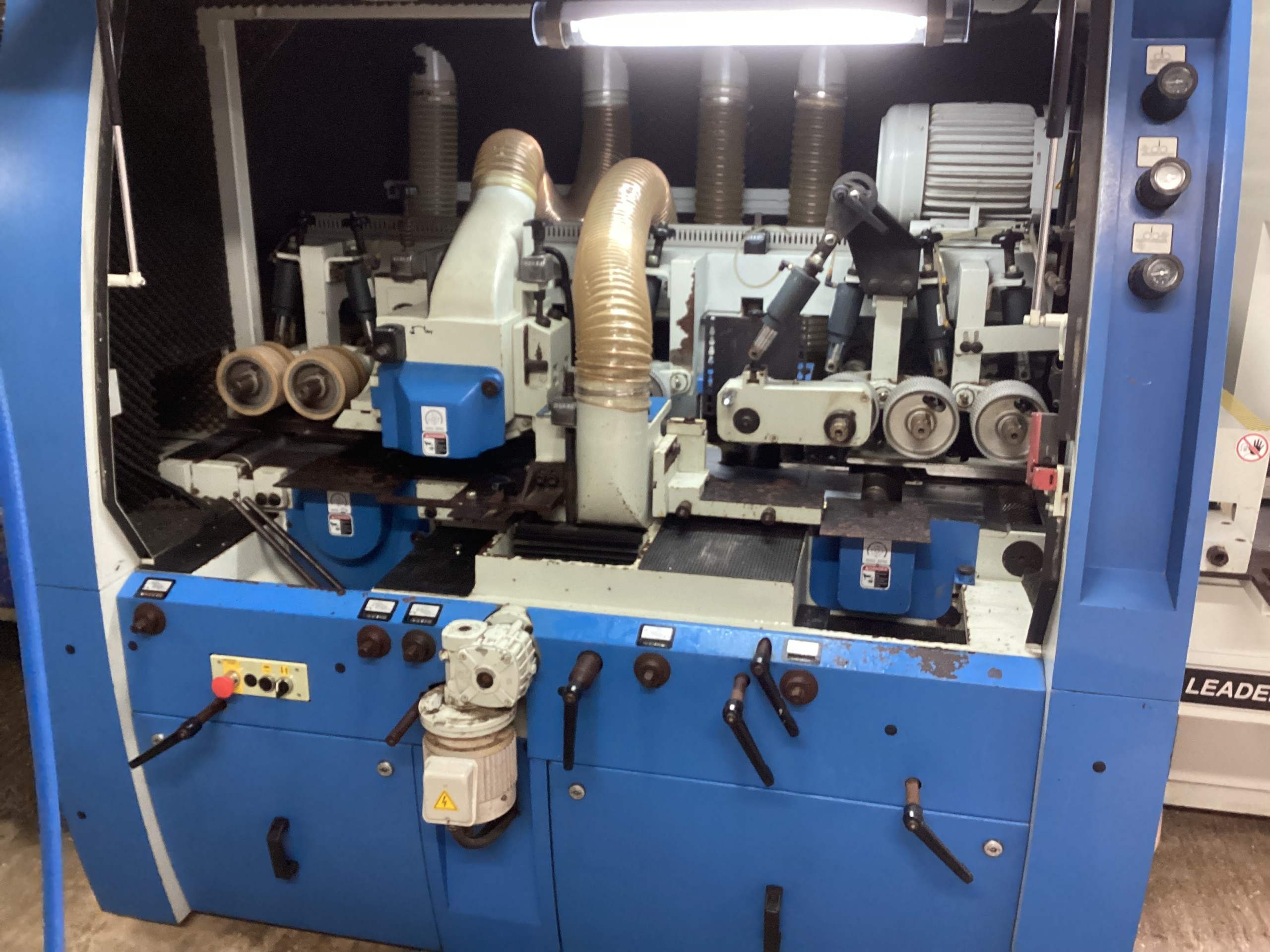

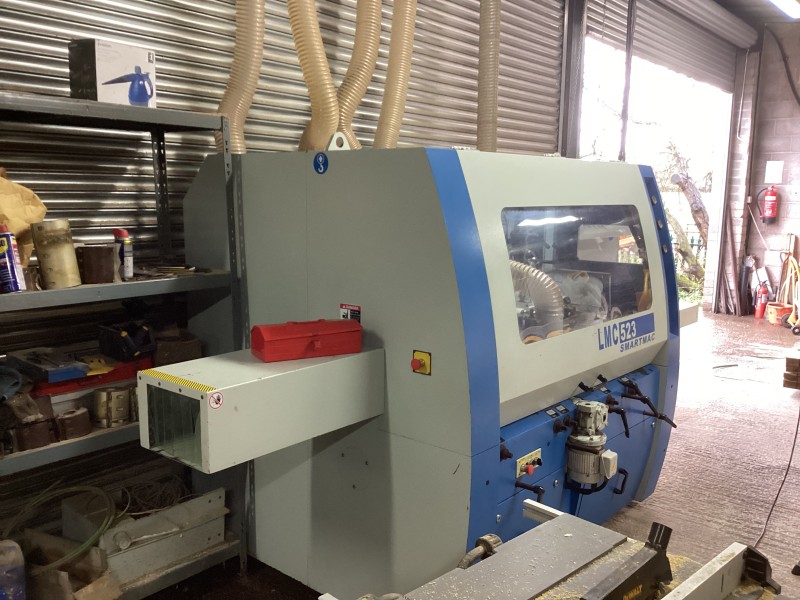

Leadermac Smartmac LMC-523 5 head four sided planer moulder
One owner from new, complete with a large selection of tooling
Can be seen running and demonstrated

LEADERMAC’s 4 sided planer moulders have all the very latest technologies for increased productivity.
These heavy duty moulders are designed to provide fast cutting speeds and highest accuracy.
The machines are precision manufactured by highly skilled technicians

These four sided planing and moulding machines are renowned for their quality, efficiency and reliability. It is this calibre of product and reputation, that has led to providing machines to various market leading manufacturers.

Outstanding Features
It’s a Powerful, Precise, Efficient and Economical Machine in One Small Package.
1 piece, Cast Iron Machine Frame is specially heat treated for maximum stability and rigidity
Infinitely variable Feed Speeds up to 24 mpm (80fpm) are standard.
Adjustment of each spindle can be easily performed using the front of the machine adjustment
Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect
All Bed Plates, Guides, Chip Breaker shoes & Pressure Plates are hard-chrome plated for maximum longevity
All lubrication points located at front of machine
The full Safety Enclosure (Heavy Gauge Steel) serves as a chip guard and helps to reduce noise.
