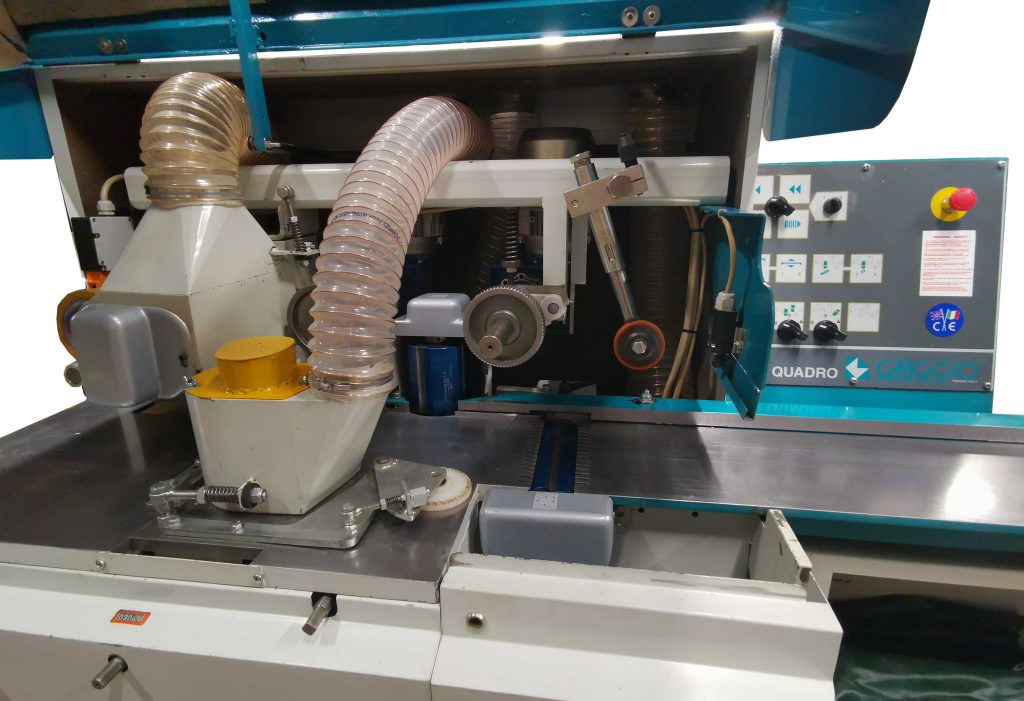

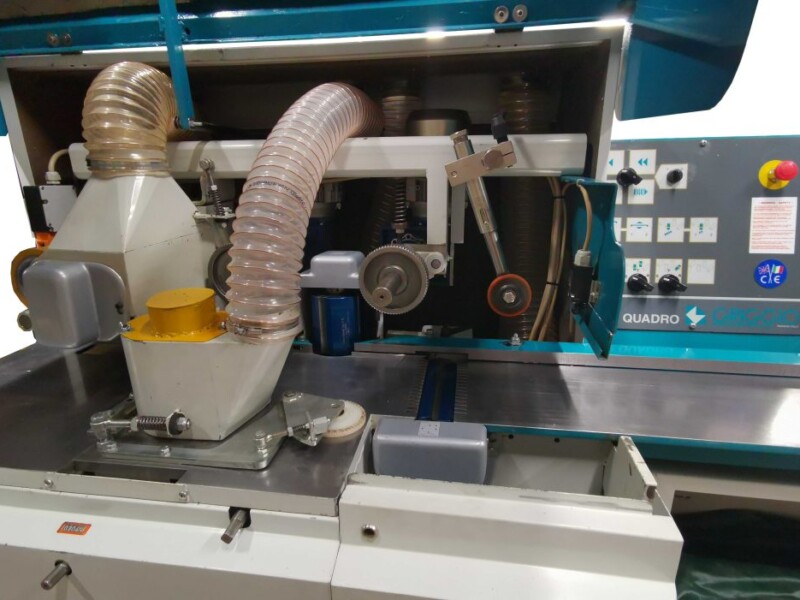

Griggio G22 Quadro Four sided planer

£8,500.00 +VAT
used
Add to Quote
Category:

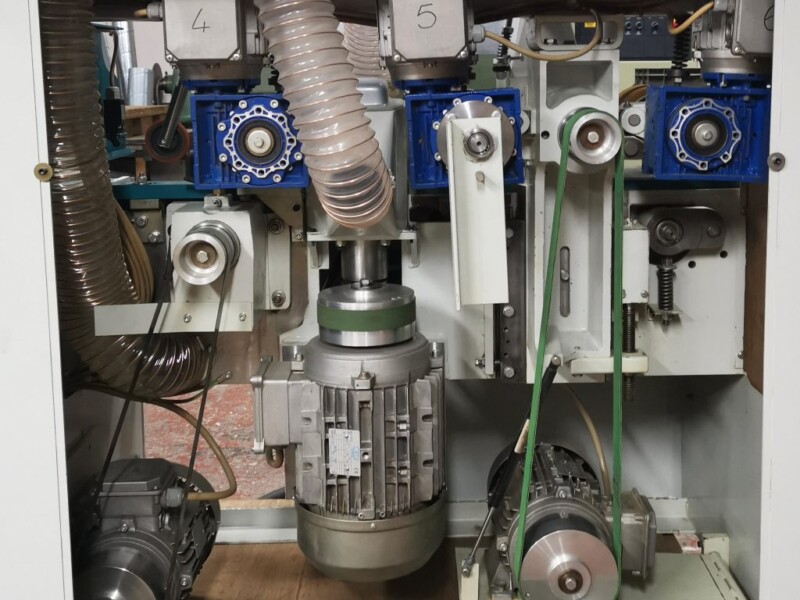

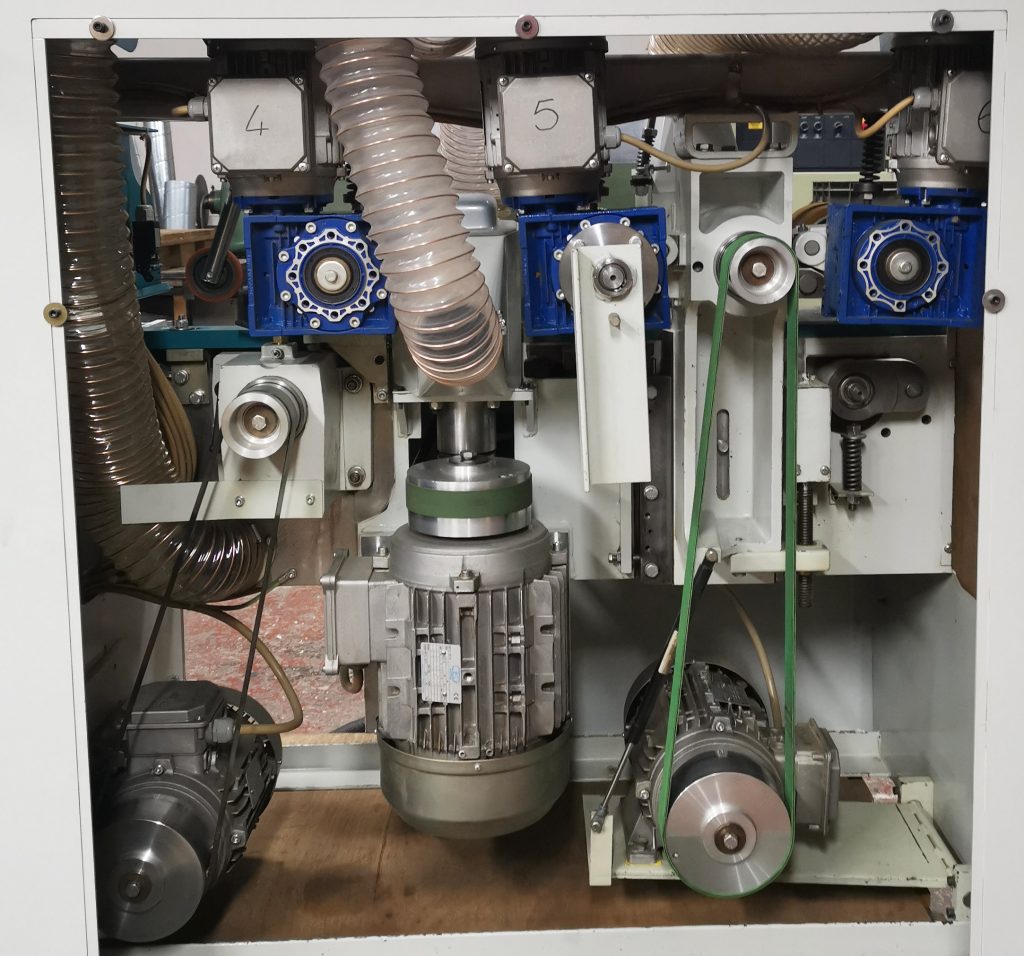

A robust yet compact machine with simplicity as it’s main characteristic. The Quadro has been produced by Griggio for a number of years and is the backbone of many workshops across the UK and Europe. If you want to save time and increase productivity, then a Quadro is a essential investment. The 4 heads are driven by 3 motors. The first head is 5.5 hp, the side heads share a 10 hp motor and the top head is 5.5 hp.

  • 180mm x 120mm Maximum  finished capacity
  • 8mm x 5mm Minimum finished capacity

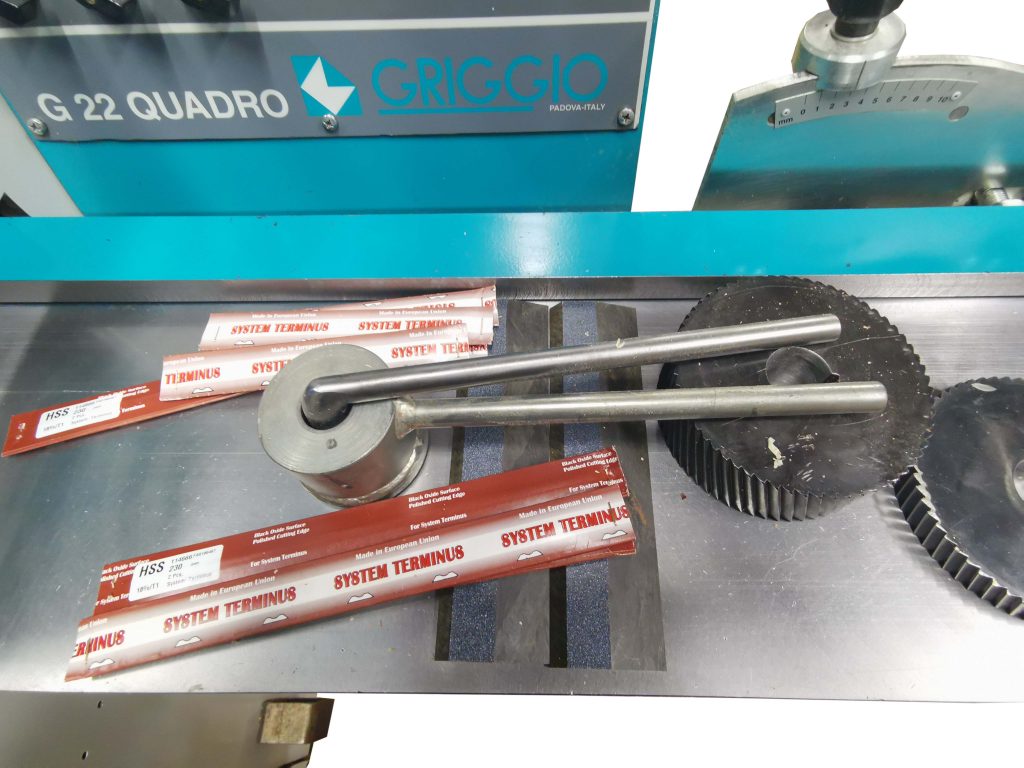

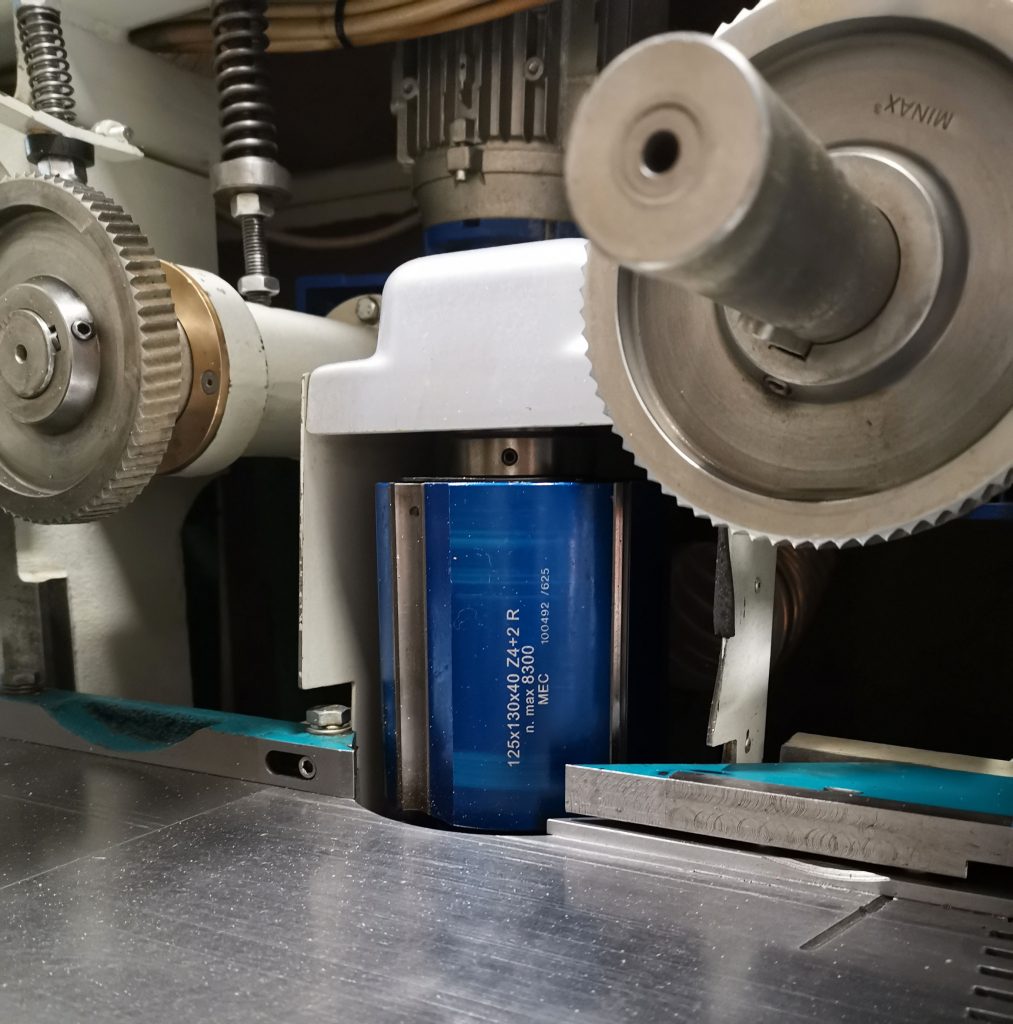

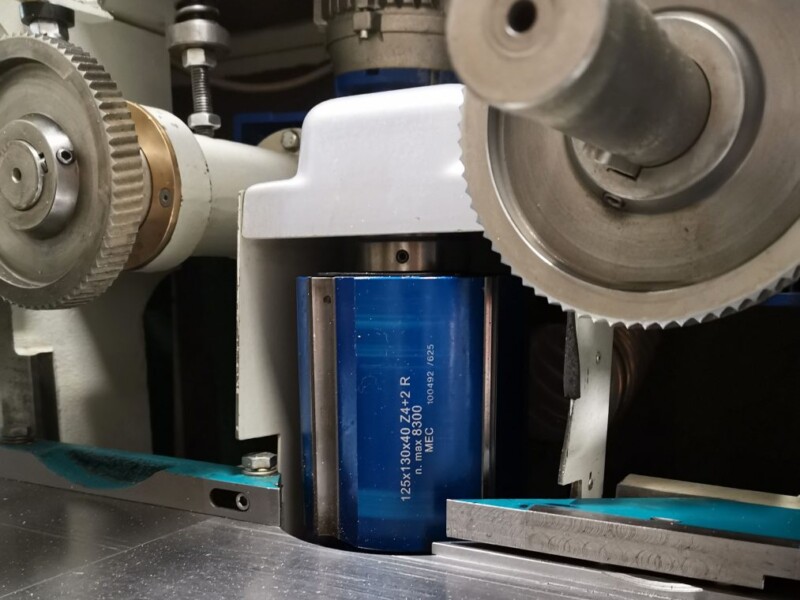

  • 130mm x 125mm Diameter quick set Terminus sided Cutter blocks
  • 190mm x 125mm Diameter quick set Terminus Top and bottom cutter blocks
  • Individual gearbox drive feed  8m/min
  • 140mm feed drive rollers
  • 4 dust extraction outlets

Please look at our other four sided planer moulders here

Additional information

Number of Spindles

4

Timber Capacity

220mm X 120mm

Hood Interlock

Yes

Cutterblock Type

4 Knife High Speed Steel

Rise & Fall

Manual

Feed Speeds

8 Meters Per Min.

Shaft Diameter

40mm

Condition

Used
