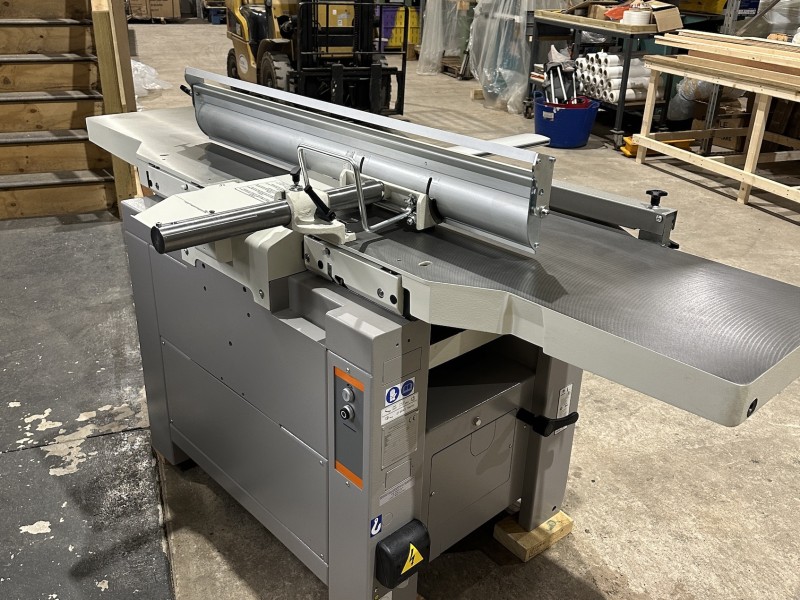

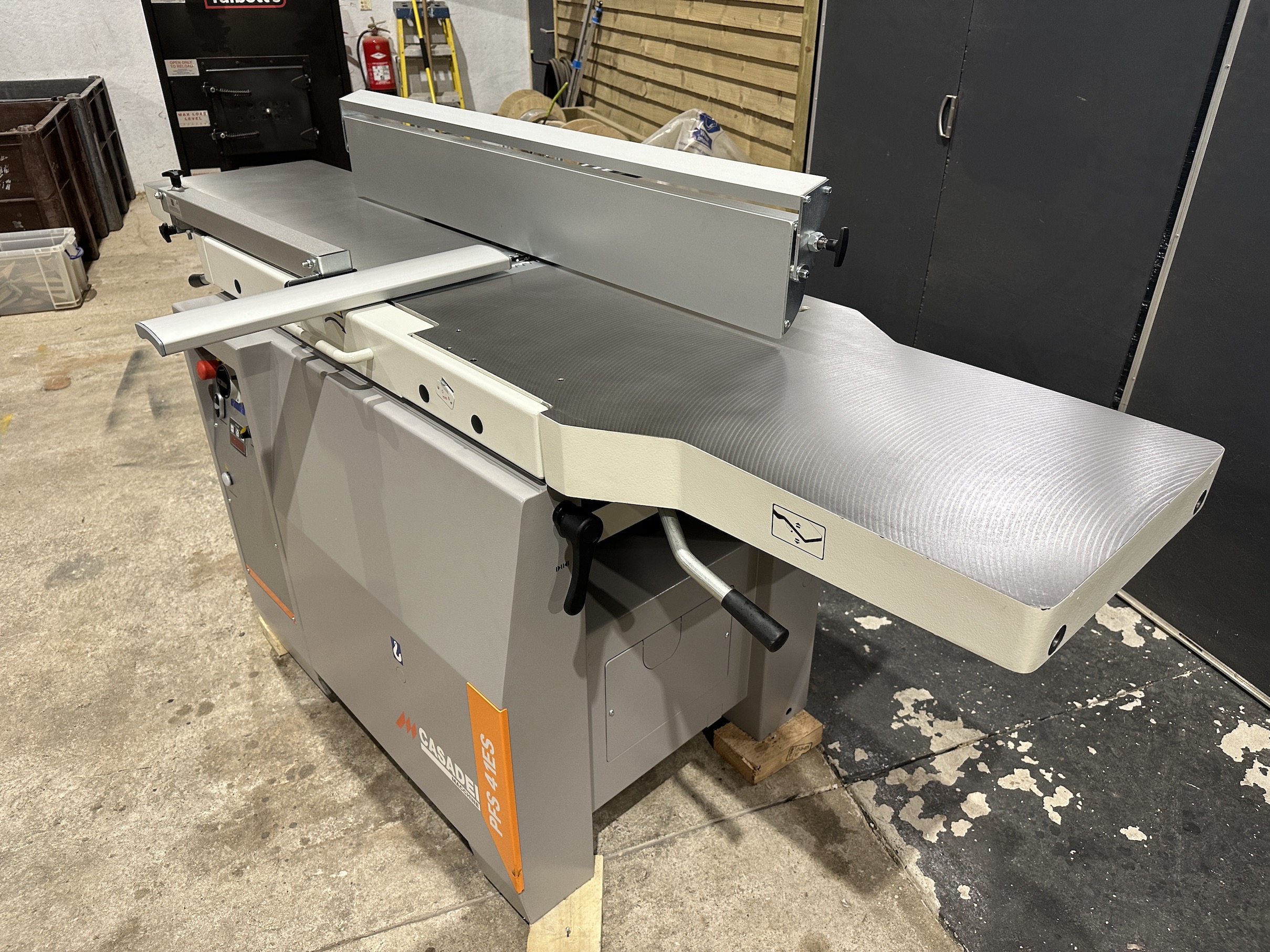

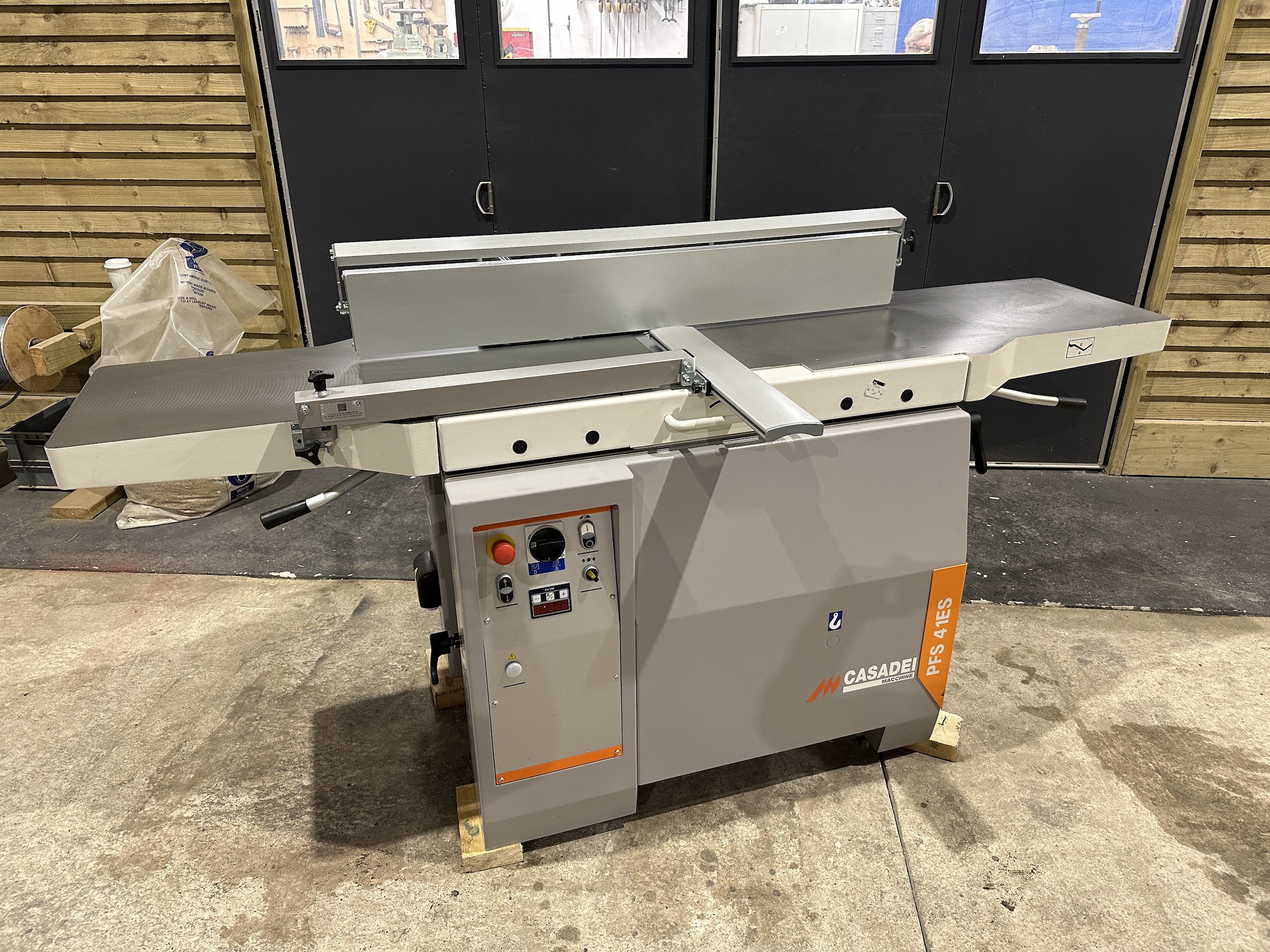

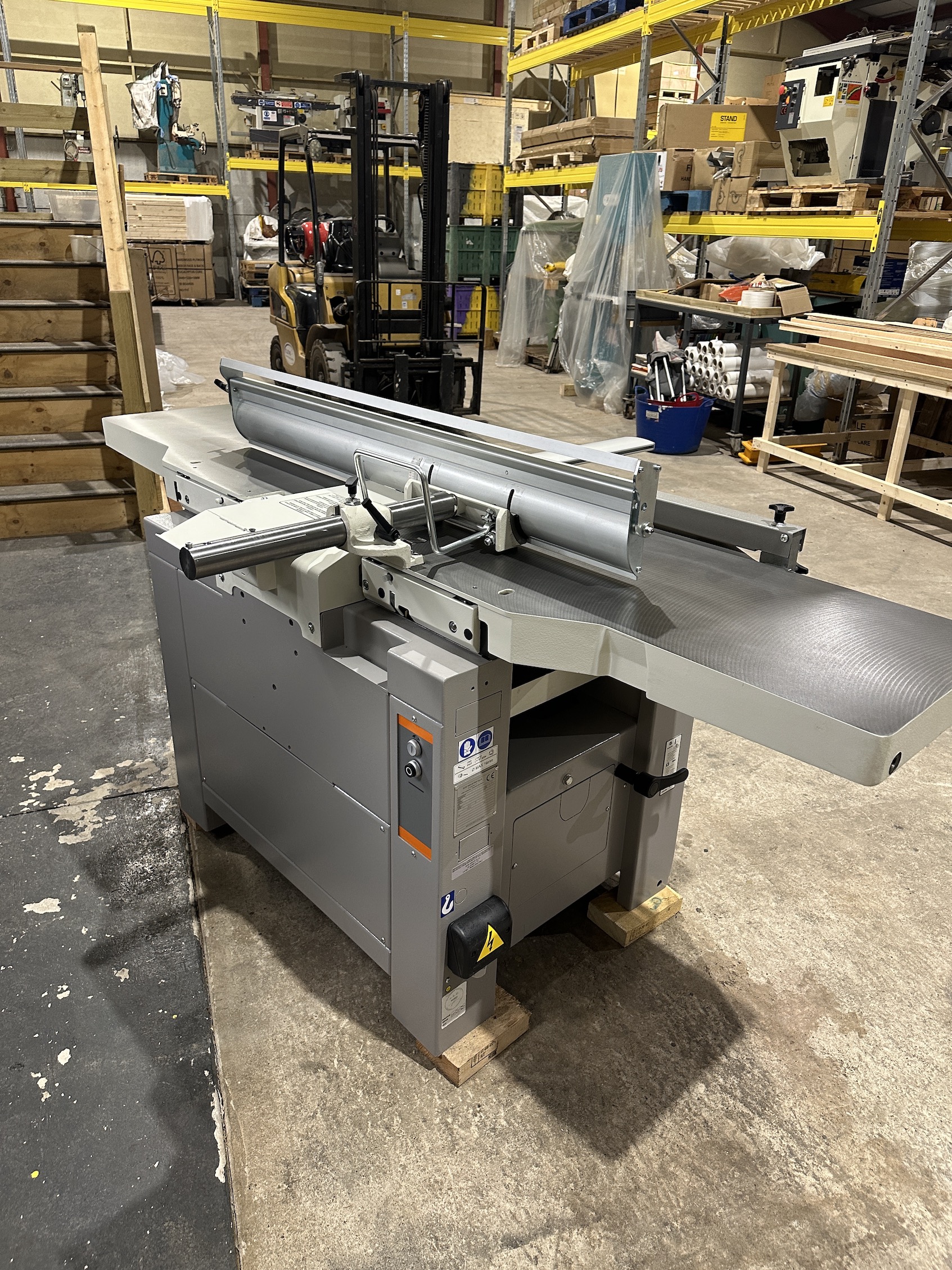

SCM Casadei Planer Thicknesser PFS41 ES
£1,500 off list price – Special Offer
Working Width – 410mm
Surfacing Table Length – 2200mm

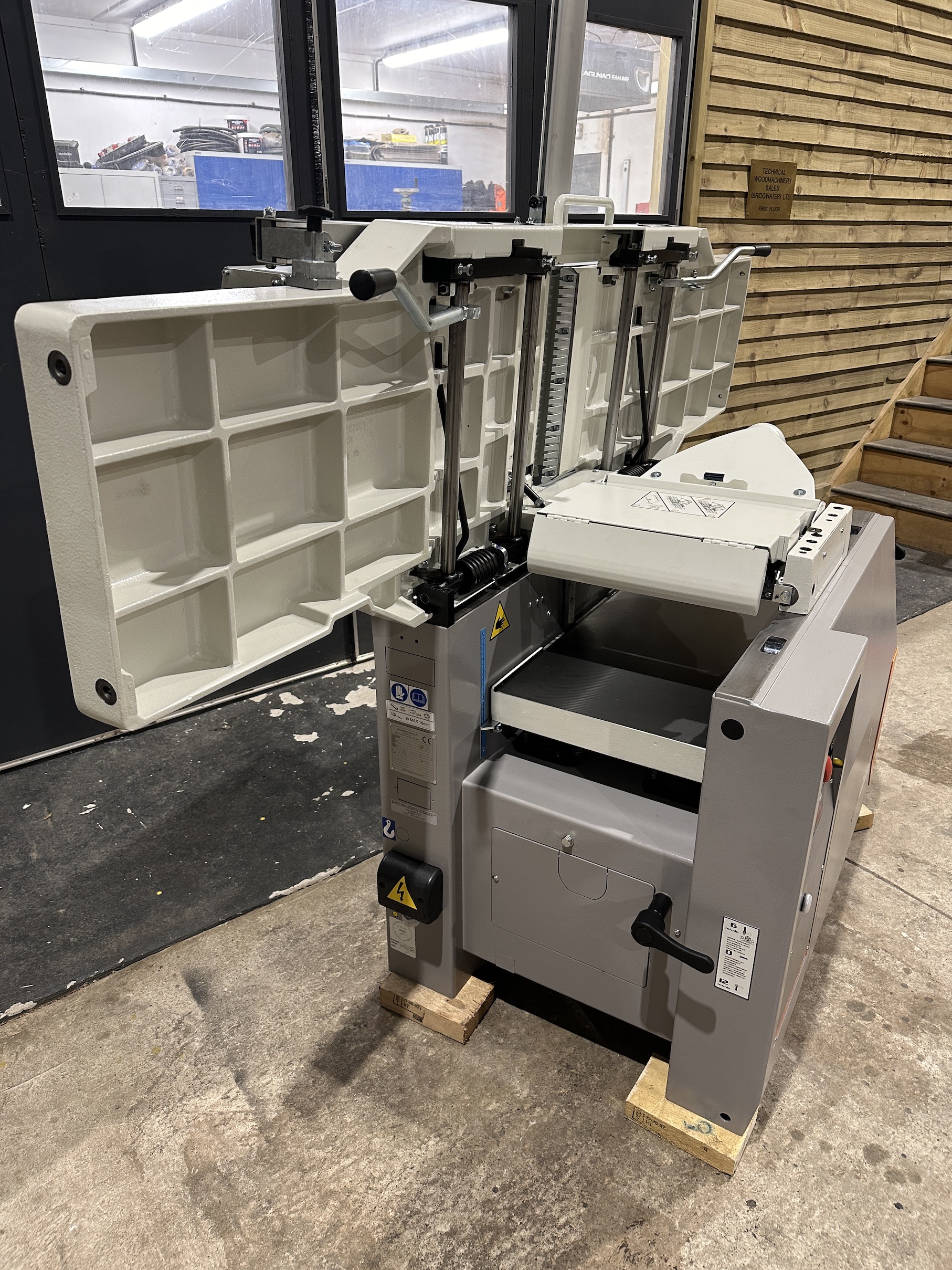

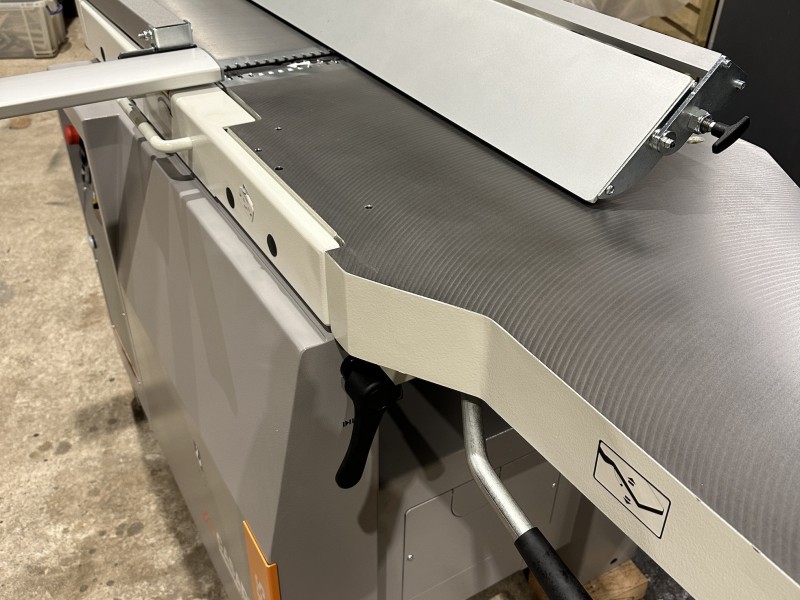

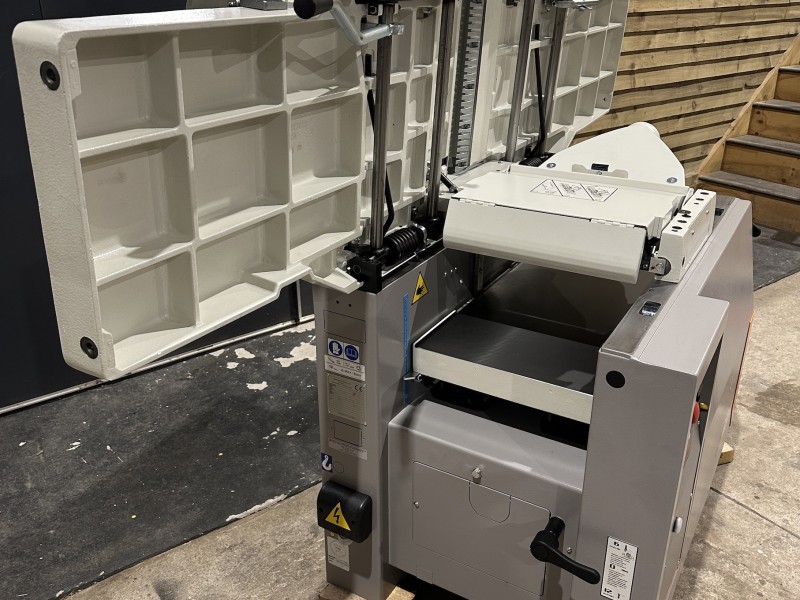

One Piece Lifting Surface Tables
Minimum Working Thickness – 3.5mm
Maximum Working Thickness – 240mm

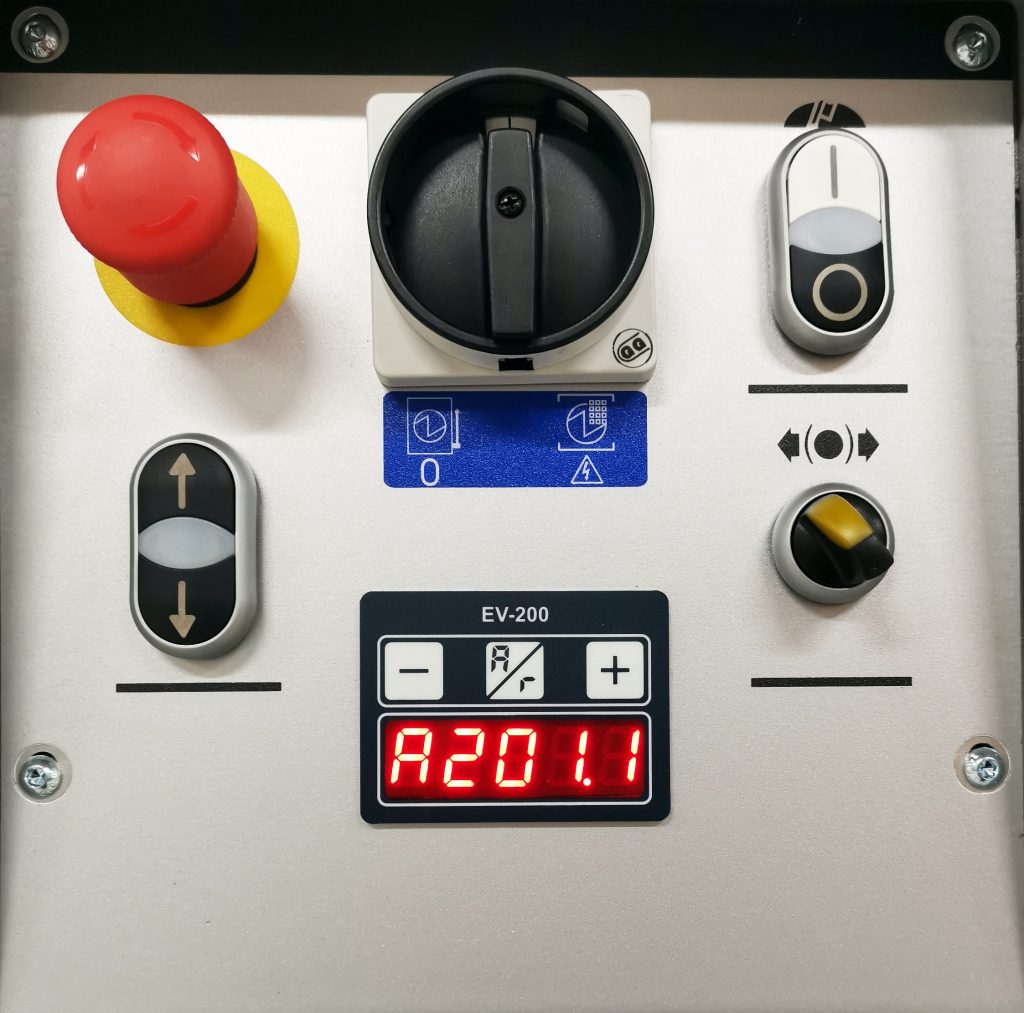

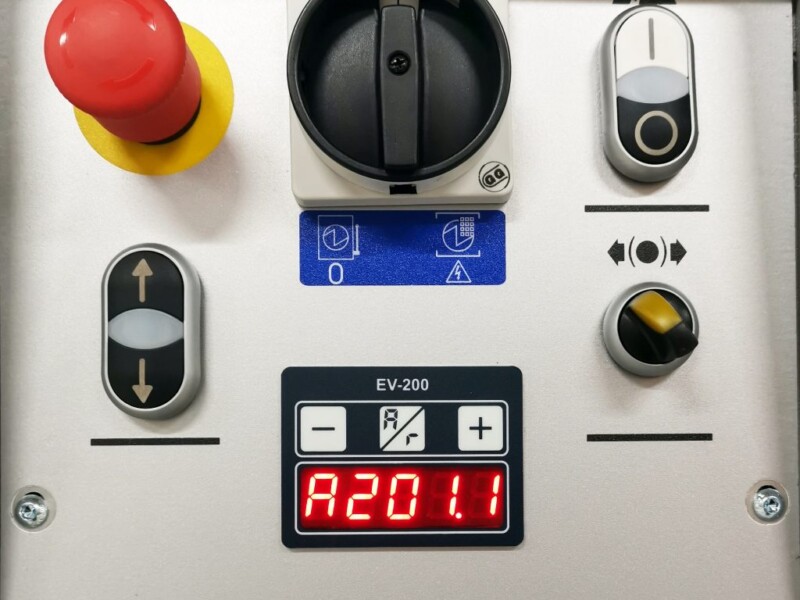

Power Rise and Fall with LCD Readout

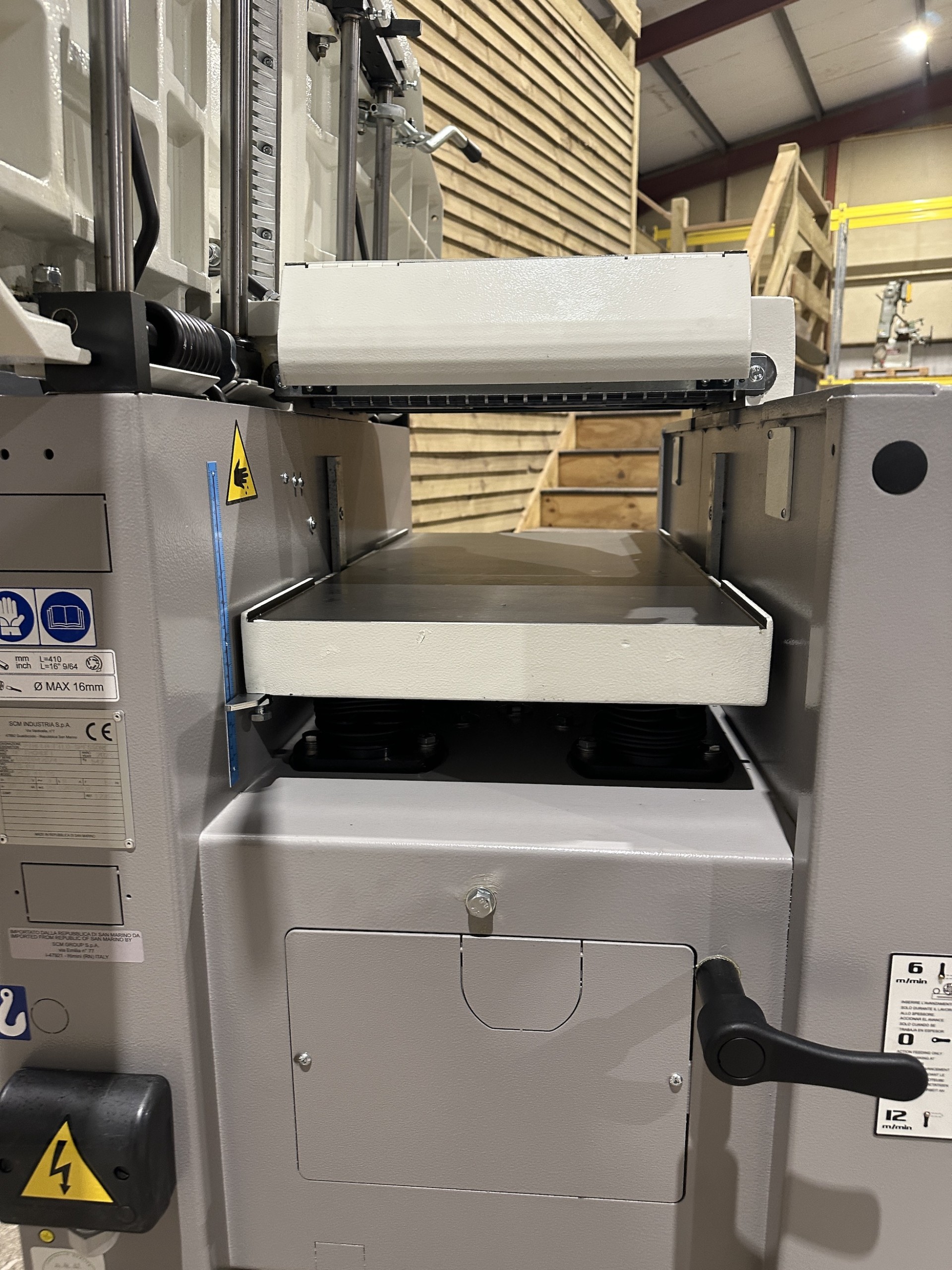

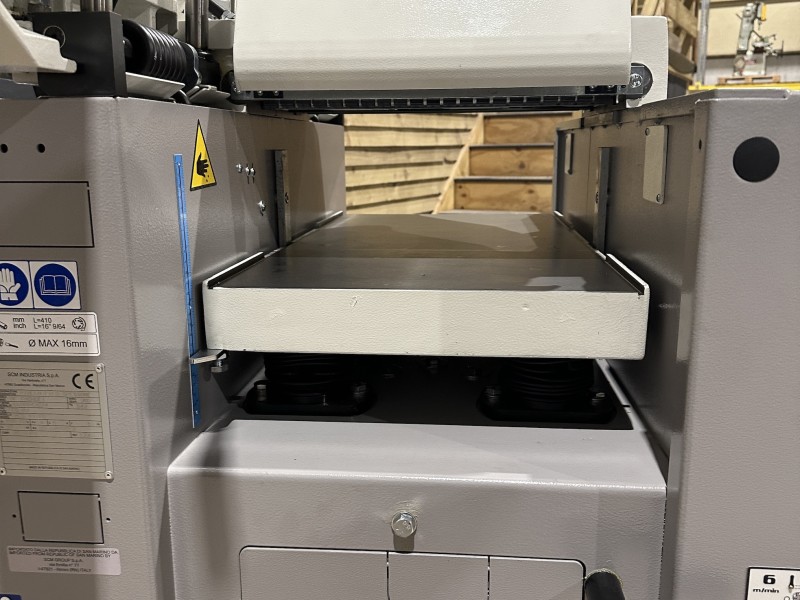

Thickness Table Lifting On 4 Screws
2 Feed Speeds – 6 & 12 meters per minute
Steel Infeed Roller
Driven Rubber Coated Outfeed Roller

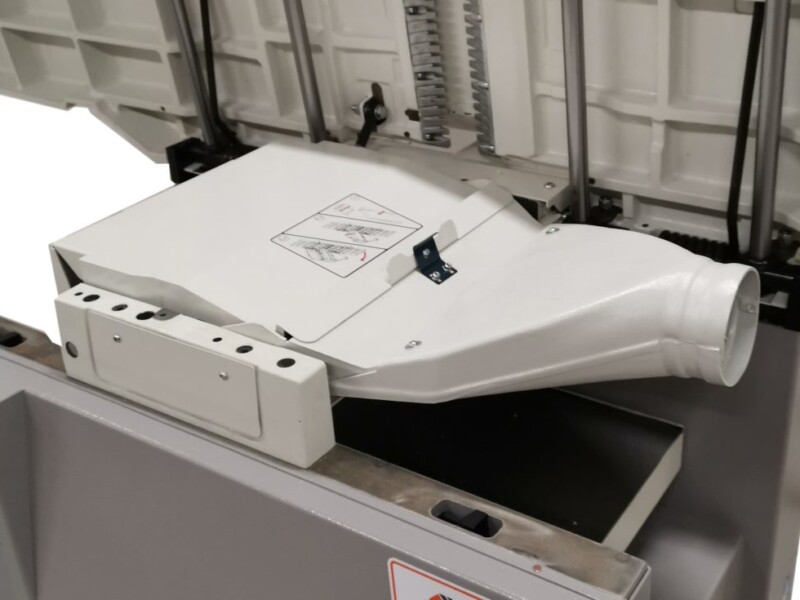

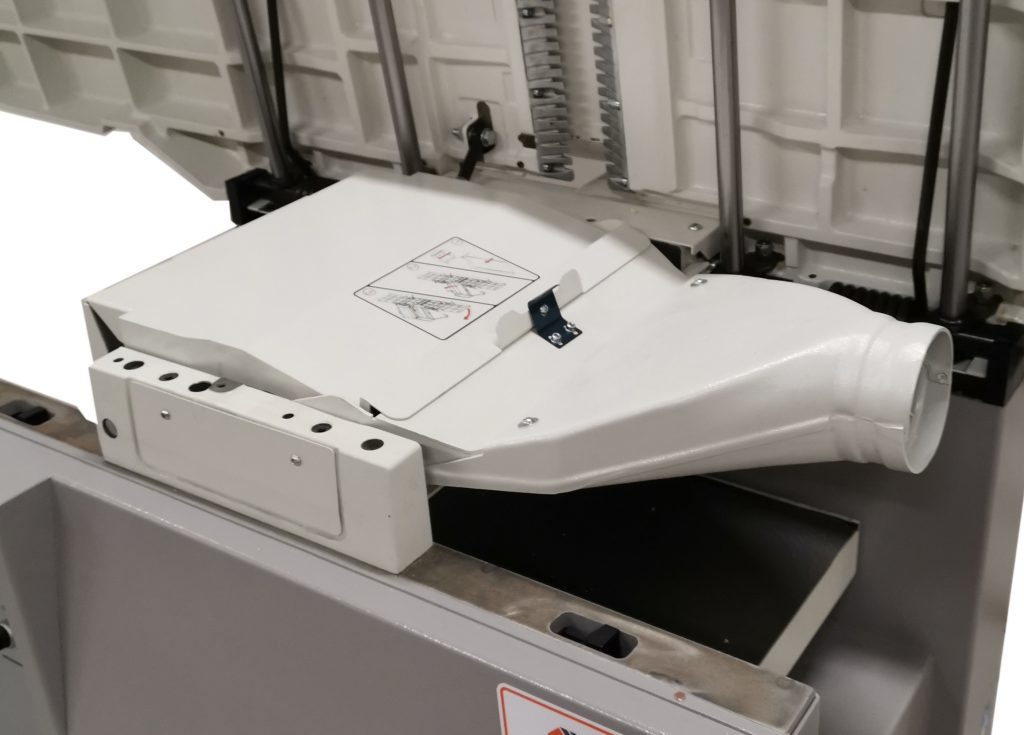

Dust Outlet – 120mm
Motor – 5KW (7Hp) with Auto Brake
Xylent Spiral Cutterblock

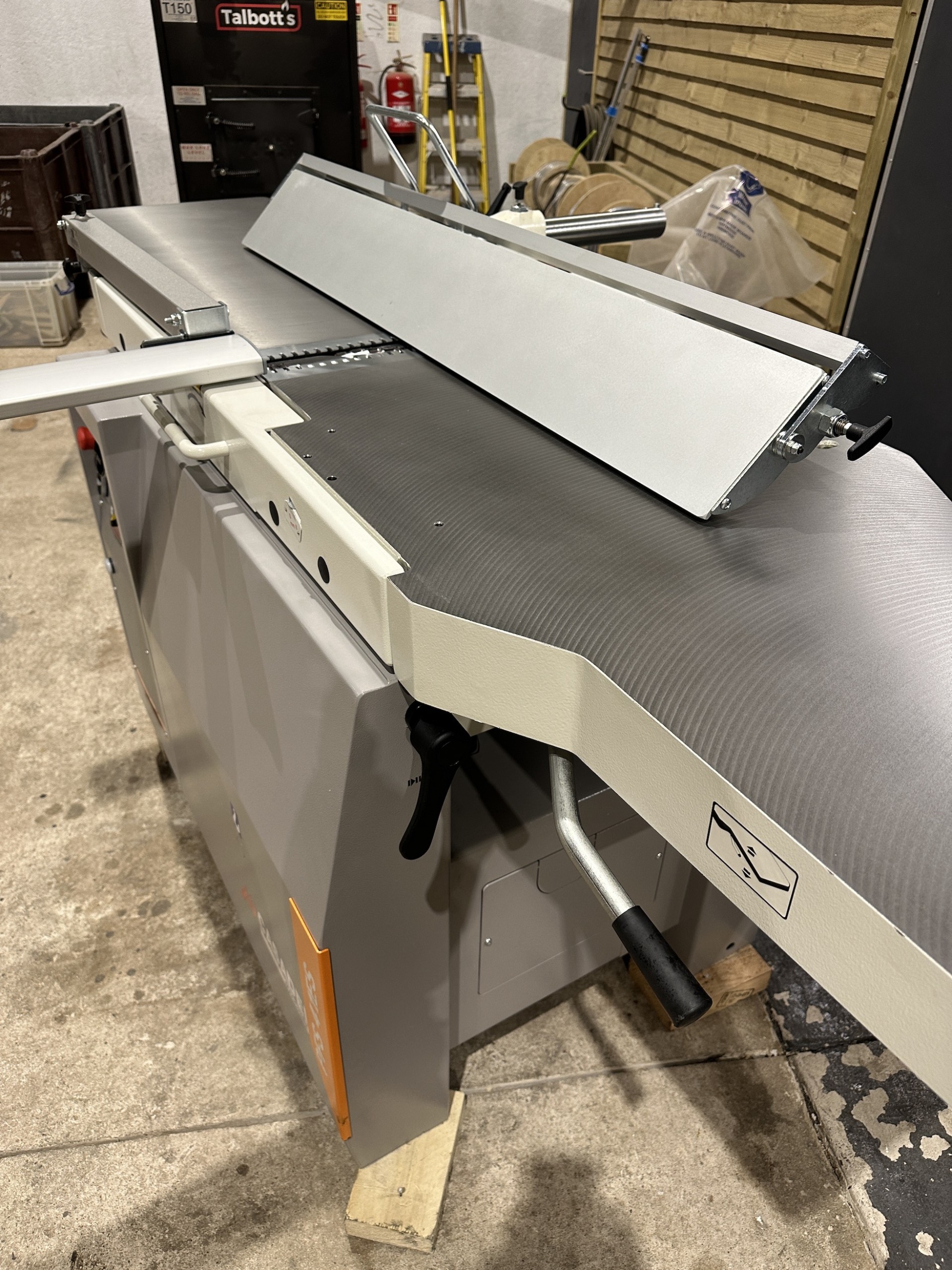

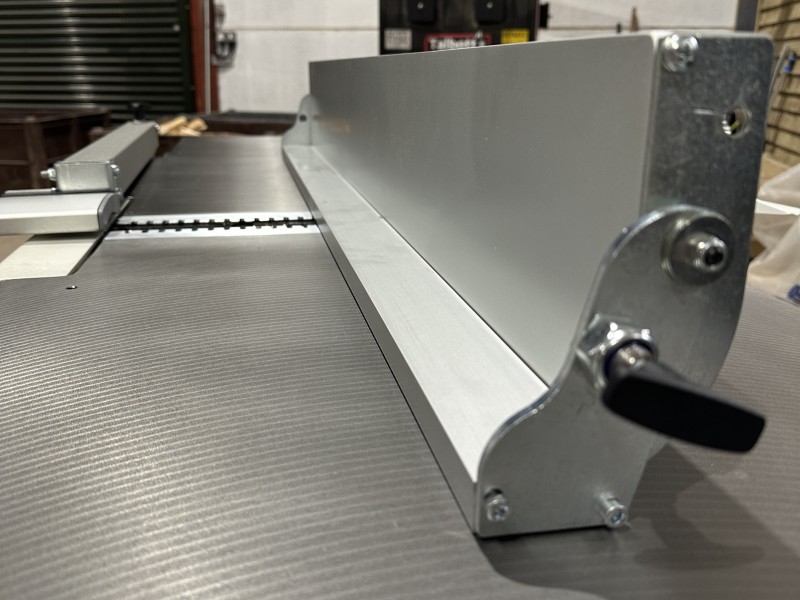

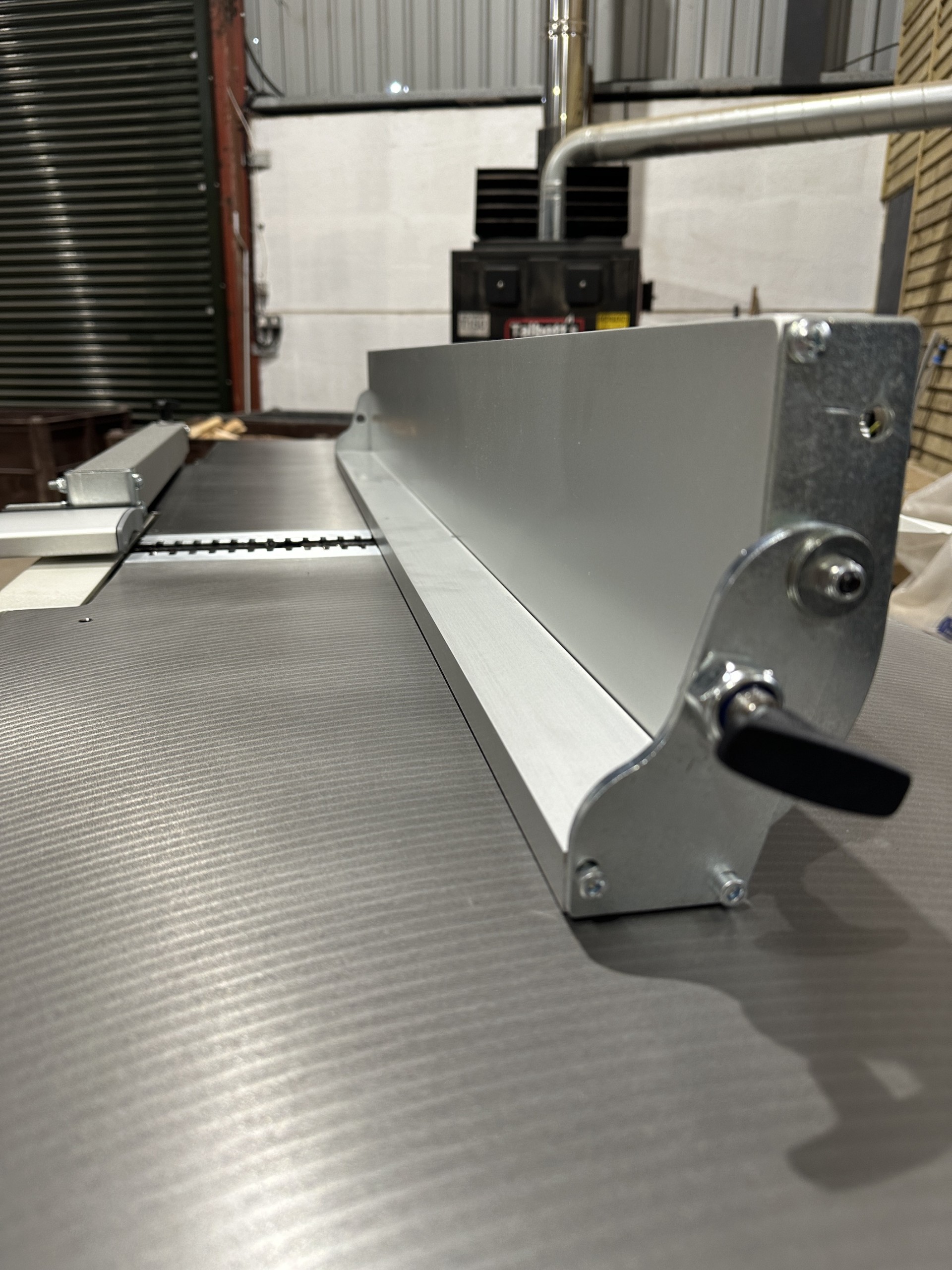

Fence Tilting – 90° to 45°

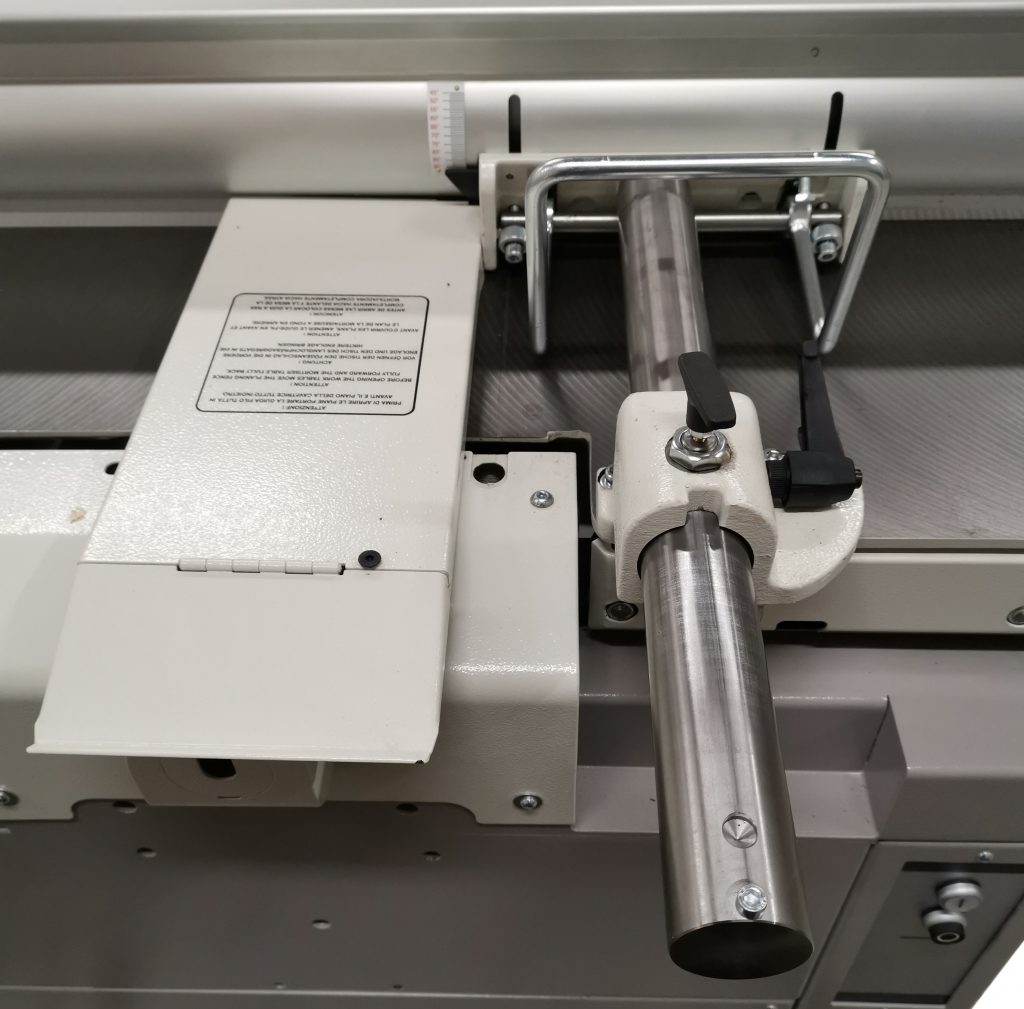

Flip Over Fence For Thin Pieces

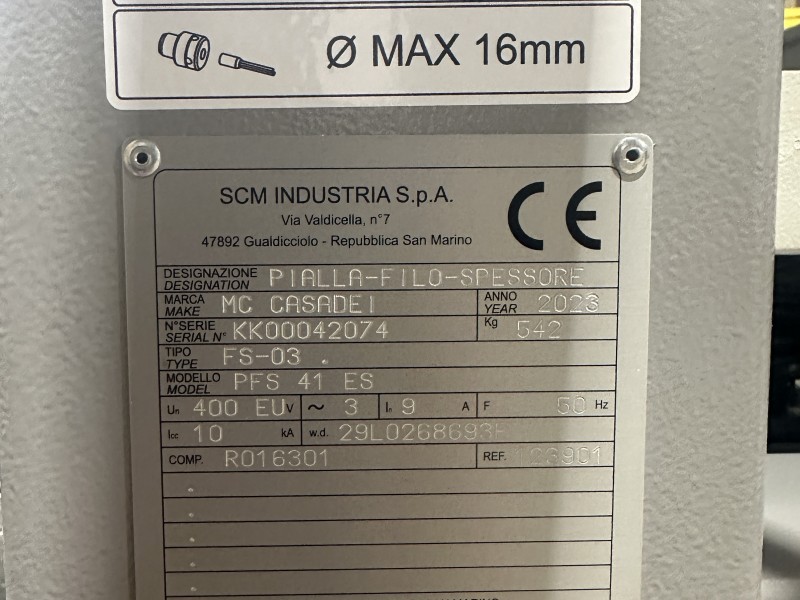

C.E. Mark
Operators Handbook & Toolkit
Description
New SCM Casadei Planer Thicknesser Top Specification
Model PFS41 ES
Special offer – £1,500 off list price

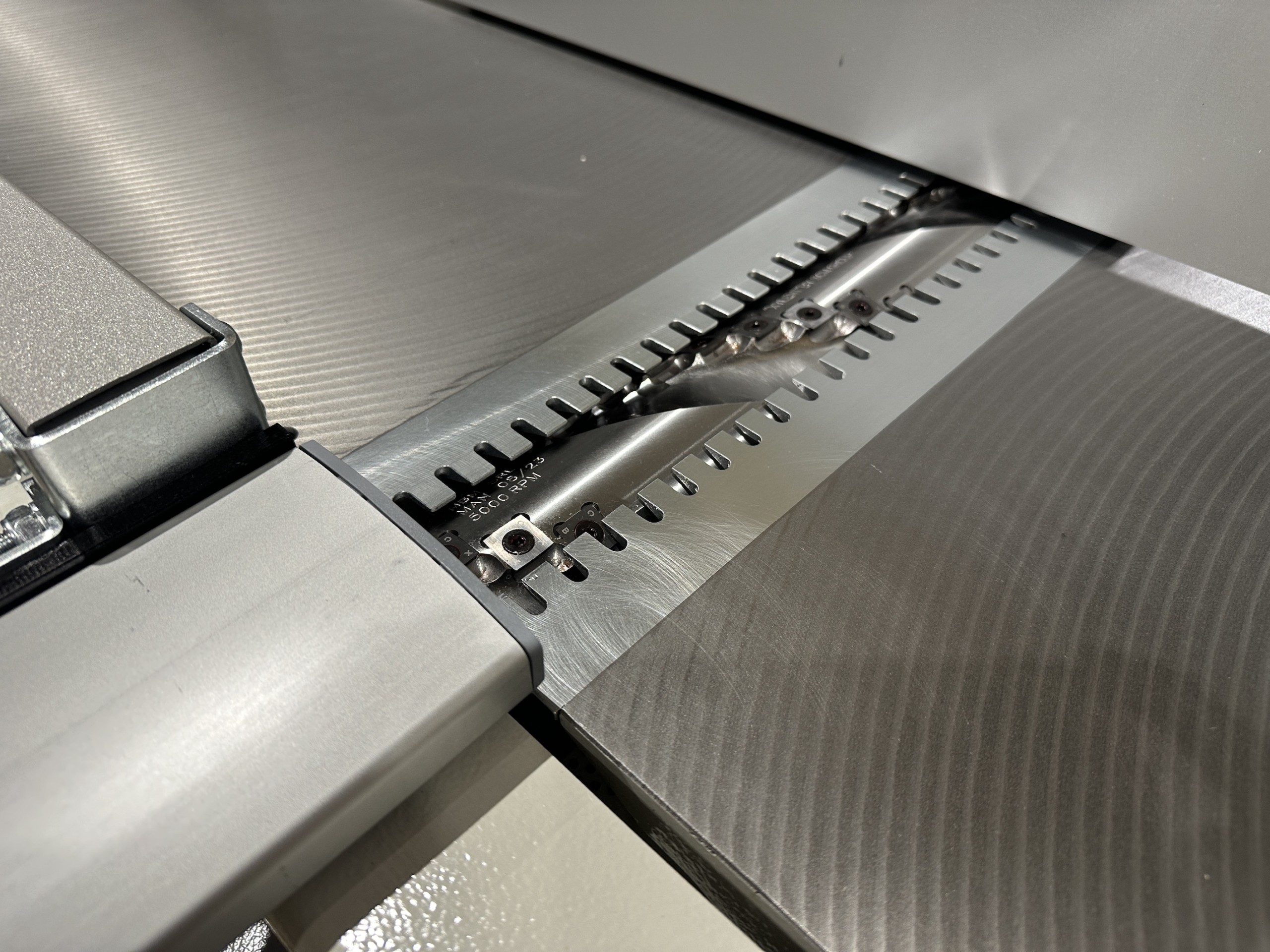

Superior finish with a spiral knife cutterblock

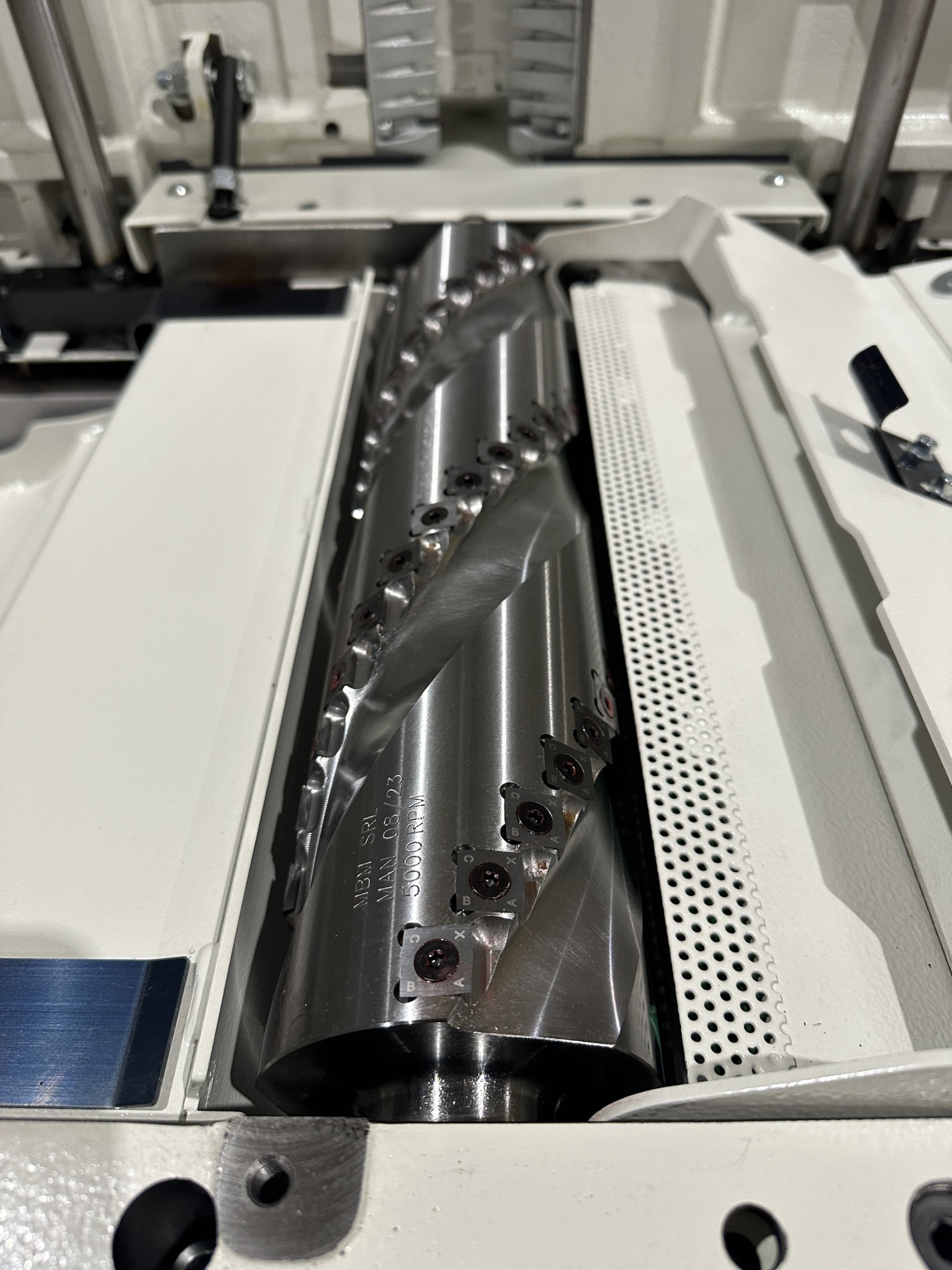

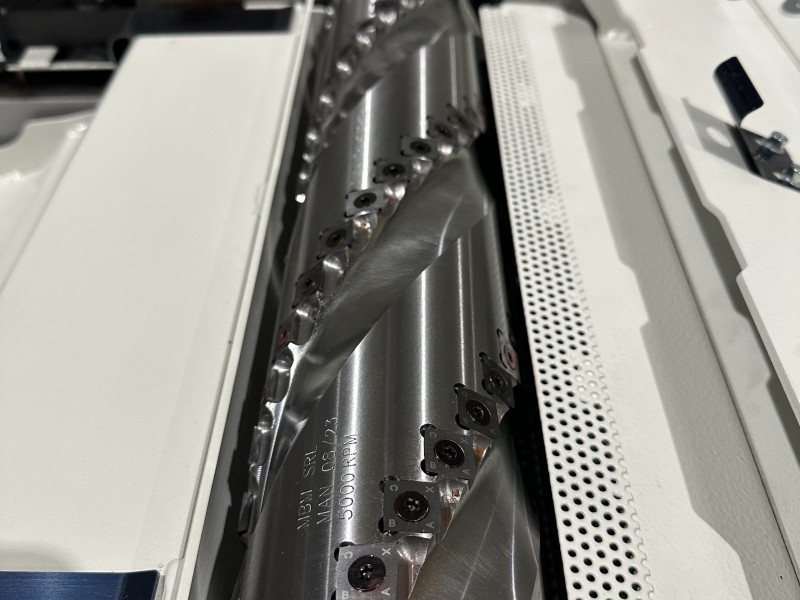

The Spiral Block design uses 3 lines of cutters with each cutter measuring 15mm x 15mm x 2.5mm thick. The cutters spiral around the block creating a shear cut angle to the wood. This puts less strain on the cutters meaning longer working time between knife changes plus a superior finish.
Benefits of using a spiral cutterblock
- Cutters are staggered. In the unfortunate event a foreign body is in or on the workpiece (eg: staple, tack or small bits of gravel) which damages the knife or cutter, rather than having to replace or turn over a whole traditional knife, you will only have to turn in the worst case 2 cutters saving money and time.
- Spiral blocks run 10% quieter than a standard HSS block, meaning reduced noise whilst planning providing a quieter working environment
- Using Smaller Knives on a shear cut angle, the shavings produced are a lot smaller. This makes it easier for an extraction system to pull the waste away from the machine, keeping your work pieces and workplace cleaner
- Cutters have 4 cutting faces, which can be rotated when worn. This increases the time between complete knife replacement.
For more information on the spiral cutter block system and this New SCM Casadei Planer Thicknesser please get in touch.
To see our other selection of New & Used Thicknessers Please Click Here
Further information can be found on the Casadei website
Additional information
Timber Capacity | 410mm X 240mm |
---|---|
Cutterblock Type | Spiral Cutter Block With 3 Sets Of Turn Over Knives |
Number of Knives | 3 |
Rise & Fall | Powered |
Feed Speeds | 6 & 12 M/min |
Surface Table Length | 2,200mm |
Condition | New |
