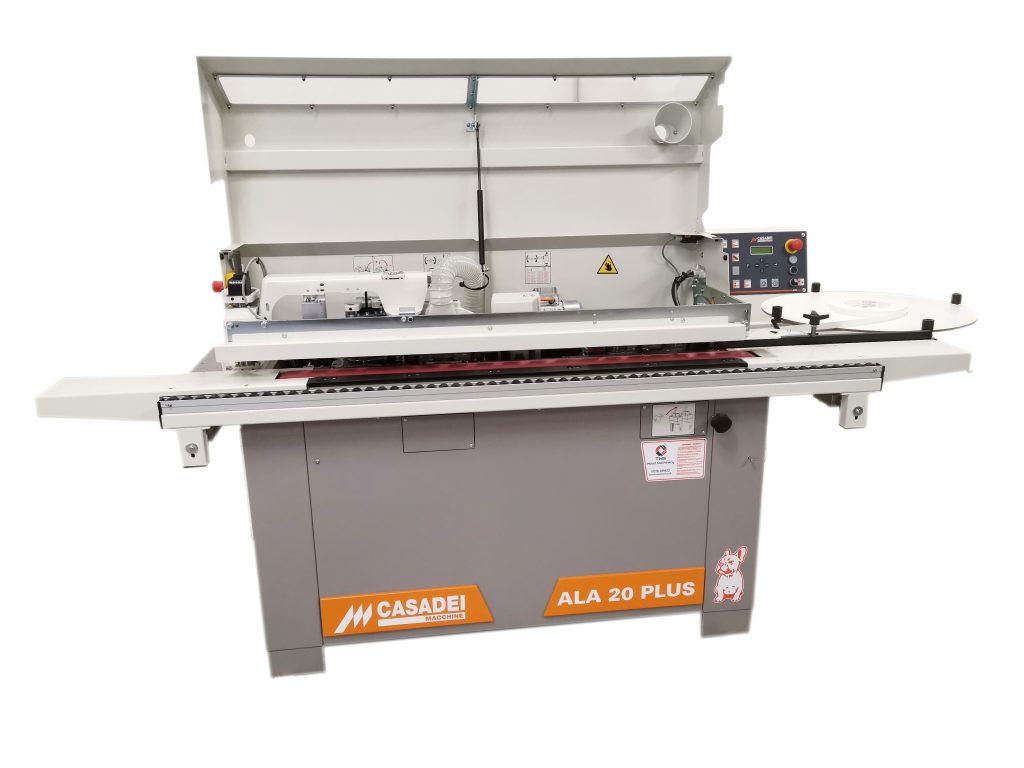

Casadei ALA 20 Plus Edge bander

£10,500.00 +VAT
Print Listing
|
Email Listing
new
Enquire about this Product

    Enquire Now






    Category:

    The Casadei ALA 20 Plus edgebander is for the high level craftsman, controlled by PLC, the compact size, precision machining and sturdiness are some the the machines main features
    • Overhead control panel in an ergonomic position near to operator.
    • Panel support rollers along the entire length of the machine.
    • Automatic positioning of the operating units according to the selected
    panel thickness with manual adjustment of top beam.
    • Steel pressure beam with 2 rows of rubber pressure wheels.
    • High performance toothed feed belt with steel cables inside.
    • Mechanical digital readout of selected panel thickness.
    • Centralized dust extraction.
    • Protection safety hood for operating groups.

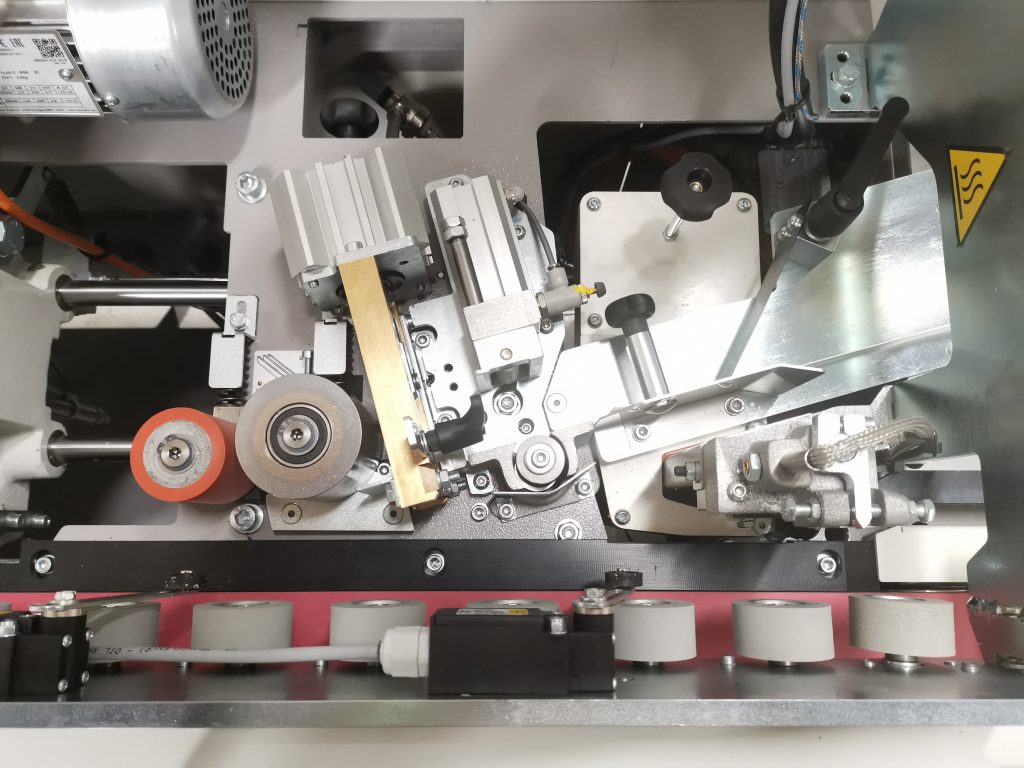

    Teflon coated glue pot with quick heating system for rapid and easy glue
    replacement.
    Glue spreading roller with internal resistance to maintain a constant glue
    temperature.
    Digital thermostat to control the temperature of the glue applied.
    Device for automatic recovery of unused glue.
    Automatic edge loading system for coil edging with shear device for
    edging up to 3 mm thick.
    Coil holder plate, 730 mm diameter.
    Two edge pressure rollers.
    Entry fence adjustment depending on edging thickness. Adjustments are
    shown on numerical readout.
    Manual selector to reduce the glue temperature after temporary stand by

    Top and bottom trimming unit is equipped with vertical and horizontal copying pad devices for perfect tool alignment.

    Edge Scraping unit allows the finishing of 2 mm PVC/ABS edging.  3mm available upon request

    Specifications

    • Coil Edge Thickness 0.4 to 3mm
    • Strip edging thickness up to 5mm
    • Min Max working thickness 16/50mm
    • Min Panel width 65mm
    • Min Panel length 190mm
    • Feed speed 7 m/min
    • Glue pot capacity 0.5kg
    • Working temperature 20-190°degree

    Additional information

    Condition

    New
