New iTECH Sega 300 1.6m Panelsaw

£3,850.00 +VAT
Print Listing
Email Listing
Add to Quote

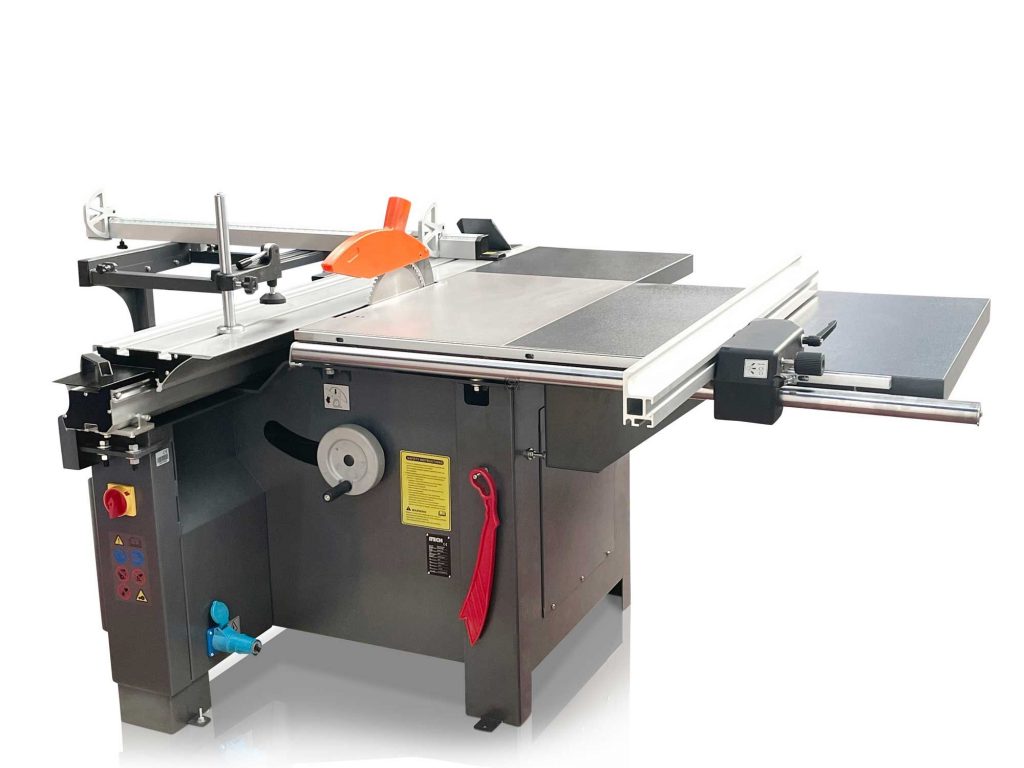

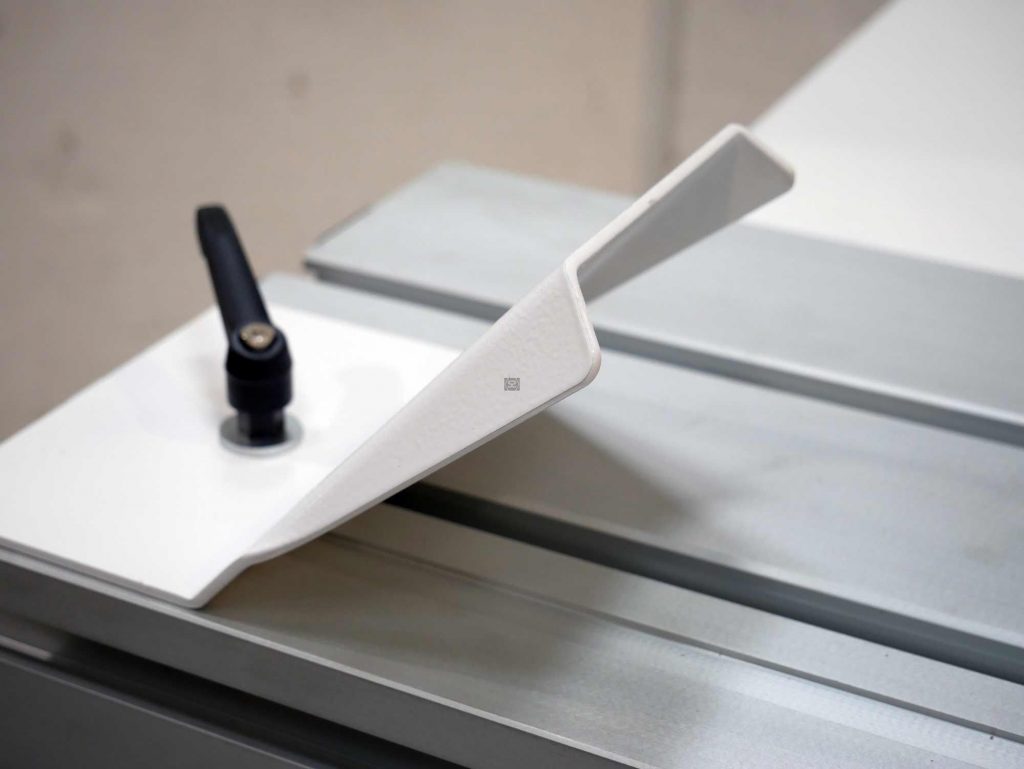

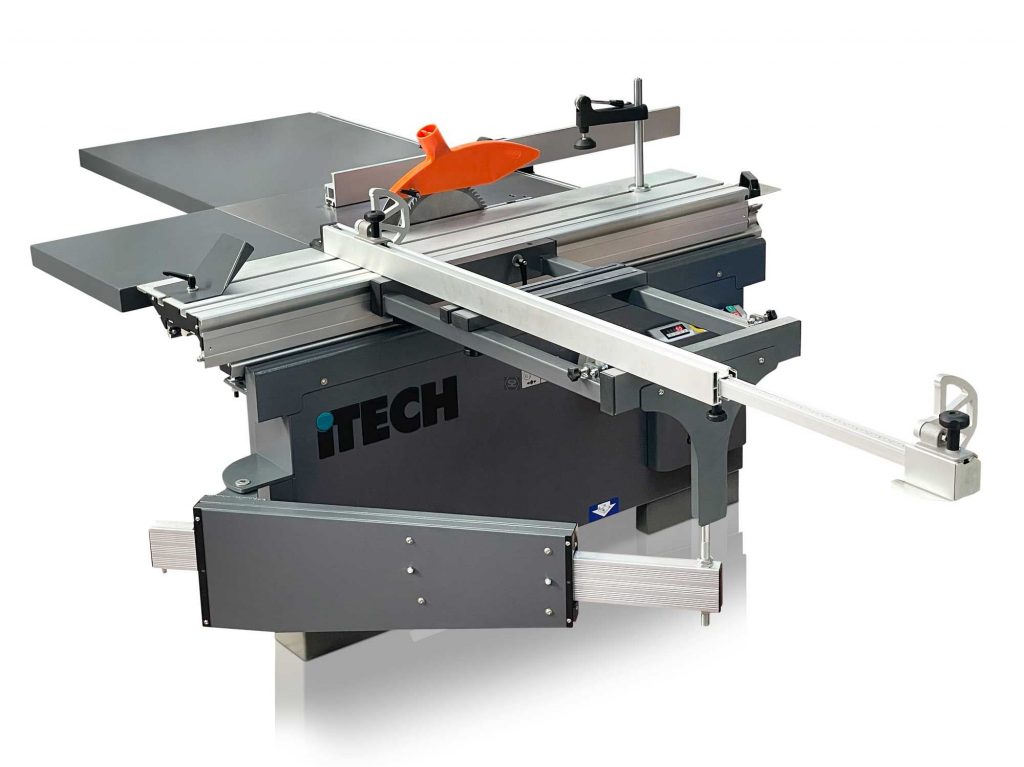

The new iTECH Sega 300 1.6m is a new compact sliding table saw based on a proven design with 100mm depth of cut. The saw has a scoring unit to help you get a perfect cut on laminated and veneered panels. Coupled with the smooth sliding table, it makes for a superb value machine for smaller workshops. The machine is supplied complete with mitre cutting facility on the crosscut table, clamp for working with short pieces, and straight line edging attachment for trimming waney edge boards.

Internally the saw is supported on cast iron body which is guided on double round bars for improved accuracy and longevity.

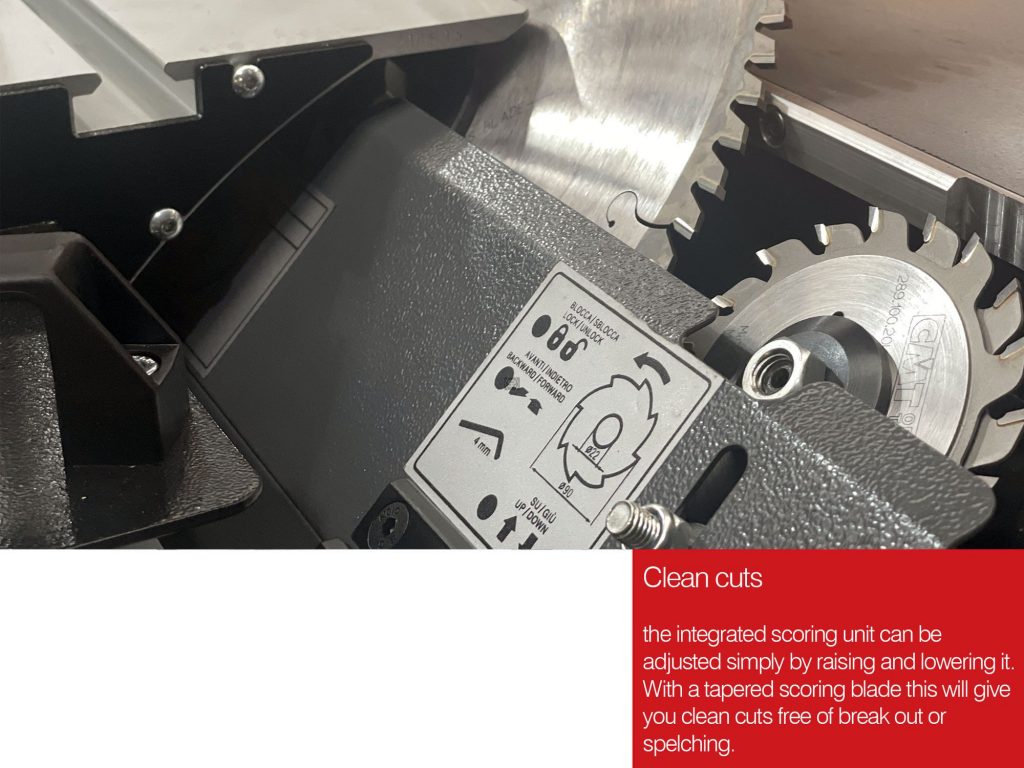

The new iTECH Sega 300 1.6m panelsaw has a 300mm Main saw blade with a belt driven scoring blade.

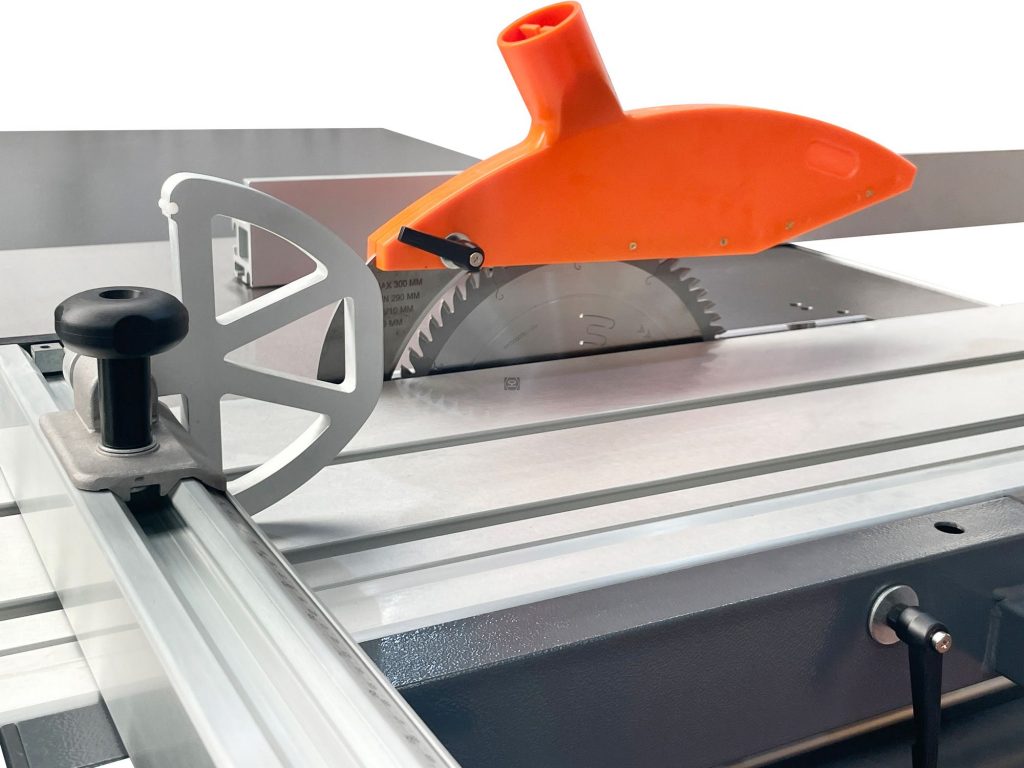

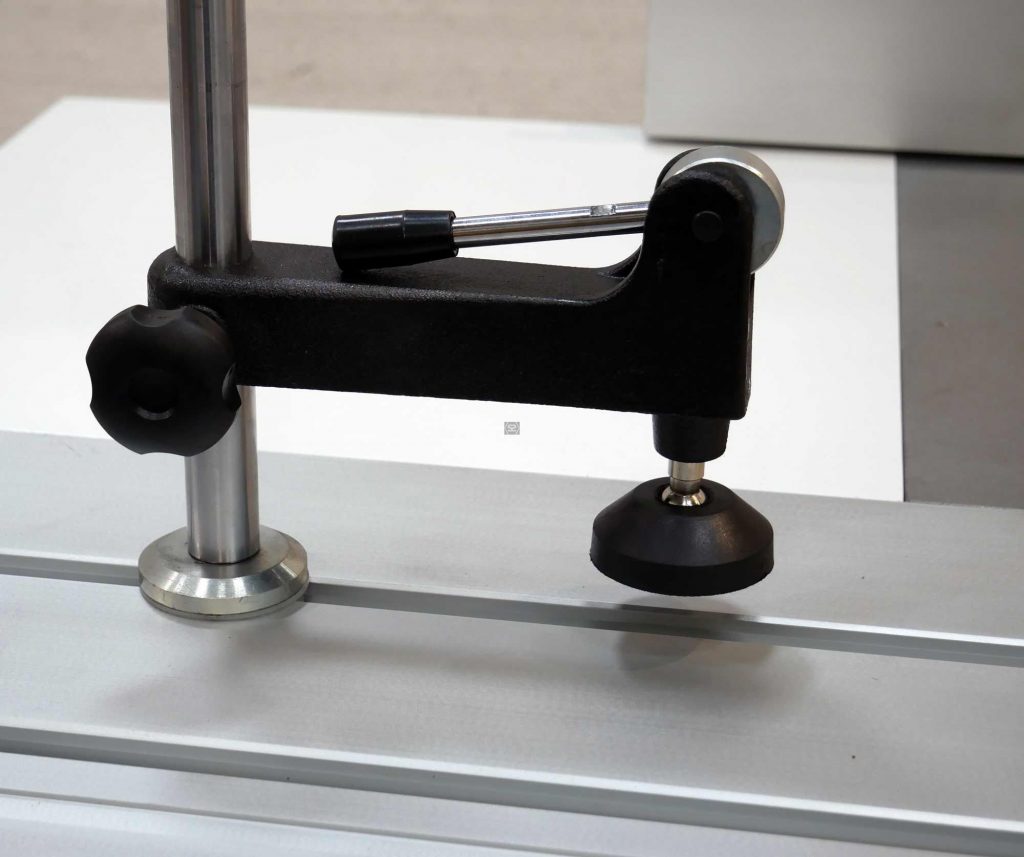

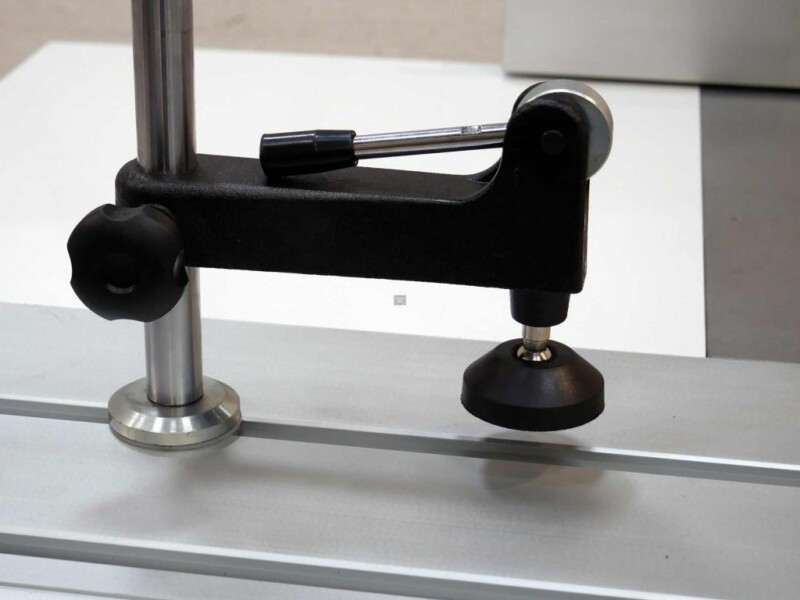

Smooth 315mm wide sliding table carriage with cross cut table and adjustable fence for angle cutting with Large  flip over stops, complete with a cramp and straight line edging attachment.

The 300mm saw blades manually tilts from 90° to 45° giving a maximum cutting height of 100mm at 90° and 75mm at 45°

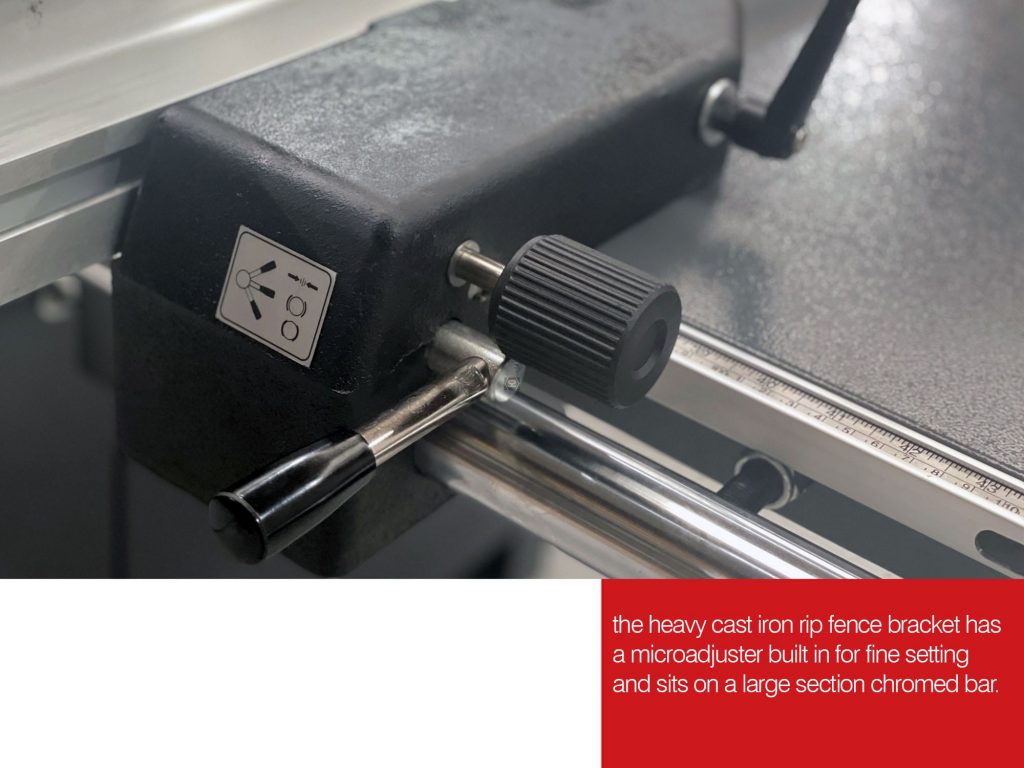

The cast iron rip carriage has a strong aluminium Fence whilst mounted on a 40mm Steel bar. The rip fence has a micro adjustment to enable you to get accurate sizing.

The machine is powered by a single phase 240 volt 4hp 3kw motor

Supplied with operators Manual and tool kit.

For more information on the new iTECH Sega 300 Please click here

To view our other Panel saws please visit Here

Additional information

Maximum Depth of Cut

100mm At 90° 75mm At 45°

Blade Size


Rip Capacity


Scoring blade drive

Main Blade Driven

Blade tilt

90° To 45°

Sliding table length
