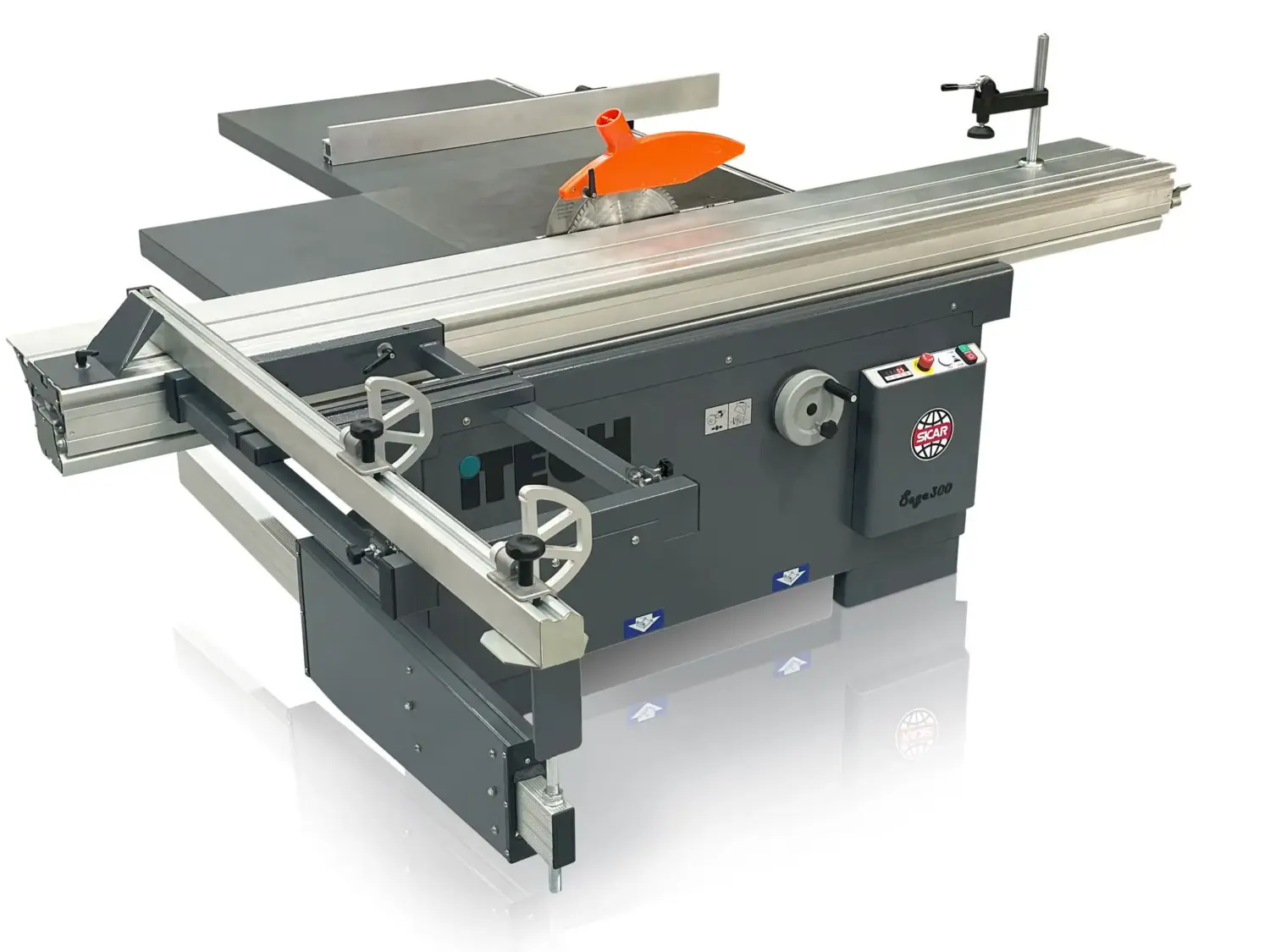

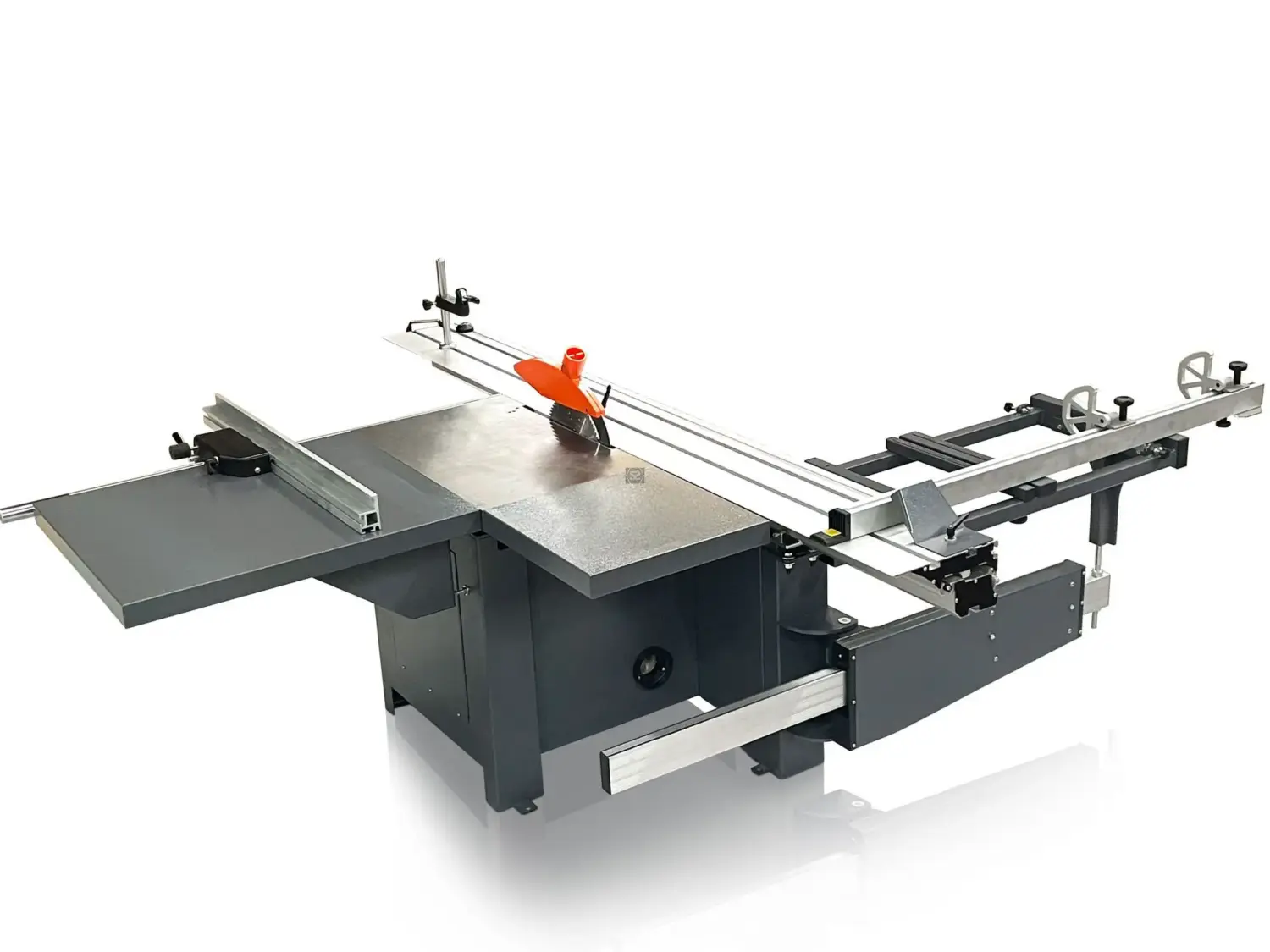

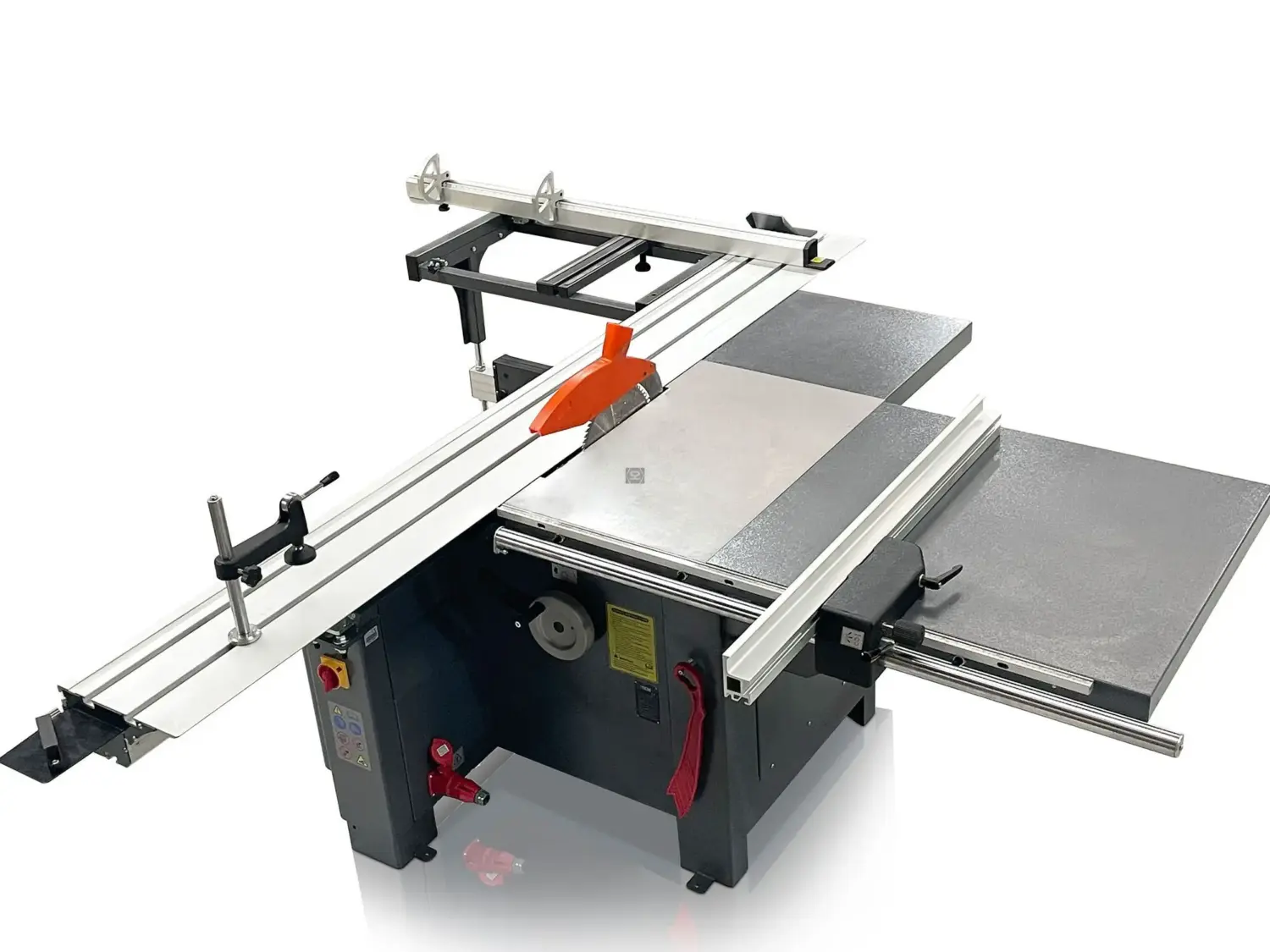

The Itech Sega 300 Panelsaw 2600mm is a full-size sliding table panel saw designed for small to medium workshops. Built on a proven design, it offers a 100mm depth of cut and excellent accuracy when cutting sheet materials.

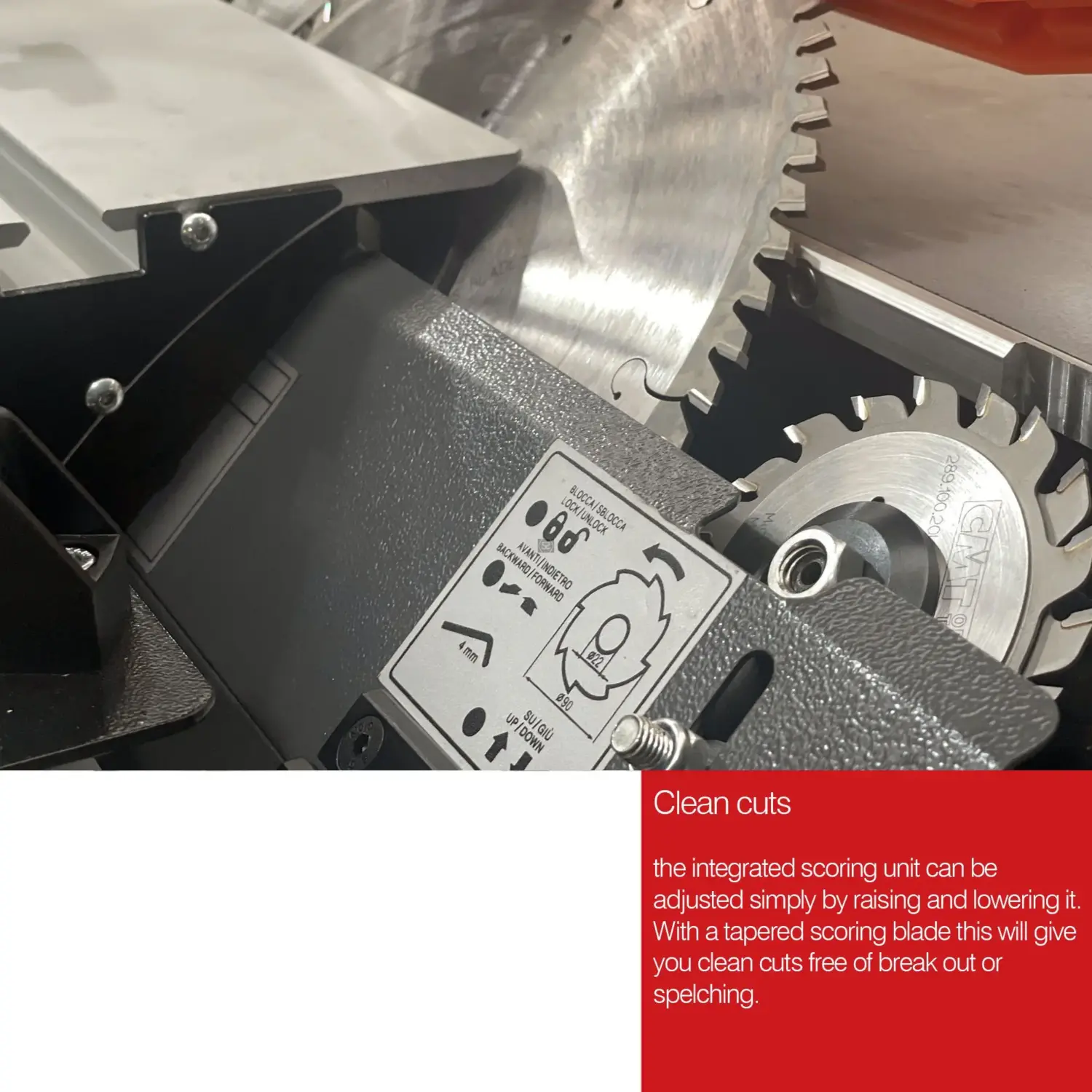

Equipped with a main blade and scoring unit, the Sega 300 delivers clean, precise cuts on laminated and veneered panels. The smooth 315mm sliding table runs on double round bars and a cast iron body for durability and consistent accuracy.

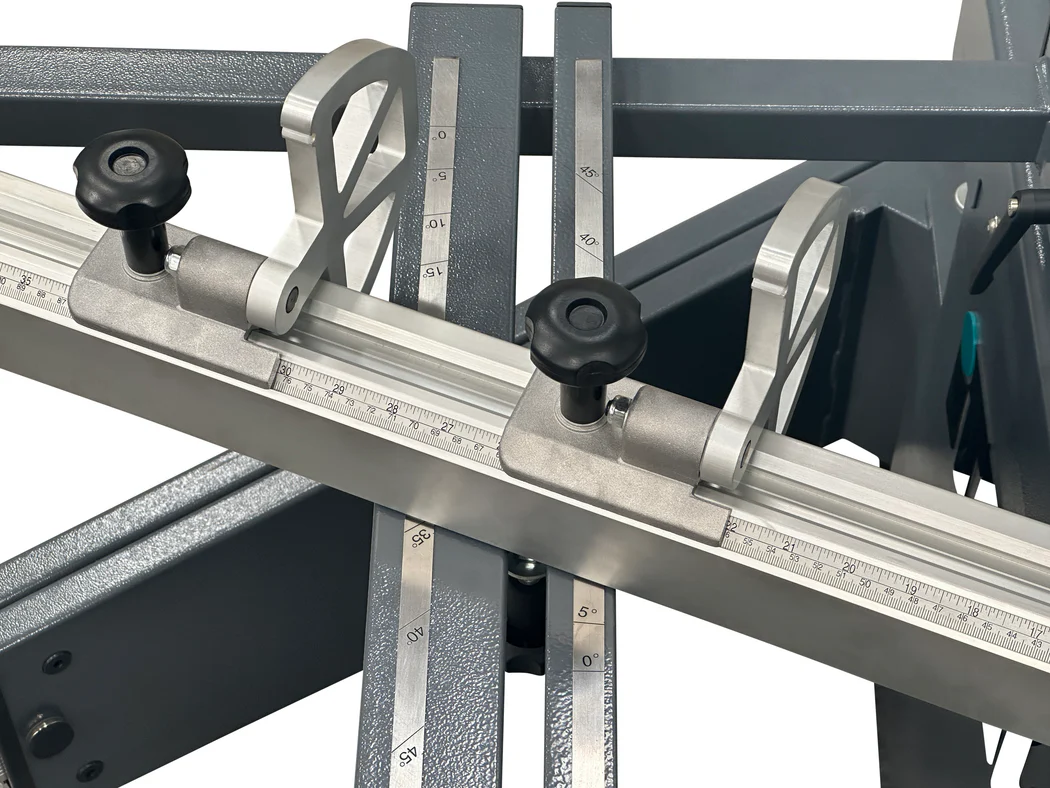

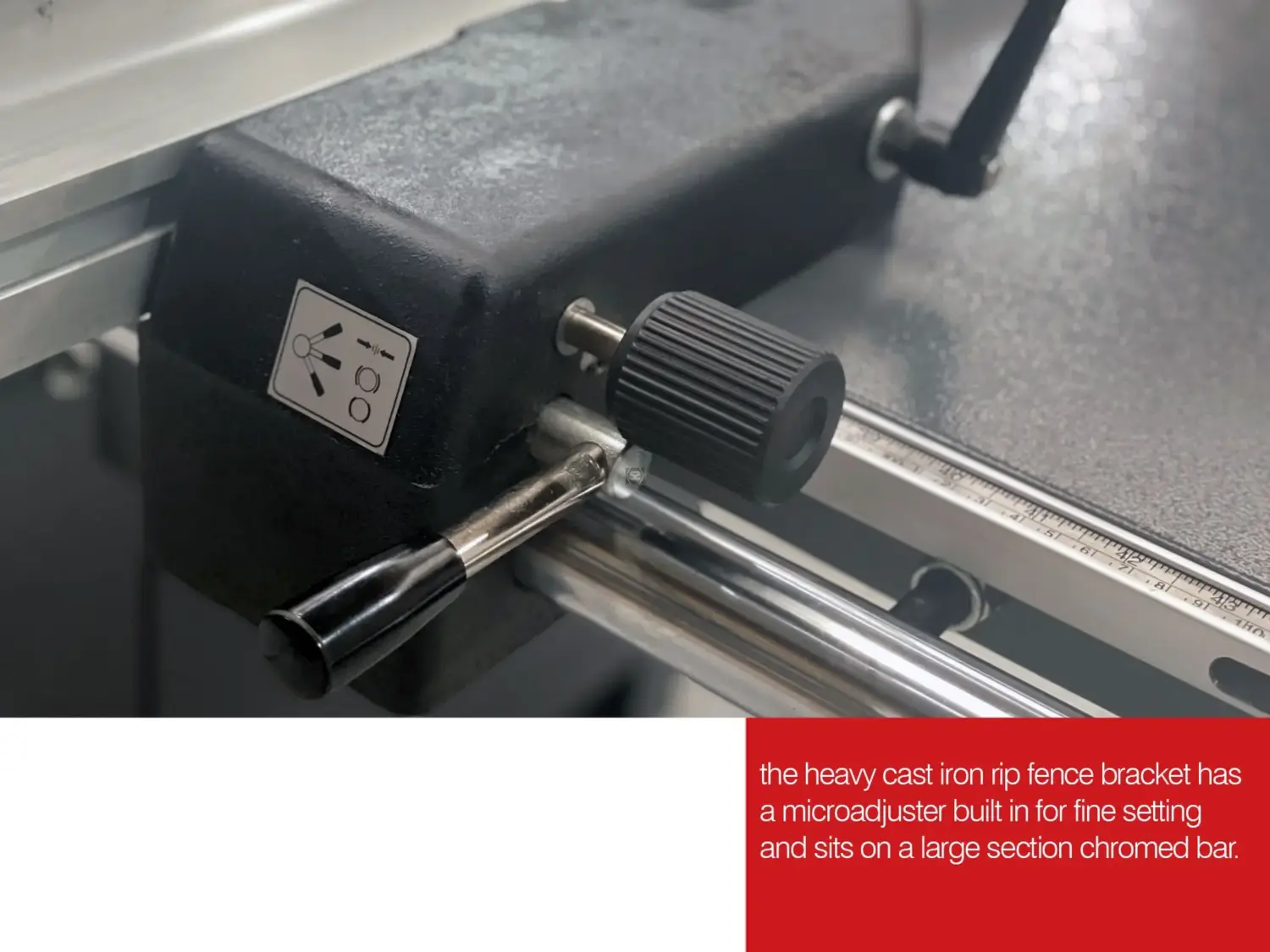

A crosscut table with adjustable fence and flip-over stops allows easy angle cutting and repeatable results. The cast iron rip fence with micro adjustment ensures precise sizing.

Available in single-phase (240V) or three-phase (415V) options, the Itech Sega 300 is a powerful and affordable solution for professional panel cutting.

Itech Sega 300 panelsaw 2600mm specification :

• Main Saw Blade diameter – 300 mm
• Scoring blade diameter – 90 mm
• Cutting height at 90° – 100mm
• Cutting height at 45° – 75mm
• Sliding carriage size – 2600mm x 315 mm
• Fixed table size – 1360mm x 790mm
• Main blade speed – 4500 rpm
• Scoring blade speed 7000 rpm
• Cutting width on rip fence – 1250 mm
• Crosscut fence with 2 flip stops
• Motor power 240 volt – 4 hp (3 kw)
• Motor power 415 volt – 5.5 hp (4 kw)
• Weight 370 kg
• Dust inlet sizes –  120mm & 60mm
• Operators manual and toolkit
