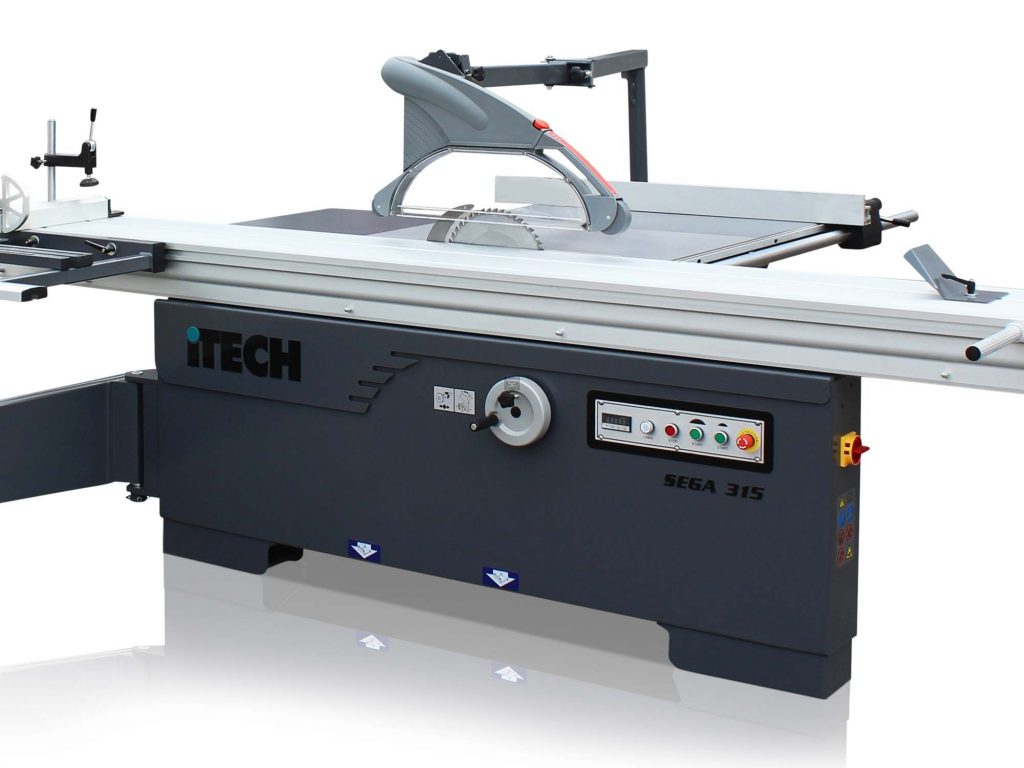

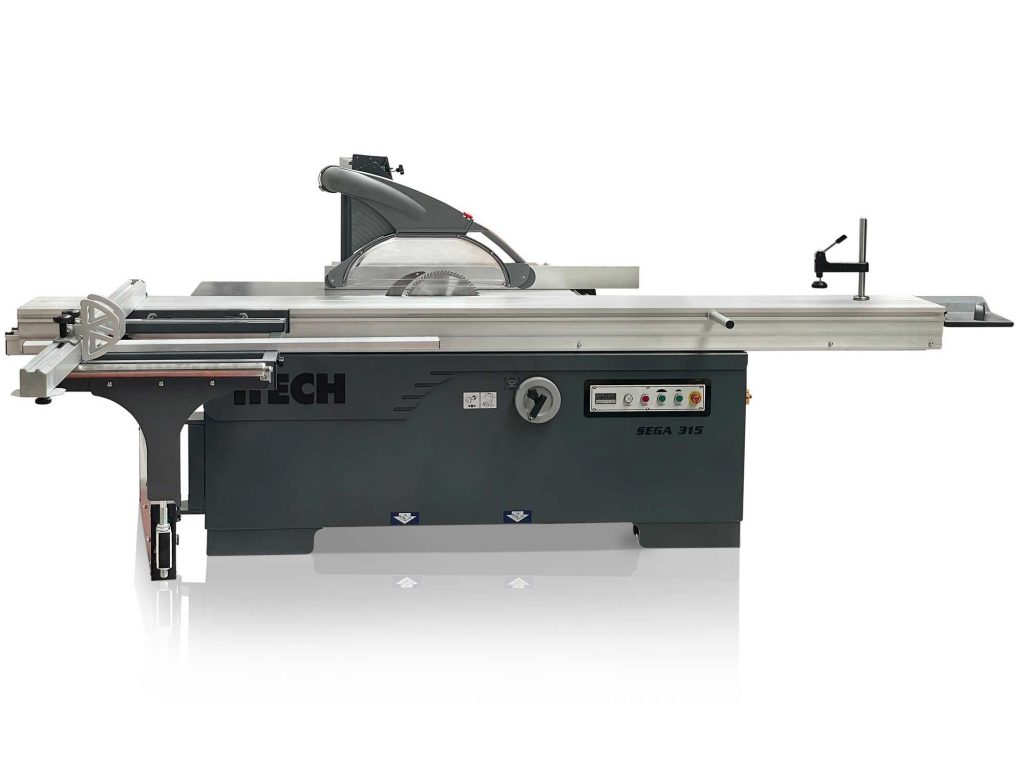

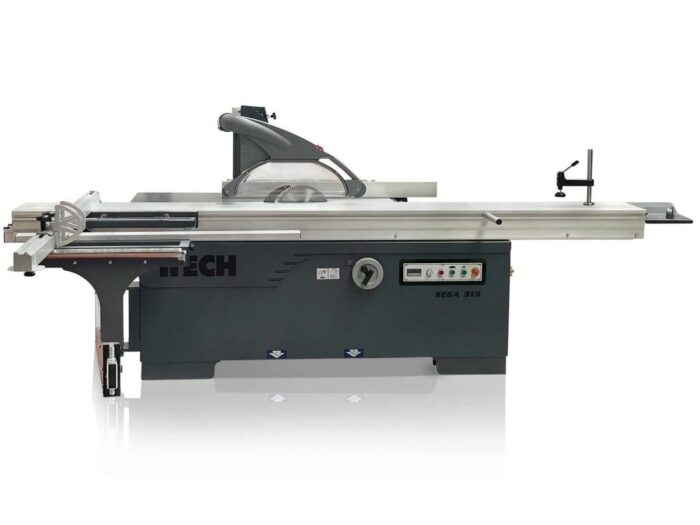

New iTECH sega 315 3.2m Panelsaw

£5,650.00 +VAT
Add to Quote
Category:

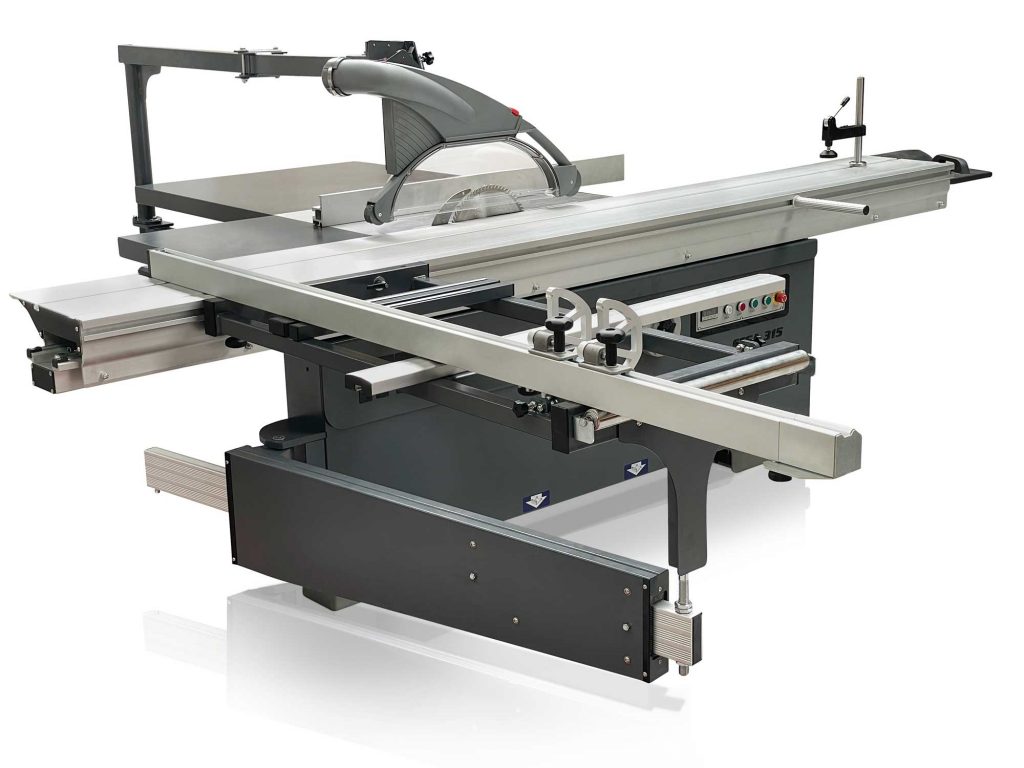

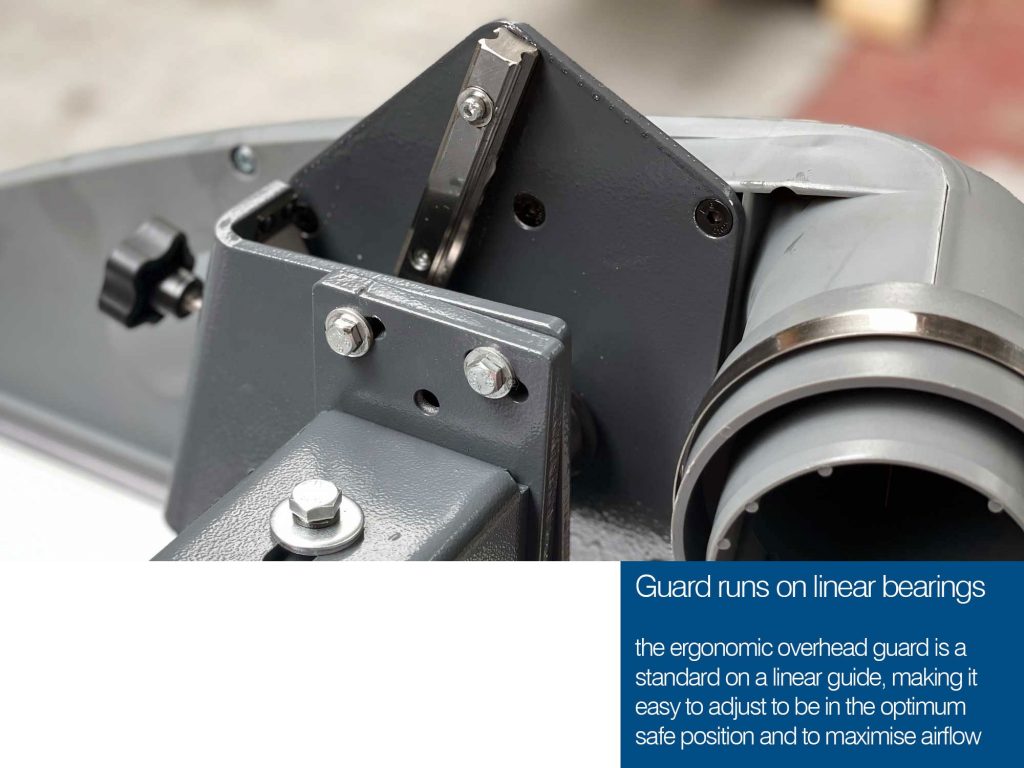

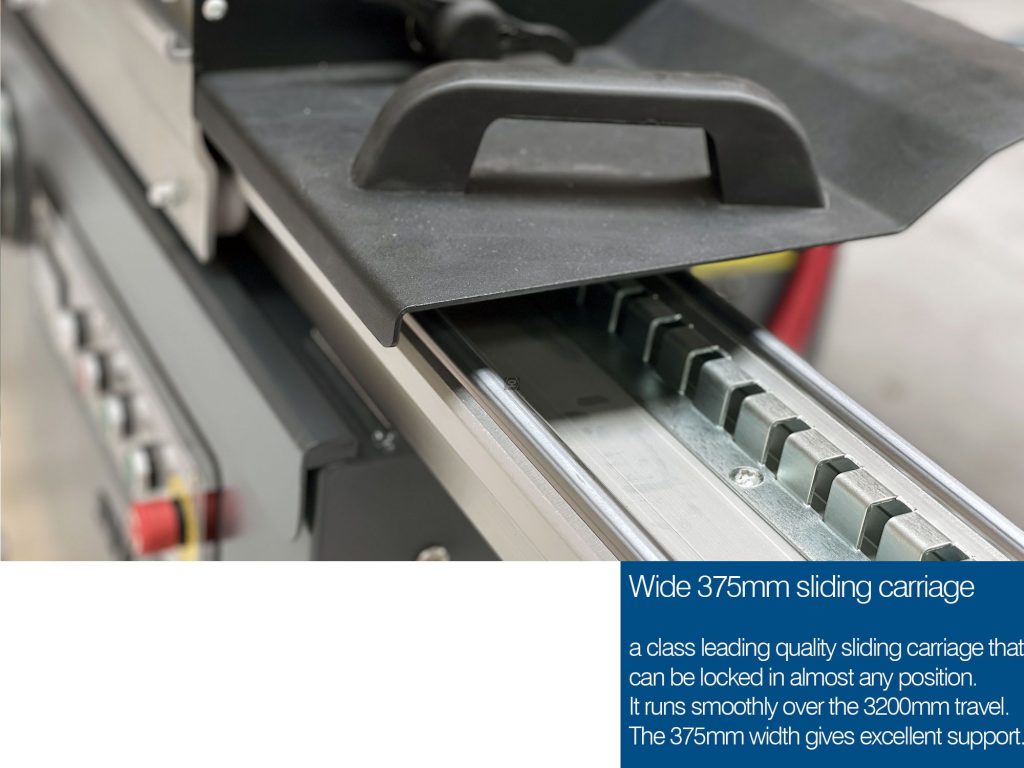

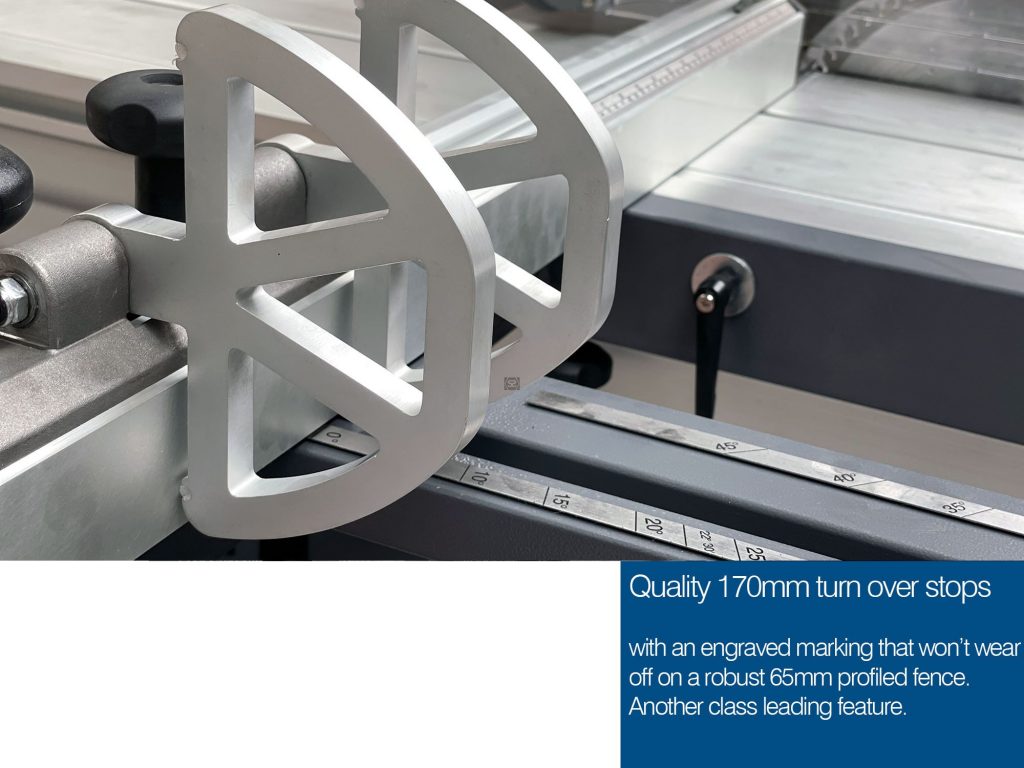

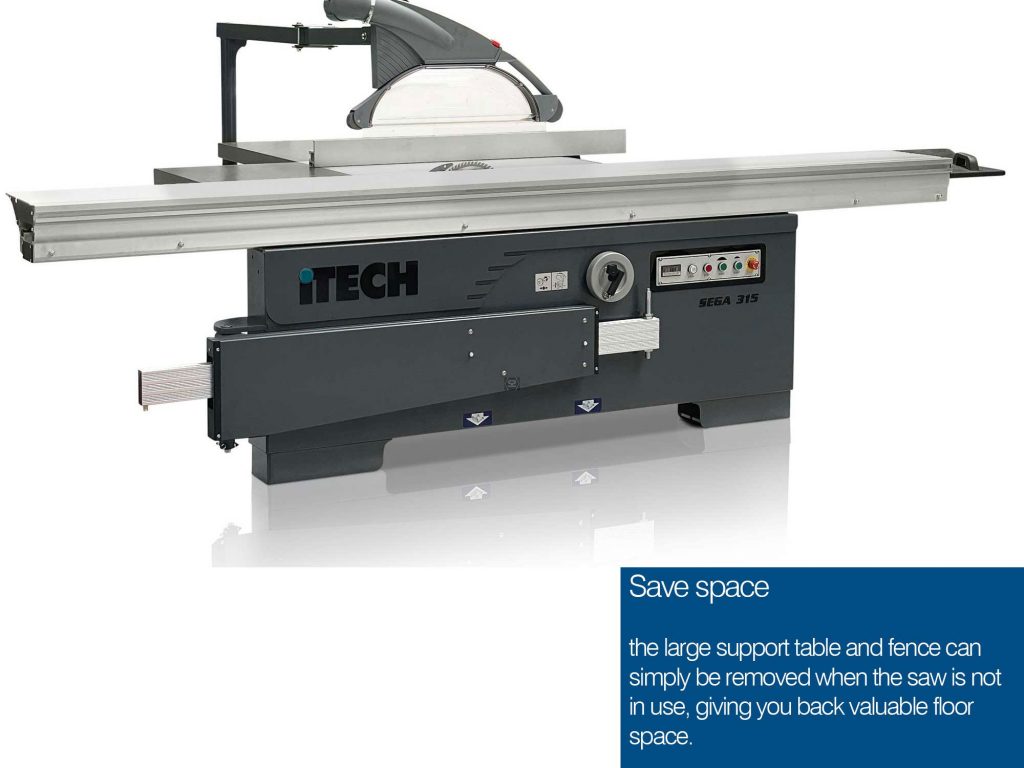

The iTECH sega 315 3.2m Panelsaw is a proven machine for medium workshops, it is the perfect answer for easy and accurate cutting of large panels up to 10′. A powerful 5.5hp [S1 rated] main motor, independent scoring motor [again S1 continuous rated]. Supplied complete with a well designed overhead guard adjustable on linear bearings with extraction connection. It has a smooth running high spec 3200×375 mm wide aluminium sliding table for maximum support and performance, which can also lock at any position. The substantial panel support frame allows you to accurately cut, support and mitre larger boards. The 70mm crosscut fence has 2 large industrial turn over stops and etched metal measuring tapes.

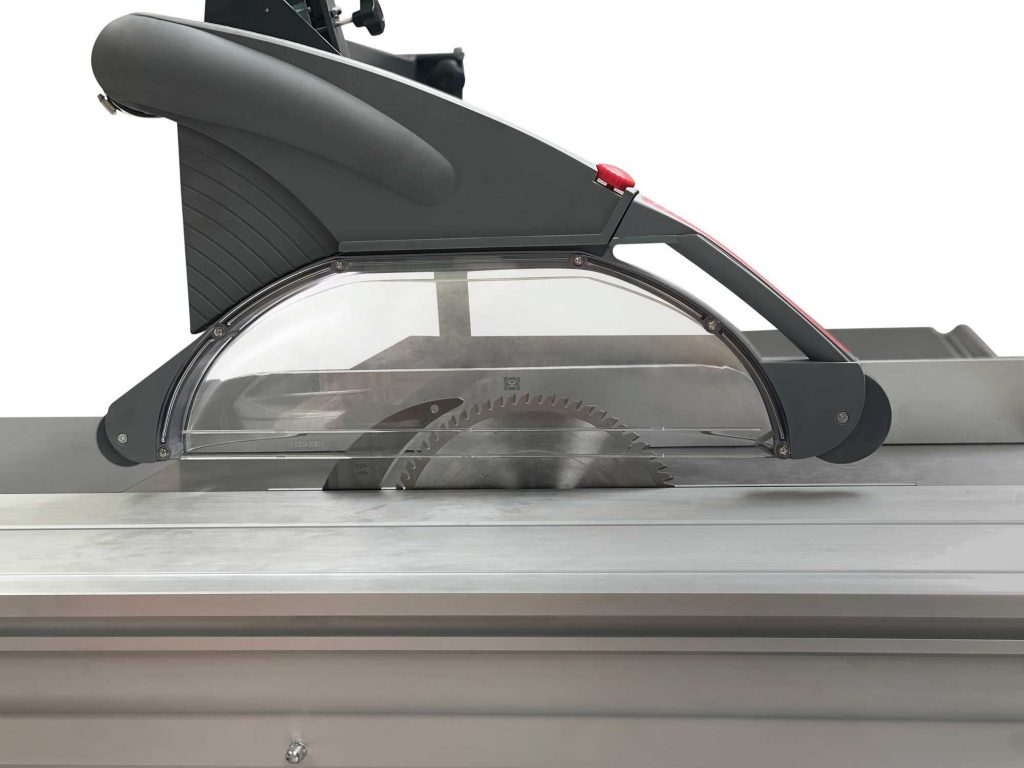

For a machine in this price range everything about the machine shows its professional pedigree. The rigid rip fence is set on a large diameter rail which is micro adjustable and can give a 1270mm cut to the right the blade as standard. It is supplied complete with a high quality, adjustable overhead blade guard.

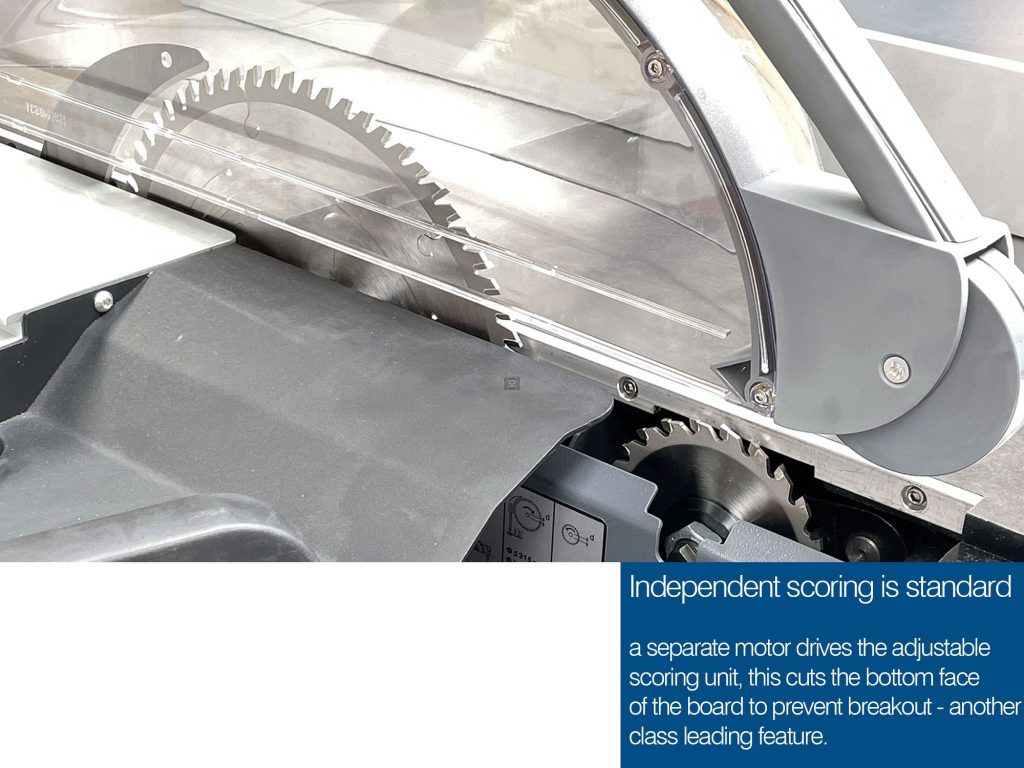

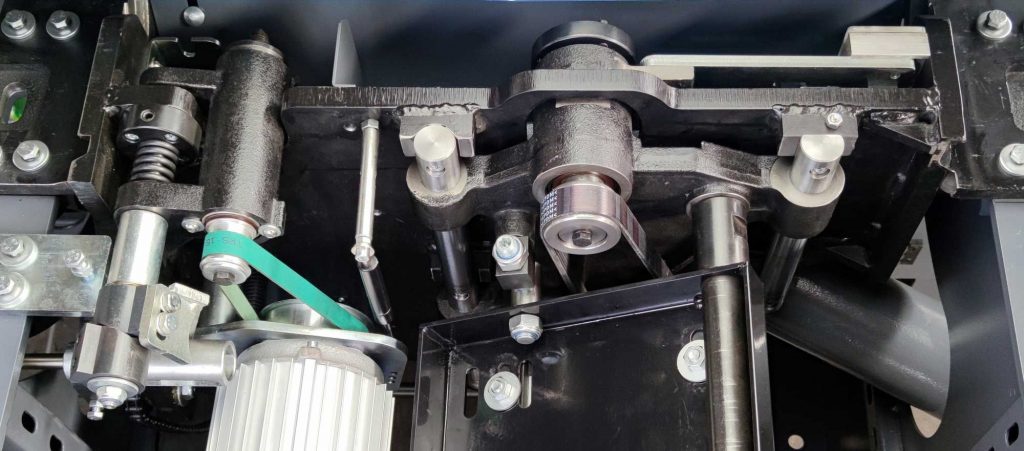

The saw unit has a 120mm scoring blade powered by an independent motor, essential for the more demanding workshop. Supplied complete with clamp for small pieces and overhead guard.

The rigid rip fence is set on a large diameter rail which is micro adjustable and can give a 1250mm cut to the right the blade as standard.

The 315mm main blade diameter gives you a max cutting height of 102mm at 90° and 75mm at 45°.

Supplied with operators manual and toolkit.

Length of Sliding Table – 3200 mm
Blade to Rip Fence – 1250 mm
Main Motor Power – 4.0 kW 5.5hp [S1]
Scoring Motor Power – 0.75 kW 1.0 hp [S1]
Max Depth of cut at 90° – 102 mm
Max Depth of cut at 45°- 75 mm
Sawblade diameter – 315 mm
Sawblade arbor – 30 mm
Blade Speed – 4000 rpm
Scoring Blade diameter – 120 x 20 mm
Sliding Carriage dimensions – 3200 x 375 mm
Main table size – 910 x 550 mm
Main extended table – 910 x 760 mm
Dust Extraction outlet – 120 + 80 mm
Net/Gross weight 610/700 kg

For more information on the new iTECH sega 315 3.2m Panelsaw please click here

To see our range of panel saw Click Here

Additional information

Maximum Depth of Cut

102mm At 90° 75mm At 45°

Blade Size

315mm

Rip Capacity

1250mm

Scoring blade drive

Independent

Blade tilt

90° To 45°

Sliding table length

3200mm

Condition

New
