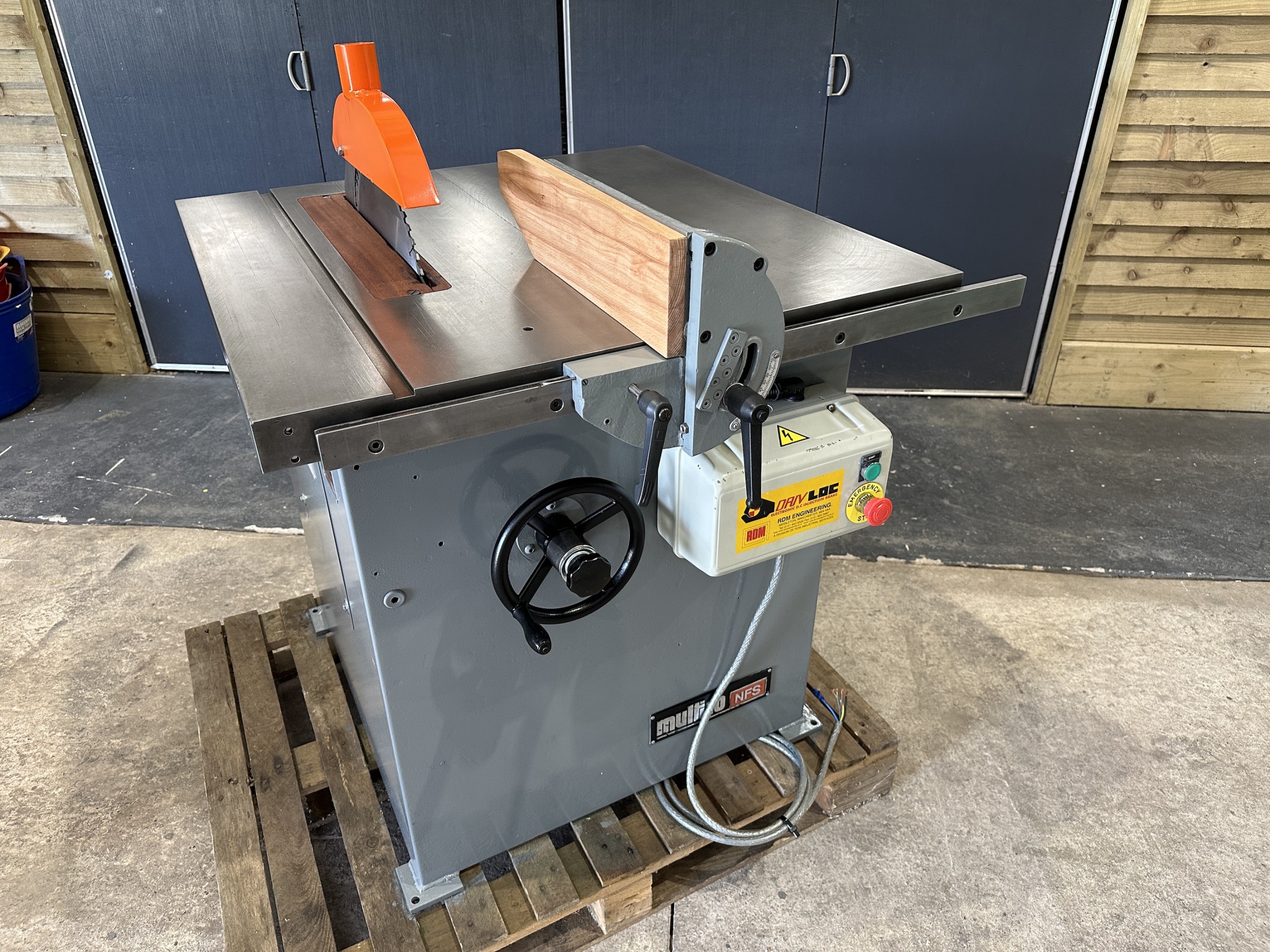

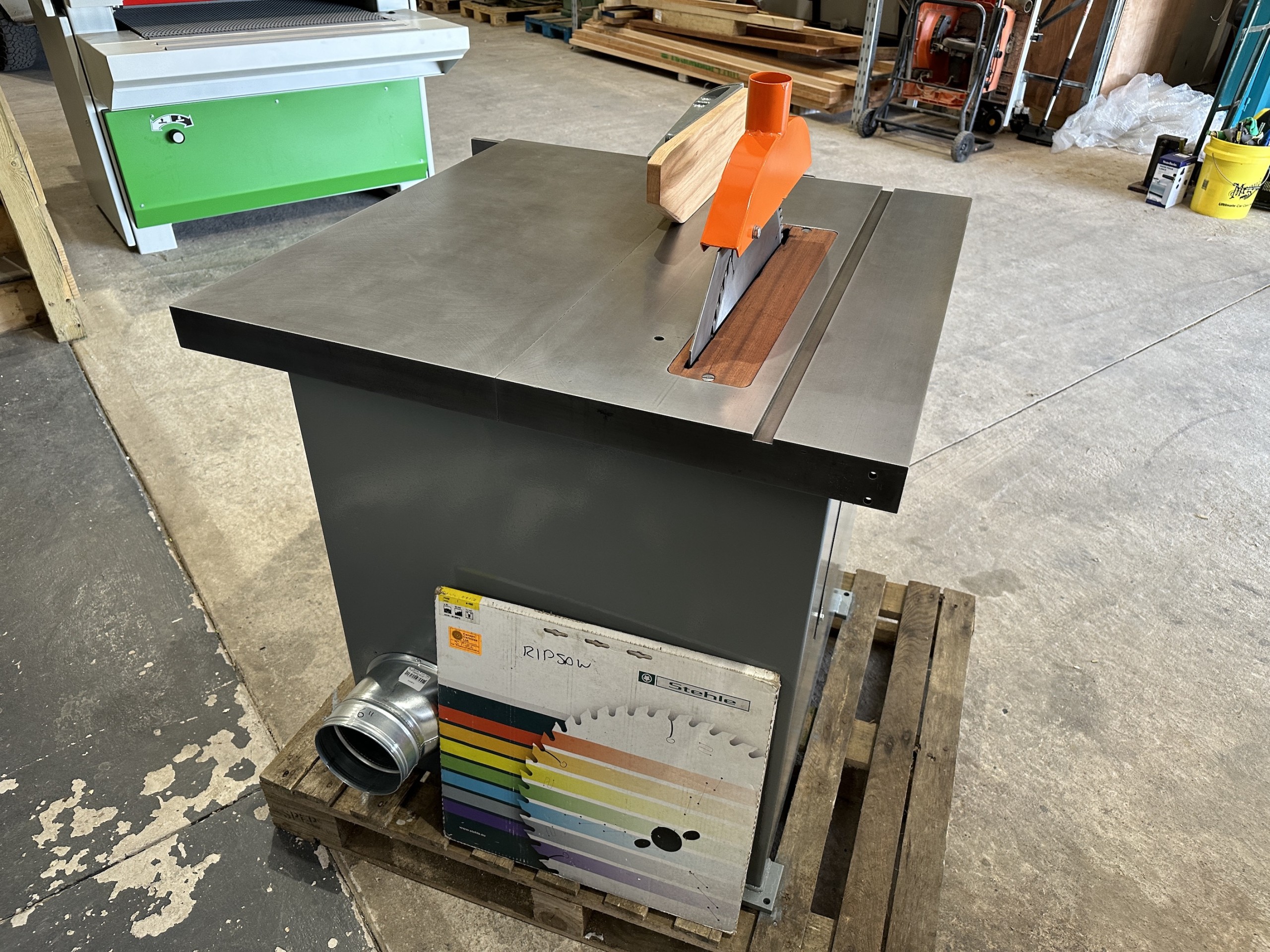

Multico NFS Ripsaw
- Blade Diameter – 400mm
- Max depth of cut at 90° – 110mm
- Fence Tilting – 90° to 45°
- Distance saw blade to fence – 580mm
- Main table – 865mm x 865mm

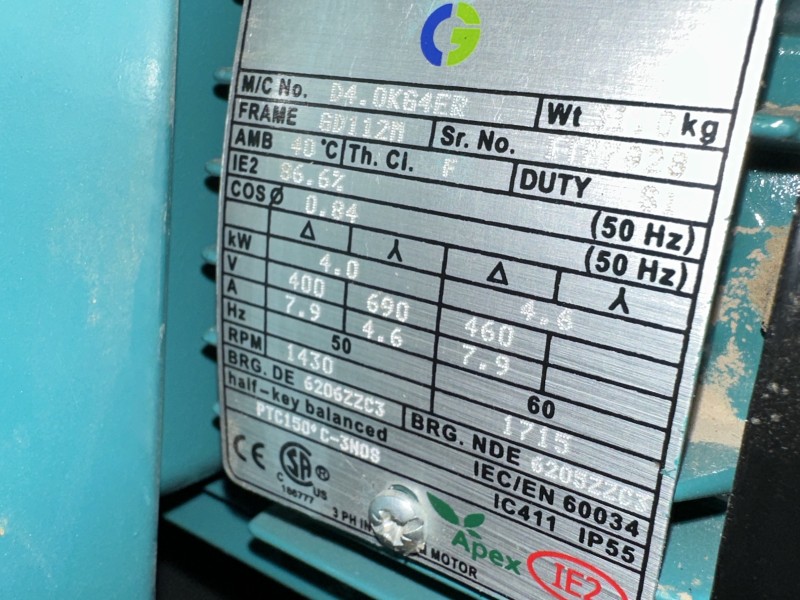

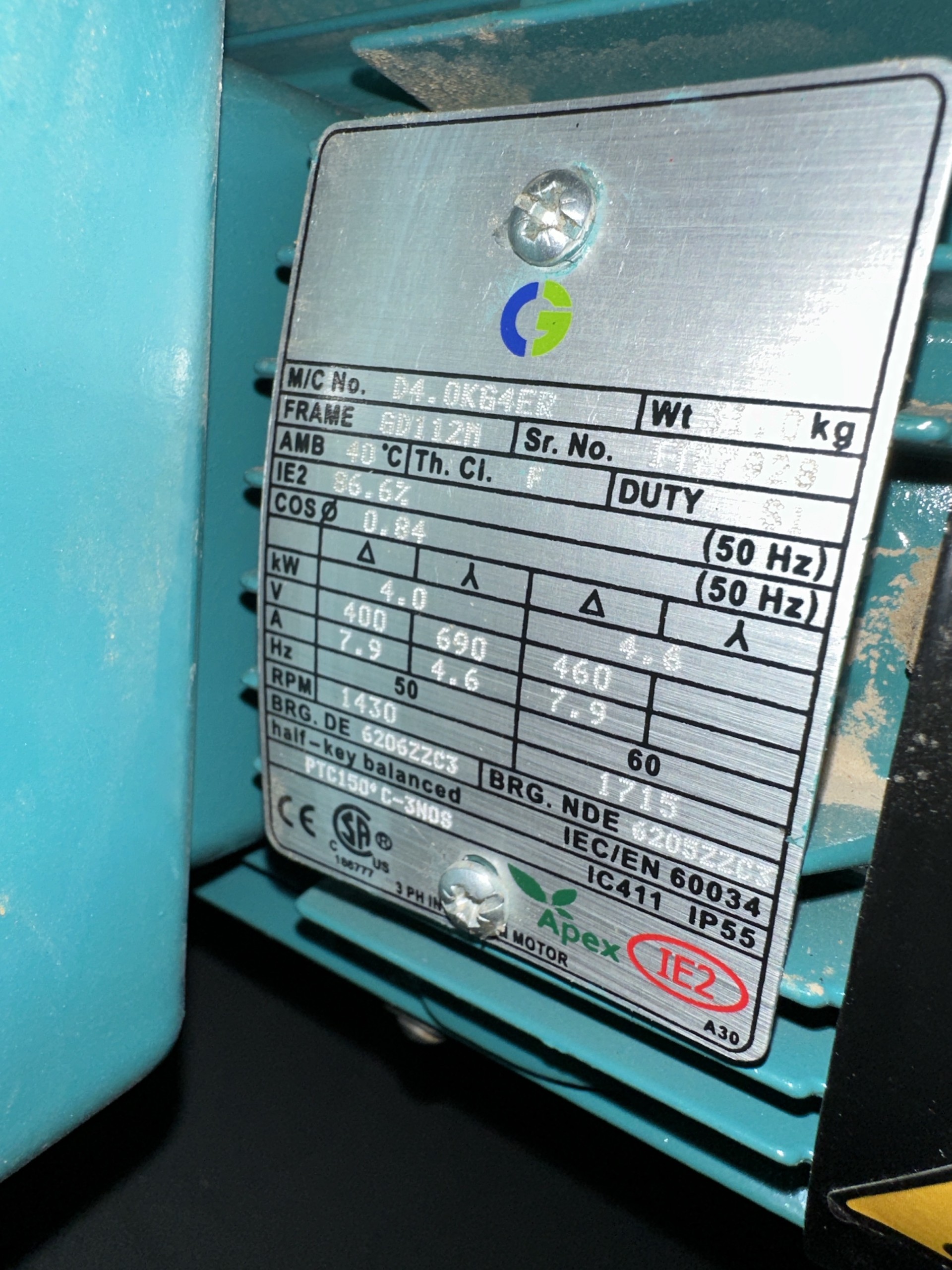

- 4Kw motor – (5.5 hp)
- 415v – 3 phase
- Electronic Brake
- Dust port – 150mm
Description

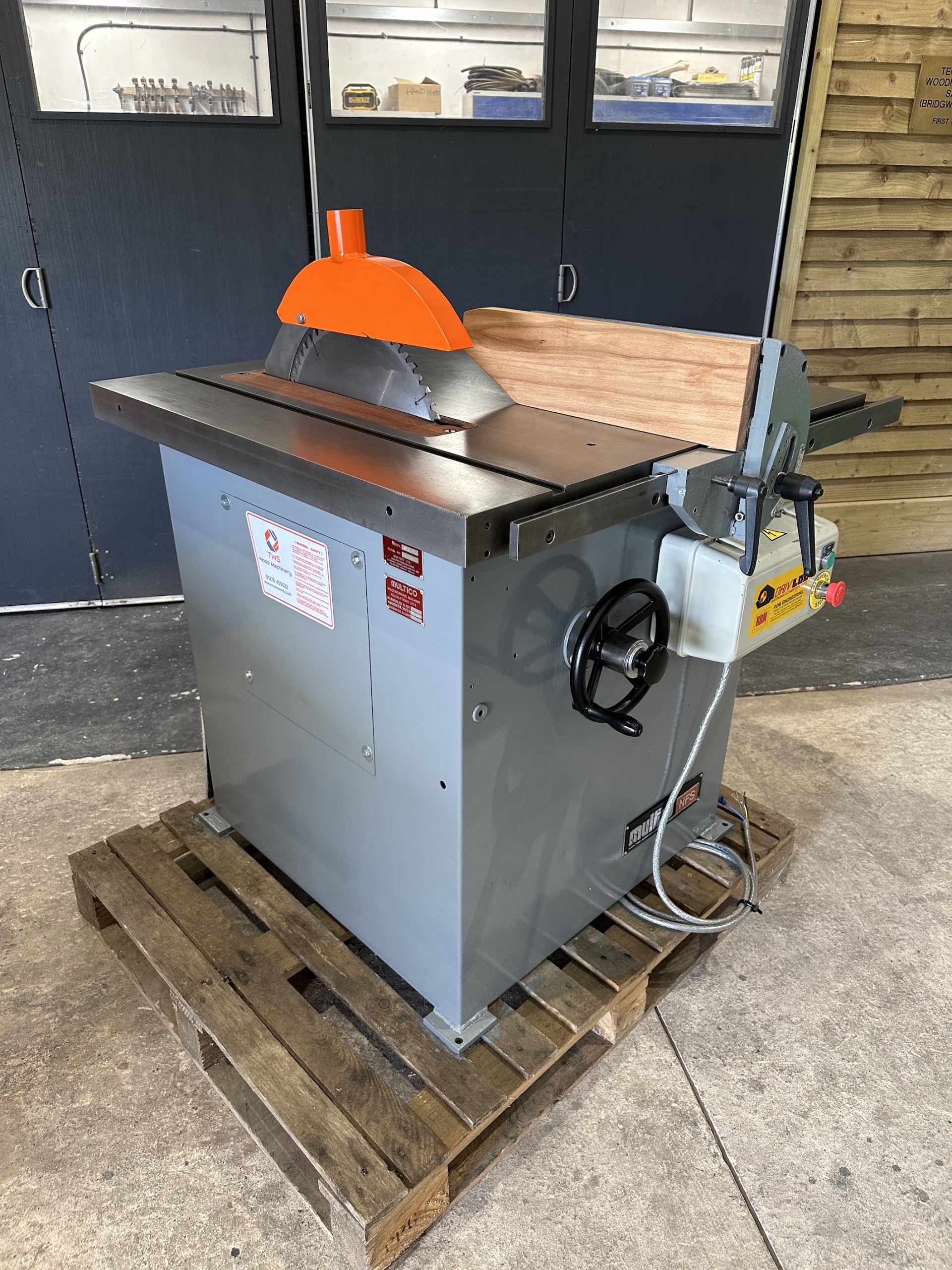

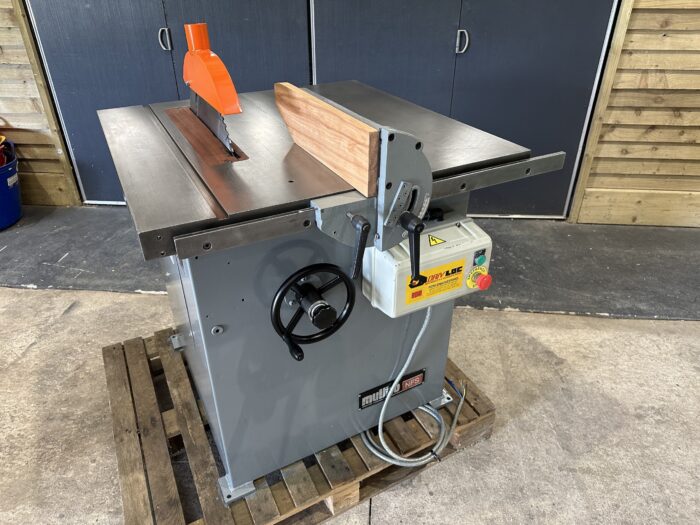

Multico NFS Ripsaw Table saw bench
The Multico NFS Ripsaw is a robustly built table saw that would suit most small to medium size workshops. It is powerful, accurate, reliable and simple to operate. The Multico range of saws were designed to offer outstanding value for money. The strength is in the construction, precision engineering, and use of only the best quality components.
Construction

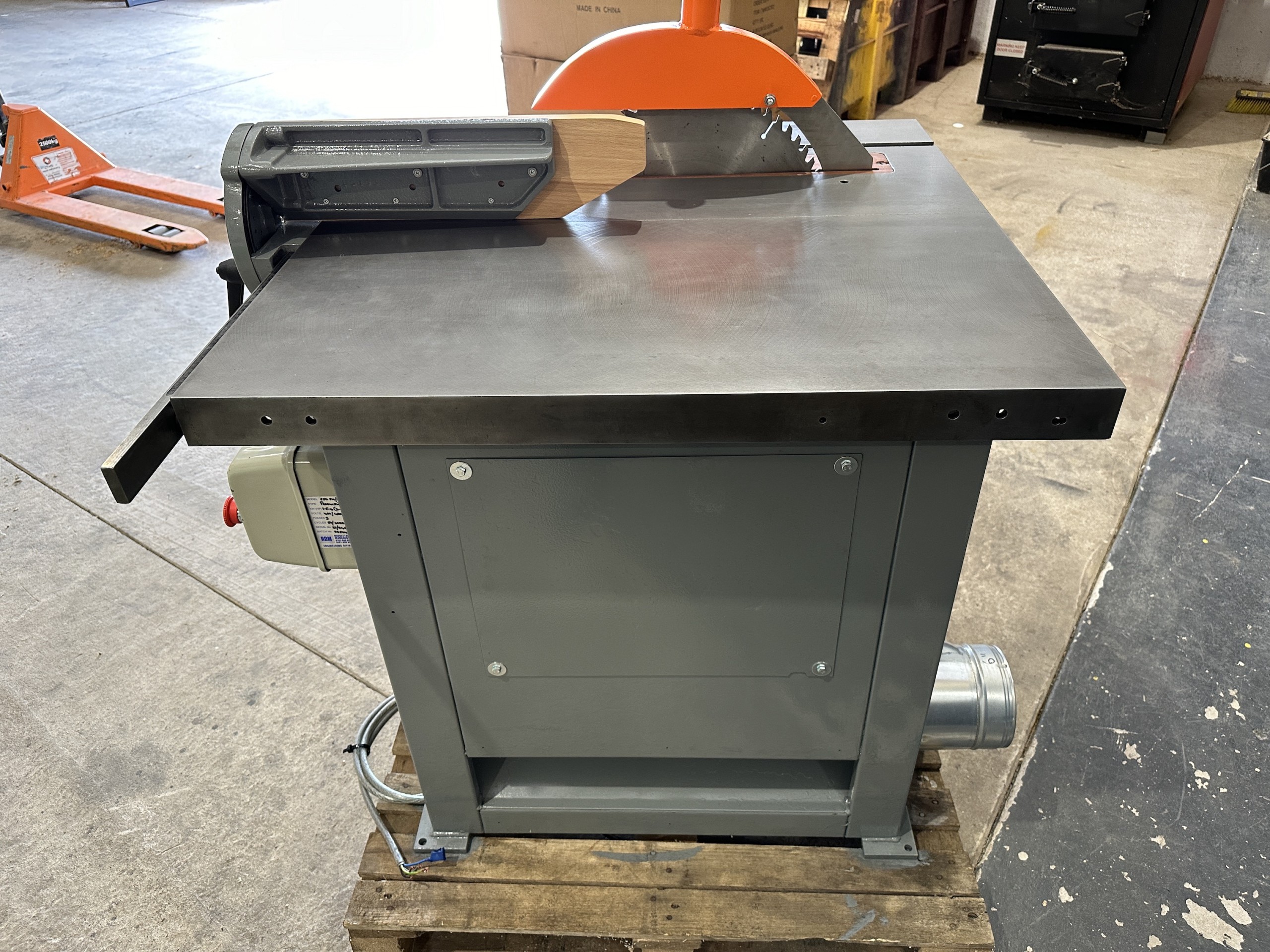

A cast iron table mounted on a heavy duty steel cabinet provides maximum timber support. The stable and accurate base for anchoring the spindle and the rise and fall mechanism. The spindle shaft is powered by a 4Kw (5.5hp) motor via two drive belts. Another key point is the large diameter saw flanges that ensure blade stability. Running ‘sealed for life’ bearings mounted in a cast iron housing, means only minimal maintenance is required.
A conveniently positioned hand wheel at the front of the machine controls the rise and fall of the saw blade.
Versatility

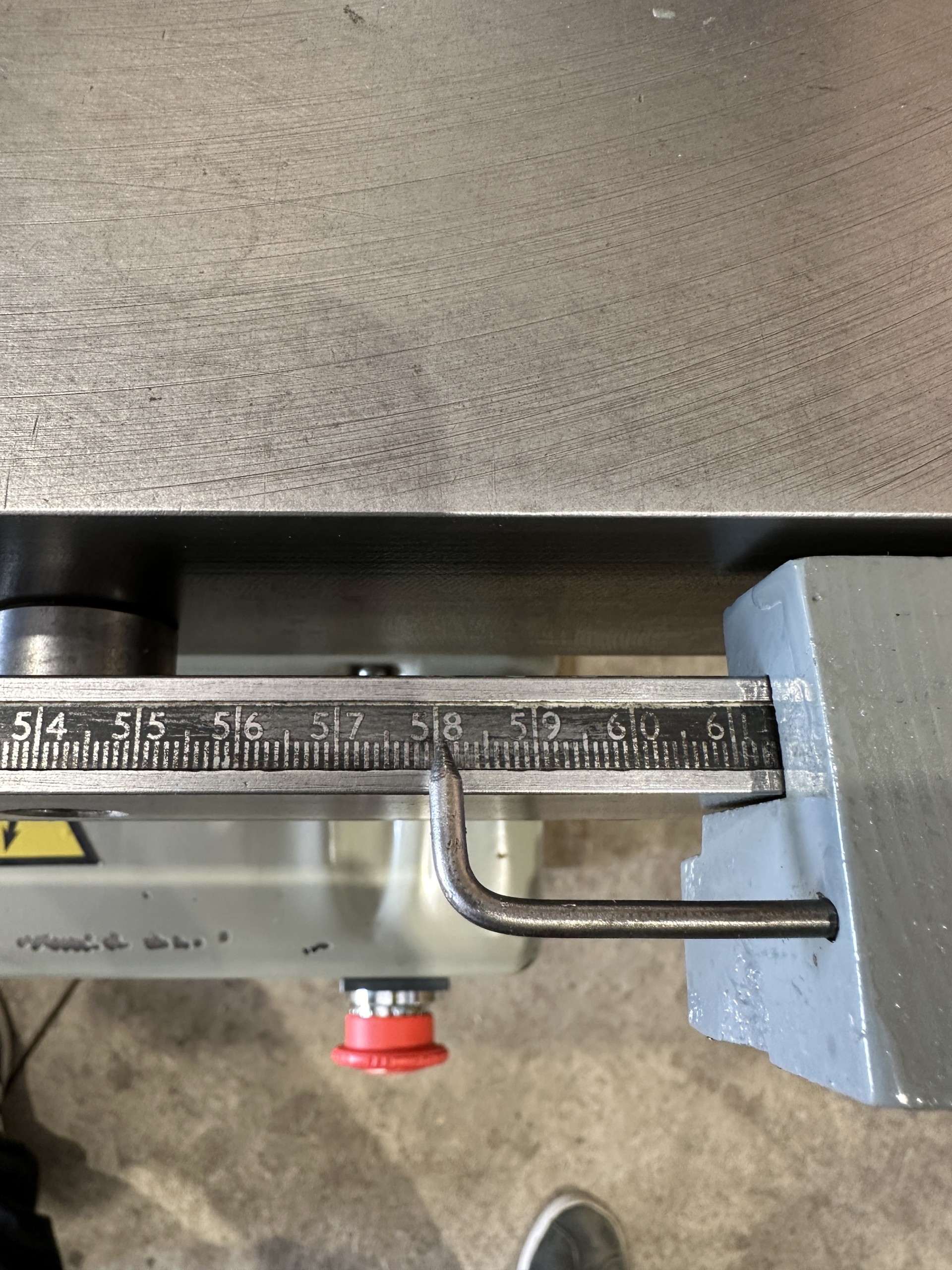

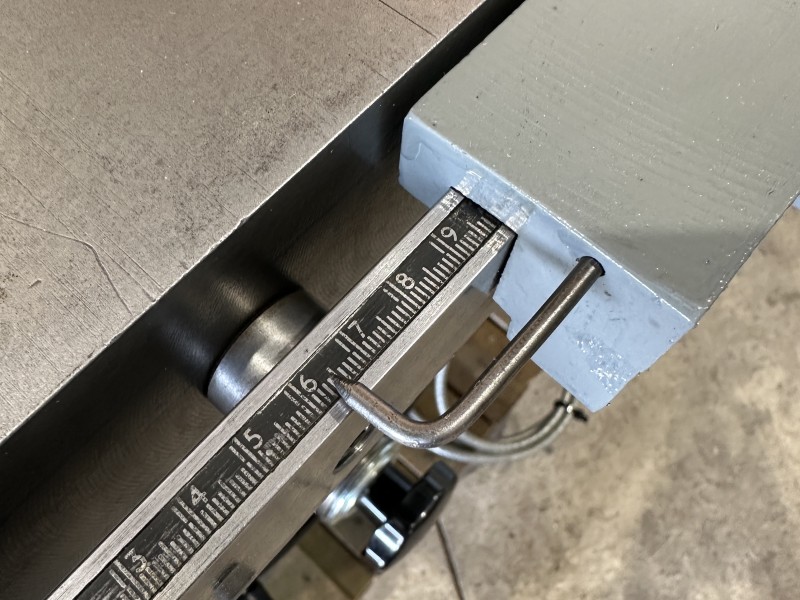

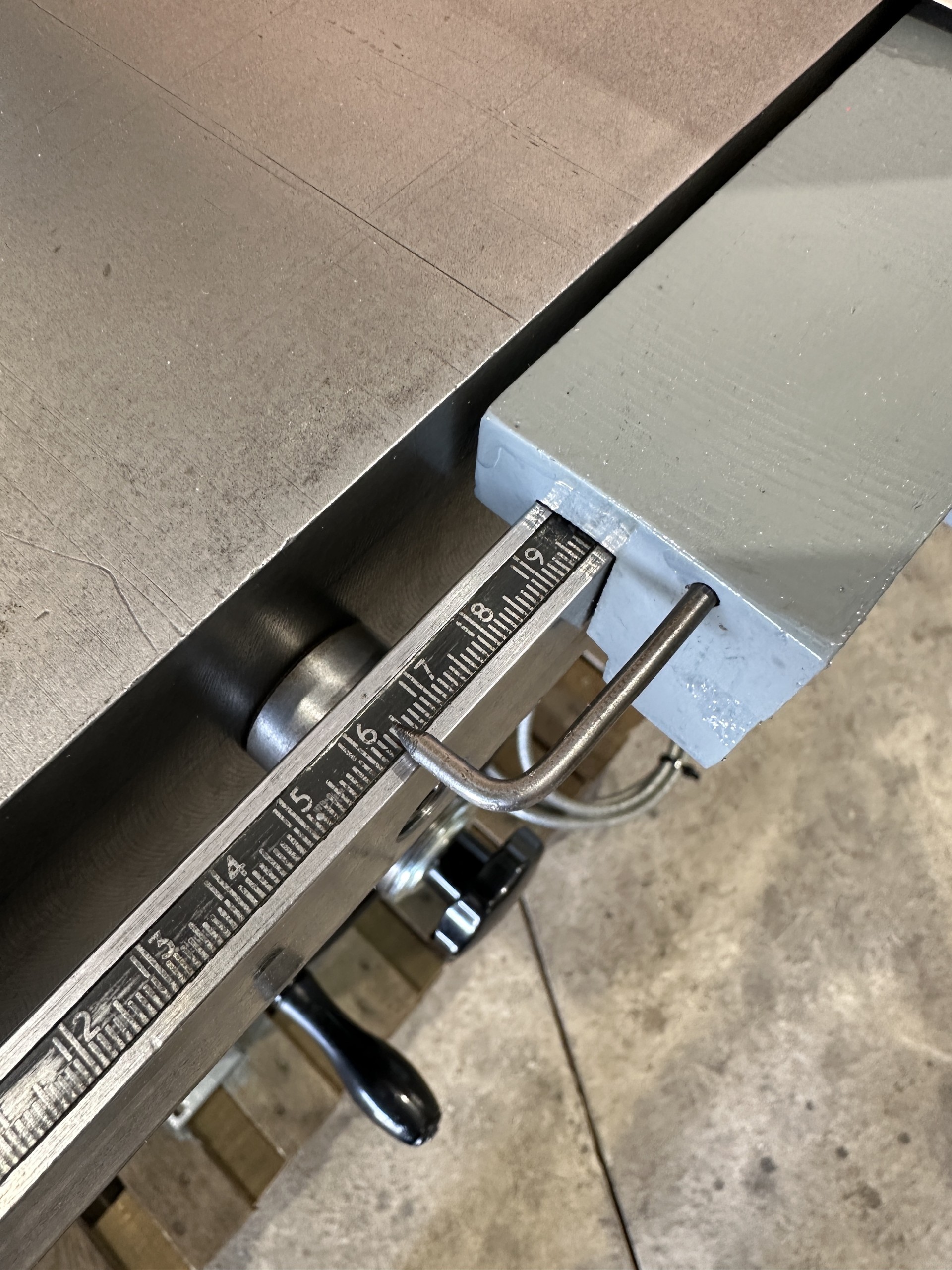

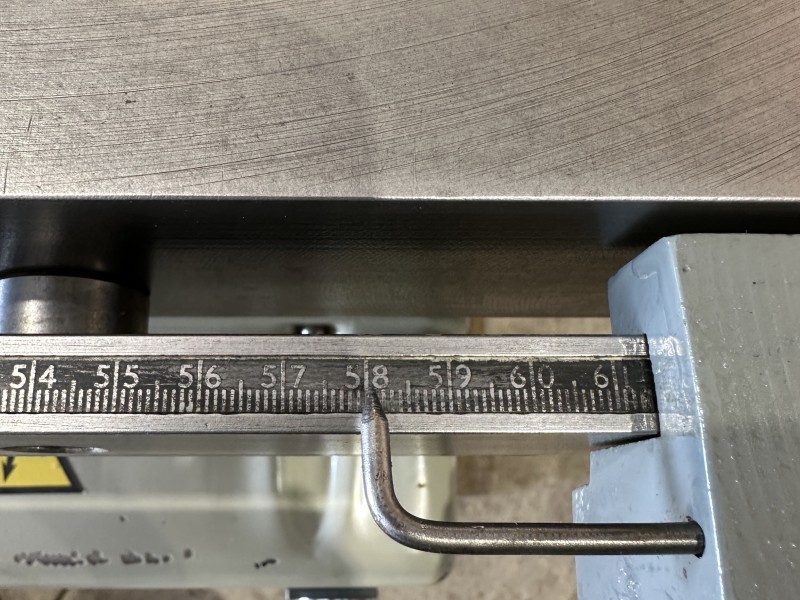

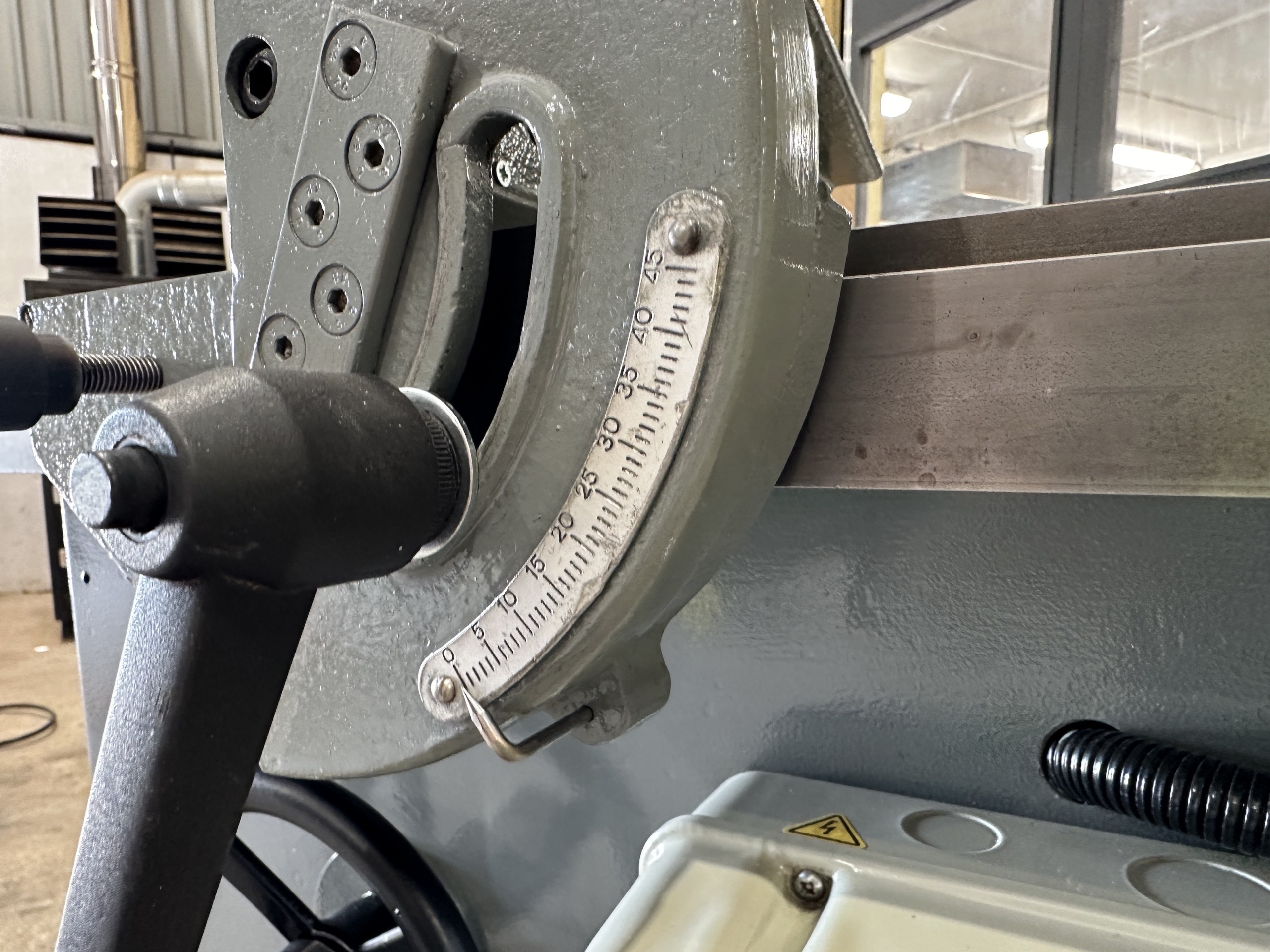

The solid steel rip fence tilts from 90° through to 45°, allowing for two working positions, ripping and angled ripping. It is fixed to a heavy duty cast iron mounting bracket for rigidity. The assembly runs on a solid steel section bar.
Safety

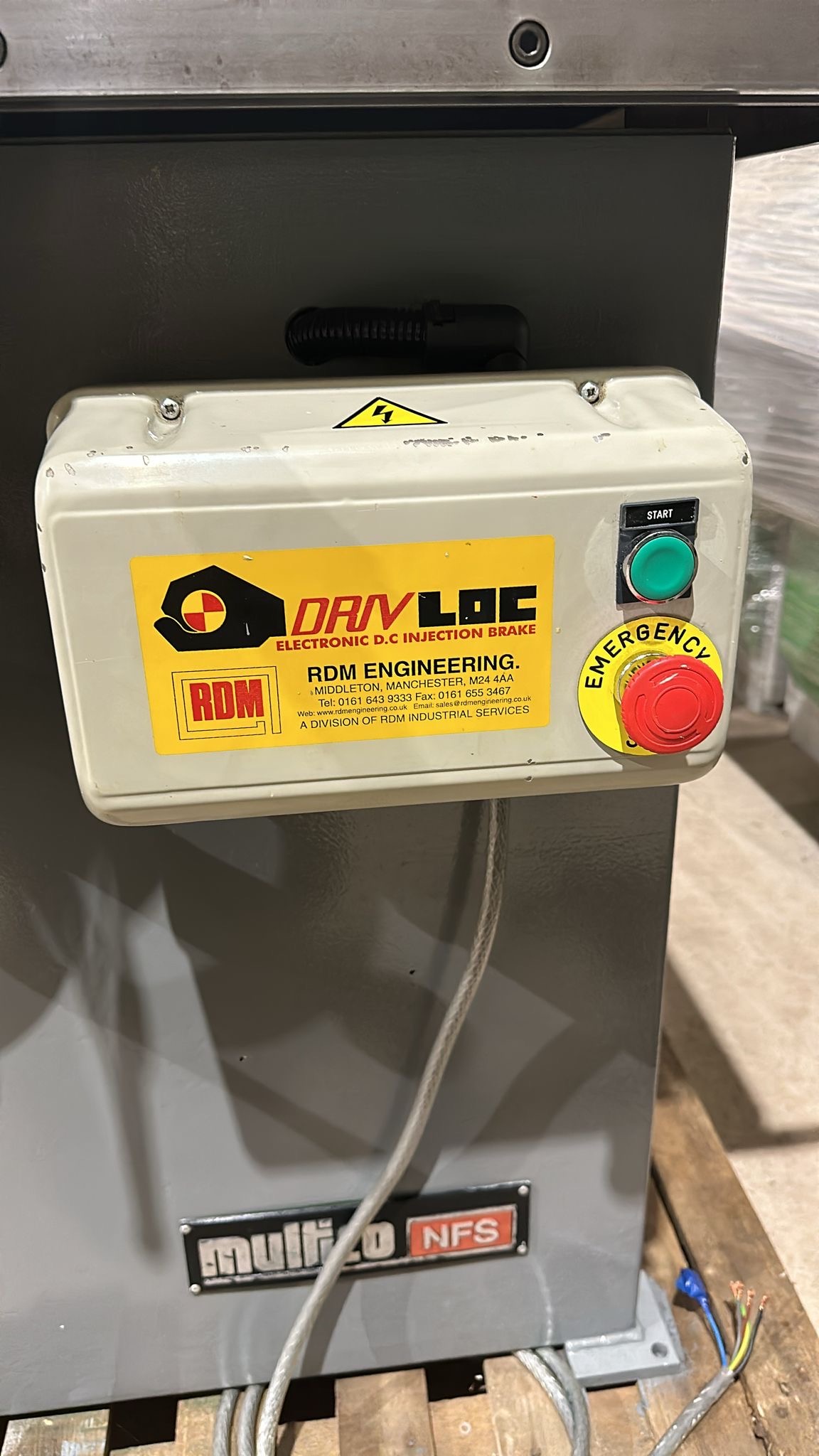

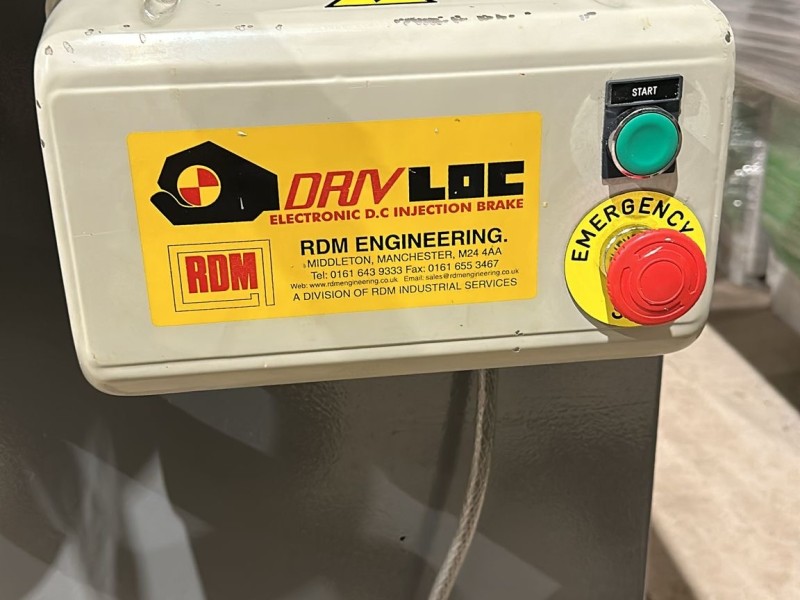

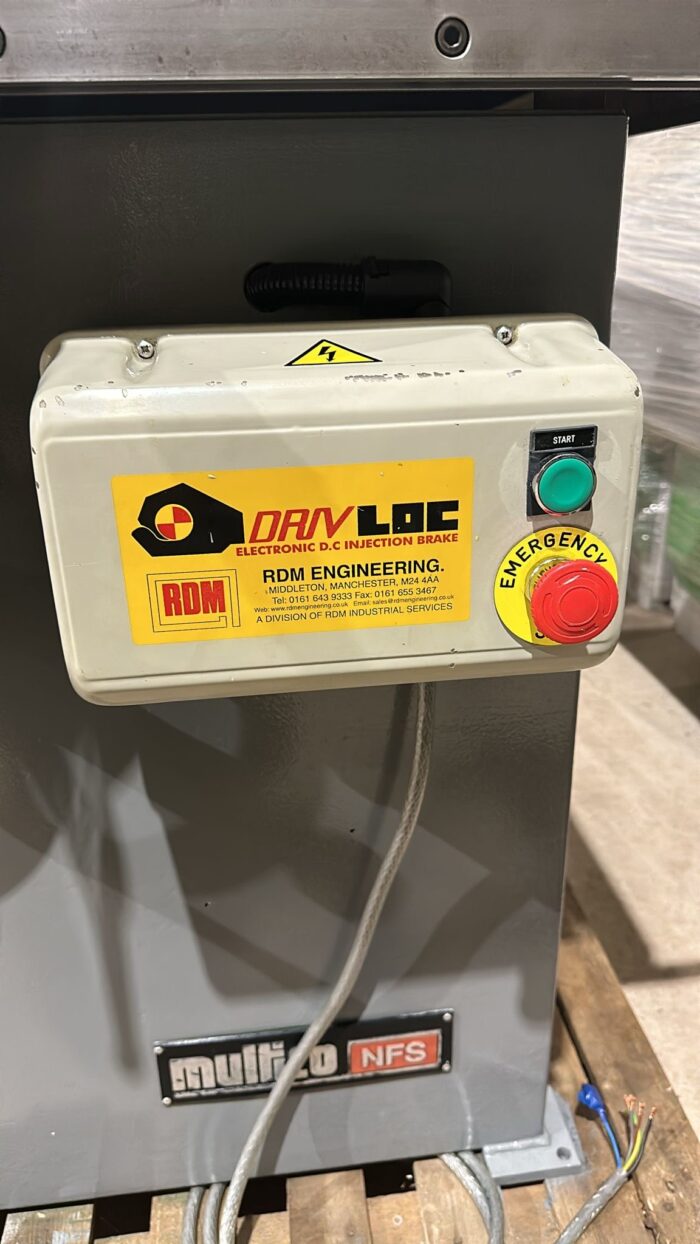

The machine is equipped with a DC braking system and the blade is covered by a riving knife mounted crown guard.
For alternative ripsaw options please Click Here
Check out our eBay listing
Fo further information on the Multico NFS Ripsaw, please call 01278 455622
Additional information
| Maximum Depth of Cut | 125mm At 90° 85mm At 45° |
|---|---|
| Table Size | 1125mm X 900mm Plus Extensions |
| Blade Size | 400mm |
| Rip Capacity | 1220mm |
| Blade tilt | 90° To 45° |
| Condition | Used |
