New iTECH TS 450 Ripsaw

£6,995.00 +VAT
new
Add to Quote
Category:

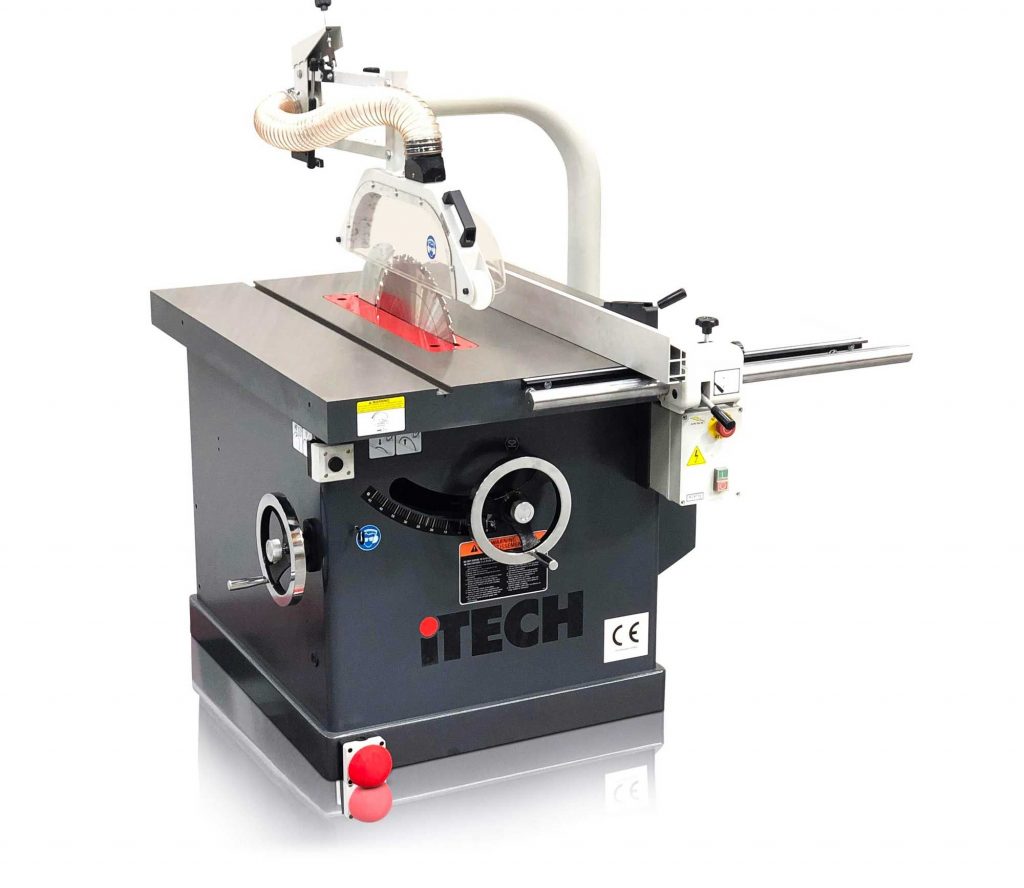

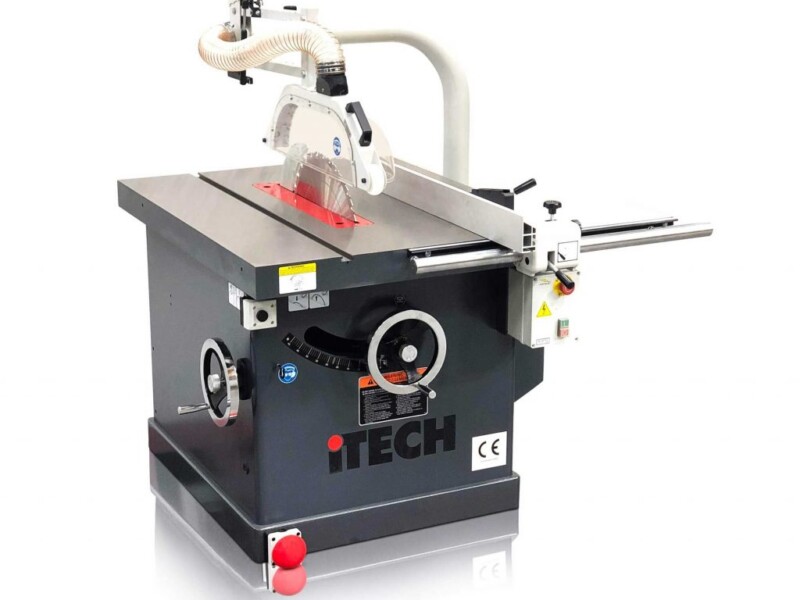

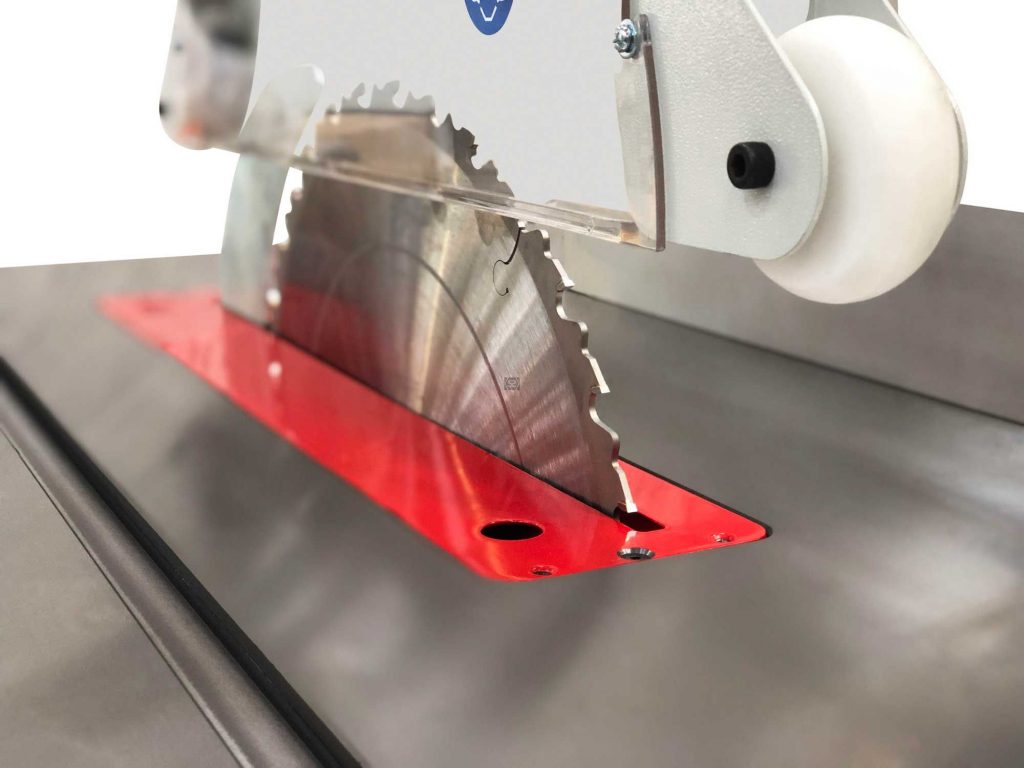

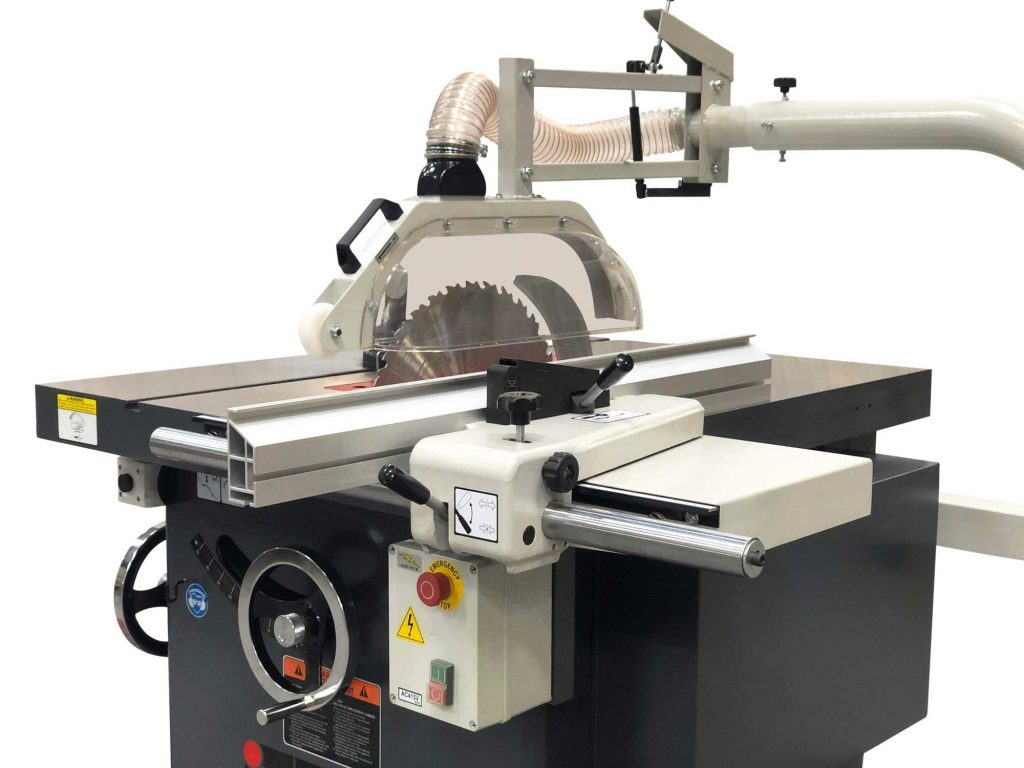

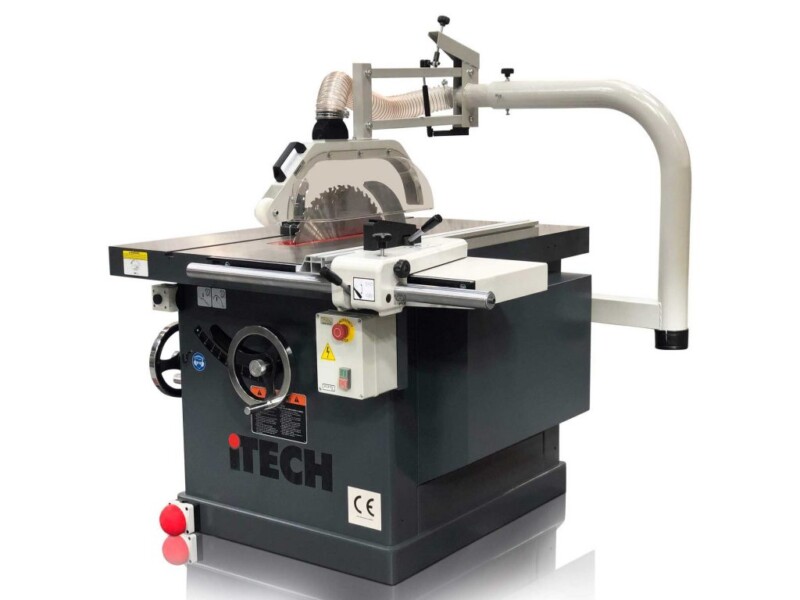

The TS 450 Rip Saw with a heavy duty cast iron table saw bench with a tilting blade. With a 450mm Blade giving you a maximum depth of cut  155mm [6″] deep at 90° and 105mm at 45° degrees. The blade is driven by a high powered heavy duty Three phase 7.5hp motor. The overhead crown guard with changeable back covers allowing for maximum extraction at 90° and 45°

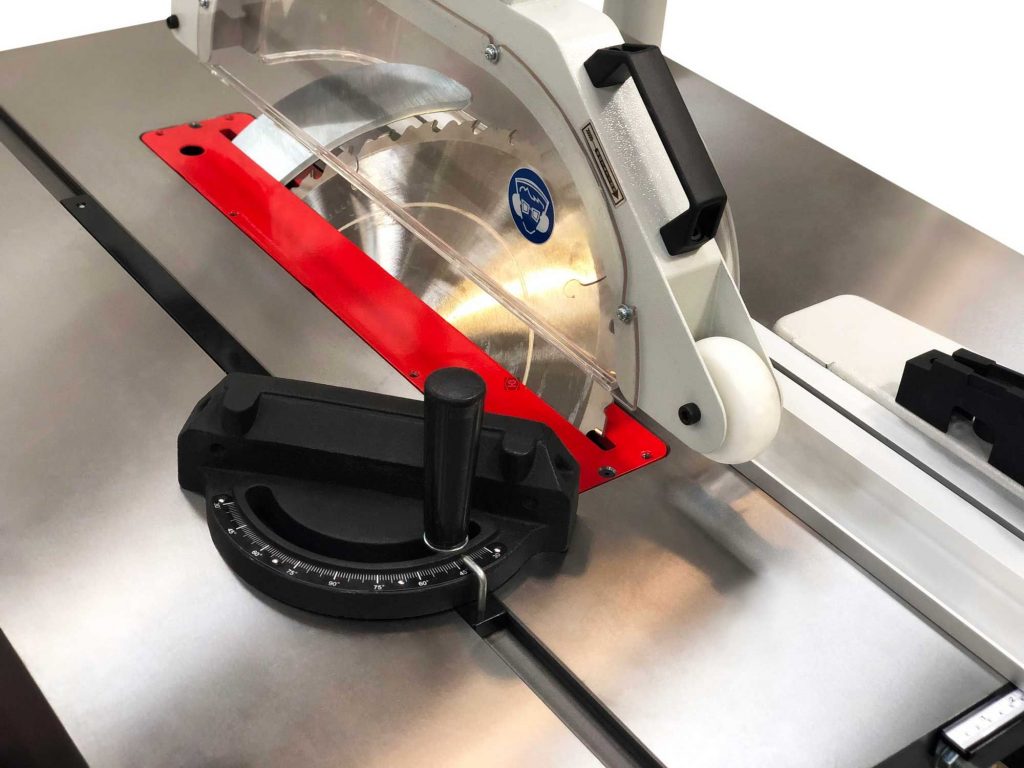

The saw has a large cast iron table, precision polished with built in miter slot and fence.

The saw has a large abrasion-proof cast iron table, precision polished with an integrated mitre slot and fence to cut mitres and compound mitres – The grey iron castings help absorb and dampen any vibration.

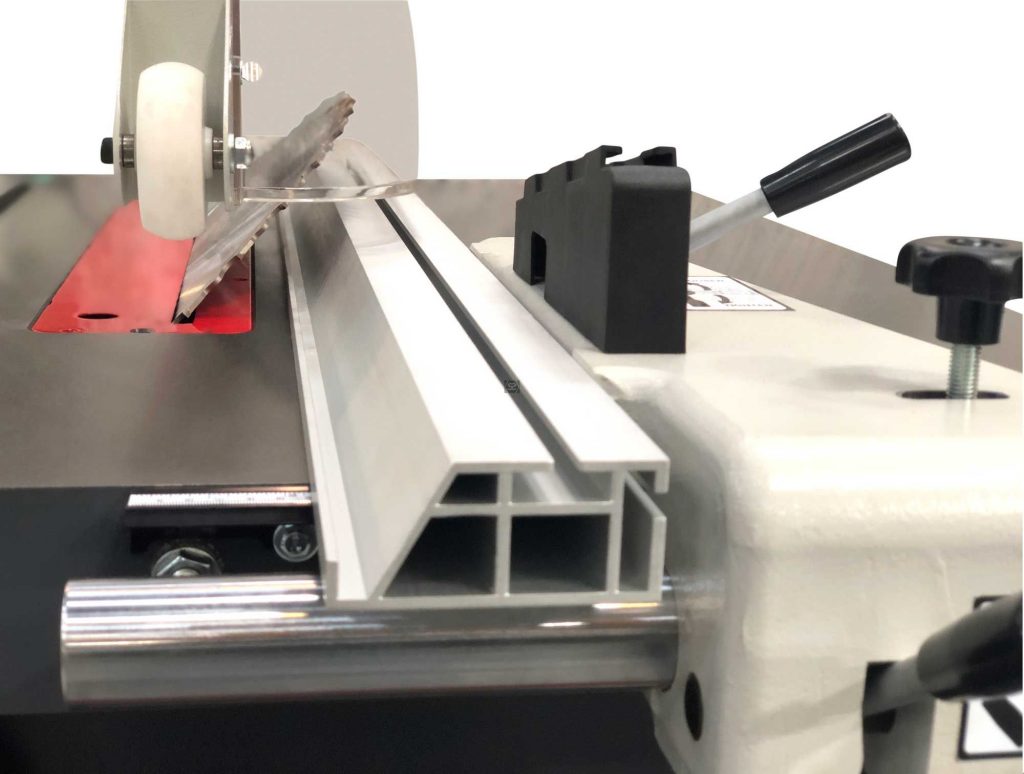

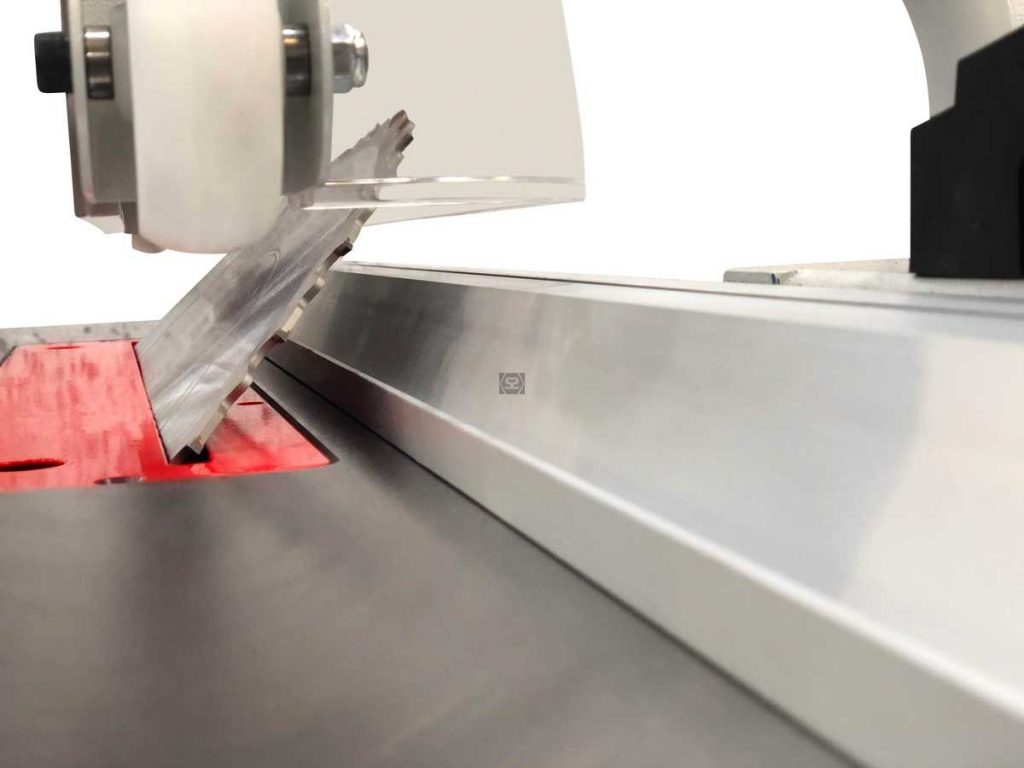

The cast iron rip fence assembly slides freely along its graduated rail and locks rigidly.

Two well-positioned hand wheels allow for easy blade height & tilt adjustment.

Saw blade diameter – 450 mm
Saw blade bore – 30mm
Maximum depth of cut at 90° – 155 mm
Maximum depth of cut at 45° – 105mm
Motor power – 5.5kw (7.5 hp)
Voltage – 400v 3ph
Size of table – 1125 x 900mm
Height of table – 850mm
Saw to fence – 685mm
Weight 460kg
Dust outlets x 2 – 100 mm & 50mm

For more information on the New iTECH TS 450 Ripsaw Please Click Here

Please browse our stock of new and pre owned machines https://www.twswood.co.uk/machinery/

Additional information

Maximum Depth of Cut

155mm

Table Size

1125mm X 900mm

Blade Size

450mm

Rip Capacity

685mm

Blade tilt

90° To 45°

Condition

New
