New Sedgwick SM 210 Spindle Moulder 400 volt

£2,500.00 +VAT
Print Listing
Email Listing
Add to Quote

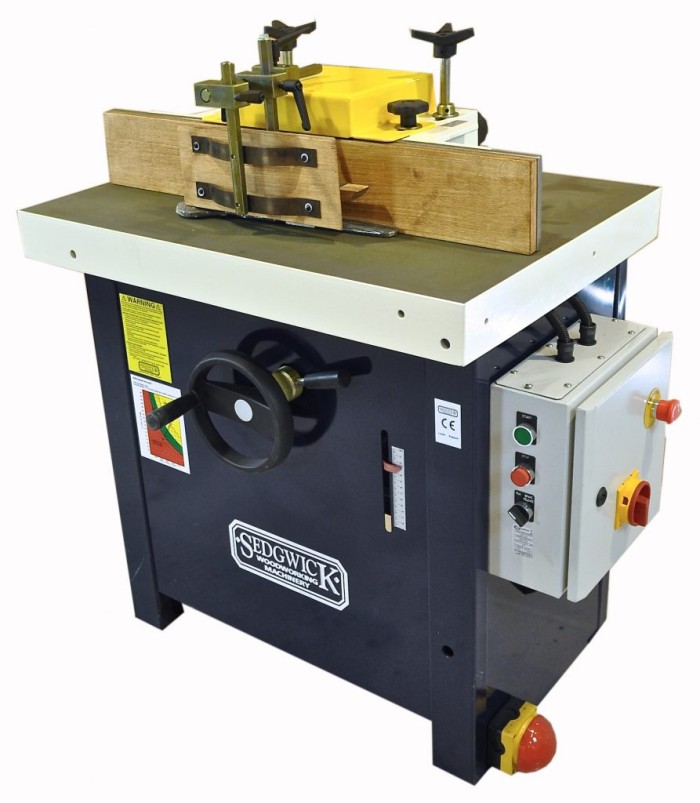

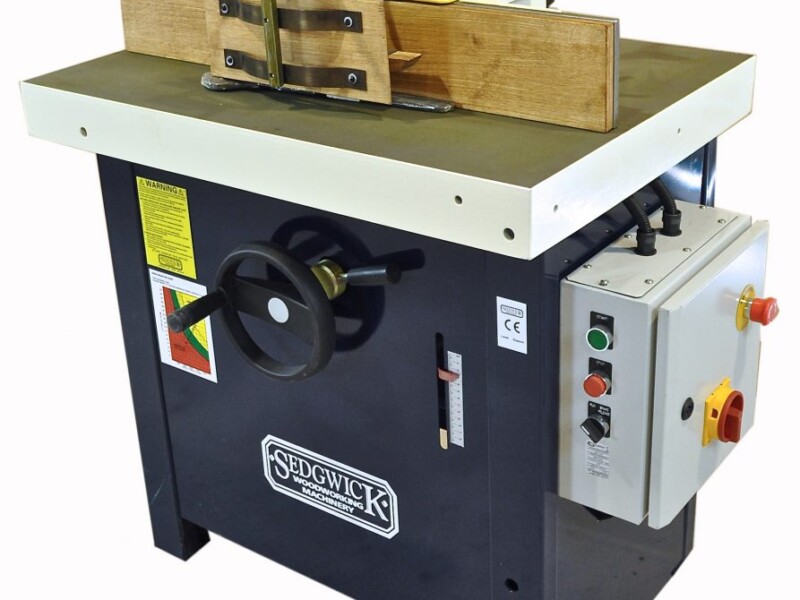

New Sedgwick SM 210 Spindle Moulder 400 volt

features a cast iron table with anti-friction planed finish. Mounted on a heavy duty steel cabinet, the table provides maximum timber support and a stable and accurate base for anchoring the spindle, motor housing, and rise & fall mechanism. The bearing housing, rise & fall assembly and motor mountings are also in machined cast iron. The spindle is belt driven by an industrial motor and runs in “sealed for life” bearings, which require only minimal maintenance.

30mm shaft and collars
Ribbed cast iron table – 850mm x 650mm
Manual rise and fall by hand wheel
4 Spindle speeds – 3000 / 4500 / 6000 / 8000 rpm

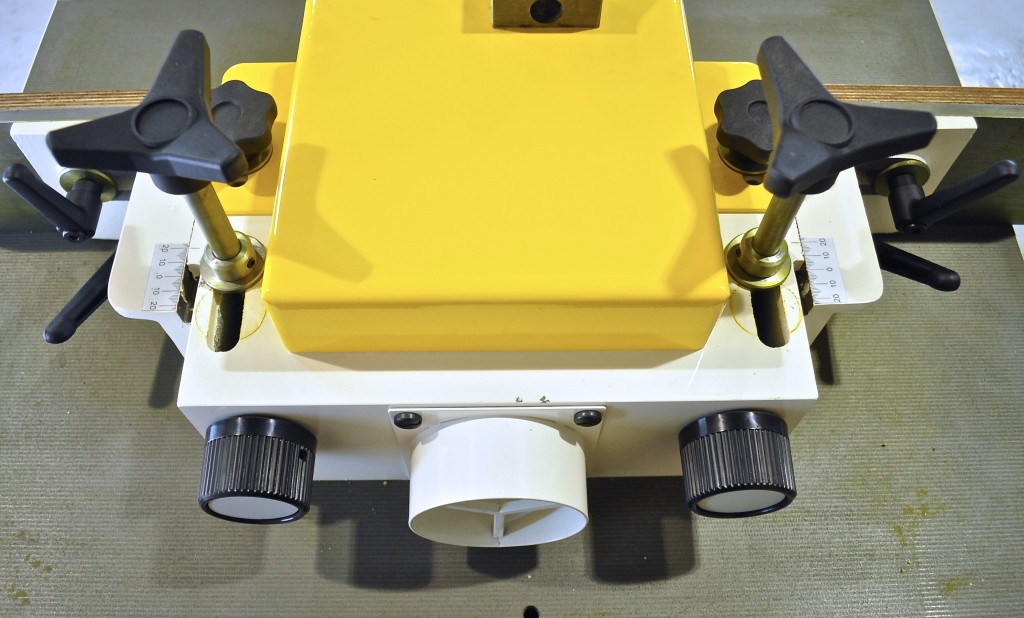

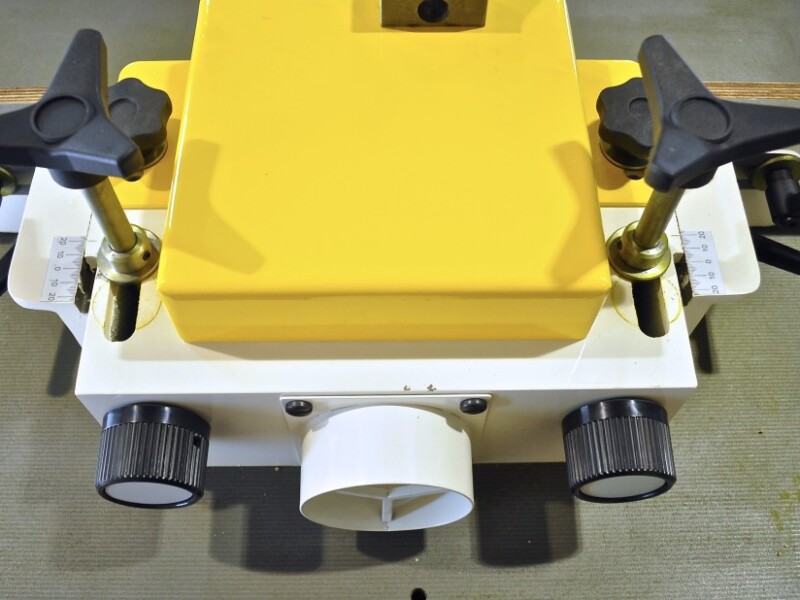

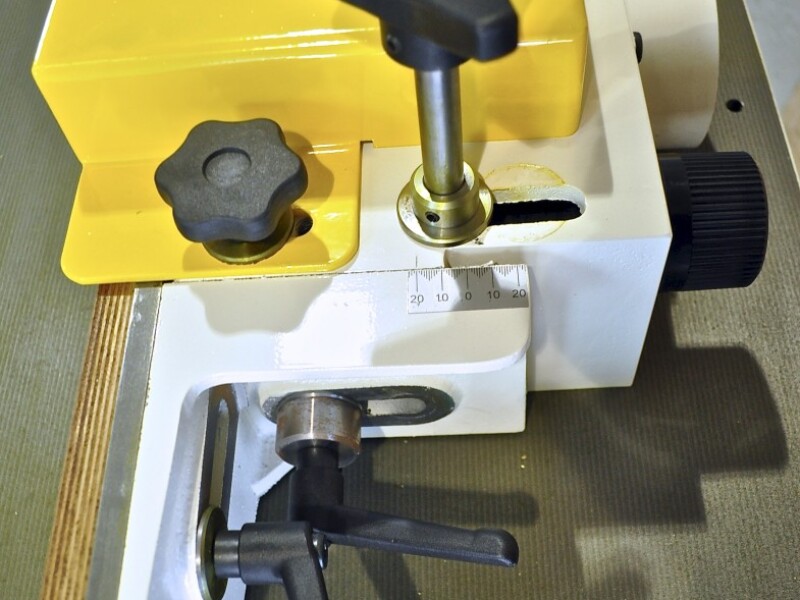

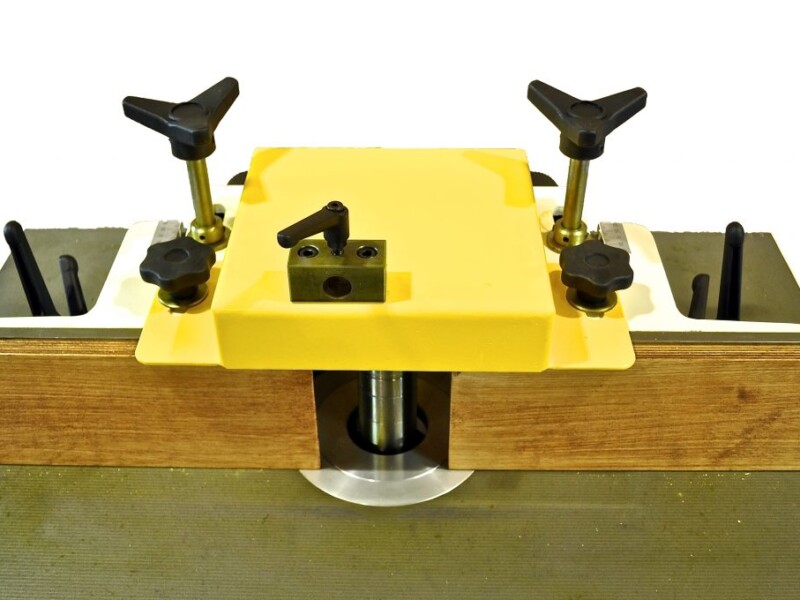

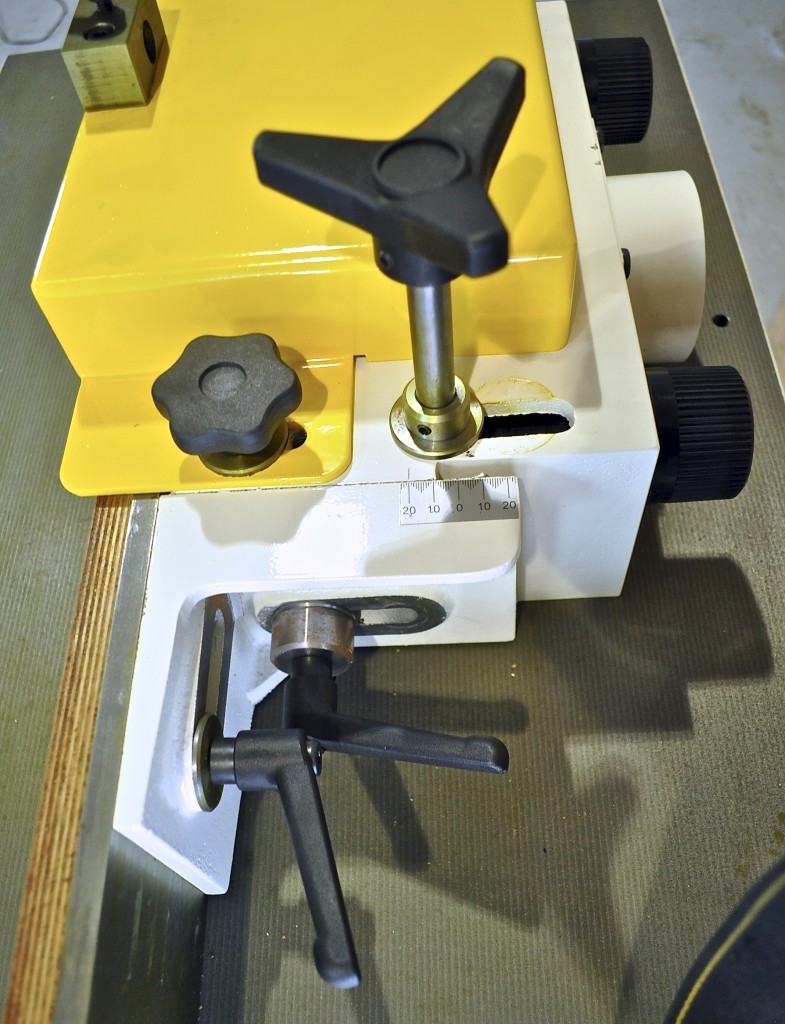

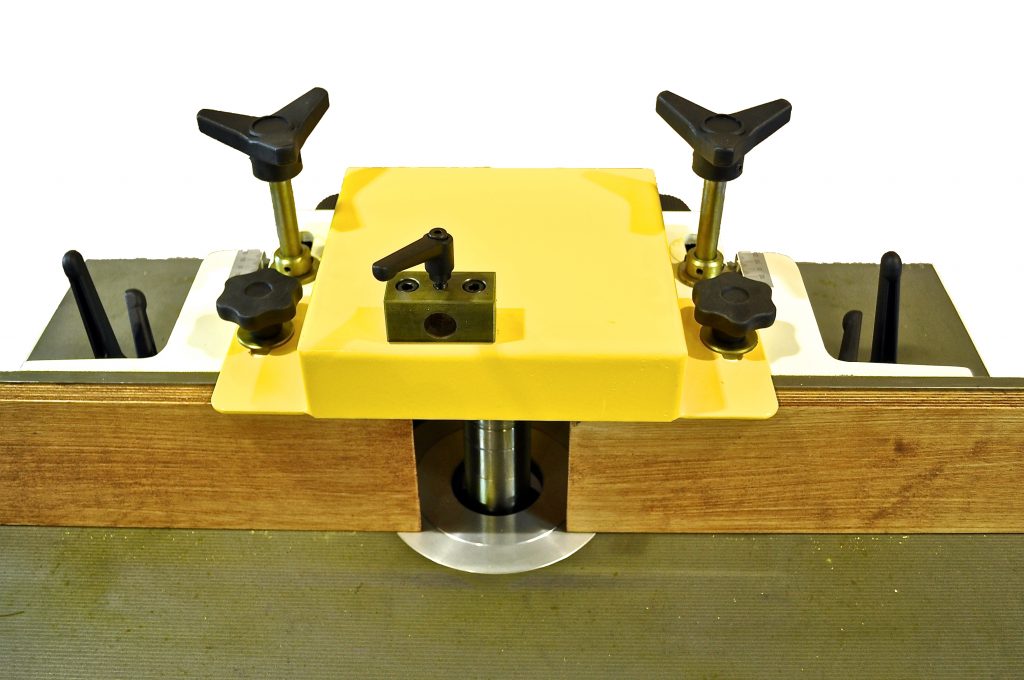

Micro adjustable fence hood assembly
2.2kw – 3hp motor
3 phase – 400 volts
Operators Manual & Toolkit
C.E. regulated
Optional extra – 3 roller power feed

To see more Spindles Please click here

Additional information

Table Size

850mm X650mm

Spindle Speeds

3000/4500/6000/8000 RPM

Rise & Fall


Shaft Diameter



Micro Adjustable Fence Hood Assembly
