New Sedgwick SM255T Tilting Spindle Moulder 240 volt

£4,950.00 +VAT
Add to Quote
Category:

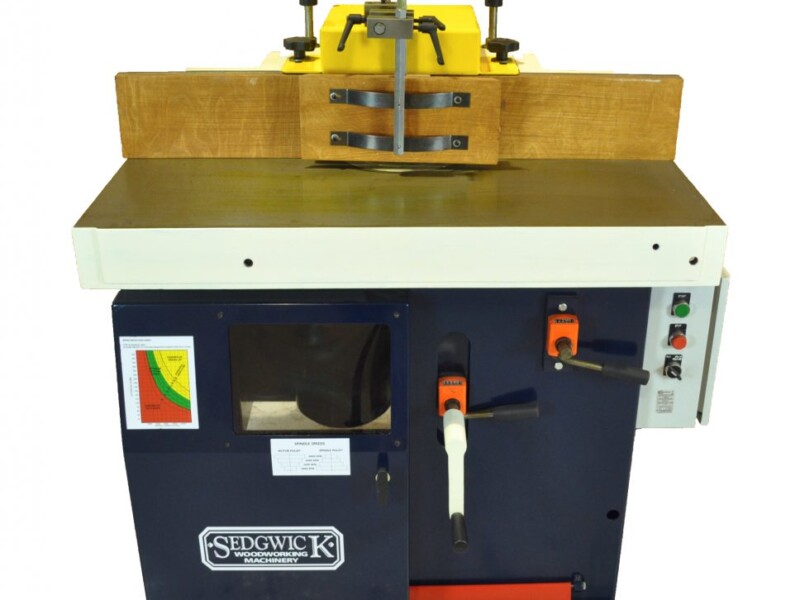

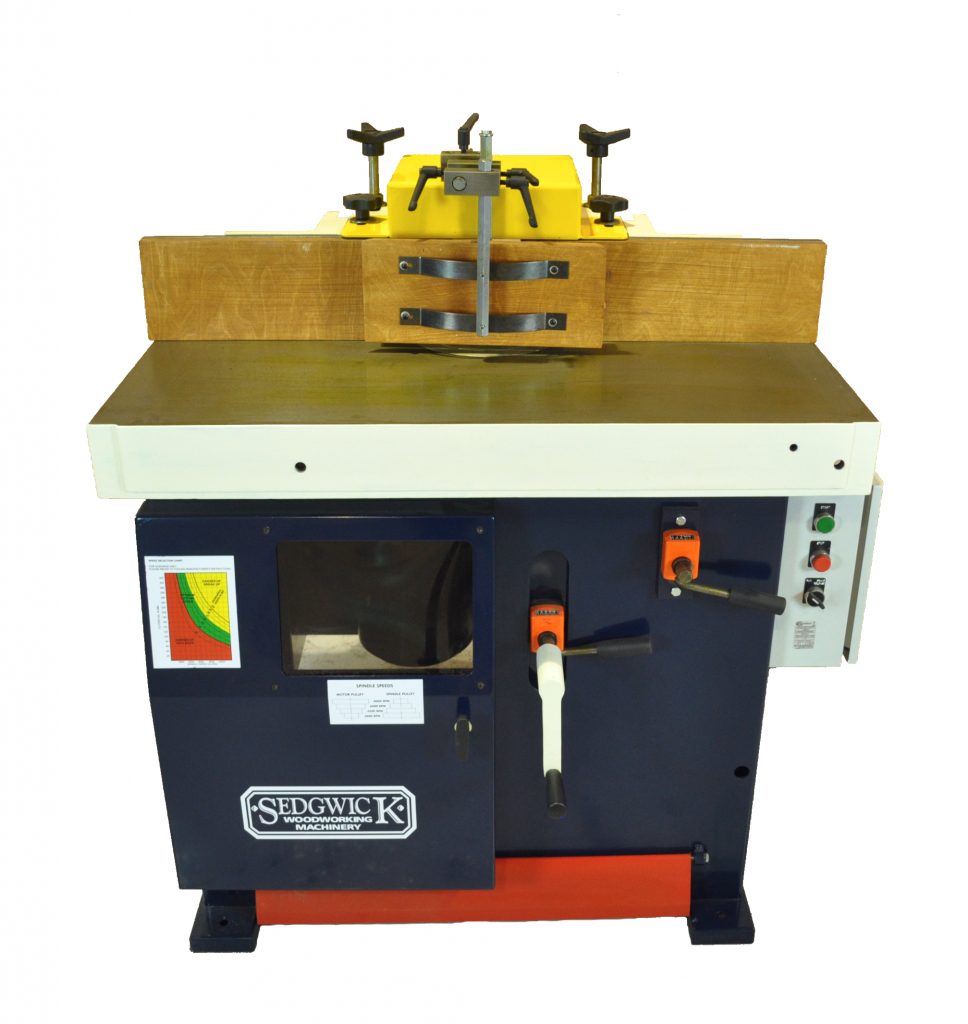

New Sedgwick SM255 T Tilting Spindle Moulder 240 volt

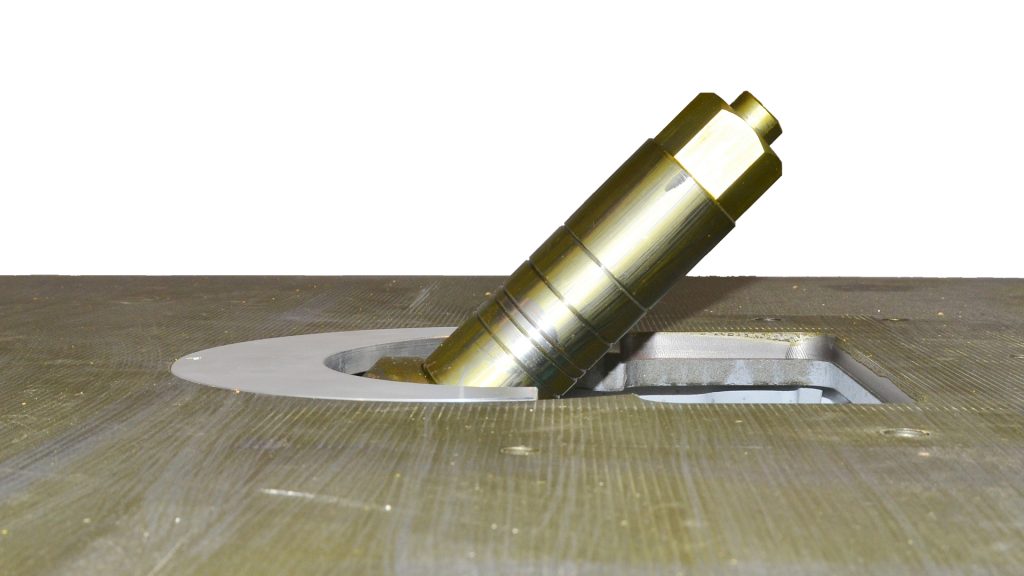

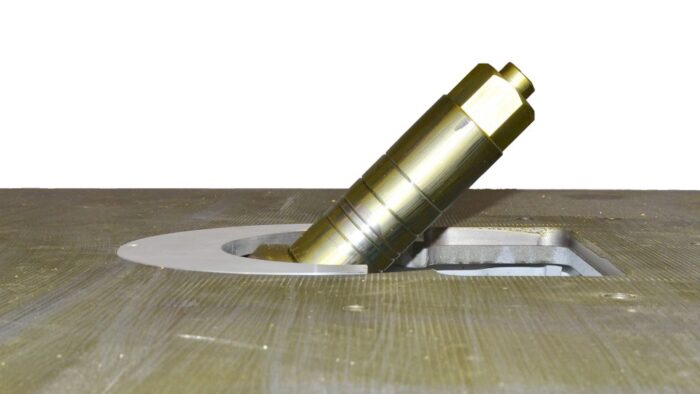

Unlike the majority of manufacturers, the Sedgwick  255T is designed with a backward tilting spindle. Working from underneath the stock makes for safer working, without restriction on the size of stock being machined, and without obstruction to the pressure guards or power feed. Wood chips are directed into the exhaust outlet in the machine base.

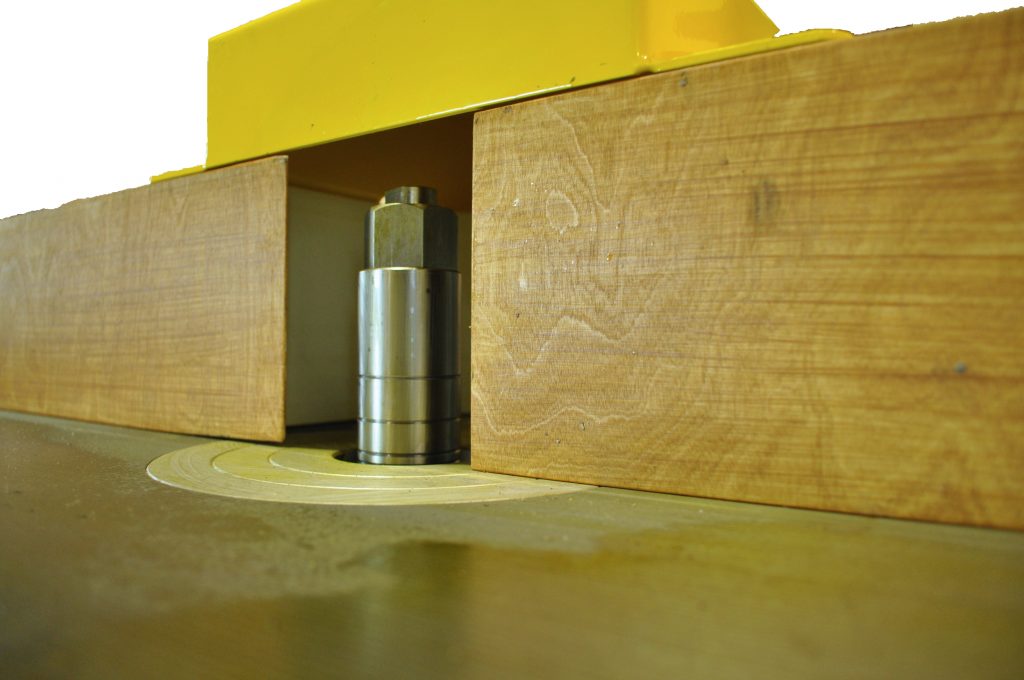

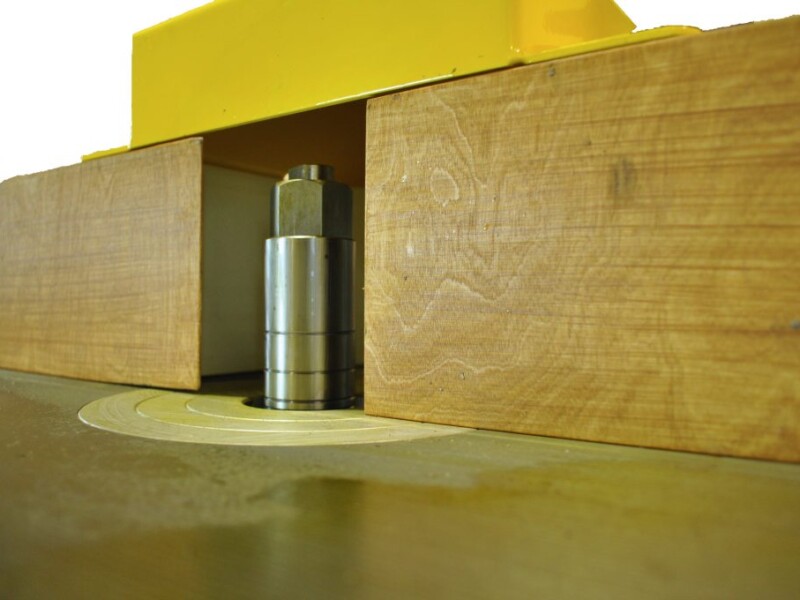

  • 30mm shaft and collars
  • Ribbed cast iron table – 1000mm x 750mm

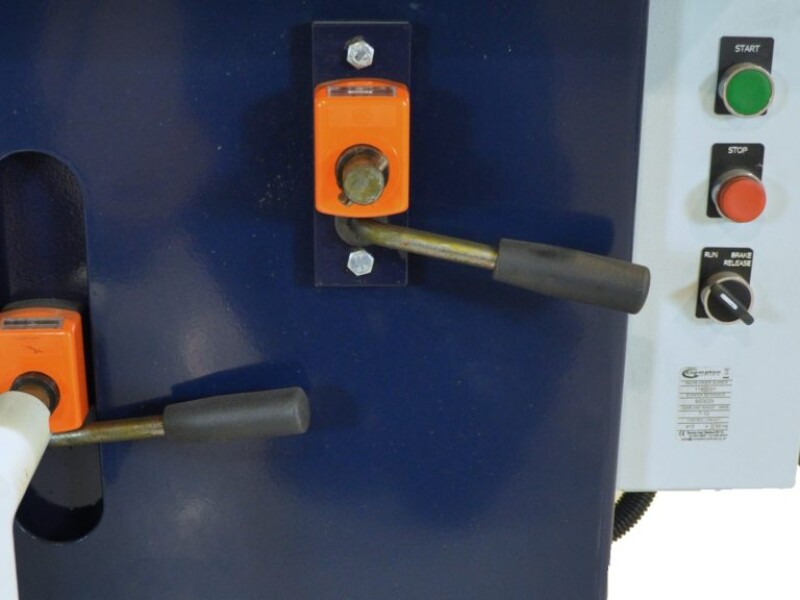

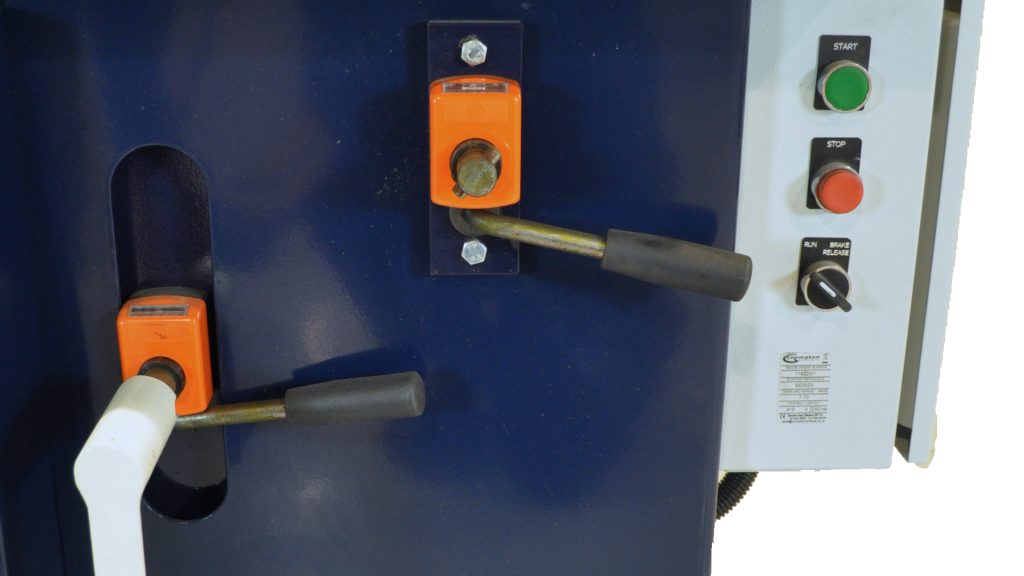

  • Manual rise and fall by hand wheel

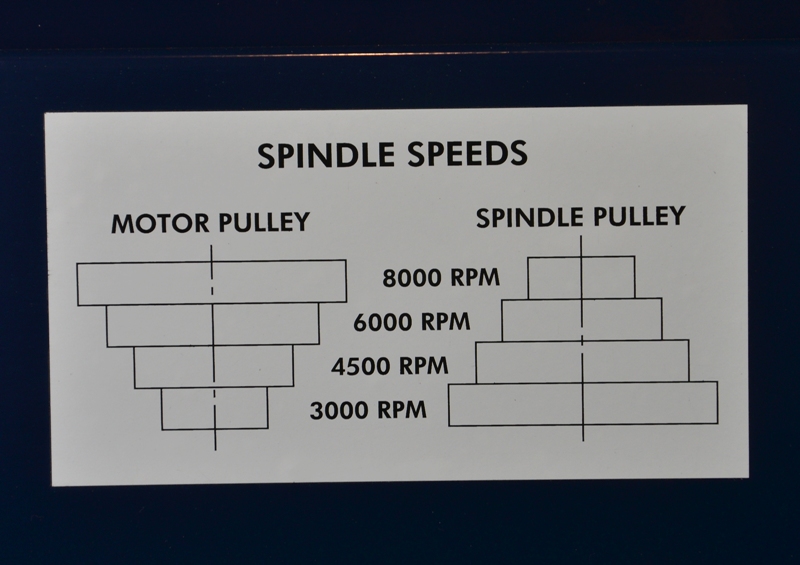

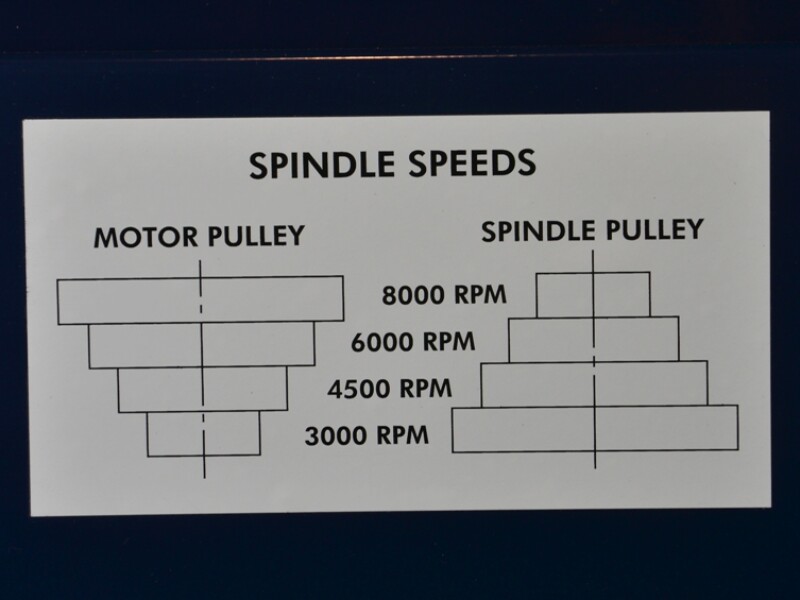

  • 4 Spindle speeds – 3000 / 4500 / 6000 / 8000 rpm

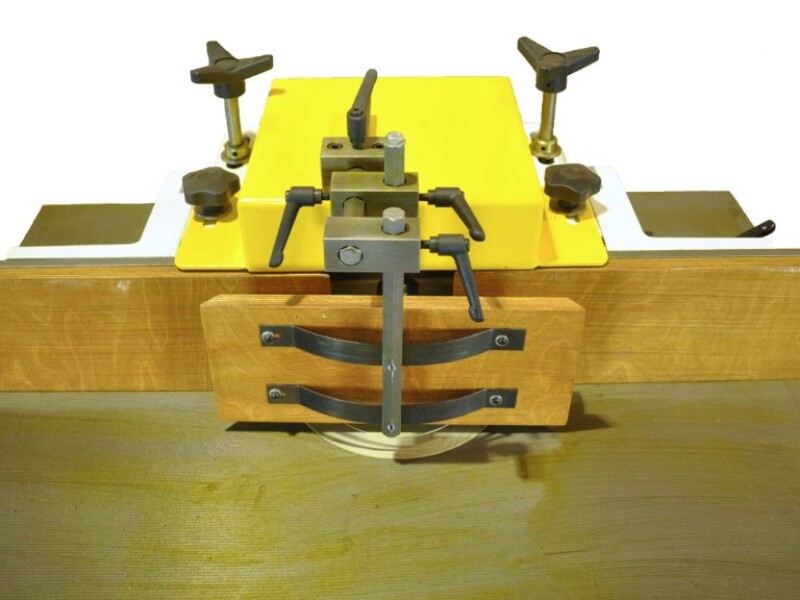

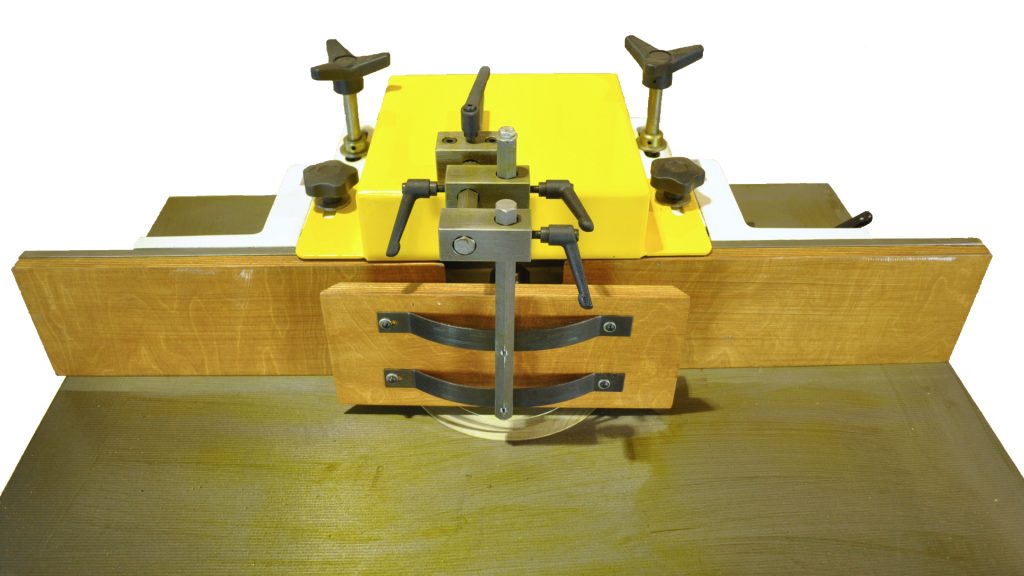

  • Micro adjustable fence hood assembly
  • 3kw – 4hp motor
  • Single phase – 240 volts
  • Operators Manual & Toolkit
  • C.E. regulated
  • Optional infeed /out feed extension tables
  • Optional extra – 3 roller power feed

To view our range of spindle moulders please Click here

Check out Sedgwick’s website

Additional information

Table Size

1000mm X 750mm

Spindle Speeds

3000 / 4500 / 6000 / 8000 Rpm

Rise & Fall

Manual

Shaft Diameter

30mm

Fence

Micro Adjustable 3 Way

Condition

New
