Wadkin BEL Spindle Moulder

£3,950.00 +VAT
Add to Quote
Category:

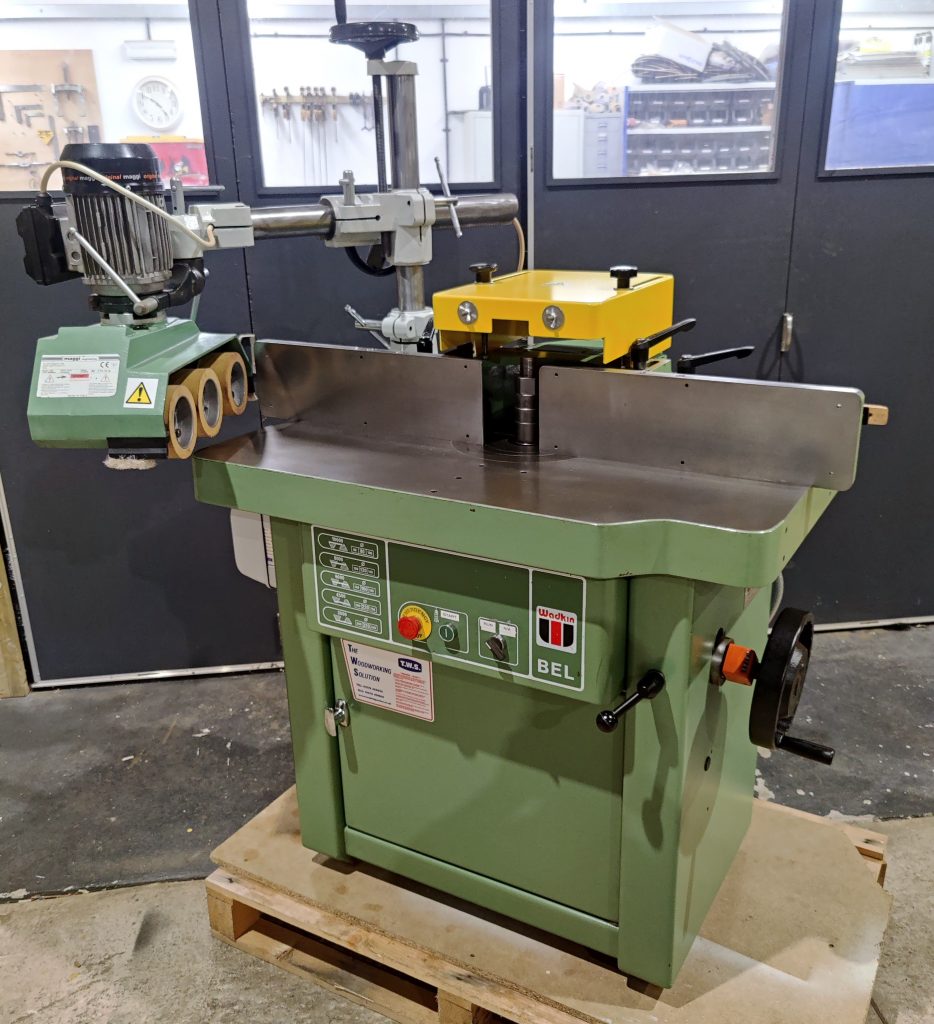

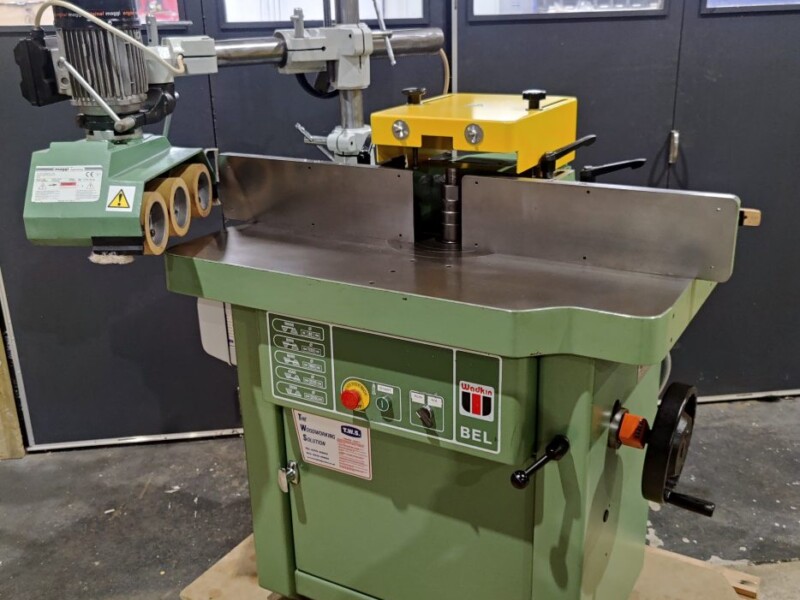

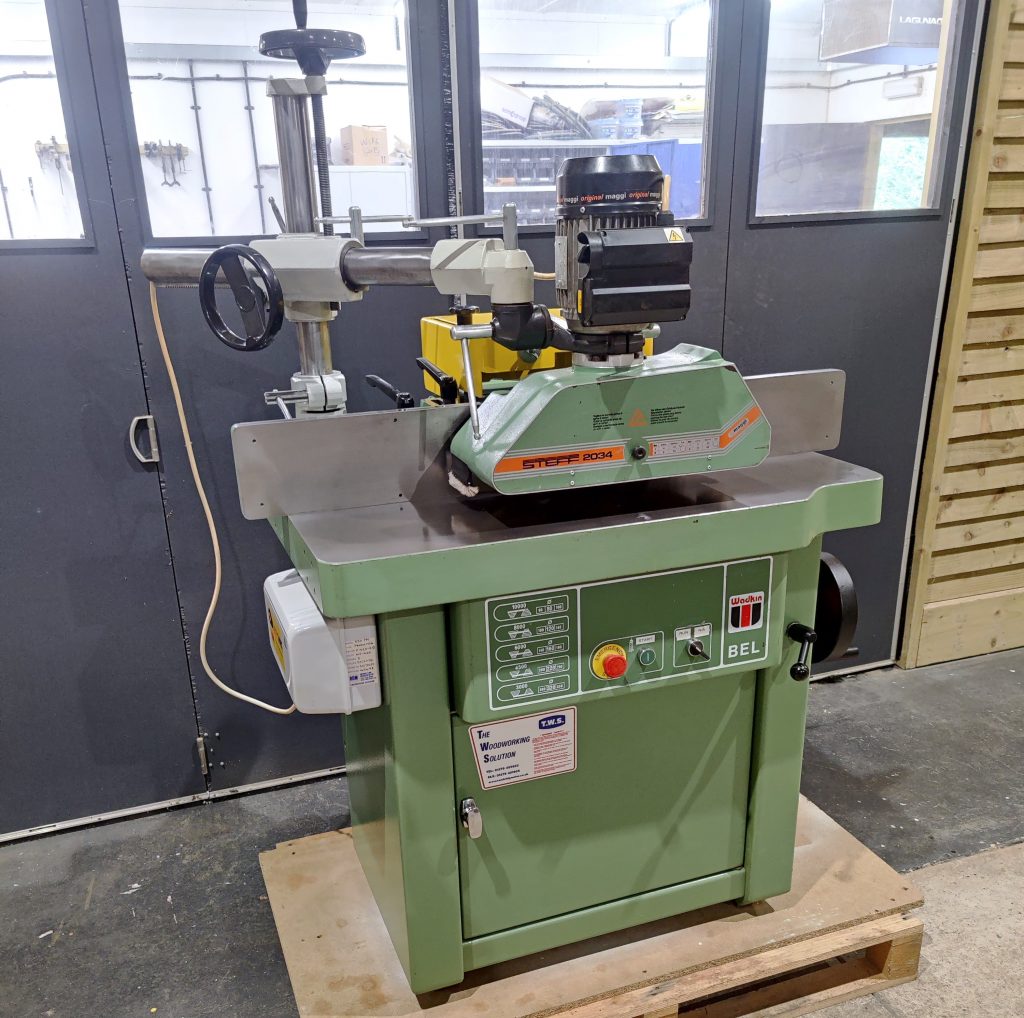

Wadkin BEL Spindle Moulder with power feed unit

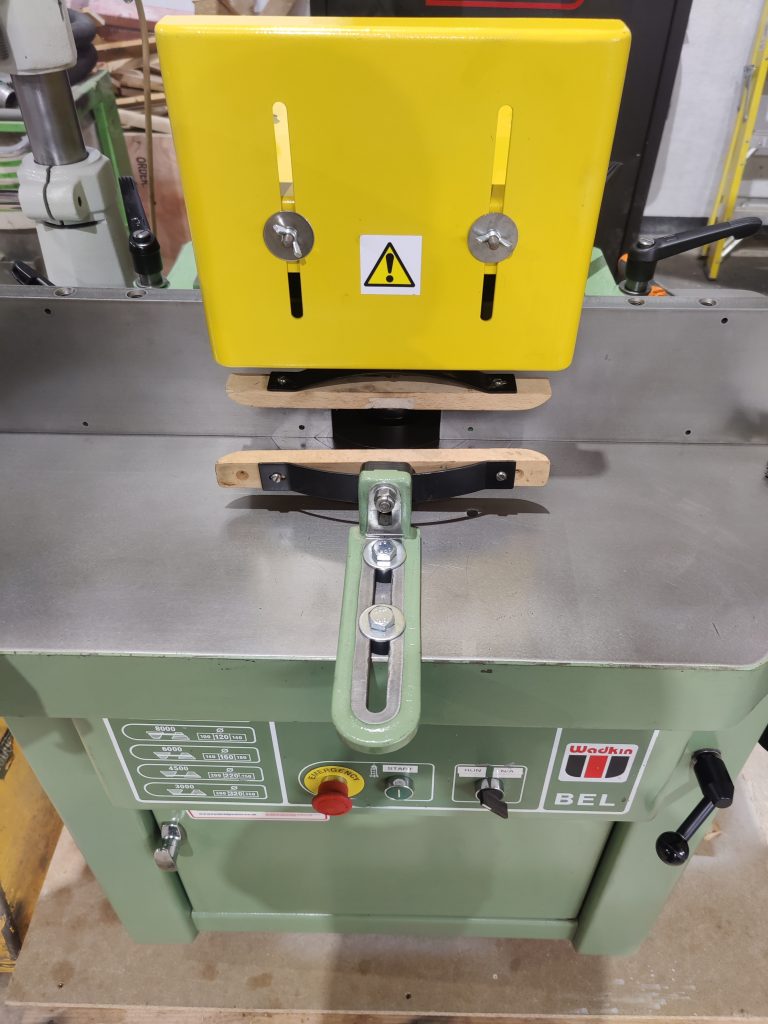

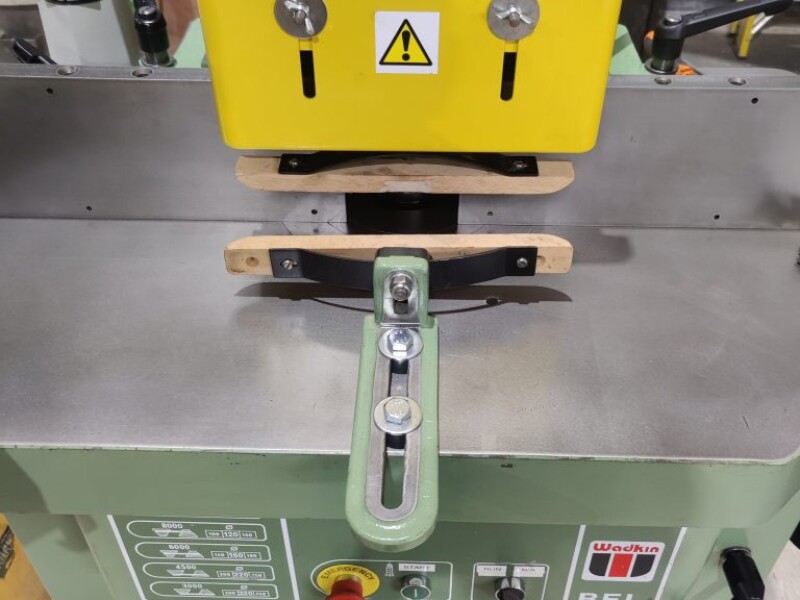

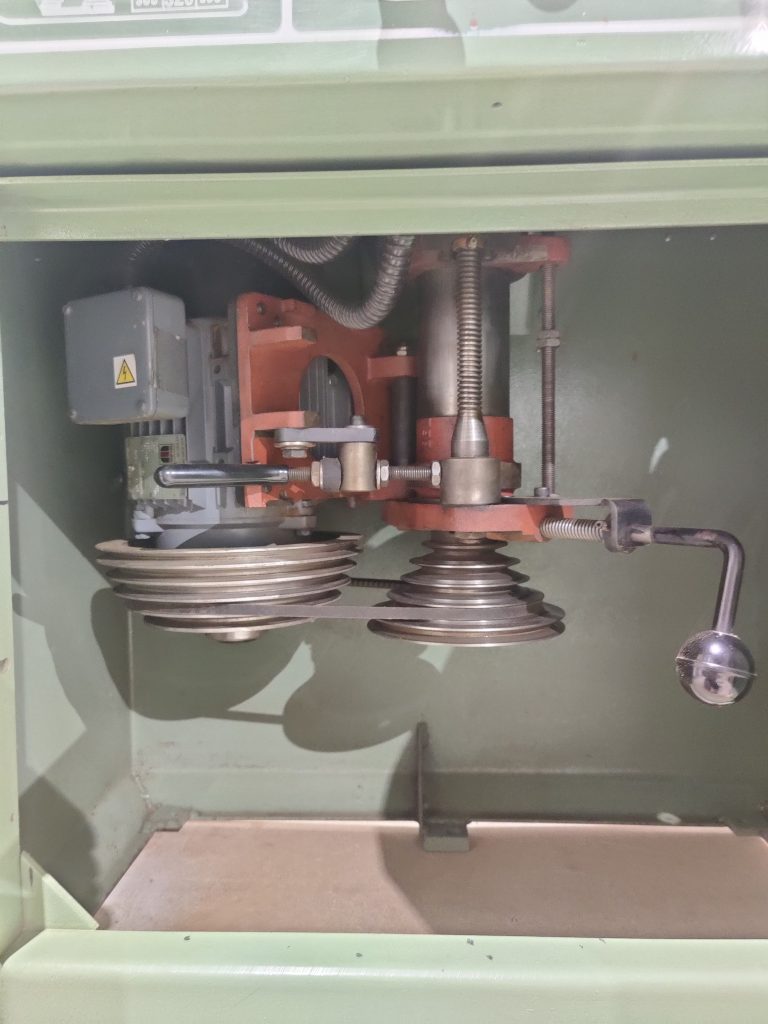

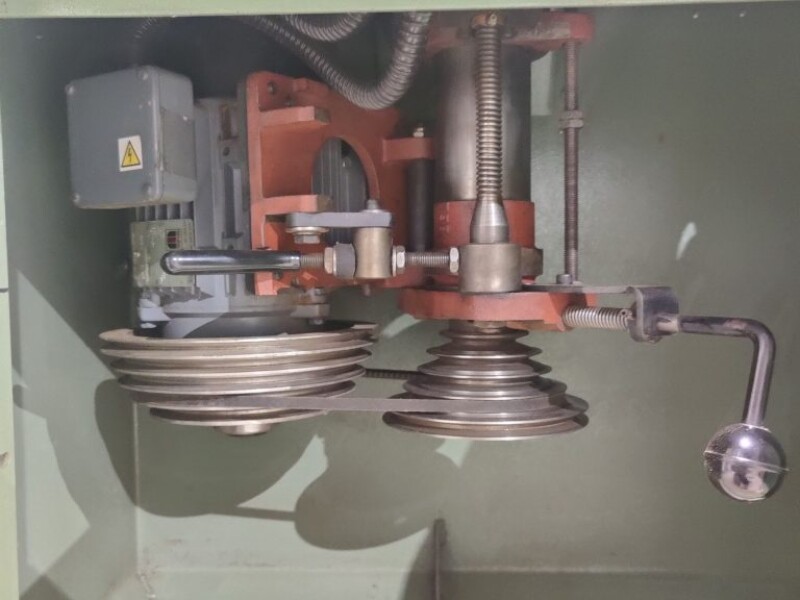

The Wadkin BEL offers outstanding rigidity from its high quality fabrication. The shaft is fully enclosed during operation by a full guard, speed change is quick and easily accessible through the front door panel. The spindle is built around a powerful 4Kw (5.5hp) motor which has electronic braking for safety. The precision ground spindle shaft runs on a specially developed 3 bearing system. 5 spindle speeds provide optimum cutting speeds for all tooling diameters. The spindle moulder assembly is mounted to a precision ground cast iron work table, providing maximum stability and smooth operation. The work table is complemented by a fully cast iron fence hood assembly with micro adjustable movements.

Table size – 1000mm x 650mm
Useful spindle height – 150mm
Shaft – 30mm diameter
Max diameter of tooling – 250mm
Sturdy steel machine structure
Ribbed cast iron worktable which guarantees no vibrations
Metal fence plates

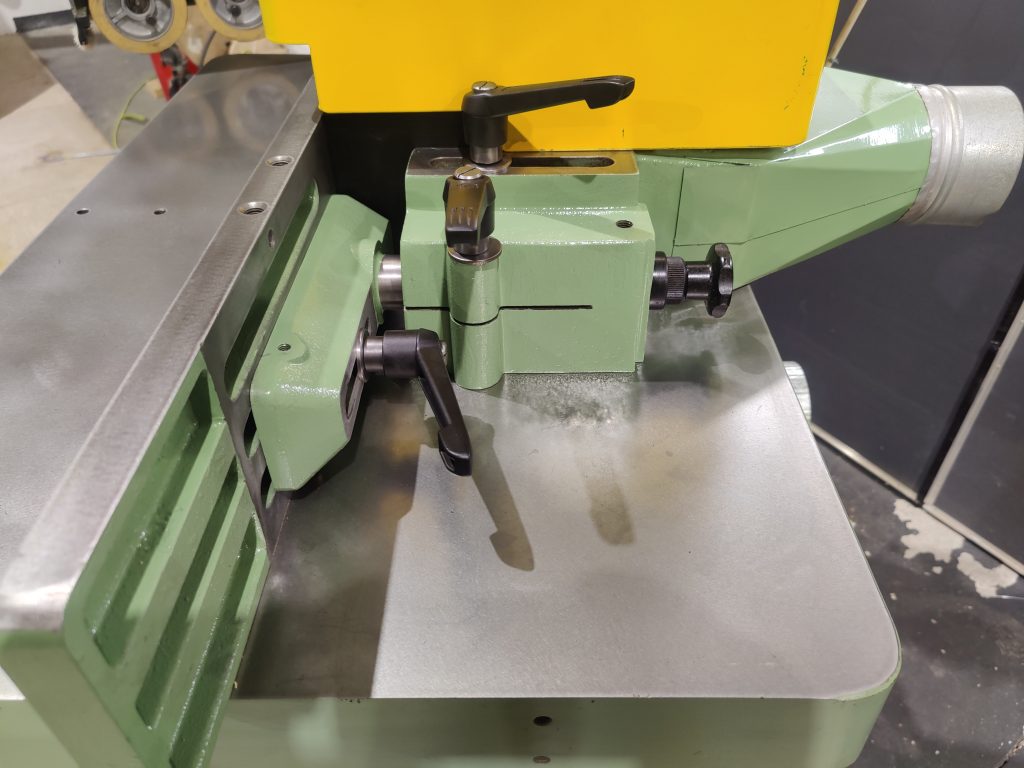

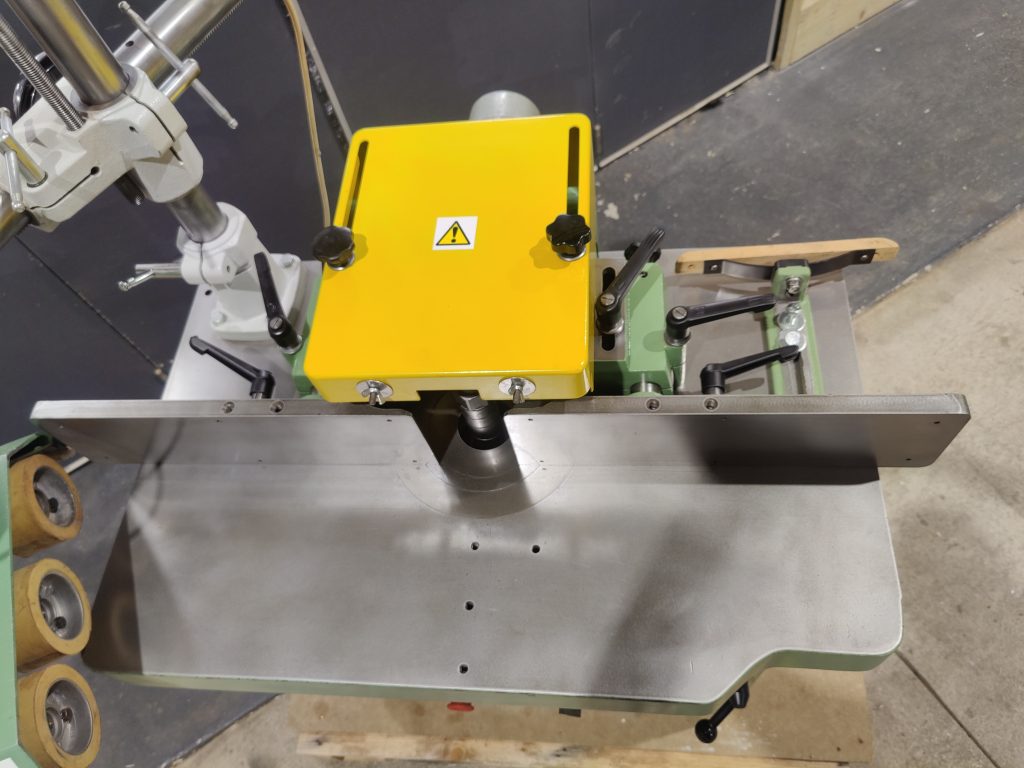

Micro adjustable fence hood assembly
2 x 120mm Exhaust hoods
Spindle speeds – 3000/4500/6000/8000/10,000 rpm
Motor – 4Kw (5.5Hp)
Electronic brake
Mechanical readout for spindle height

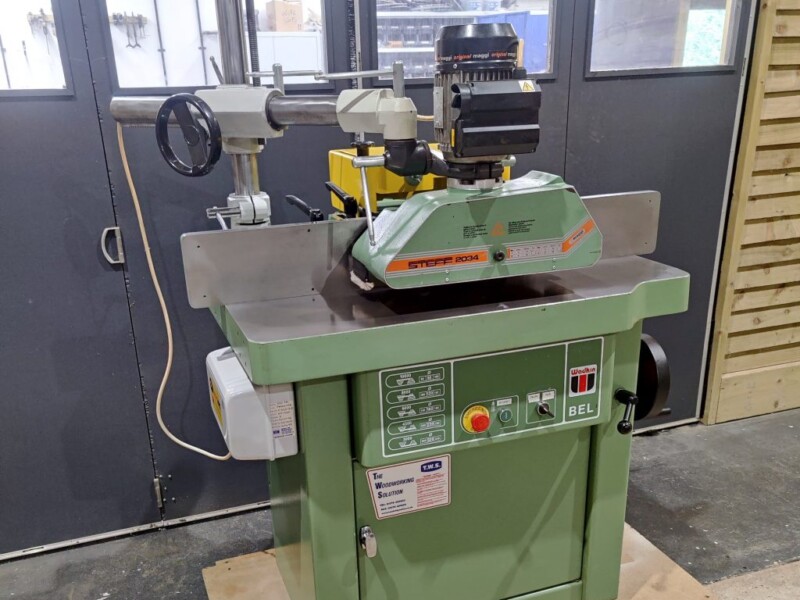

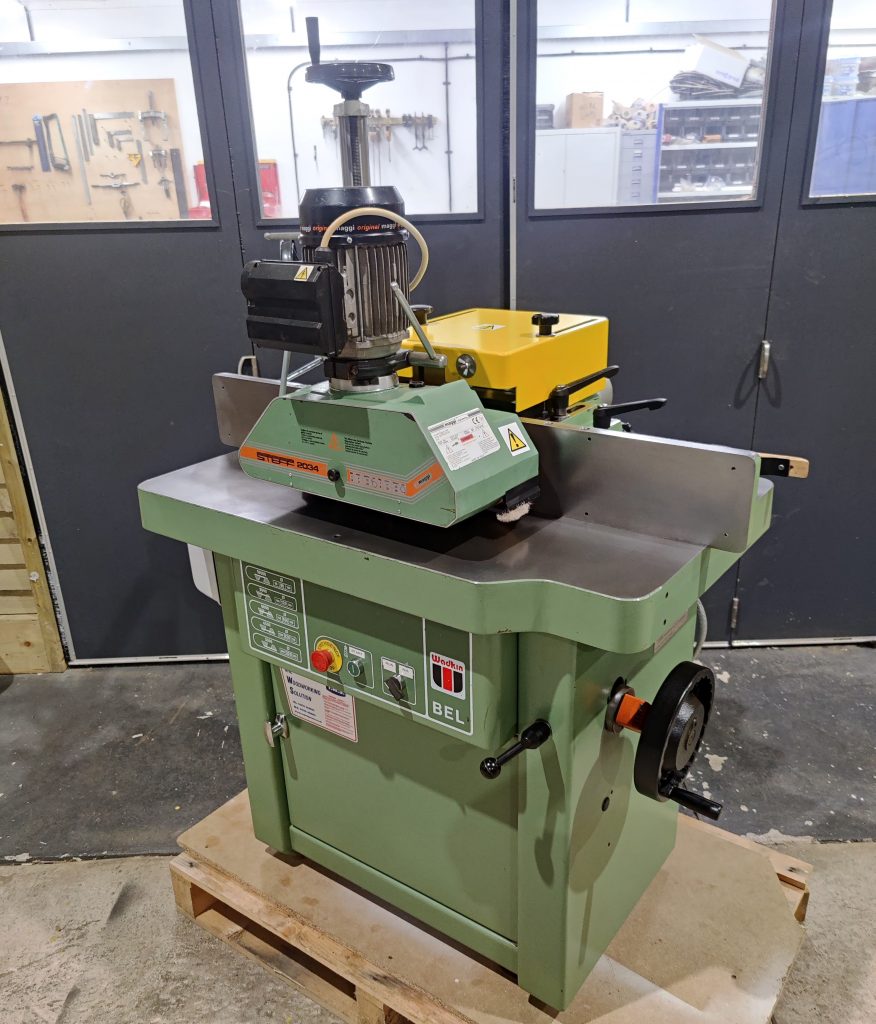

3 roller Maggi 2034 power feed unit



For more Spindle Moulders click here

Check out our EBay page here

Additional information

Table Size

1000mm X 650mm

Spindle Speeds

3000/4500/6000/8000/10,000 Rpm

Rise & Fall

Manual

Shaft Diameter

1 1/4″"

Fence

Micro Adjustable

Condition

Used
