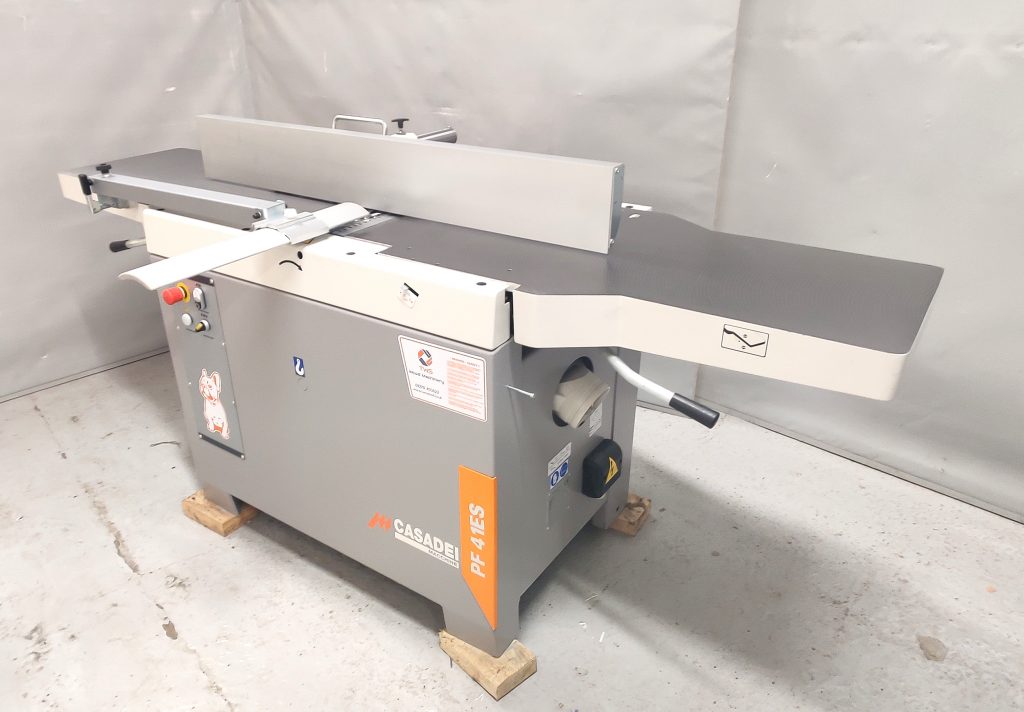

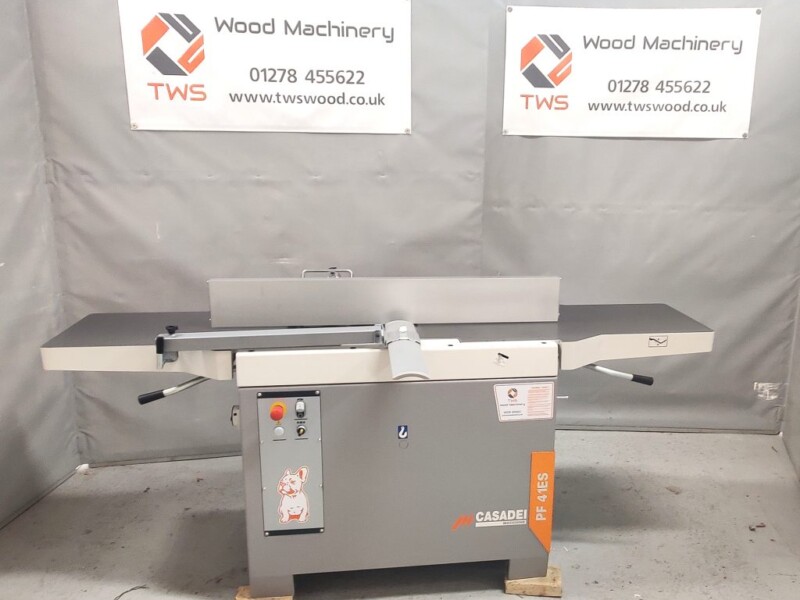

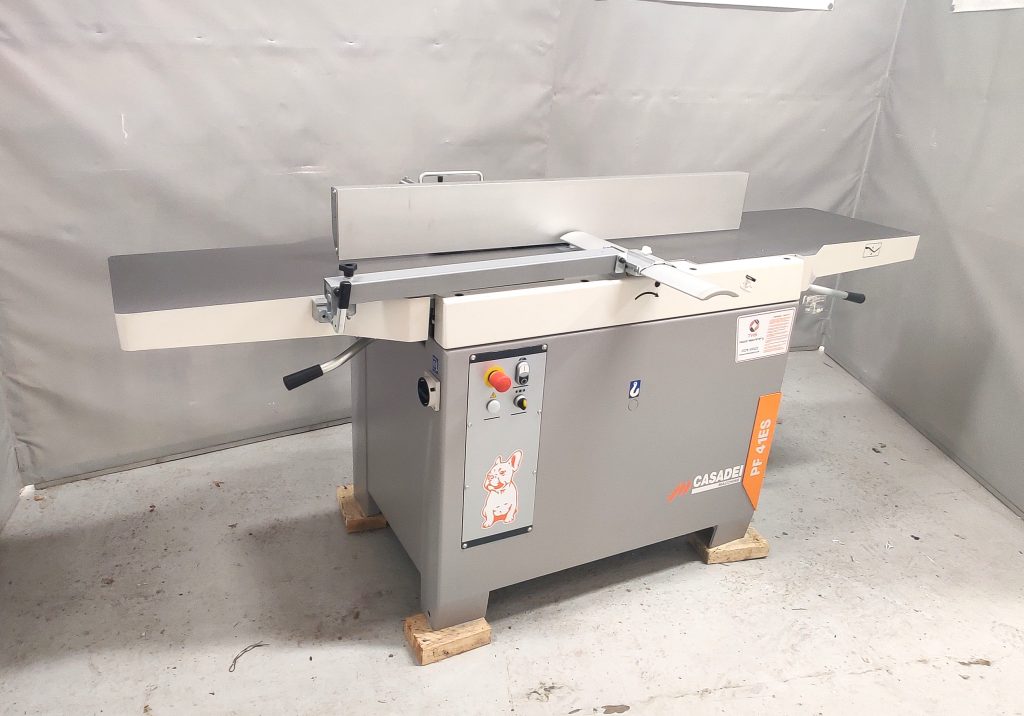

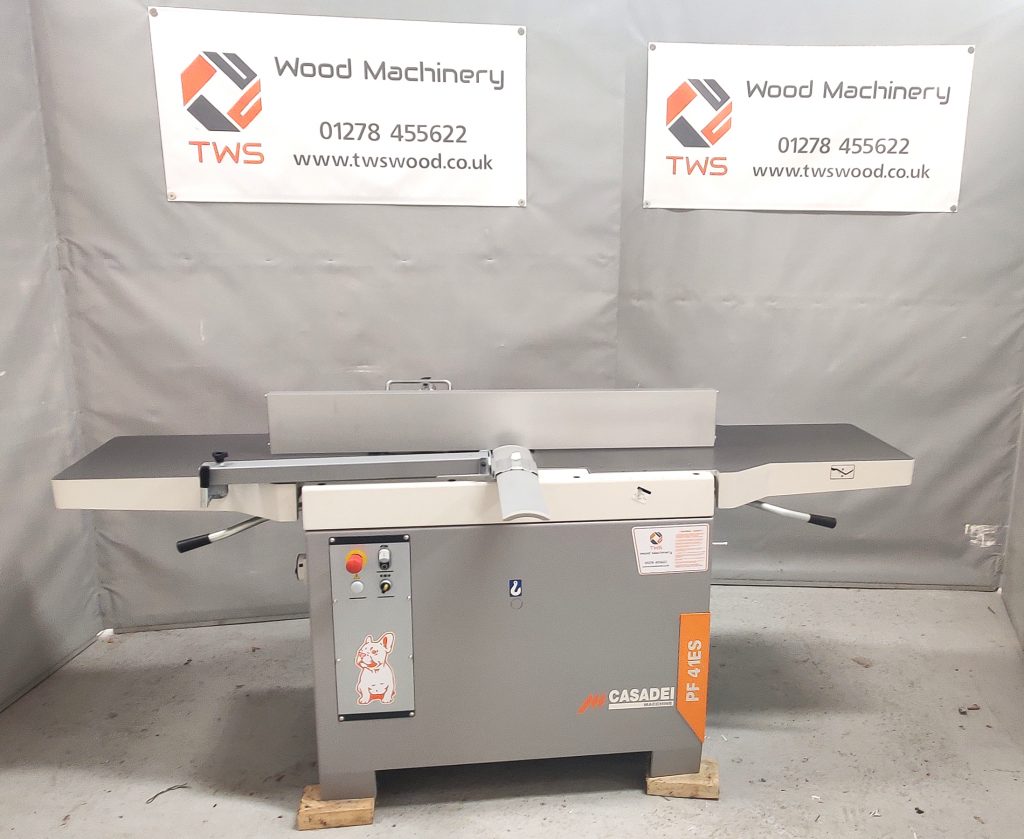

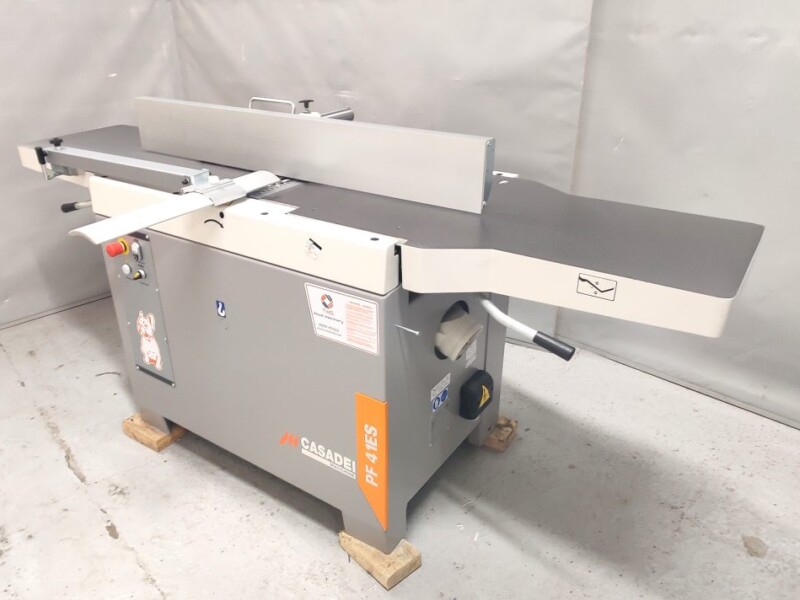

New Casadei PF 41 ES Surface Planer

£5,684.00 +VAT
Add to Quote
Category:

New Casadei PF 41 ES Surface Planer

410mm Surface planer

2200mm Surface table length

5Kw Motor Three phase 400 volt

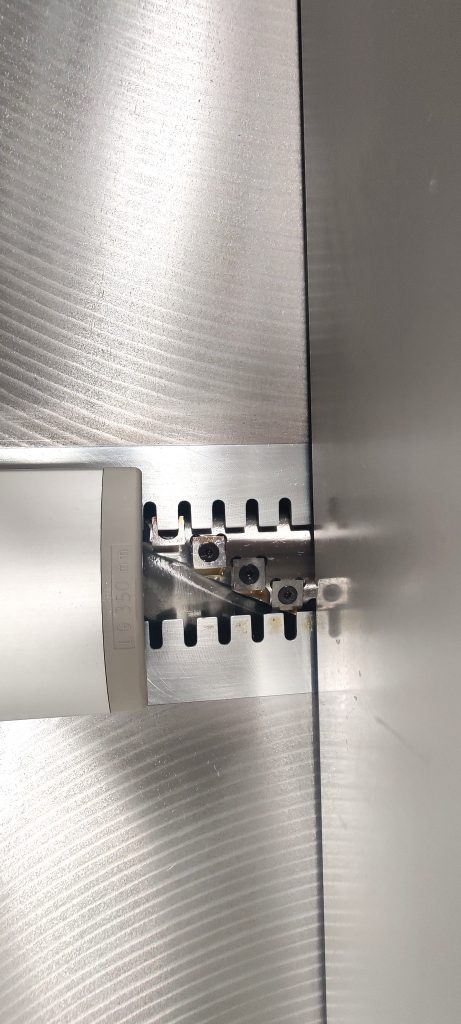

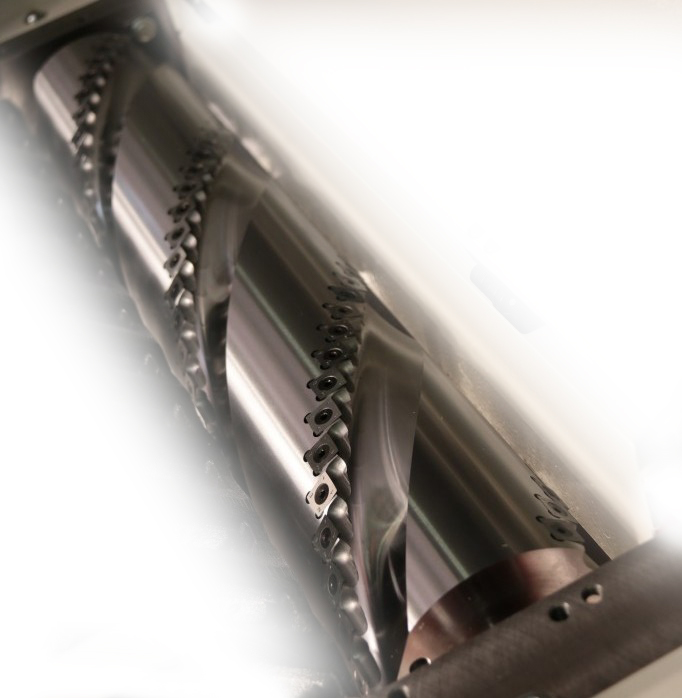

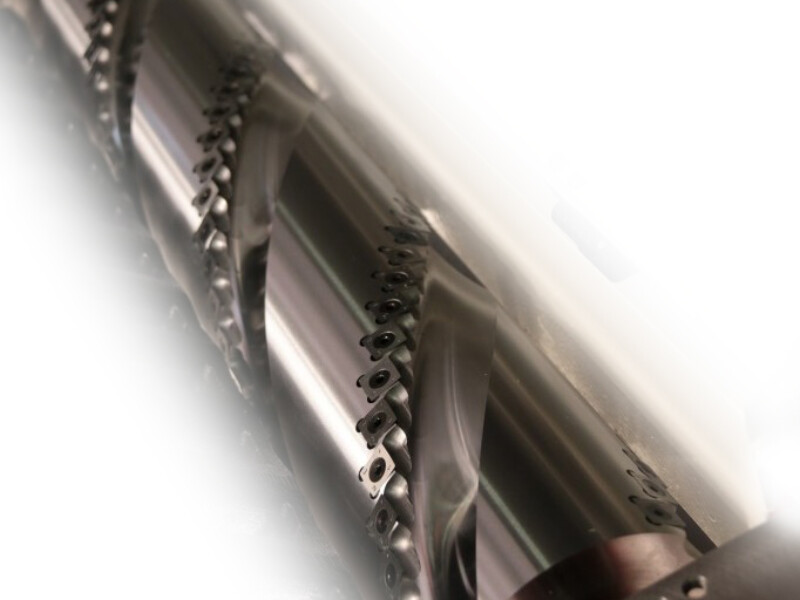

The New Casadei PF 41 ES Surface Planer has a Spiral Cutter block

Superior finish with a spiral knife cutterblock

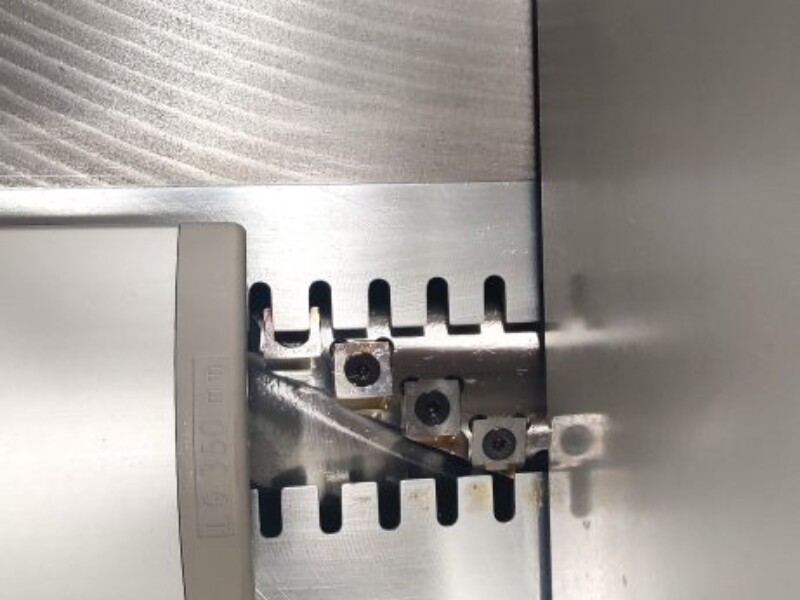

The Spiral Block design uses 3 lines of cutters with each cutter measuring 15mm x 15mm x 2.5mm thick. The cutters spiral around the block creating a shear cut angle to the wood. This puts less strain on the cutters meaning longer working time between knife changes plus a superior finish.

Benefits of using a spiral cutterblock

  1. As the Cutters are staggered, in the unfortunate event a foreign body is in or on the workpiece (eg: staple, tack or small bits of gravel) which damages the knife or cutter, rather than having to replace or turn over a whole traditional knife, you will only have to turn in the worst case 2 cutters  saving money and time.
  2. Spiral blocks run 10% quieter than a standard HSS block, meaning reduced noise whilst planning providing a quieter working environment
  3. Using Smaller Knives on a shear cut angle, the shavings produced are a lot smaller. This makes it easier for an extraction system to pull the waste away from the machine, keeping your work pieces and workplace cleaner
  4. The Cutters have 4 cutting faces, which can be rotated when worn, Increasing the time between complete knife replacement.

For more information on the spiral cutter block system and the Casadei PS41 Surface Planer please get in touch.



To View our range of Surface Planers Click Here

Additional information

Cutterblock Type

Spiral Silent Block

Number of Knives

4

Surface Table Length

2200mm

Surface Table Width

410mm

Condition

New
